WG1608 5G Router With EM160R EM160RGLAU-M21-SGADA LTE-A Cat16 4G m.2 wifi Wireless module 4g card router sim slot with
WG1608 4G5G Gigabit Router With Dual Band Gigabit 5G LTE Router with M.2 Key B slot for M.2 5G or 4G LTE-A EM12-G EM7455 modem
The new SoC includes proven hardware support for Network Address Translation (NAT), Quality of Service (QoS), SAMBA, Virtual Private Network (VPN) and others routing and tunneling applications. It is ideal for high performance 802.11ac, 5G and 4G LTE-A modems, hotspots, VPN routers, NAS, AC (Access Point Controller) and smart routers. Moreover, the MT7621A applies low-power technology and fits into the WG1608V2’s design with good power dissipation. The router provides for five (5) Gigabit Auto MDI/MDIX Ethernet ports (IEEE 802.3, IEEE 802.3u, IEEE 802.3ab), an NGFF M.2 Key B slot for 5G and 4G LTE-A modem modules, a SIM card tray, a USB 3.0 port, and a Micro SD card slot. Router Enclosure Size: 240mm x 136mm x 25mm At a glance: * MTK7621 chipset, 880MHz main frequency * 16MB Flash+256MB RAM * Dual band wireless rate, up to 1200Mbps * 5 Gigabit ports, 1 WAN port + 4 LAN ports * 1 USB 3.0 port + 1 TF / SD card slot +1 SIM Slot/Tray * 1 M.2 Slot for 5G cellular modules (4G LTE-A modules will also work with included screw kit)
Description WG1608 5G Ready Cellular Gigabit Router with Dual Band (2.4GHz-5.8GHz) WiFi The WG1608V2 5G Ready Cellular Router is a Gigabit Gateway Router with Dual Band (2.4GHz-5.8GHz) AC WiFi that is the absolute latest in cellular gateway internet routers.
The WG1608 is equipped with the MT7621, a powerful MediaTek processor. The MT7621, MIPS® 1004Kc™, Dual-core, CPU boasts a powerful clock frequency up to 880 MHz. The new SoC includes proven hardware support for Network Address Translation (NAT), Quality of Service (QoS), SAMBA, Virtual Private Network (VPN) and others routing and tunneling applications. It is ideal for high performance 802.11ac, 5G and 4G LTE-A modems, hotspots, VPN routers, NAS, AC (Access Point Controller) and smart routers. Moreover, the MT7621A applies low-power technology and fits into the WG1608V2’s design with good power dissipation.
The router provides for five (5) Gigabit Auto MDI/MDIX Ethernet ports, an NGFF M.2 Key B slot for modem modules, a SIM card tray, a USB 3.0 port, and a Micro SD card slot.
NOTE: The WG1608 is only a router which requires a modem for cellular internet. See below for different modem options. While the WG1608 5G is equipped with dual modem slots, only a single M.2 or Mini PCI-E modem may be used at any one time.
The router board’s (PCB) built in NGFF M.2 Key B modem slot and SIM Card slots makes it a great fit for all of the latest 4G LTE-A, and now 5G cellular modems.
Our new inventory of WG1608 routers include:
openWRT firmware from the factory 4 x MHF4 to SMA Bulkhead Antenna Connector Pigtails (pre-installed) 2 x Dual Band (2.4Ghz and 5Ghz) WiFi Antennas 4 x 5dbi high-gain 5G Cellular Antennas 12 Volt 2 Amp Power Adapter 1 x Screw, Spacer/Nut Ferrule to mount a 4G LTE M.2 Key B form factor modem Rack/Wall Mounts and associated screws Cat5e Ethernet Cable
WG1608 Accessories:
The SIM card tray on the front of the router uses a Standard sized SIM card, and a SIM Card Adapter Kit may be also be required when using a Nano or Micro sized SIM card (i.e., from a phone or hotspot device) .
The most popular Sierra Wireless M.2 modems to use with the WG1608 are the Sierra Wireless Cat7 EM7411, the Sierra Wireless CAT12 EM7565, and the Sierra Wireless CAT12 EM7511 (which has the AT&T FirstNet Band 14). These are 2×2 MIMO modems and will not use all 4 antennas on the router. Simply tape off the 2 extra antenna connectors. 4×4 MIMO 5G Sierra Modems are very very new to the market and will be available in the future.

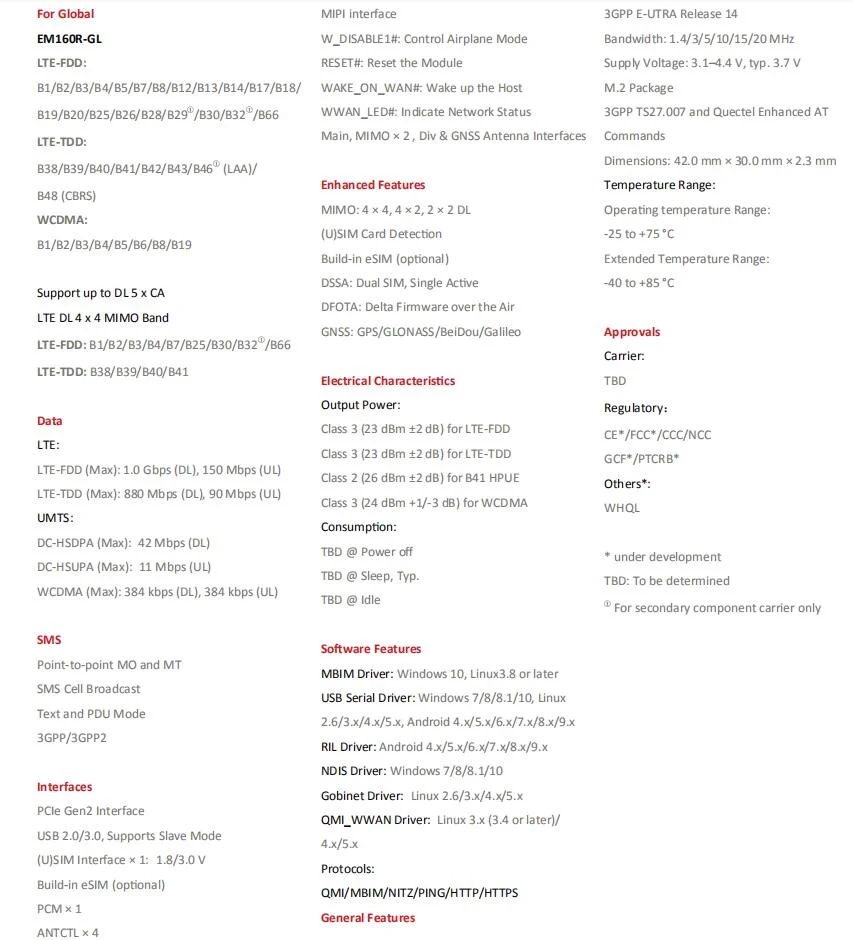

The most popular Quectel M.2 modems to use the WG1608 are the Quectel CAT12 EM12-G (2×2 MIMO) and the Quectel CAT16 EM160R-GL (4×4 MIMO).

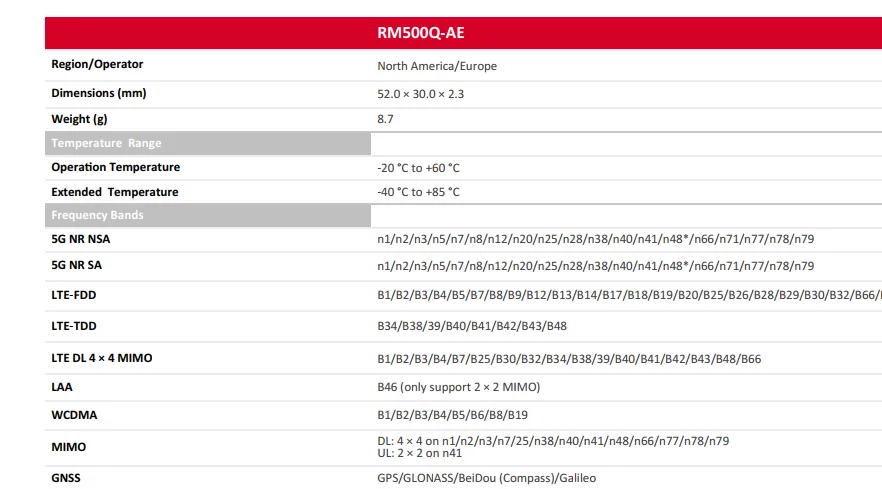

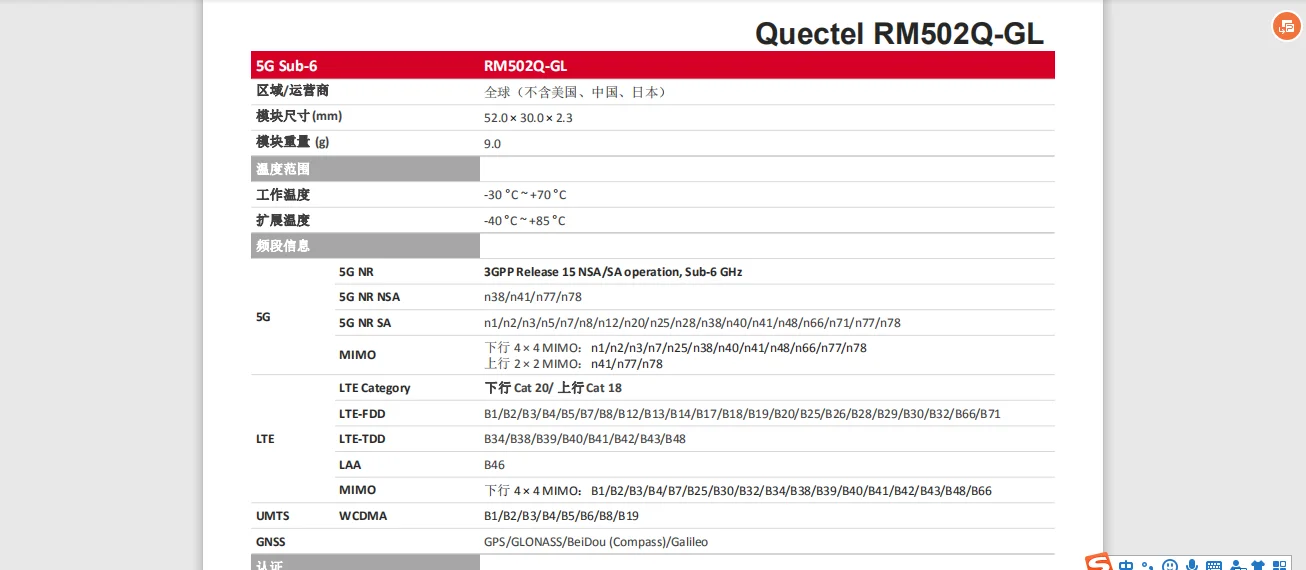

The Quectel EM12G,, EM06-A, EM160R-GL, EM120R-GL, RM500Q, RM510Q, and the Sierra Wireless EM7455 , EM7421, EM7511, EM7411, EM7565, EM9190, EM9191, and EM7690 are all M.2 form factor modems and will fit in the WG1608 router. This also includes the SIMCOM SIM8200G, FiboCOM FM150NA, and many others.
The newest 5G modems from all modem manufacturers are using a form factor that is 10mm longer than the 4G LTE modems. The WG1608 Router has a screw pillar in place for 5G modems already.
North American version(FM150-NA ):
Platform: Qualcomm sdx55 platform solution Support SA / NSA networking mode, support endc
If you don't know the 4G band used in your country, please open the following website: https://en.wikipedia.org/wiki/List_of_LTE_networks
