Arm length: 3.7~10m. Non-standard design can also be caught out according your requirement.

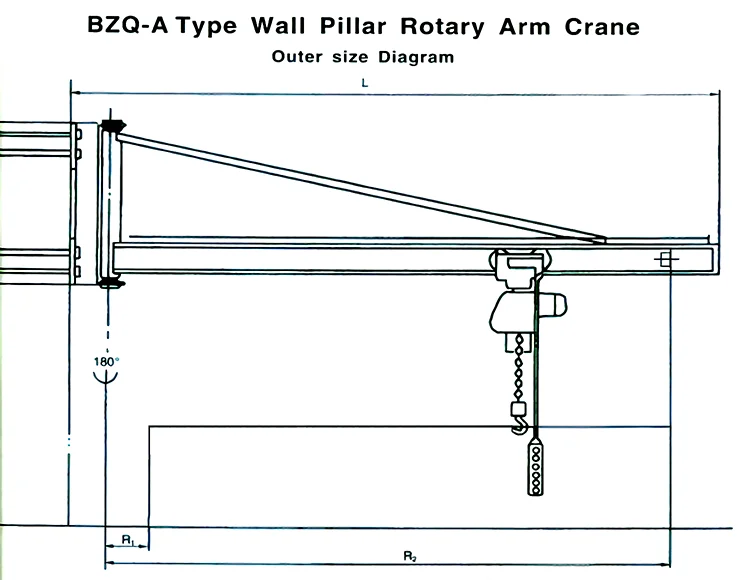

Structure:
The hoist: traverses through theⅠbeam under the armand liftsup and down;

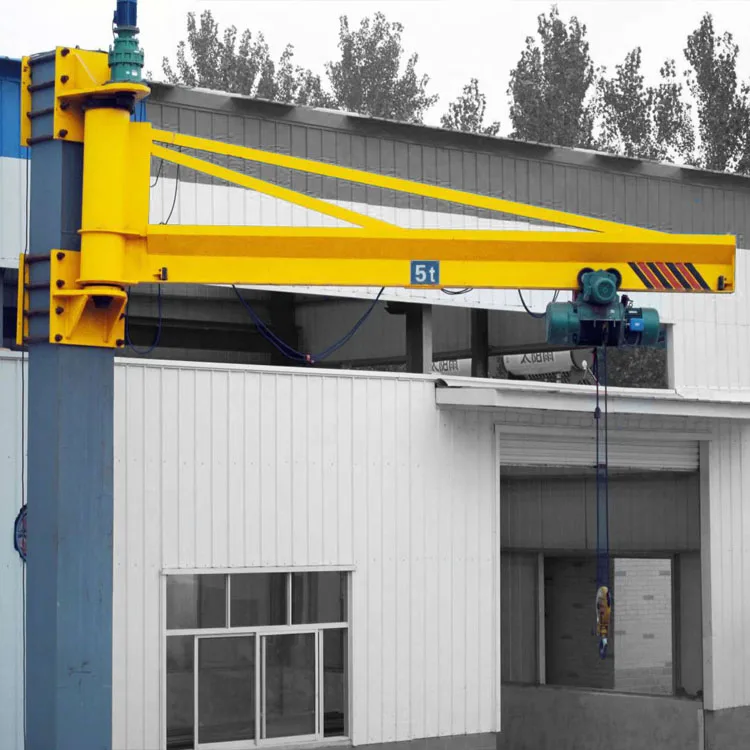

The arm: mounted on the wall ;
Application:BZQtypejib crane is one kind of light duty crane. This product is widely usedto transport,
assemble, check and repair as well as load and unload at workshop, warehouses, goods yard, outside area,
etc. With characteristics of unique structure, high efficiency, energy-saving, time-saving, effort -saving and
flexibility. It can work under three- dimensional space. It is especially advanced in the cases of short distance,
concentrated lifting.
Working condition:
It is prohibited to use the equipment in the combustible, explosive and corrosives environment.
The industry voltage is 3Phase AC, 380V, 50 HZ. It can be design by your requirement.
Product detail description:
1. Strong beams.One-time- forming on the main beam. This result in lower dead weight with a high degree
of rigidity and smallerloads;Which also can reduce distortion in conveying; make sure the accuracy;
improve the machine’s strength and working efficiency.One-body shaped, No welding for main beam box!
2. 180° rotation make the lifting space more larger!
2. Precise electric control system; Siemens and other international brand!
3. Durable performance and High efficiency!
4. Long working lifewith alow-maintenance!
Safety features:
1. Overload protection: If the materials or electric current overstep the capacity, the crane;
will give a sharp warning for protection itself;
2. Rubber buffers;
3. Current overload protection system;
4.Voltage lower protection function.
Operation model:ground handle or remote control
Motor: The lifting motor can be normal speed and low speed motor.
Technological parameter:
Lifting Capacity
T
0.25t
0.5t
1t
2t
3t
5t
Arm length
m
3.765~6.525m
Speed
Liftingspeed
Normal
m/min
4,8
4,8
8
4,8
8
8
Slow
1,2
1,0.8
2,0.8
1,0.8
0.8
0.8
Traveling of electric hoist
20
Rotation speed of beam
0.92
0.92
0.76
0.51~ 0.76
0.51
0.51
Operational Model
remote control; ground handle
Working Duty
A3
Power Supply
Three-phase A.C. 380V, 50Hz
