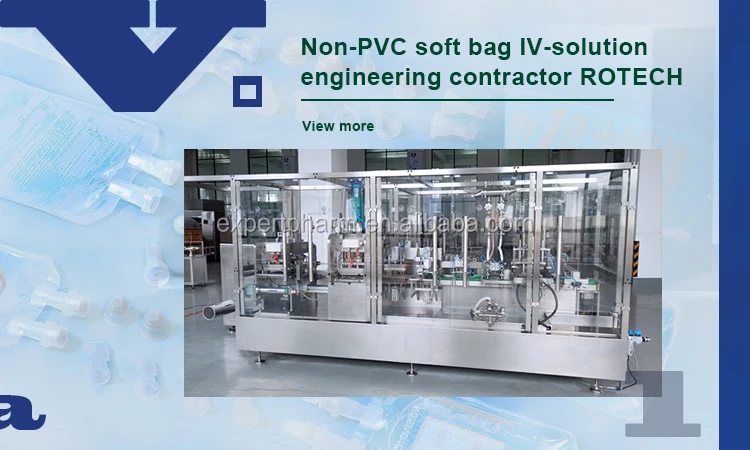

Non-PVC Soft Bag IV-Solution Production Line

Introduction

The machine is designed for pharmaceutical use according to the GMP and FDA guidelines. It is designed for forming, filling and sealing two bags, each of them provided with two SFC-ports per cycle.



Features

(1)Precise temperature control

Temperature error can be controlled within ± 0.5 ℃,Precise temperature control device can be used to ensure that all qualified membrane.

(2)Zero-tolerance manufacturing process

To ensure that mold flatness and parallelism tolerances within the 1% mm,easy-replacement,no-adjustment,no-layer.

(3)Advanced industrial network

System uses advanced communications network,All kinds of industrial equipment connected to the network. Simplifies the hardware connection, Reducing the use of the wrong point, the difficulty of reducing the use and maintenance, reducing the number of workers,Streamlined device structure.

(4)Simple design

Simplicity is the ultimate sophistication.

To ensure that equipment is stable and efficient,at the same time,let the simplest device structure,the easiest operating,debugging and aegis. Reduce the demands for the quality of workers,Reducing the number of workers.

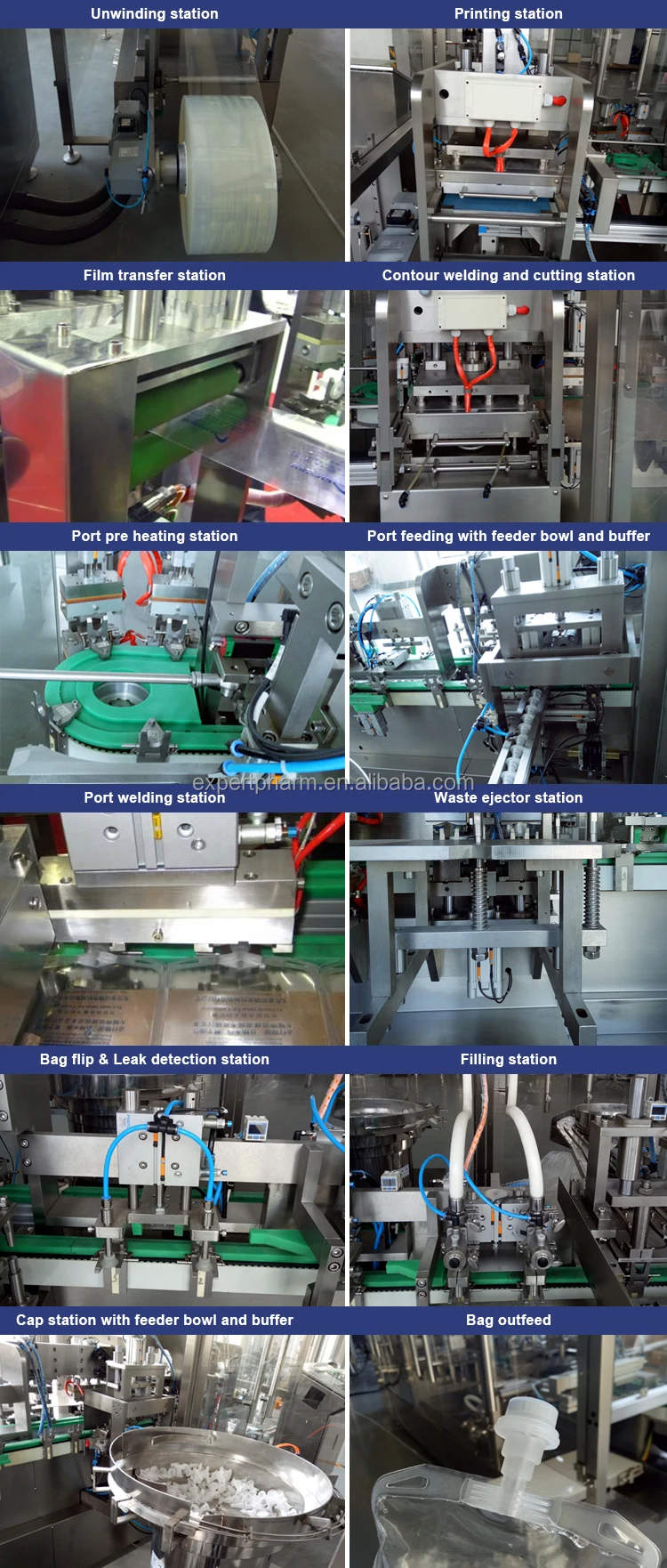

Detailed pictures

Technical Parameters

Soft bag type	CS2 type(2 bags/group)	Remark
Film	PP double wound multilayer flat film(3 layer/5layer) confirms to production requirements
100ml/250ml	2500 bags/hour	The data needs to meet the following conditions: Filing pressure 0.40Mpa /Conpressed air 0.75Mpa
500ml	2400 bags/hour
Filling pressure	0.2Mpa-0.4Mpa
Filling tempreture	Max.55° C
Filling accuracy	+/- 1.0 %
Product connection	50.5 standard Tri-Clamp
Online disinfection	Max.125° C CIP Standard equipment only provides the disinfection for pipeline interface components.
Pass Rate	Min. 99.9% (based on the qualified materials and non error operation) Leakage rate Max.0.001%
Waste angle reject ratio	99.99%,  wirh independent waster angle collecting tank
Power	3Phases 380V 50Hz /CS2: Max. 10kw
Compressed Air	0.5Mpa~0.75Mpa, drying oilless compressed air CS2:about:1800L/min
Cooling Water	Null(Cooling module can be increased according to customer requirements)
Nitrogen	Be increased according to customer requirements
Room Tempreture	Recommend : 20 °C – 24 °C
Air Humidity	Recommend : 45%-65% /Max.85%
Temperature Control Accuracy	Stable Running Tempreture Control Accuracy +/- 0.5° C The Start-Stop control accuracy +/- 1.5° C (Bag-making molds/Port welding molds/Port preheating molds)
Welding cap error	Max.0.1mm
Noise	Max. 75dB
