PRODUCTS DESCRIPTION
Hot Sale 5T Gantry Crane Price | Get Quotation Online Now

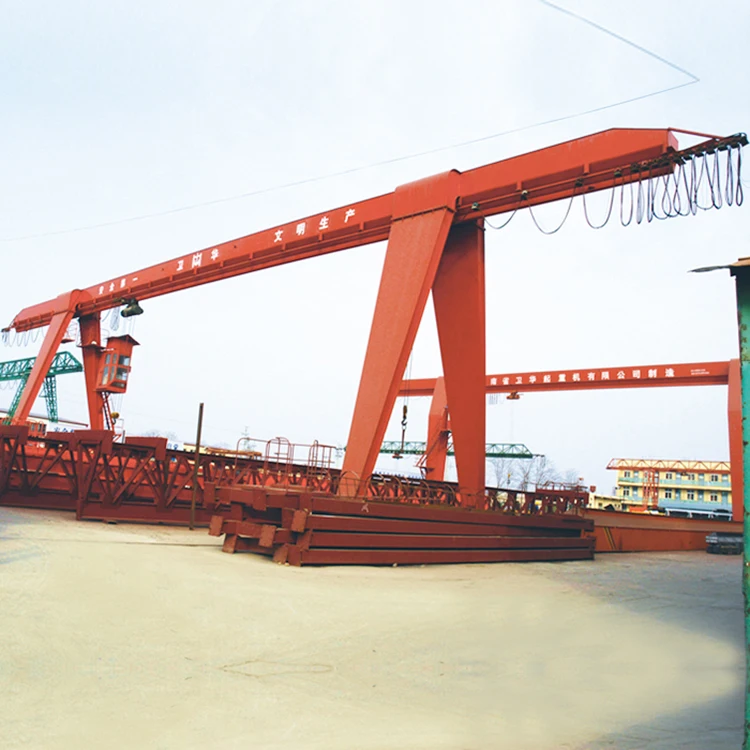

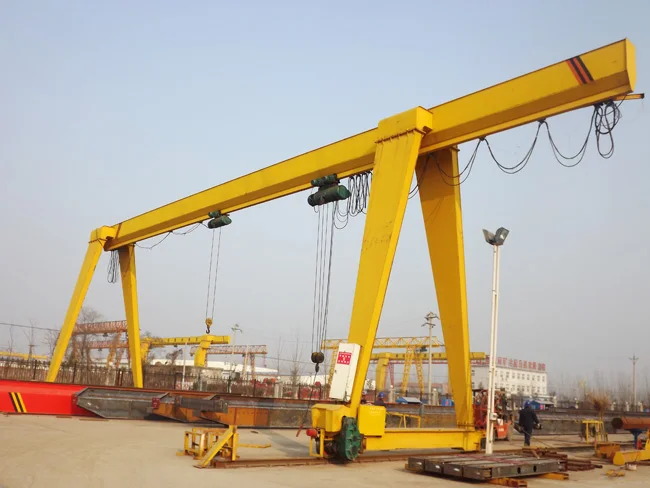

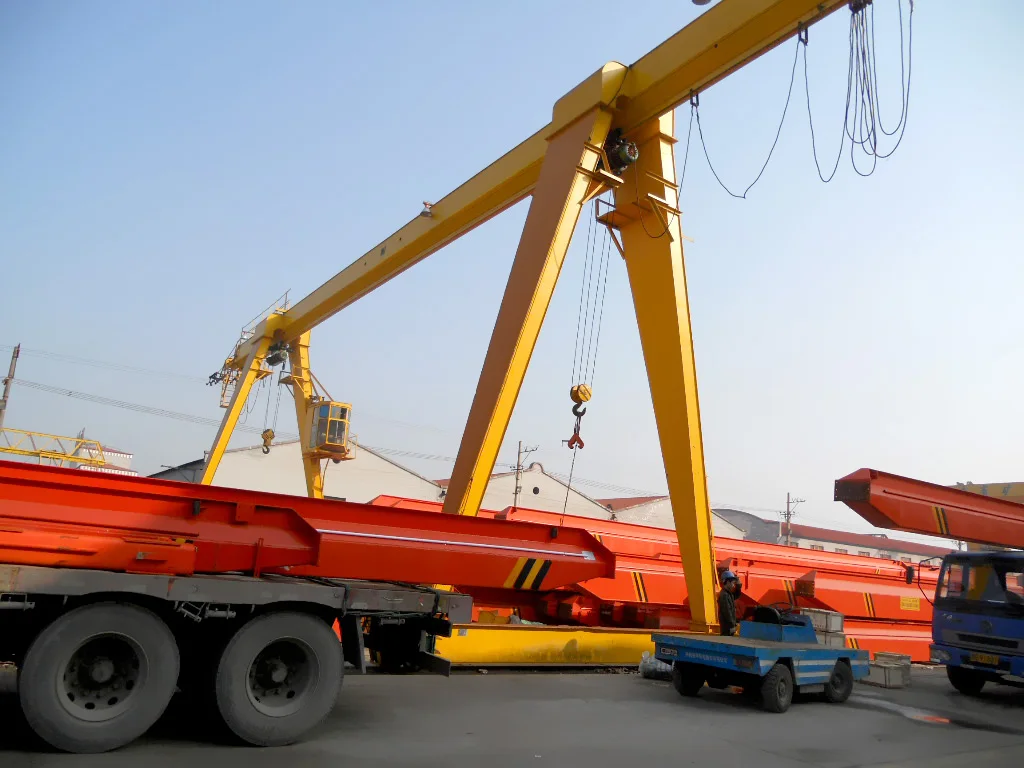

Single girder gantry cranes are used for many applications in the everyday life of the industry. They are more compact, more economical and need less space than double girder gantry cranes.
It is an alternative to customers in terms of overhead cranes. It is generally preferred in short spans. However, there is no limitation in term of sizes, capacity, and manufacturability.
Single girder gantry cranes can be produced with or without cantilever. It has the ability to be used either in closed and open areas like inside factories and outdoors. it is used in many areas like iron and steel workshops, marble quarries and warehouses.
It is an alternative to customers in terms of overhead cranes. It is generally preferred in short spans. However, there is no limitation in term of sizes, capacity, and manufacturability.
Single girder gantry cranes can be produced with or without cantilever. It has the ability to be used either in closed and open areas like inside factories and outdoors. it is used in many areas like iron and steel workshops, marble quarries and warehouses.
FEATURES AT A GLANCE
1. Single box beam with steel legs moving through the ground beam as crane travelling system
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrification and outfitting
7. Brand: SIEMENS Schneider etc.
8. Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrification and outfitting
7. Brand: SIEMENS Schneider etc.
8. Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.
PRODUCT CONFIGURATION
MH model single girder gantry crane consists of 5 main parts, namely, the bridge structure, A-frame support legs, the
traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity. The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity. The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
PRODUCT SPECIFICATIONS
Capacity | 3t~20t |
Span Length | 8~35m |
Lifting Height | 6~18m |
Working Class | A3-A4 |
Lifting Speed | 0.33~8m/min |
Trolley Traveling Speed | 20m/min |
Crane Traveling Speed | 20m/min |
COMPANY PROFILE
PRODUCT PACKING
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
