GENERAL DESCRIPTION

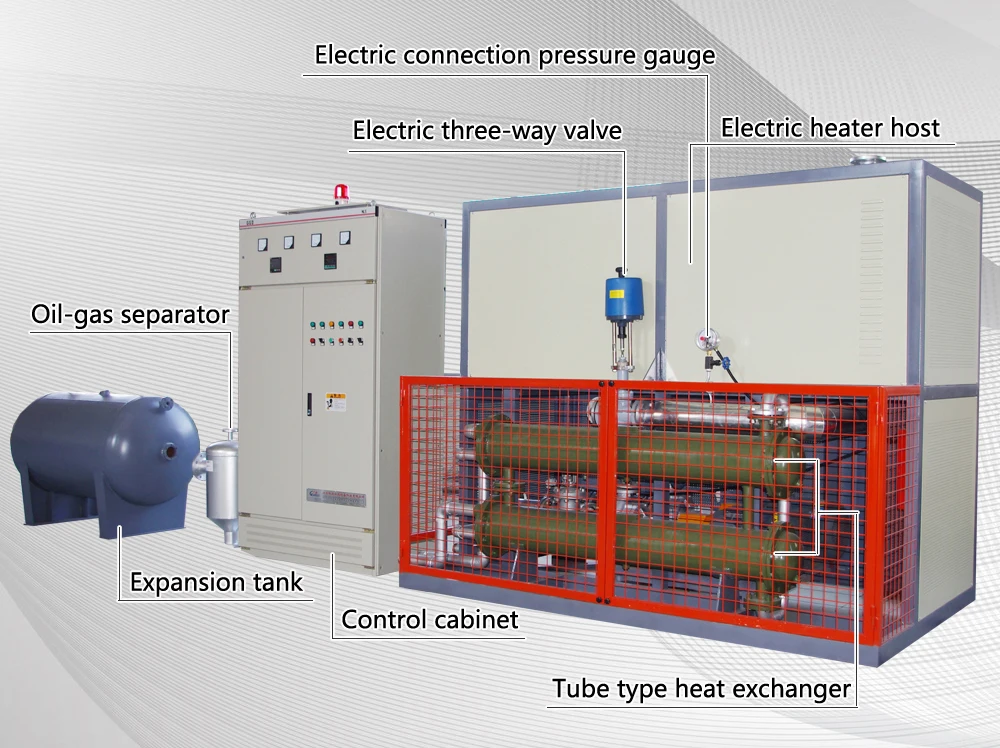

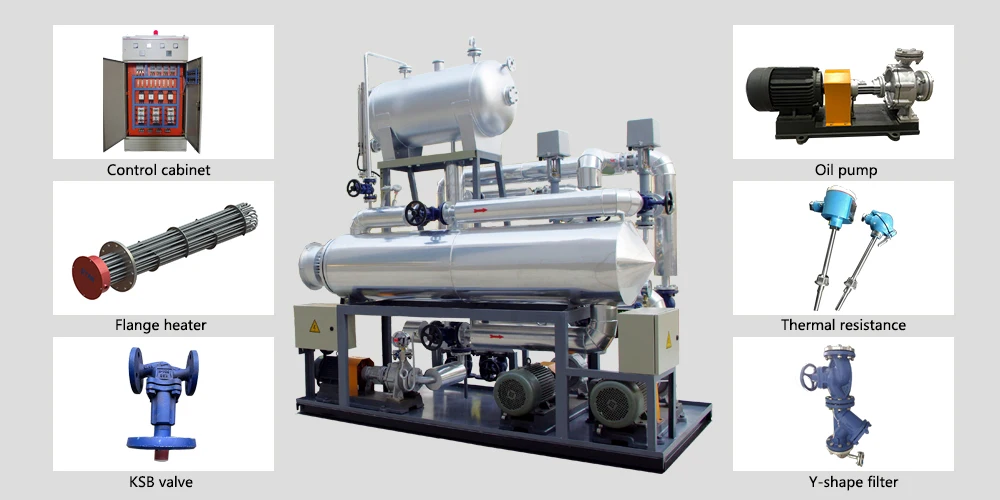

Electric heating thermal fluid (hot oil) heater consists of the main parts (including electric heater host , high-temperature oil pump and Y-shape filter) expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance. Electricity as energy source, covert electric energy into heat energy through flanged immersion heater. The organic heat fluid (hot oil) as heat transfer medium is circulated in the whole system pushed by oil pump. And then the using-heat equipment takes heat from the hot oil, which returns back to the boiler after heat exchange. So it is an organicheat circulation system.




Working Principle

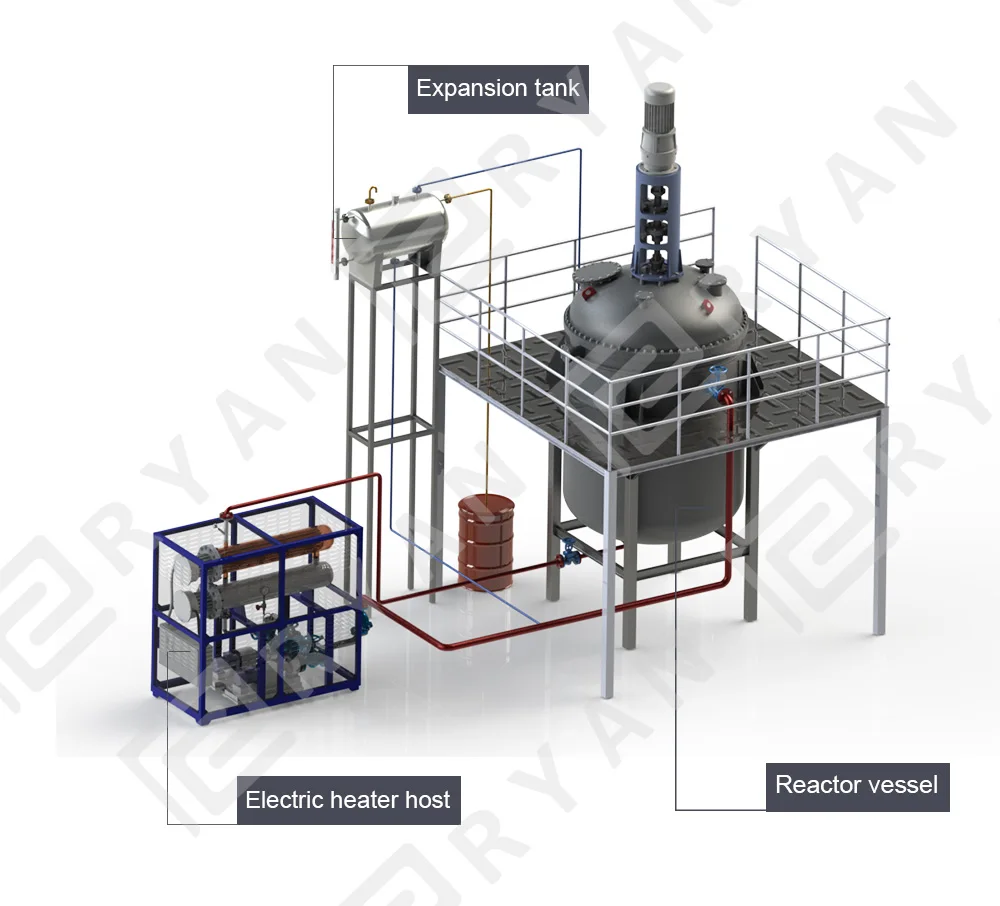

It is a type of indirect heating in which thermal oil as a liquid phase heat transfer medium is heated and circulated to one or more heat energy users within a closed loop system. The electric heating tube is directly inserted into the thermal oil for direct heating. A circulating pump is used to create liquid-phase circulation of heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment. This process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled. At the same time, the heat user must have a jacket or coil to facilitate the circulation of hot oil.




PARAMETERS


Model
GYD
Net Heating Capacities
10-1,400 KW(8-1200 Mcal/h)
Energy Source
Electricity (electrical heating)
Voltage
To be determined
Rated Power
To be customized
Structure
Welding
Heat Transfer Medium
Thermal Oil
Thermal Efficiency
More than 95%
Pump
Horizontal Centrifugal Pump
Pressure
Low Pressure( less than 0.5Mpa)
Temperature Controller
PID (brand to be customized)
Circuit Control
Solid State Relay (SSR)
Environmental Impact
No Pollution
Temperature Control Precision
Less or more 1°C
Operating Temperature
Up to 340°C
Auxiliary Equipment
Without
Explosion Proof
To be customized
Service Life Period
Between 8 to 10 years
Operating Type
Full Auto
Testing
Pressure test and Functional Test


Product Features


Low working pressure
Liquid phase transport heat energy can reduce working pressure and get high temperature, heat carrier is smaller than the water saturation steam pressure 70 to 80 times, general heating is less than 0.5 Mpa.
High heating temperature
Electric heating thermal oil heater can reach a temperature of 340°C under the low pressure and the heating temperature automatic control. When the heating temperature is up to 300°C, the working pressure is just one seventieth of the saturated steam pressure.
Environmental protection design
Electric heating thermal oil heater is provided with new electrical heating system, using electricity instead of coal, saving cost, protecting environment without pollution.
High thermal Efficiency
Electric heating thermal oil heater can reach the efficiency of 95%, and achieve stable & even heating and accurate temperature control.



Typical Applications


Process reboiler                    Heated molds and dies             Radiator and heat exchanger

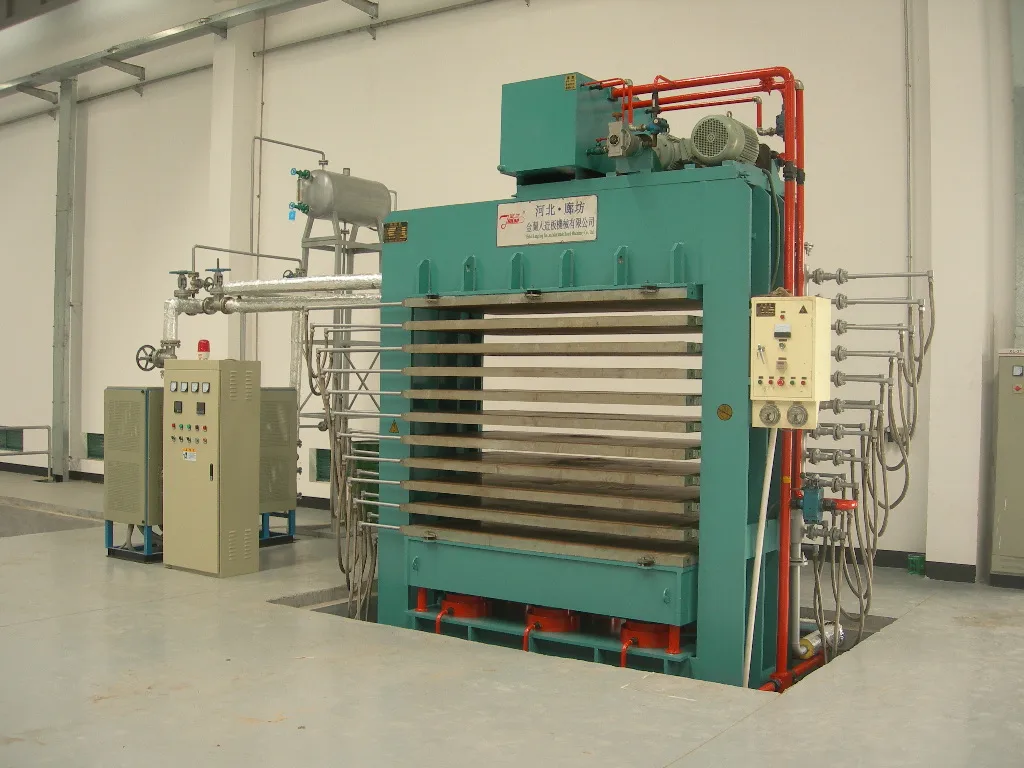

Reactor vessel heating        Platen/Press heating                  Hot mill and roller
Calender roll heating           Ovens and drying tunnel           Plate heating




Details For Coil Thermal Fluid Heater




Delivery & Packing


Delivery time: Machine will be shipped within 30 working days (or on request) after payment, our technician will test the machine well before shipment, so our customers can use directly when got the machine.
Packing: plywood case. Machine will be wrapped with plastic film and then put into plywood cases before cleaning.
