8 дюймов всасывающий 6 доставки многочерпаковый экскаватор для добычи Дракон
- Категории: Земснаряд >>>
- Поставщик: Qingdao,Head,Dredging,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details

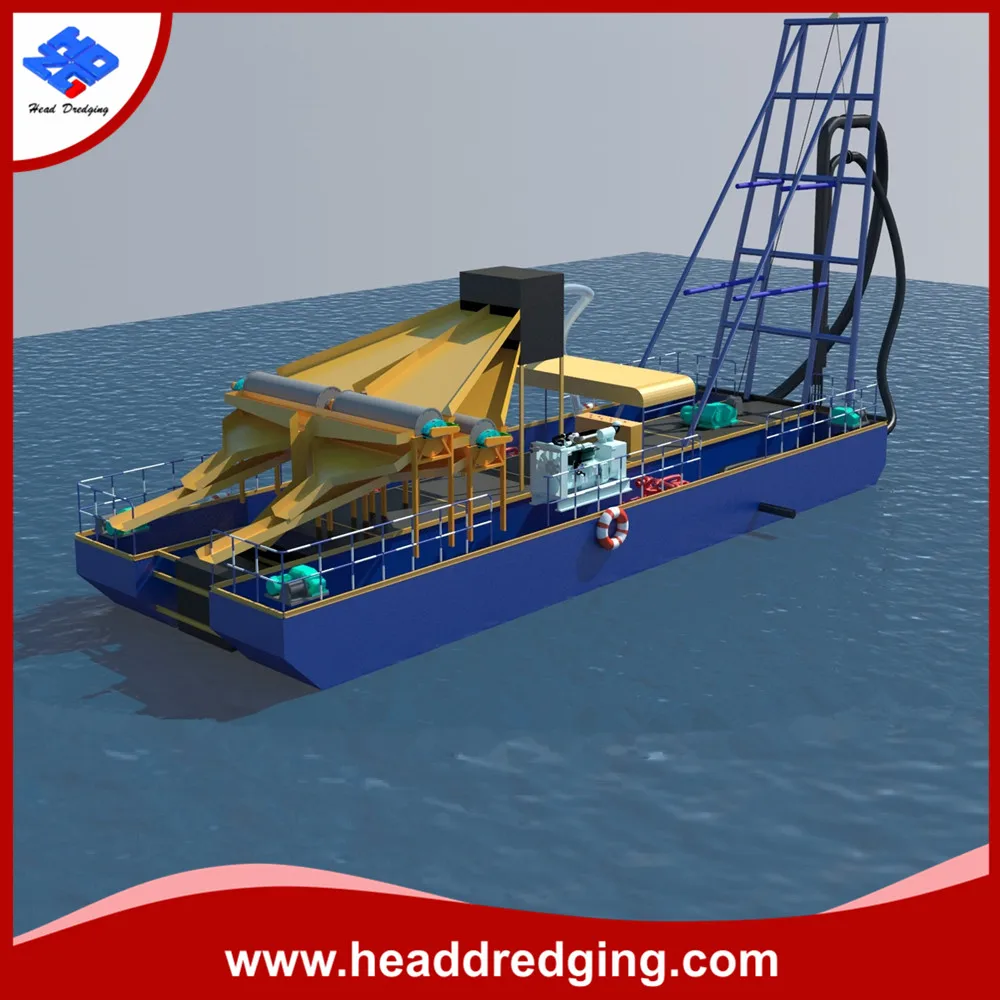

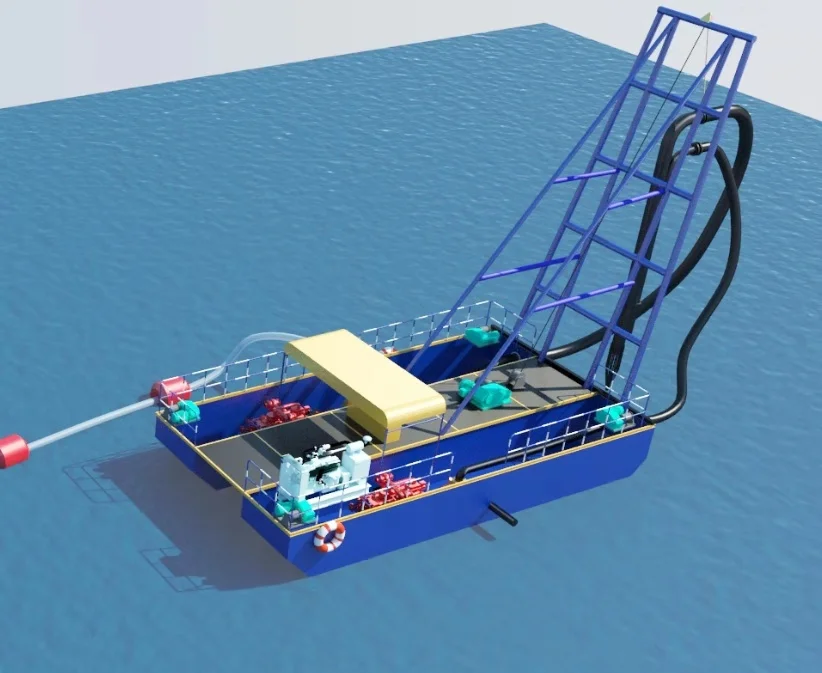

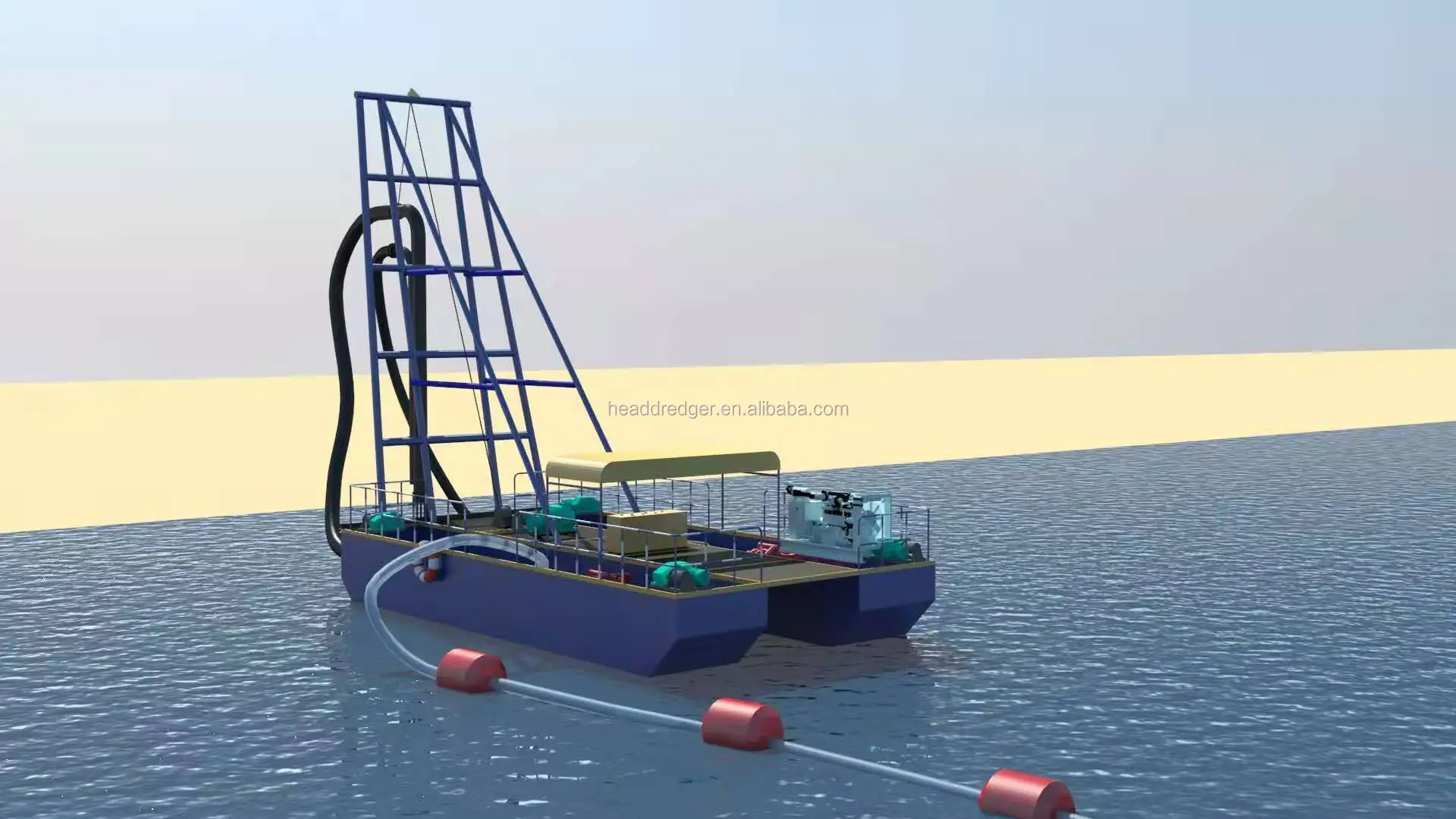

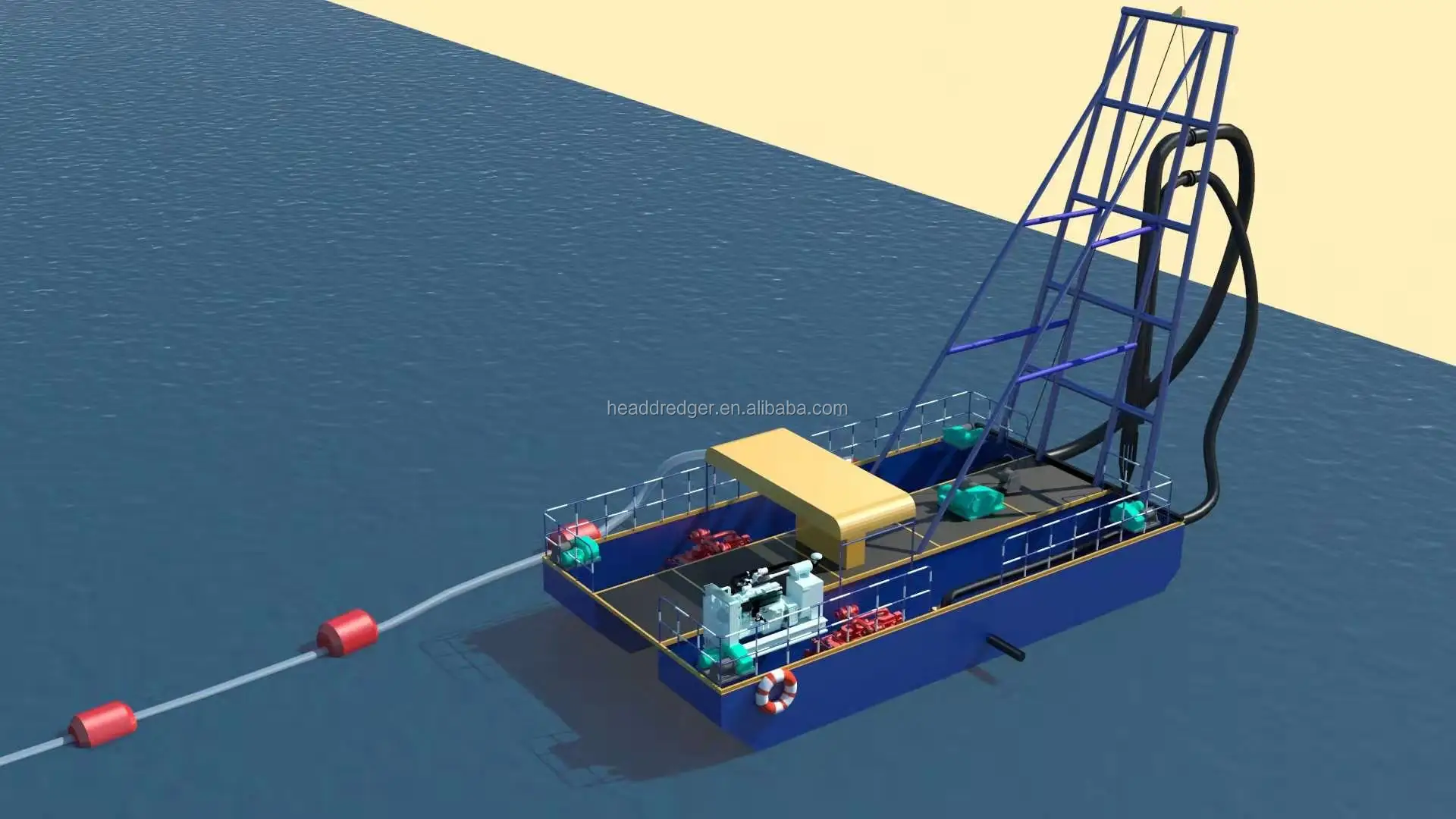

The Jet suction dredger used for sands lifting especially in Africa area with loosen sands in river.
The dredger is easy to remove from one place to another.
Specification
No. | Principal Particulars | ||
1 | Model | 200 | |
2 | Manufacture time | 20 days | |
3 | Suction depth (m) | 10 | |
4 | Mixture flow (m3/h) | 400 | |
5 | Delivery distance | ||
1)max. (m) | 200 | ||
2)pump head (m) | 5 | ||

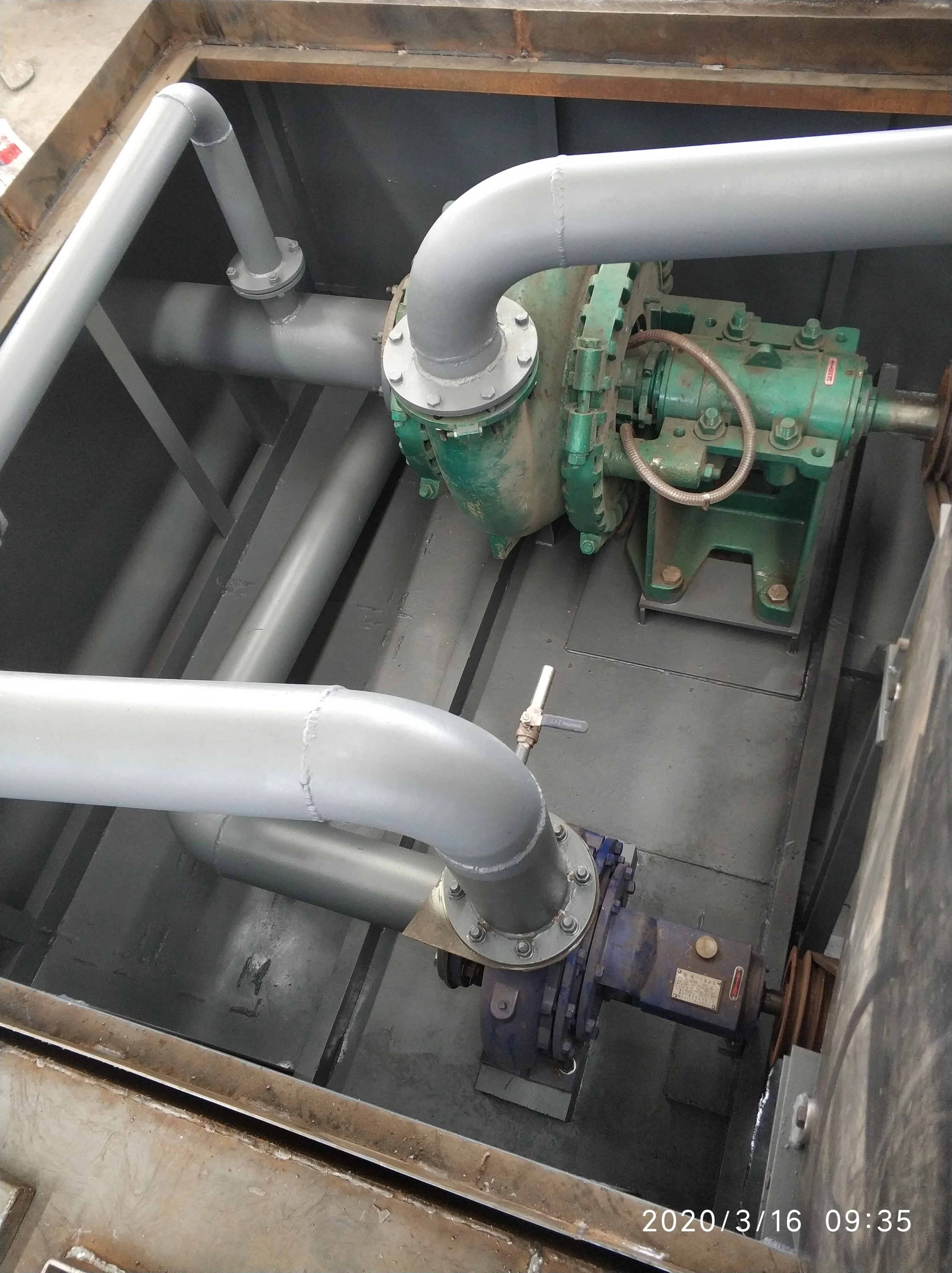

6 | mud pump | ||
1) model | 150 | ||
2) manufacture | SGB | ||
3) water flow (m3/h) | 400 | ||
4) Speed (r/min) | 1100-1250 | ||
5) Suction pipe diameter (mm) | 200 | ||
6) Delivery pipe diameter (mm) | 200 | ||
7 | Boat size of the jet suction dredger | ||
basic size | |||
1)boat length(m) | 7 | ||
2)boat width(m) | 3.2 | ||
3)boat height(m) | 1.1 | ||
4)draft (m) | 0.7 | ||
C. hull | |||
1) L(m) | 6 | ||
2) W(m) | 3.2 | ||
3) H(m) | 1.1 | ||

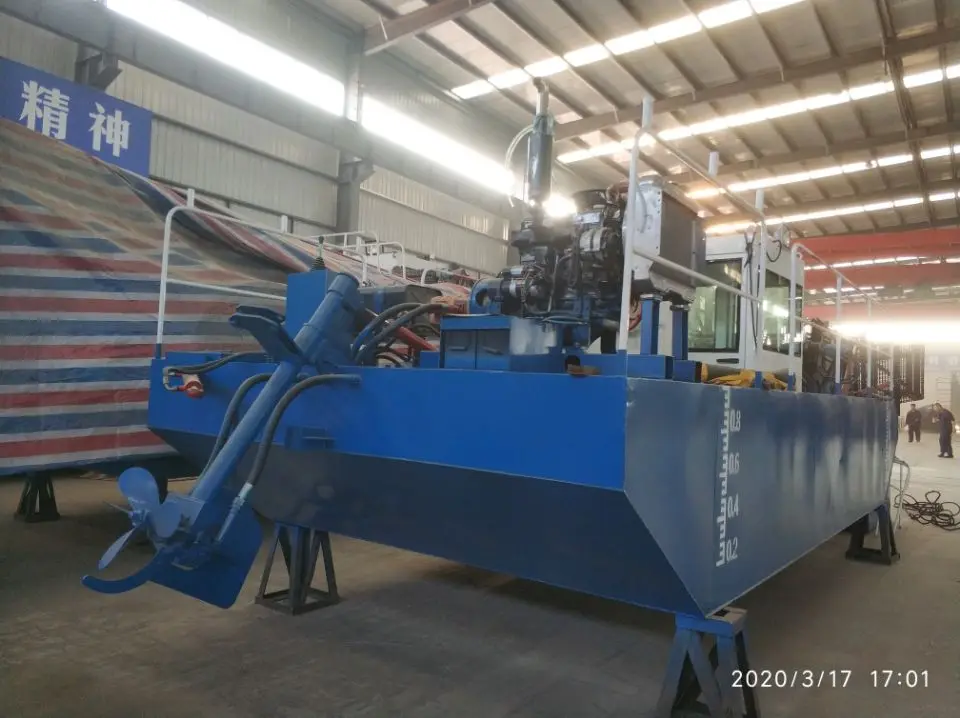

8 | steel board | hull | |
1) Base Plate (mm) | 6 | ||
2) Side Plate (mm) | 5 | ||
3) Deck Plate (mm) | 5 | ||
9 | engine | ||
1) Maker | HUADONG | ||
2) model | 6DR | ||
3) Power(kw) | 145 | ||
4) Coiling | water cooling with fan | ||
5) start | electrical start | ||
10 | engine | ||
1) make | HUADONG | ||
2) model | 4100 | ||
3) power(kw) | 40kw | ||
4) cooling | water cooling | ||
5) start | electrical start | ||
11 | jet pump | ||
flow | 224m³ | ||
head | 21m | ||
power | 22kw | ||
12 | jet | ||
Length | 4m | ||
diameter | 219mmsuction pipe,159mm jet pipe | ||
13 | mast | ||
height | 6m | ||
