Уличный светодиодный прожектор для аэропорта спортивной площадки Бейсбольного поля 15 м 25 30 20 высокий полюс Мачтовый светильник 1200
- Категории: Высокомачтовые светильники >>>
- Поставщик: Shenzhen,Focus,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Details Images

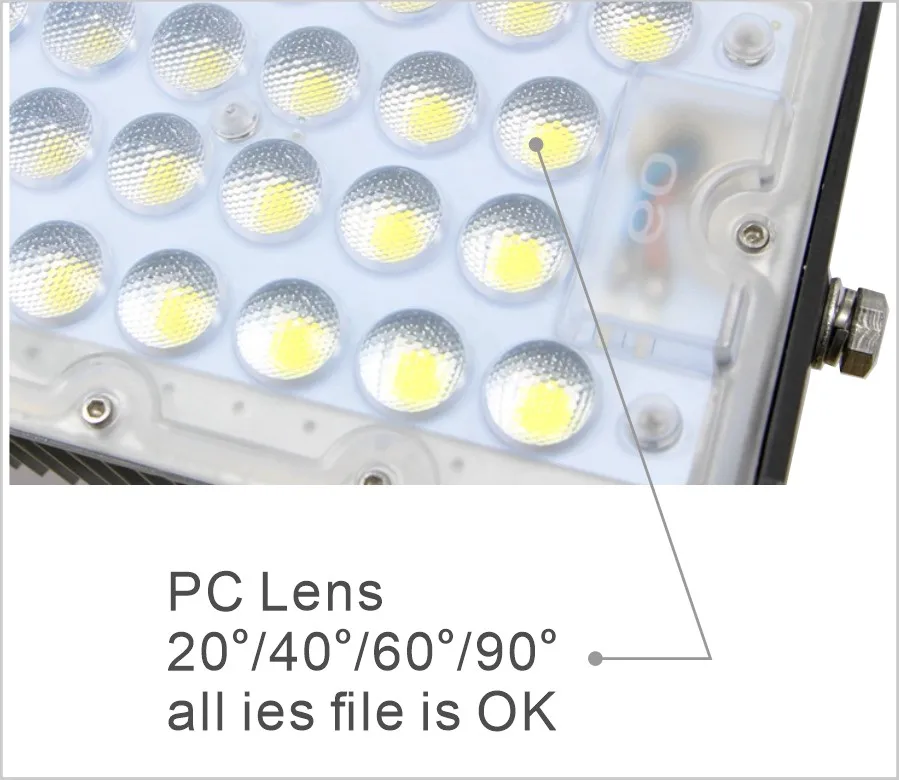

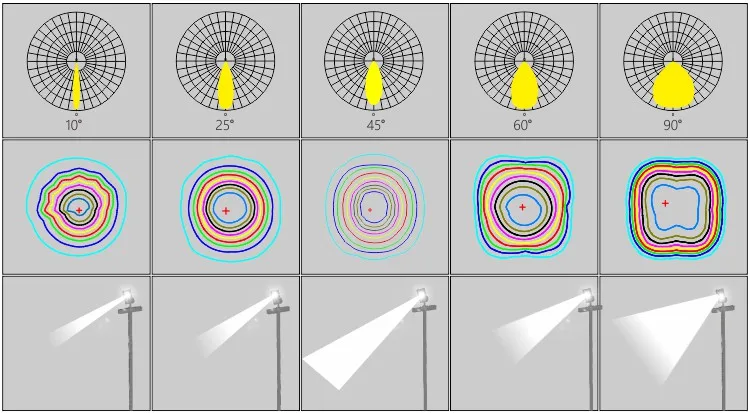

All beam angle optional:
Family Product
120W-1440W , 160lm/w high mast light
Power | lumen | Electrical parameters | Product dimension |
120W | 18,600lm | Input voltage: AC110V-277V, CRI: Ra70, Ra80 CCT: 2700K-6500K Beam angle: 10°/20°/40°/60°/90° PF: >0.95 Suger protection: 6KV +10KV/20KV SPD IP66 / IK08 Work temperature: -40℃ ~ 50℃ Warranty: 5 years | 297*362*132mm |

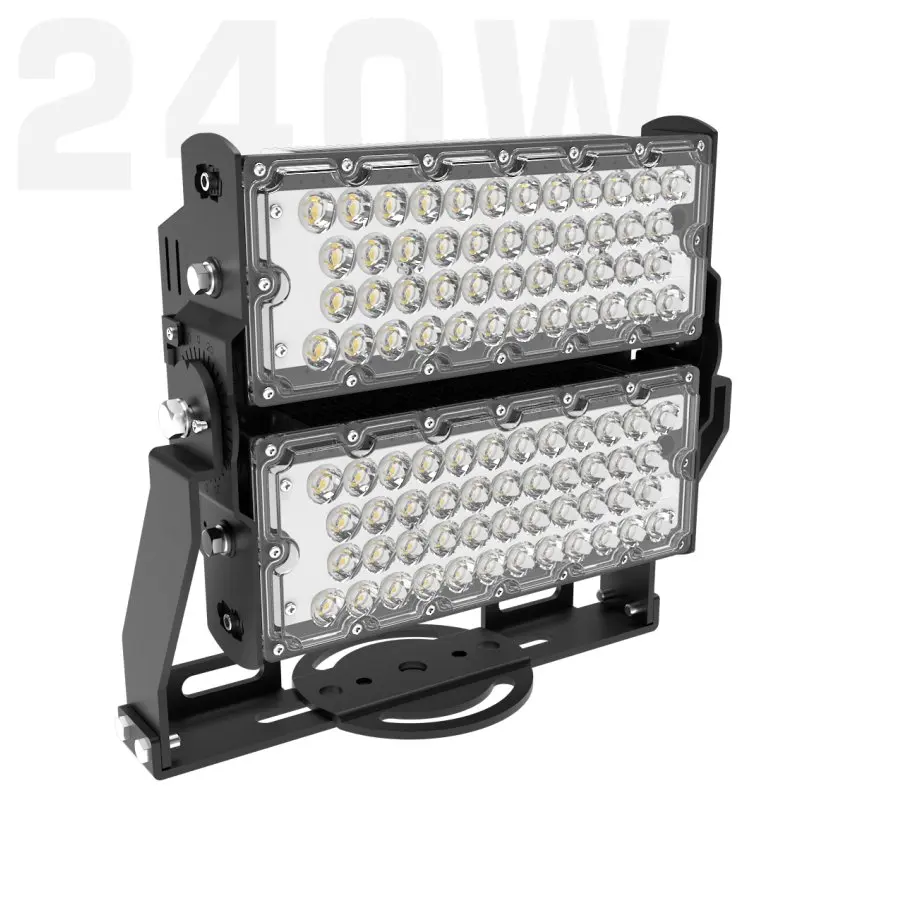

240W | 37,800lm | 342*362*132mm | |

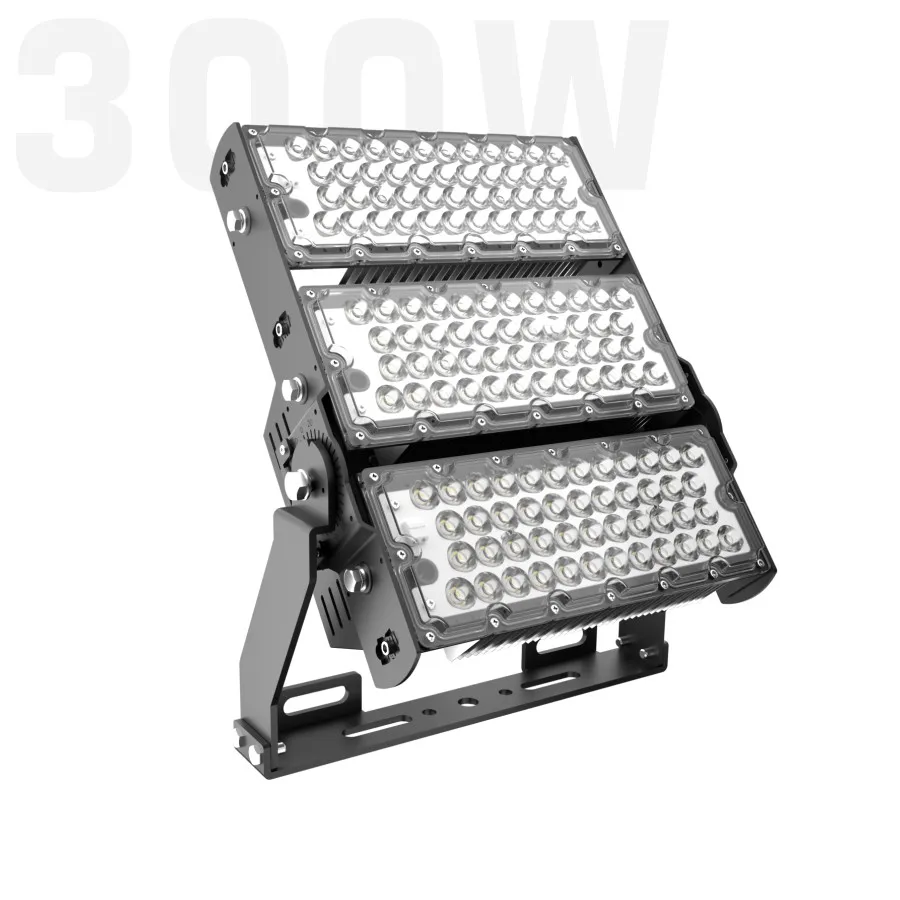

300W | 48,000lm | 475*362*132mm | |

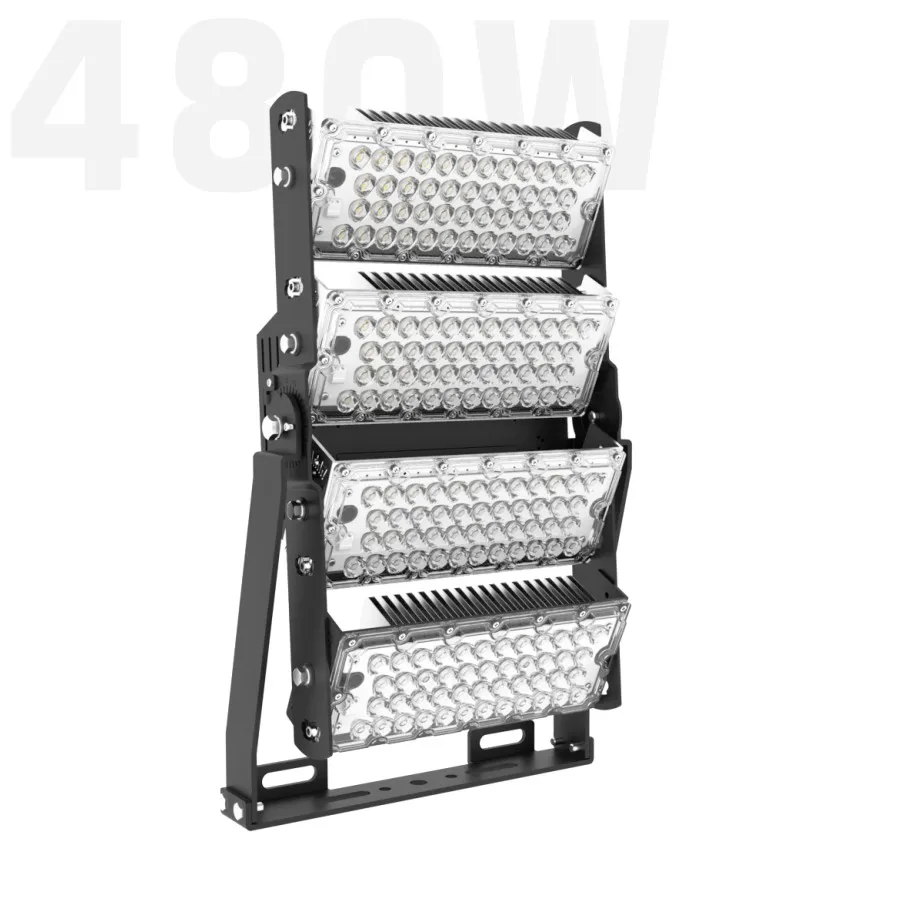

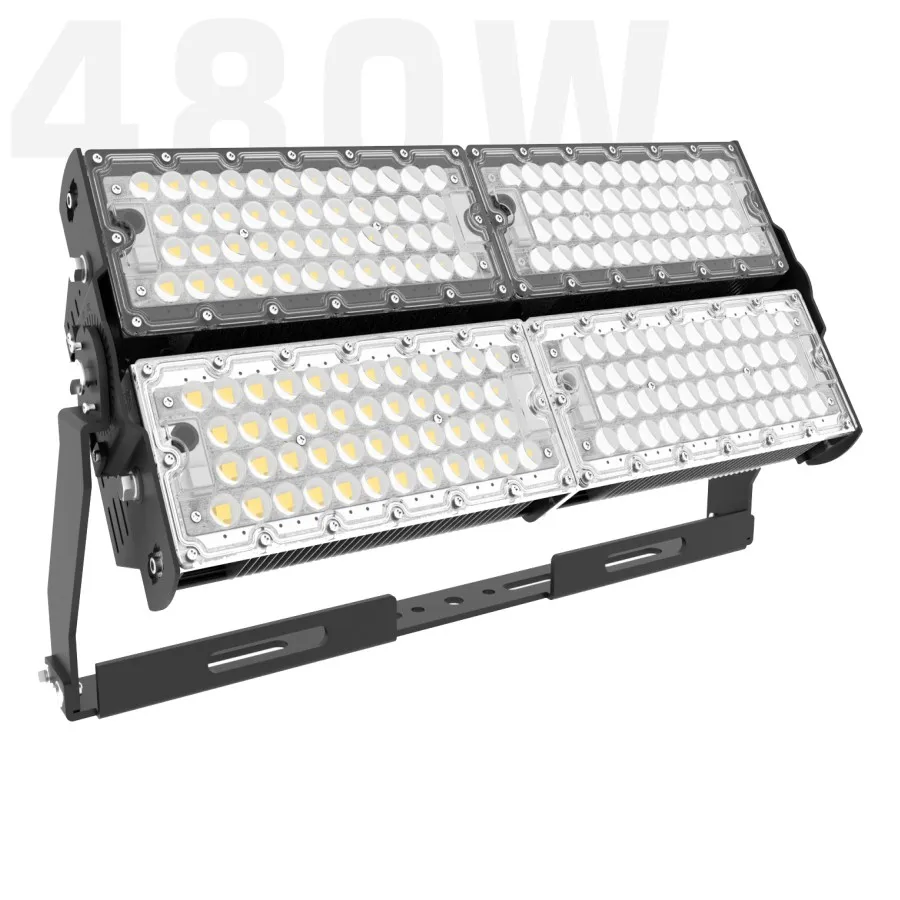

480W | 74,400lm | 597*362*132mm | |

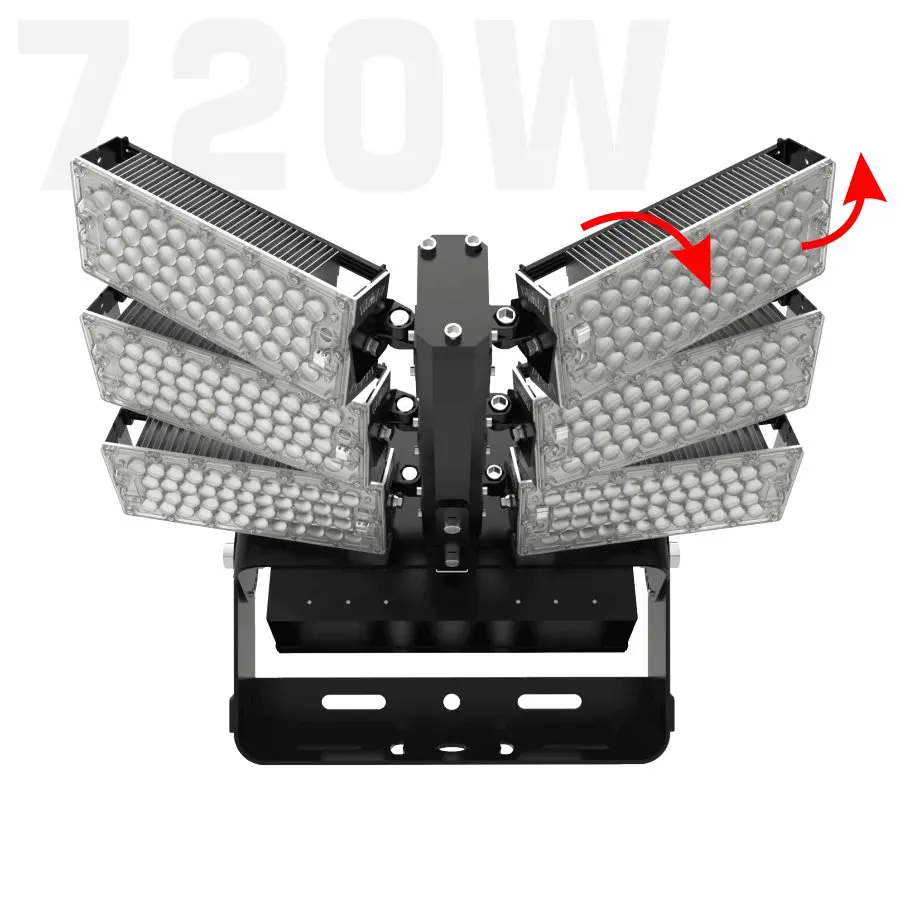

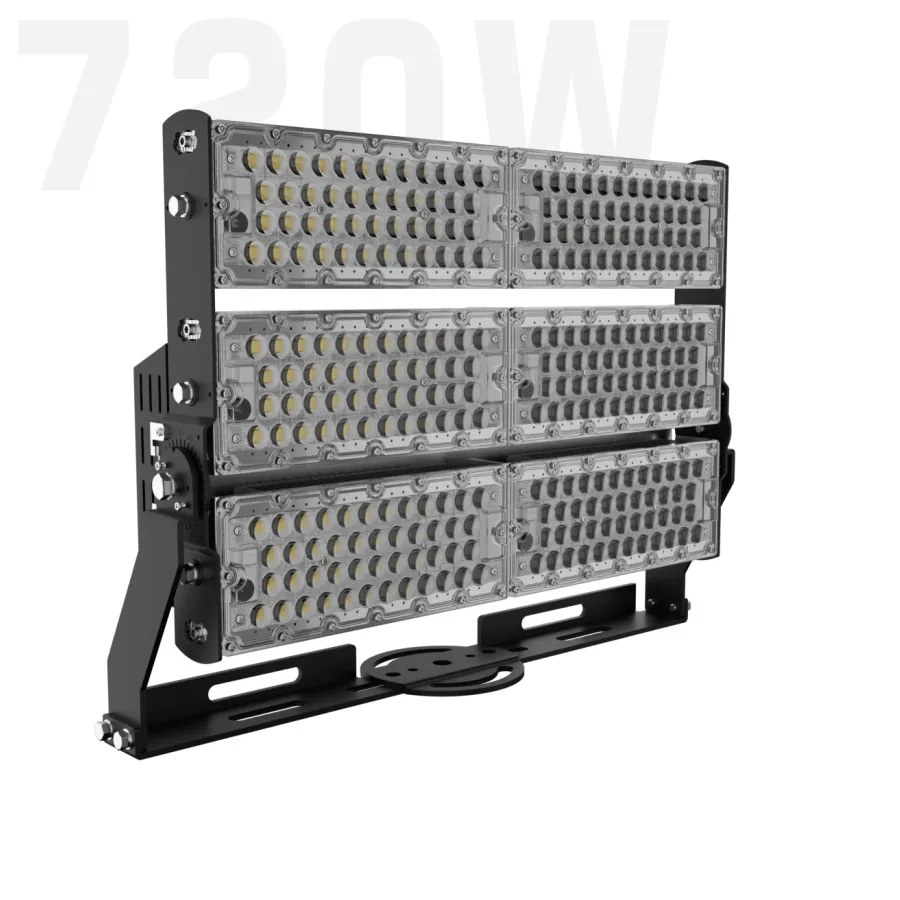

720W | 111,600lm | 649*375*132mm | |

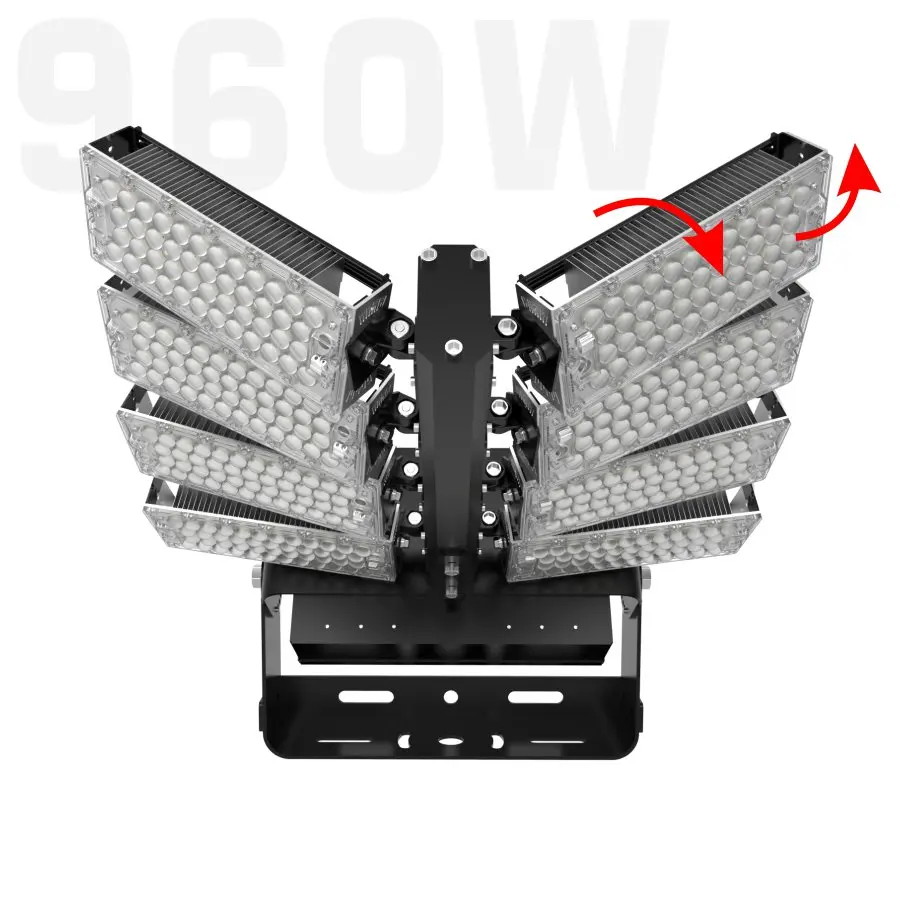

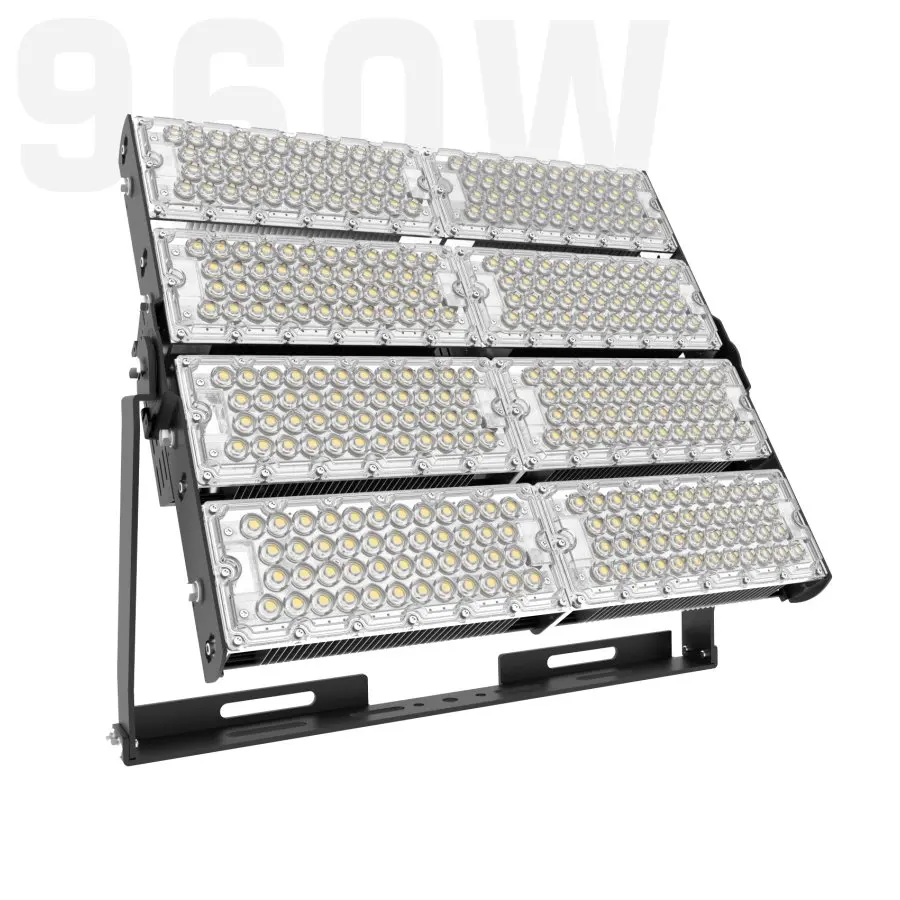

960W | 148,800lm | 597*650*132mm | |

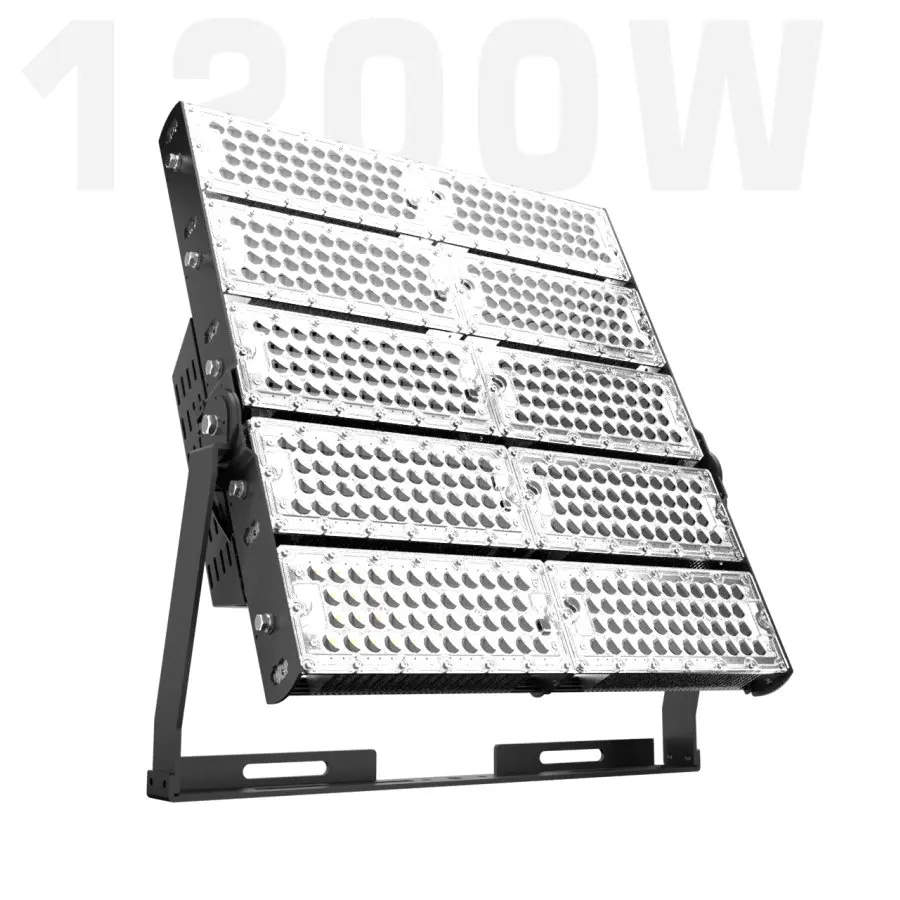

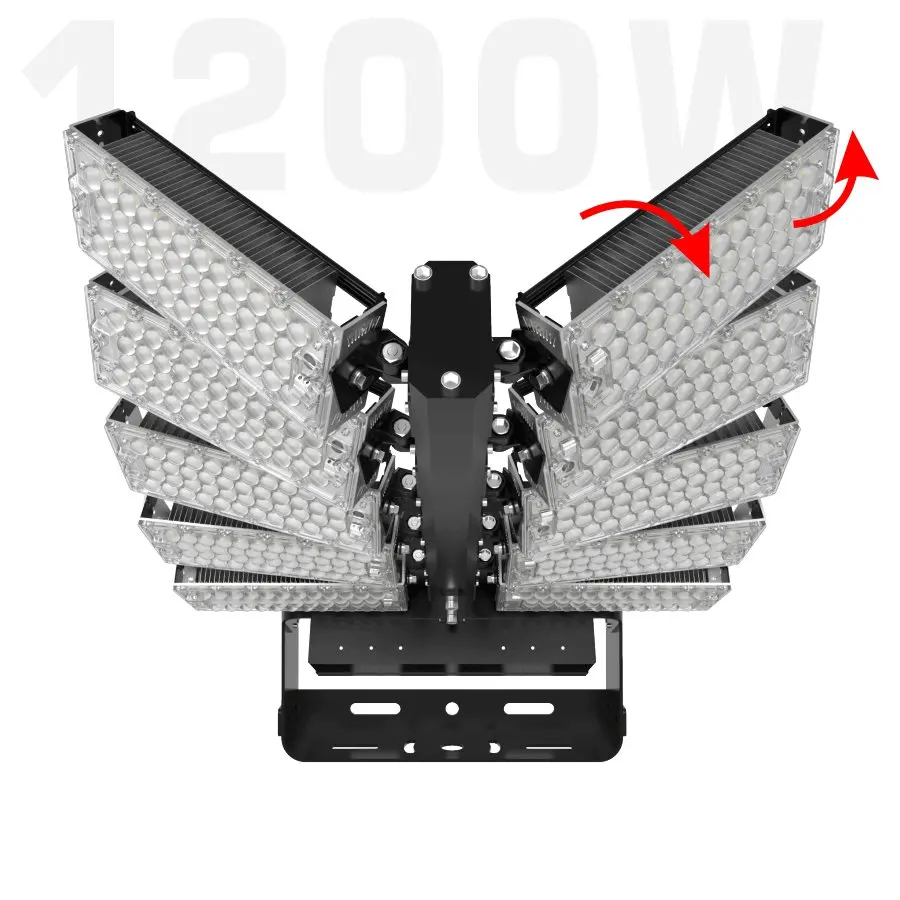

1200W | 186,000lm | 729*650*132mm | |

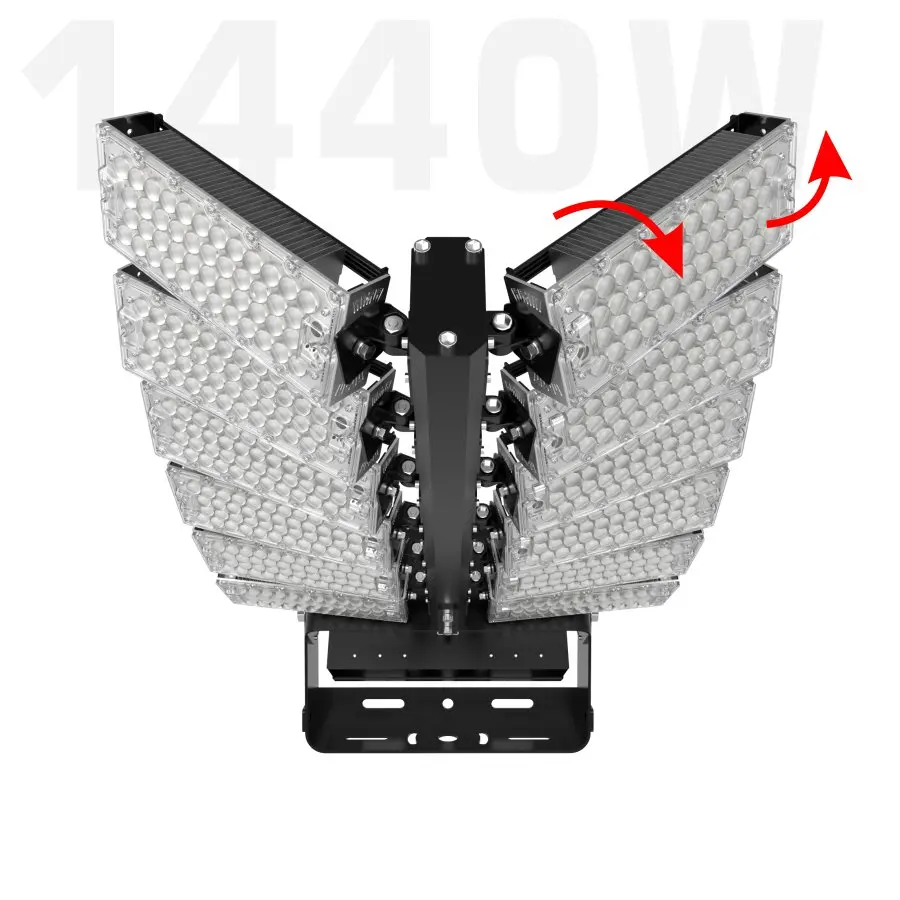

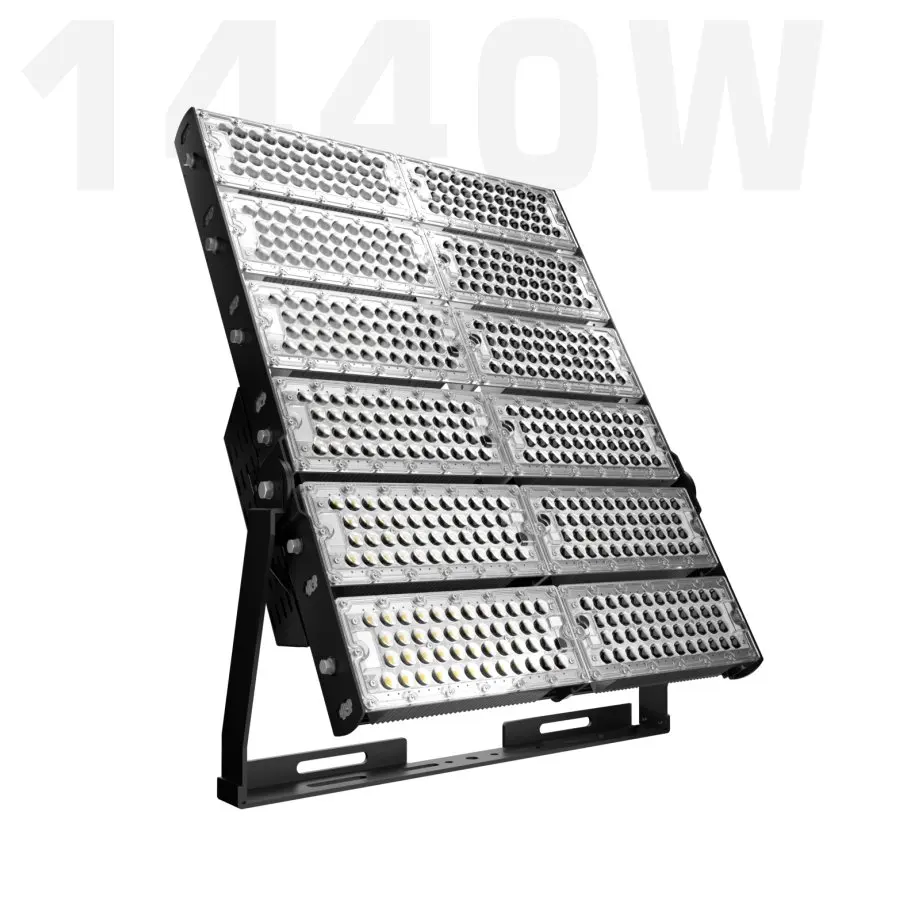

1440W | 223,200lm | 860*650*132mm |
Feature:
1. High luminaire efficiency up to 155lm/w;
2. Marine grade aluminum housing;
3. IP66 and IK10 protection rate;
4. 5 years warranty;
5. Folding aluminum fin design which are very light weight;
6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
1.High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 160Lm/W. Save more energy consumption.
1. High luminaire efficiency up to 155lm/w;
2. Marine grade aluminum housing;
3. IP66 and IK10 protection rate;
4. 5 years warranty;
5. Folding aluminum fin design which are very light weight;
6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
1.High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 160Lm/W. Save more energy consumption.

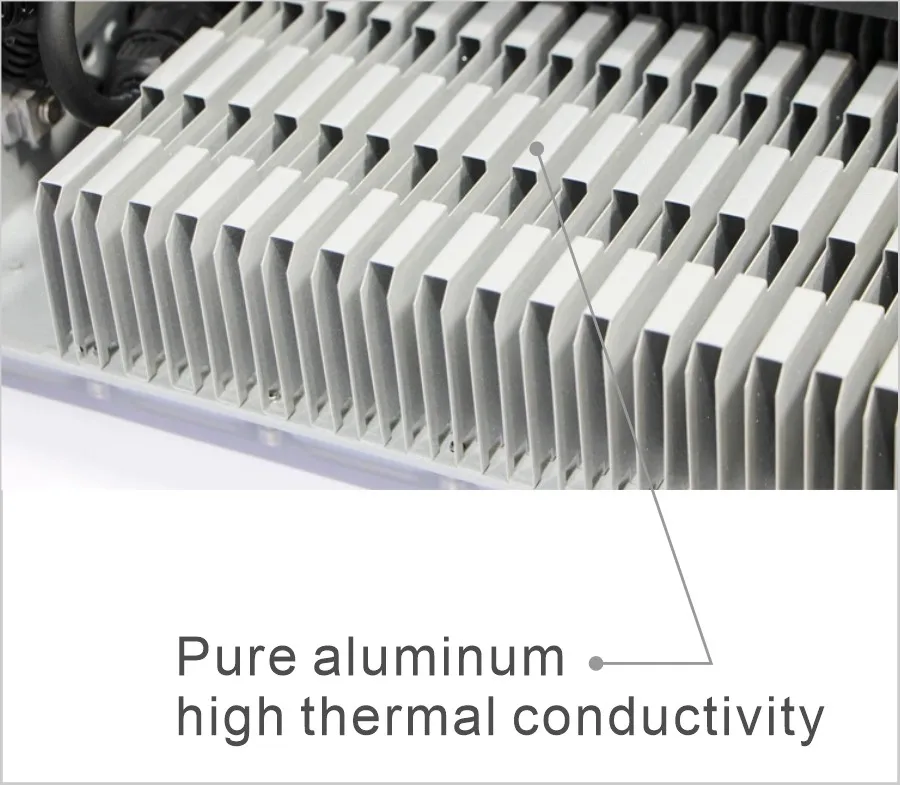

2.Heat dissipation
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.

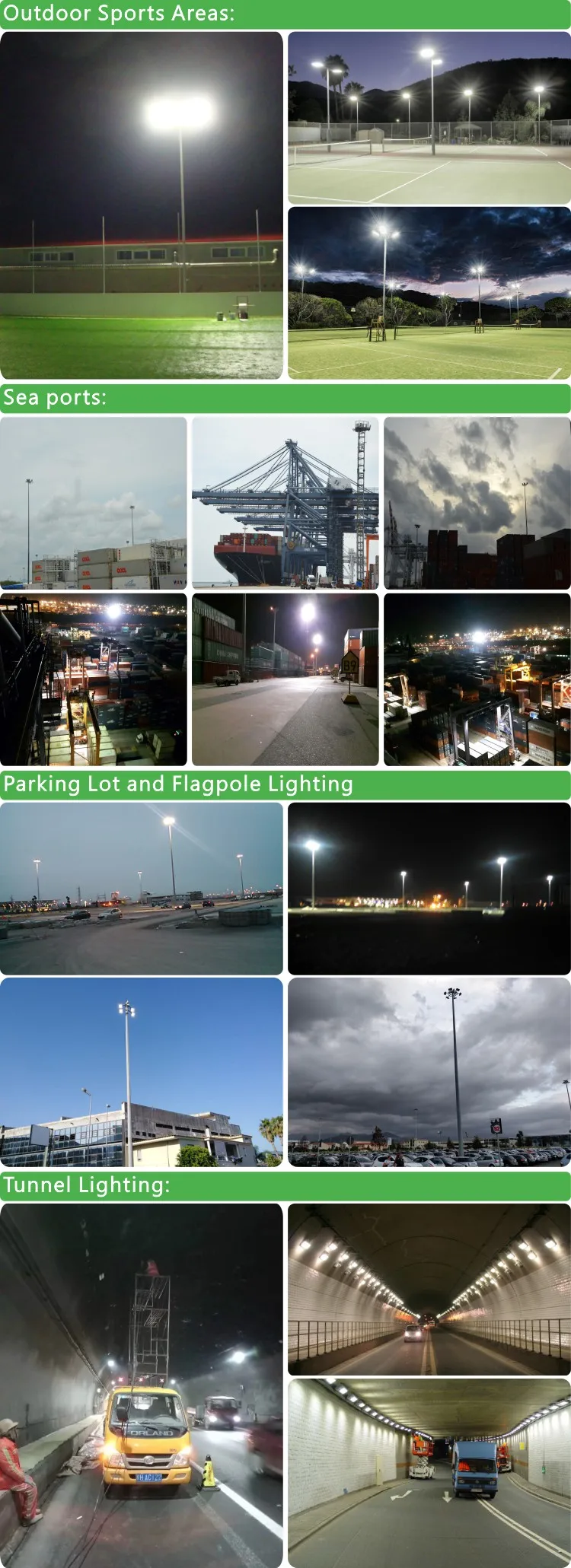

Application
LED high mast flood lighting commonly used for sports activities and other large areas in need of general outdoor illumination.
> Parking lot, exhibition hall, landmark, buildings for public lighting, night scene lighting and etc;
> Gym stadium, building passage, bridges, highway, Supermarket, shopping mall etc.
> Warehouse, tunnel lighting, advertisement, gas station and factory lighting etc;
> Status and monument lighting, flagpole lighting, large sign and billboard illumination etc;
> Outdoor garden and landscape lighting, tree uplighting decoration, architectural wall washing facade lighting and etc;
Our Service

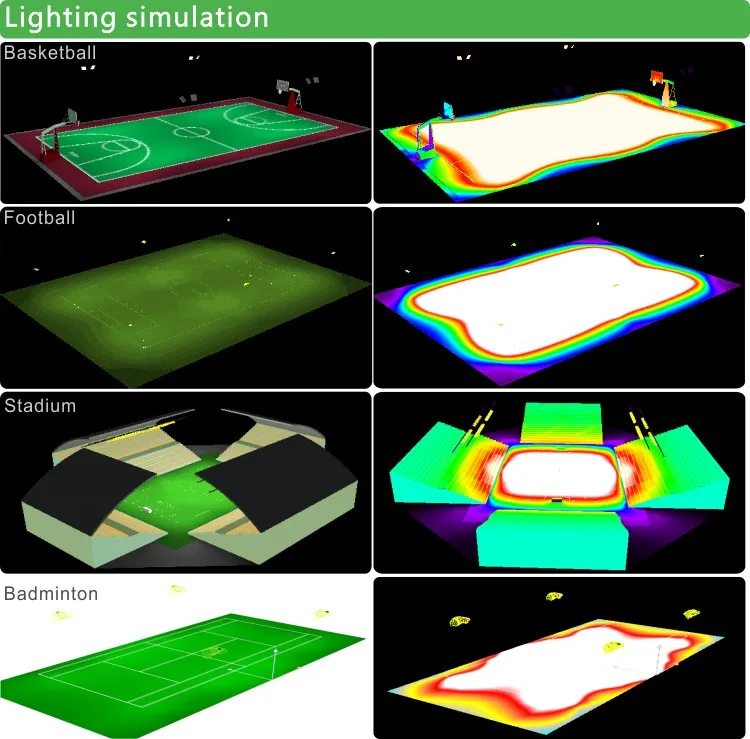

Free Lighting Simulation service:
You can ask us offer original IES files for your DIALux design.
You can ask us offer original IES files for your DIALux design.
Company Profile
Shenzhen Focus Lighting Co., Ltd. is specializing in LED lighting. We have a R&D team with experienced and professional, and perfect testing instruments and equipment to make products form R&D, production, testing, to the final delivery, formed a complete set of produce quality control system.
We mainly produce Commercial and Industrial Lighting, also focus on LED HID replacement. Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers. Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
We mainly produce Commercial and Industrial Lighting, also focus on LED HID replacement. Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers. Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
FAQ
Q1: Can I order one piece to test? | ||||||||
A1: Yes, sample test available. | ||||||||
Q2: How long can I get them if ordered? | ||||||||
A2: <50pcs 10-12 working days arrived in your office by Express. 50-500pcs 12-15 working days arrived in your office by Express. | ||||||||
Q3: What happens if product failures? | ||||||||
A3: The product failure rate is around 0.3%. If the products are damaged during transportation or test broke, we will replace new lights to you within 3 days. | ||||||||
Q4: Are you manufacture or trader? | ||||||||
A4: Yes. 100% manufacture located in Shenzhen, welcome to visit us. | ||||||||
Q5: Can I get your price list of all products? | ||||||||
A5: Yes. We would like to share all the products price list. Please send an inquiry to us get them. | ||||||||
