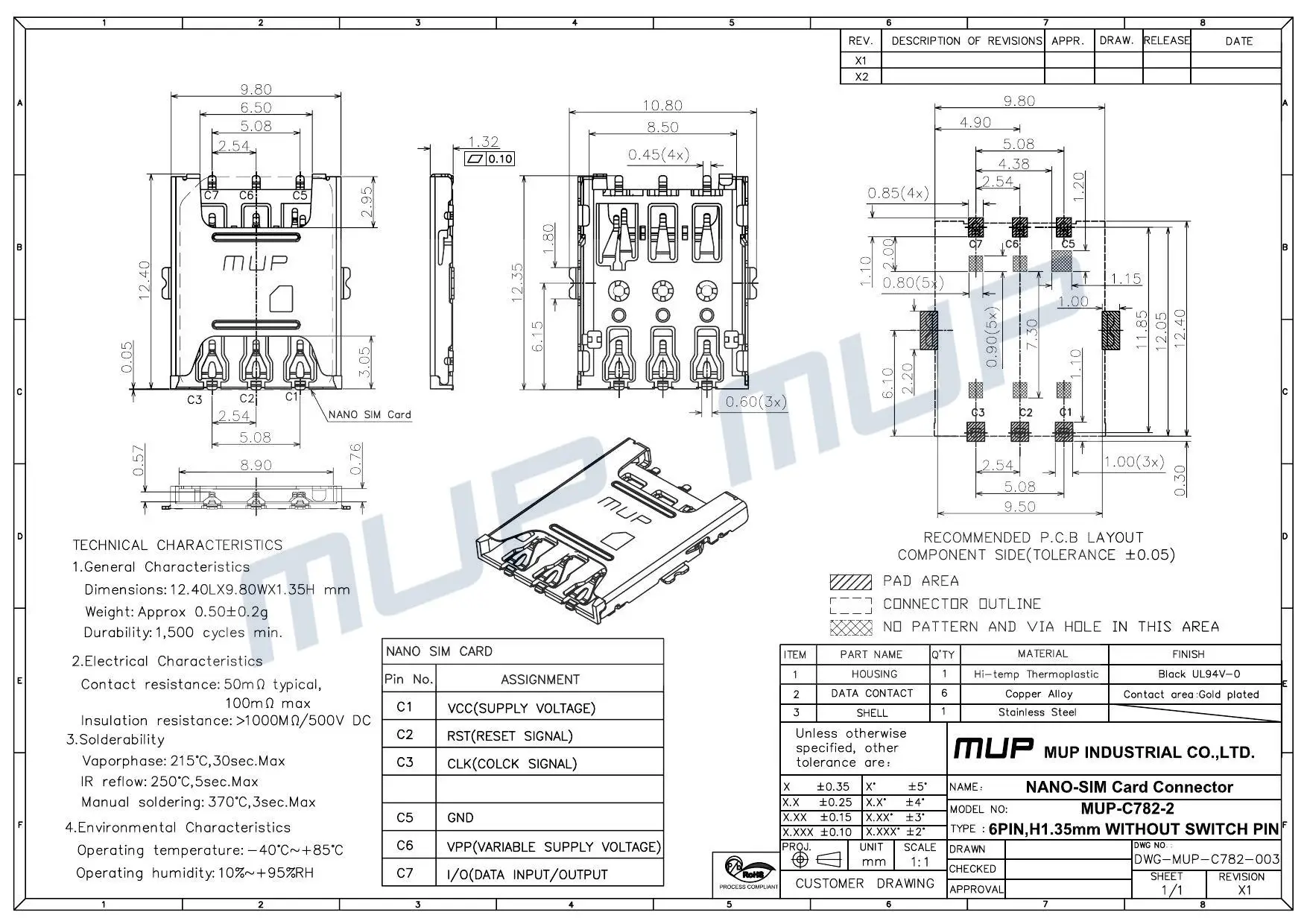

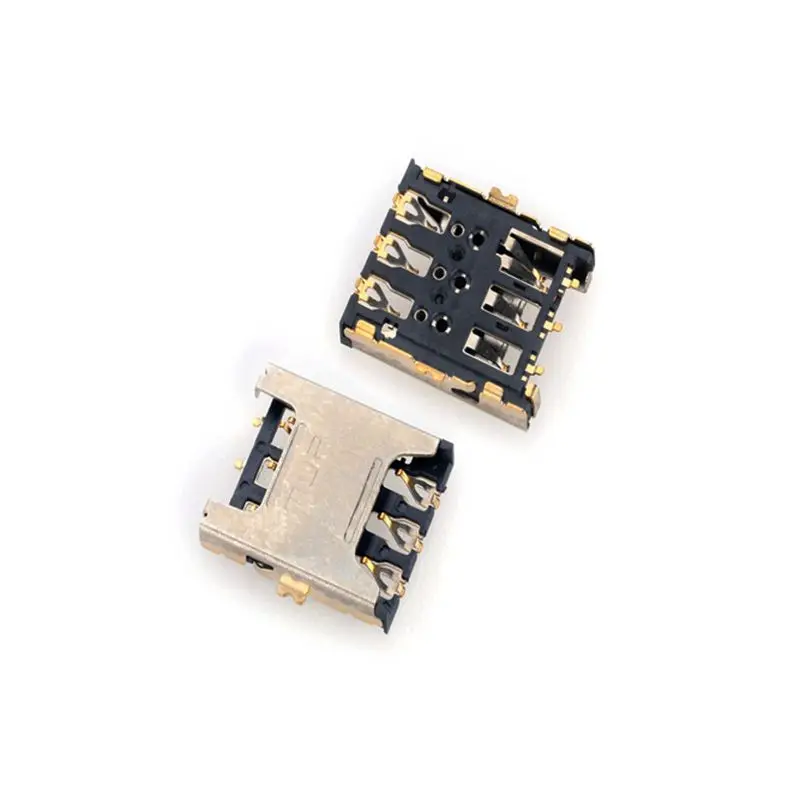

MUP-C782 6 PIN Female pcb Nano SIM Card holder connector without switch sim micro sd For Mobile

Описание и отзывы

Характеристики

Shenzhen MUP  HTC 530u 6PIN Female pcb Nano SIM Card holder connector without switch sim connector micro sd holder  For Mobile phones



  Technical characteristics



1.General characteristics

   Dimensions:29.65L*17.20W*2.50/2.80Hmm

   Weight:1.0g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(post optional)

   Durability:5000 cycles min



2.Mechanical characteristics

   Insulation material:Thermoplastic



3.Electrical characteristics

   Number of contacts(optional):6pins/8pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC



4.Solderability

   Wave:not applicable

   Vaporphase:215^oC,30sec Max

   IR reflow:230^oC,15sec Max

   Manual soldering:360^oC,3sec.Max



5.Environmental characteristics

   Operating temperature: -40^oC≈ +85^oC

   Operating humidity: 10%≈+95%RH

   storage temperature:-40^oC≈ +85^oC

   Storage humidity:10%≈+95%RH

   Thermal shock: -40^oC≈+85^oC,5cycles

   Damp Heat:40^oC,90%RH,10days

   Salt-mist:35^oC,5%Nacl,24H
