Модули электронных компонентов аксессуары и коммуникационные печатные платы
- Категории: HDI PCB >>>
- Поставщик: ZSL,Electronics,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Finished thickness: 0.8mm
Number of layer : 4L
Copper weight : 1OZ
Surface treatment: Immersion gold

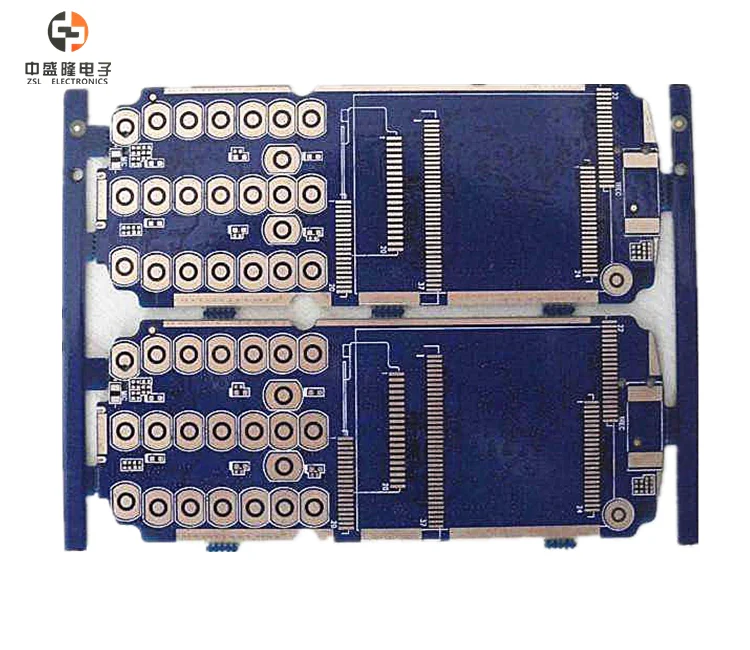

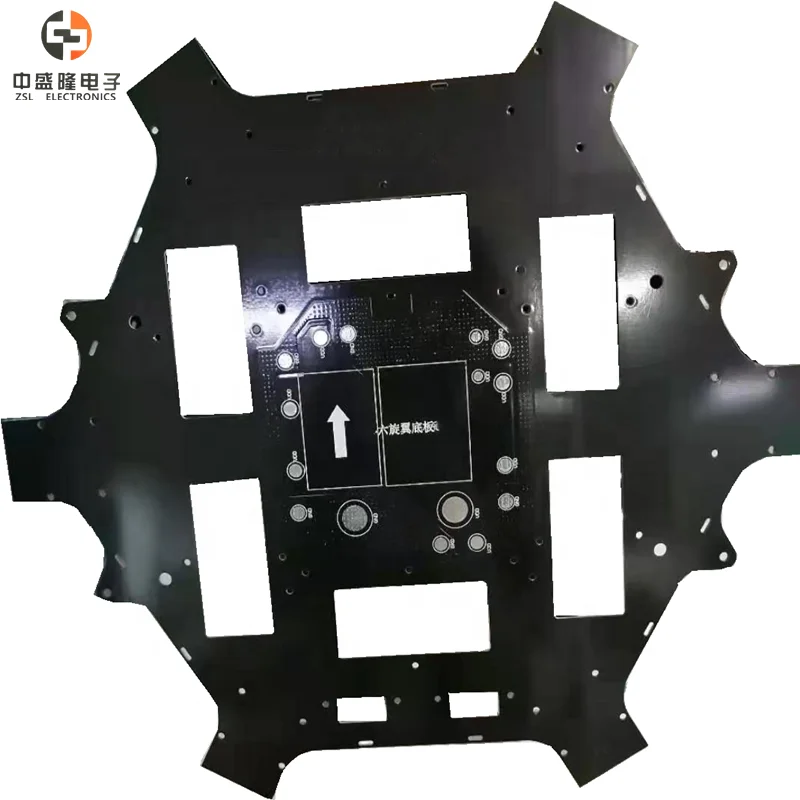

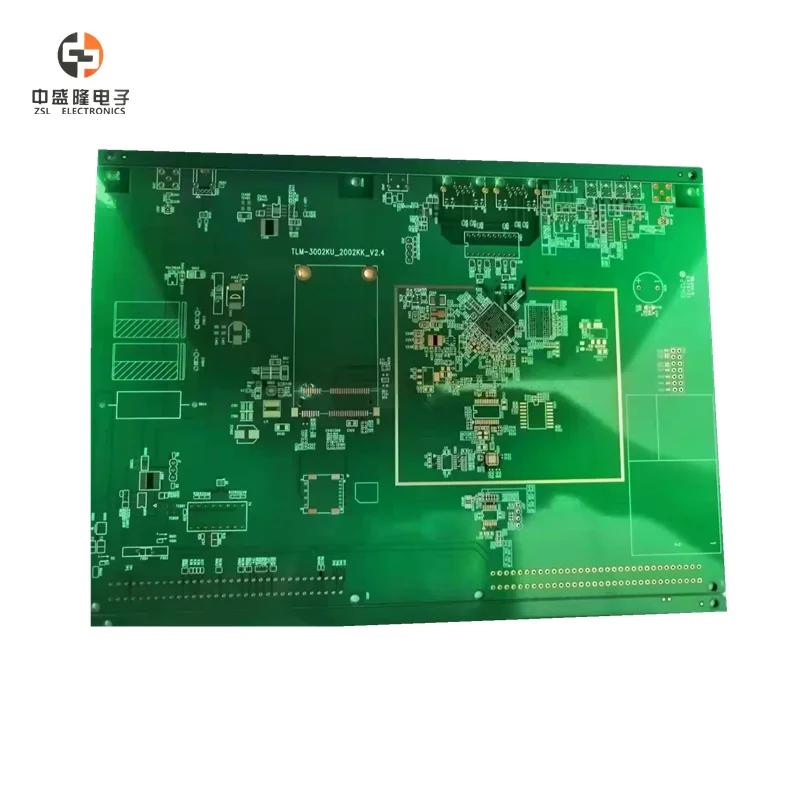

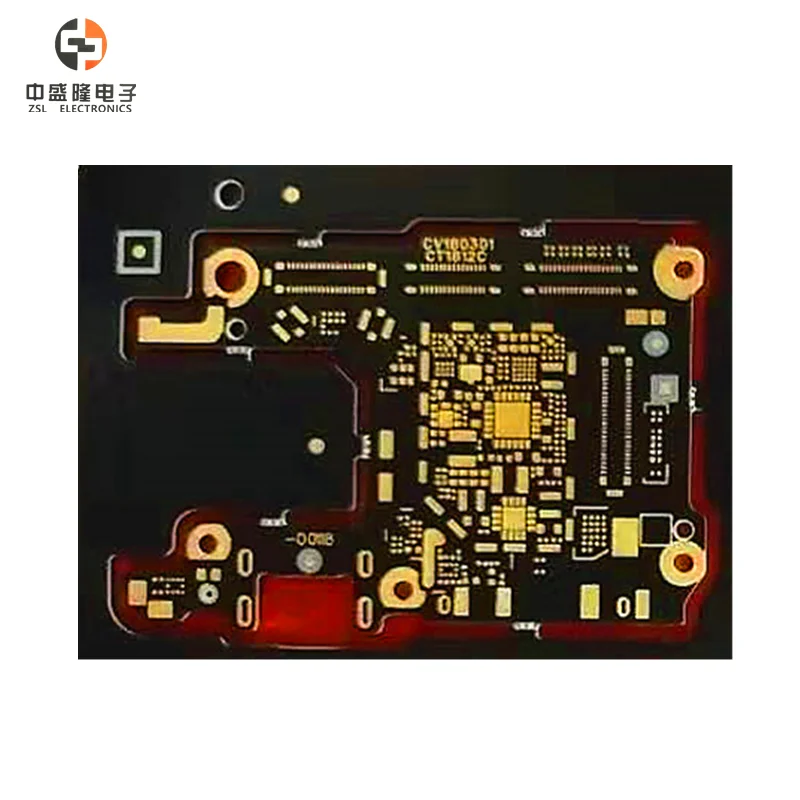

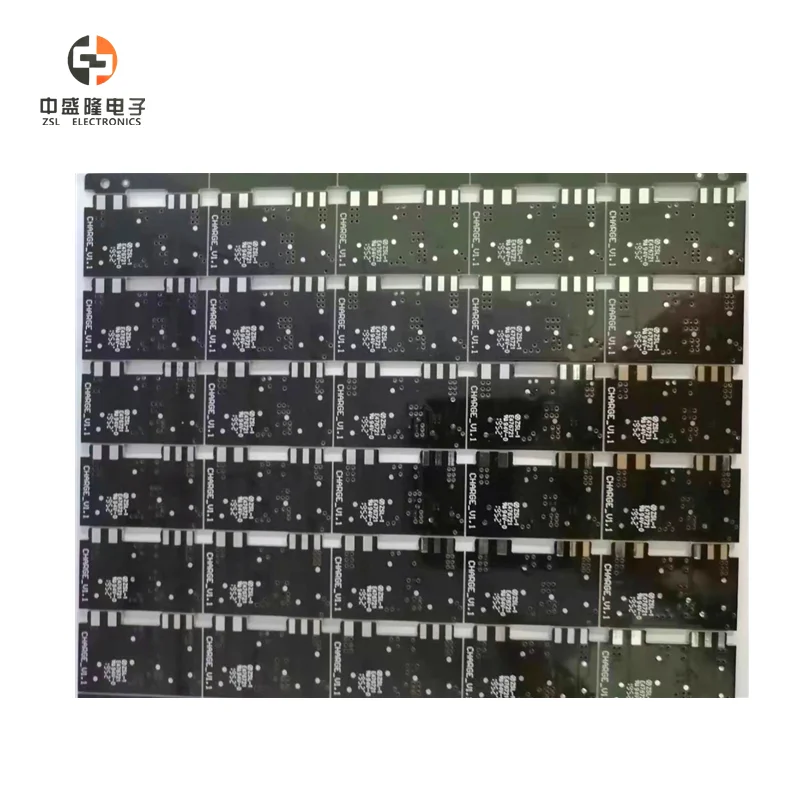

Details Images
Manufacturing Technique
Item | Parameters |
Layer | 1-24 |
Bare board material | KB/Shengyi/Isola/Rogers(It depends) |
Copper weight | HOZ-6OZ |
Min.Track Width/Space | 0.075mm/0.075mm |
PTH/NPTH Tolerance | ±0.076mm/±0.05mm |
Min Solder mask dam | 0.075mm |
Aspect Ratio | 10/1 |
Outline Tolerance | ±0.075mm |
Bow and twist | ≤0.5% |
Surface finishing | HASL-LE/OSP/ENIG/Immersion Tin/Immersion silver/gold |
Company Profile
ZSL Group
Zhongshenglong Electronics (Abbreviated as ZSL) is belong to Zhongsheng group.Zhongsheng group was established in 1997,was a professional manufacturer of plastic,mould and printed circuit boards(PCB). The PCB branch was founded in 2007 and has 2 production bases under it.One base is located in the suburbs of Ganzhou City, Jiangxi Province, covering an area of 104000 m² . the total investment is expected to be 550 million RMB.The other base is located in Meizhou city,guangdong province,it covers 28000m² . The total production capacity is up to 150,000 m² per month.

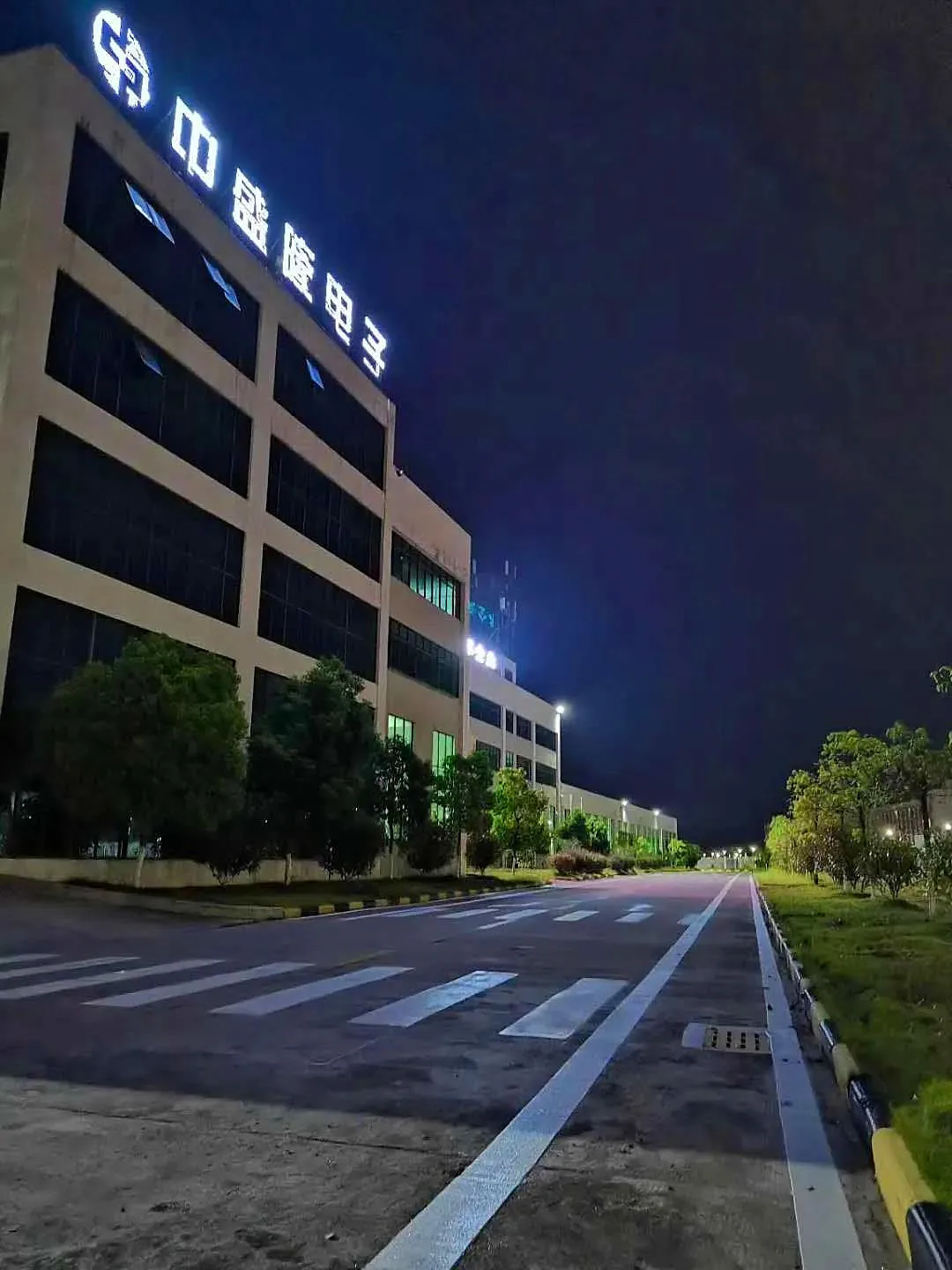

Production Base
ZSL early market was positioned at DVB, OTT, LCD TV, high-end LED, network, security, computer peripherals and other consumer electronic boards in large demand. At present, it is gradually expanding automotive electronics, power supplies, Proportion of high-end PCB boards in communications equipment, industrial control, medical, military, etc.
All products conform to international IPC & IEC,have obtained UL, CQC, ISO9001, IATF16949, ISO14001 and other industry authoritative certifications.
After the final completion of the industrial park, the scale of the company will be at the forefront of the industry, with varieties covering high, medium and low grades, large, medium and small batches, and different materials such as FR-4, aluminum base, high frequency, and FPC.
After the final completion of the industrial park, the scale of the company will be at the forefront of the industry, with varieties covering high, medium and low grades, large, medium and small batches, and different materials such as FR-4, aluminum base, high frequency, and FPC.
Certifications
Exhibition
FAQ
Q1:What's files do you use in the bare board fabrication?
A:Gerber RS-274X,274D,Eagle and Auto CAD's DXF,DWG
Q2: Will our PCB files be checked?
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any enquires we will contact you and solve the problems together.
Q3:What's files do you need in the PCBA projects?
A:Besides the pcb file, the XY DATE(Pick and Place) file and Components Position file are also needed.
Q4: How can I know the processing about my PCB or PCBA order?
A: Each Customer will have a sale to contact with you. Our working hours:AM10:00-PM6:00(Beijing Time) from Monday to Friday. We will reply your email in 2 hours in our working time. And you also can contact with our sales's cell phone if urgent
Q5: Will our product be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
Q6: Do you provide quick delivery service?
A: yes, we could provide quick delivery service according to your needs.
Q7: Will you use alternative parts without notifying us?
A: No, if the alternative parts need be used,we must get approval from you.
Q8: What is your Lead time?
A: Lead time is usually on time, 3-5 working days for PCB samples, 7-20 working days for mass production. For some special situation, we will consult with you and give some solution for you to avoid anything unexpected or loss.
