Сэндвич-панель из полиуретана/пассивной изоляции для свежести овощей и
- Категории: Сэндвич-панели >>>
- Поставщик: Shandong,Hongxinyuan,Coated,Steel,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
COLD STORAGE SOLUTIONS
The cold rooms and rooms for conservation and storage of foods can be so called positive and negative.
Generally the first ones with temperatures till -1°C and the second ones till -25°C.Room for Food Conserved
Room temperature changes that are used primarily to conserve food do not need to be adequate airtight.
Room for Food Processed
Room temperature in which the food is processed will change moderately, requiring adequate air tightness.
Room for Finished Food Stored
These rooms must be good joint, insulation and greater air tightness is required.
Room for Frozen Food Stored
These rooms limit demand in terms of minimizing thermal bridges and air permeability.
TECHNICAL DATA

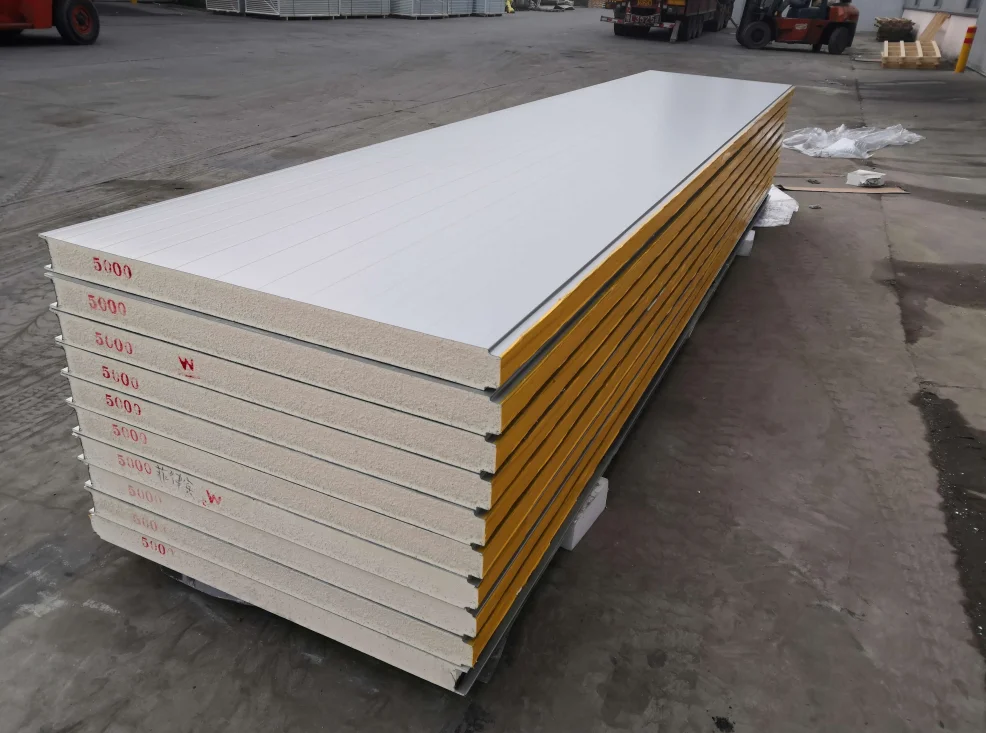

PIR sandwich panels are designed for cold storage and freezers.
Panels with the PIR core are characterised by improved fire protection properties and better thermal properties.
Self supporting metal faced panels insulated with polyurethane with a mother&son joint.
The very high performances of thermal insulation and the excellent quality of the jointing system make it particularly
appropriate for constructions that require a controlled temperature.
The very high performances of thermal insulation and the excellent quality of the jointing system make it particularly
appropriate for constructions that require a controlled temperature.
Product Parameters | ||
Exterior Steel Thickness | 0.4mm-0.7mm | |
Interior Steel Thickness | 0.4mm-0.7mm | |
Core Material Thickness | 30mm/40mm/50mm/60mm/70mm/75mm/80mm 90mm/100mm/150mm/200mm/250mm | |
Length | Less than 11.9m | |
Effective Width | 1000mm/1120mm | |
Recommend Coating | PVDF/SMP/HDP/PE | |
Surface Finish | Small wave/Lined/Smooth | |
Density | 40-45kg/m3 | |
The Thermal Conductivity | 0.019-0.023w/m.k | |
Moisture Permeability Coefficient | ≤3.34Ng/Pa/m.s | |
Water Absorption | ≤0.5g/100cm2 | |
The Compression Strength | ≥220KPa | |
The Bending Strength | ≥2450KN/m2 | |
Oxygen Index | ≥28 | |
Fireproof Grade | B1/B2 | |
Dimensional Stability | ≤1% | |
Application Temperature | -25℃-1℃ | |
Advantage | Heat Insulation Energy-saving Environmental friendly | |

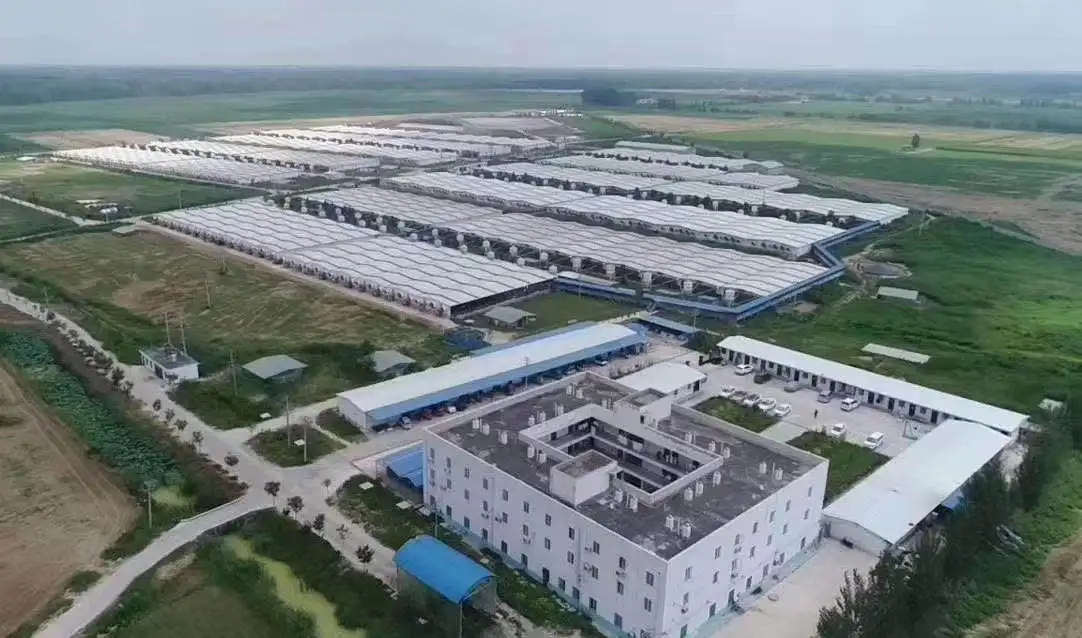

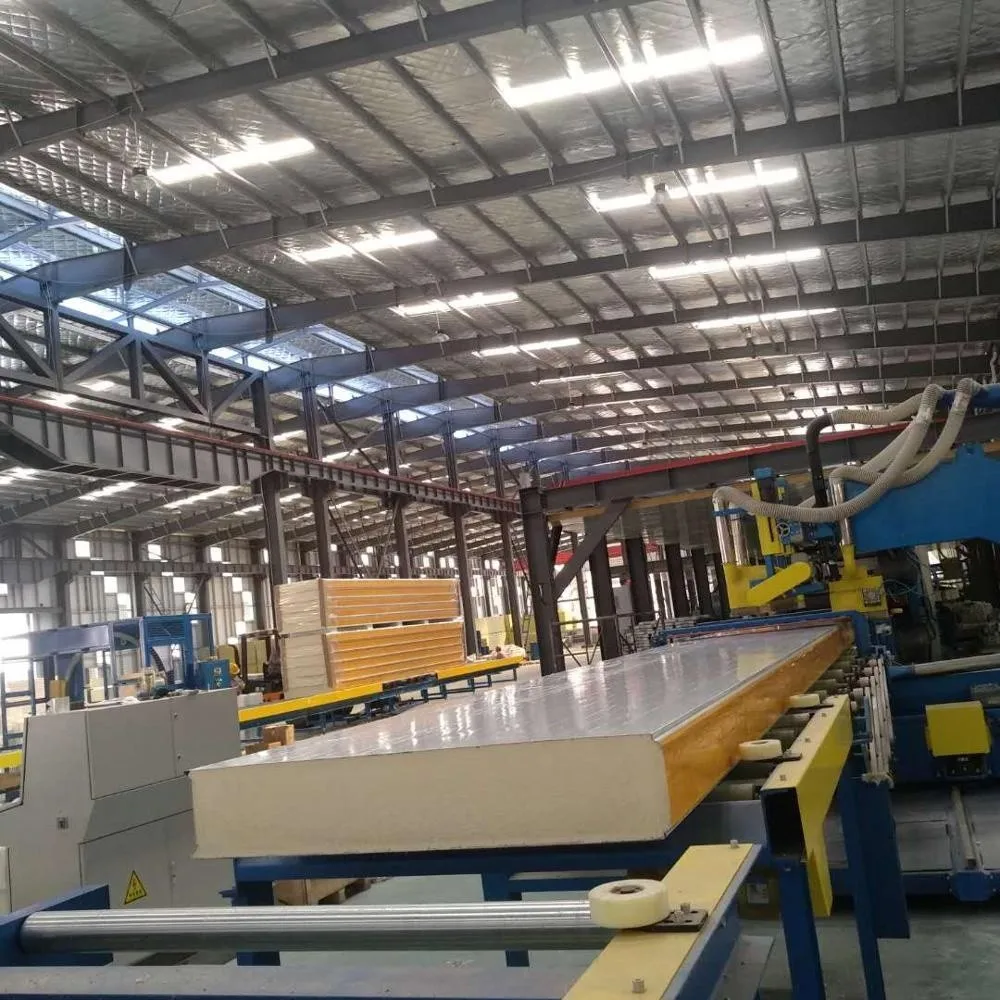

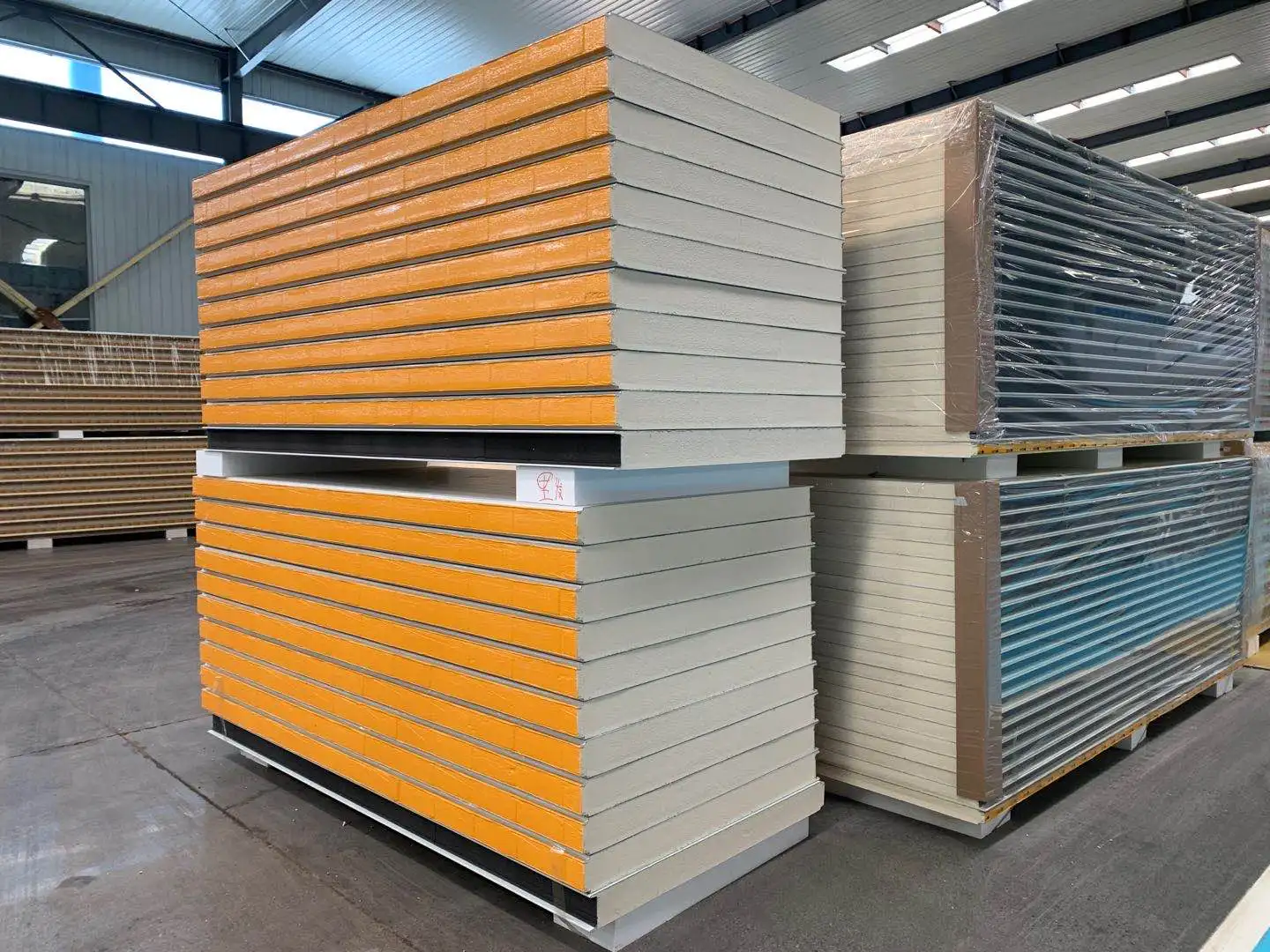

SHOWCASE

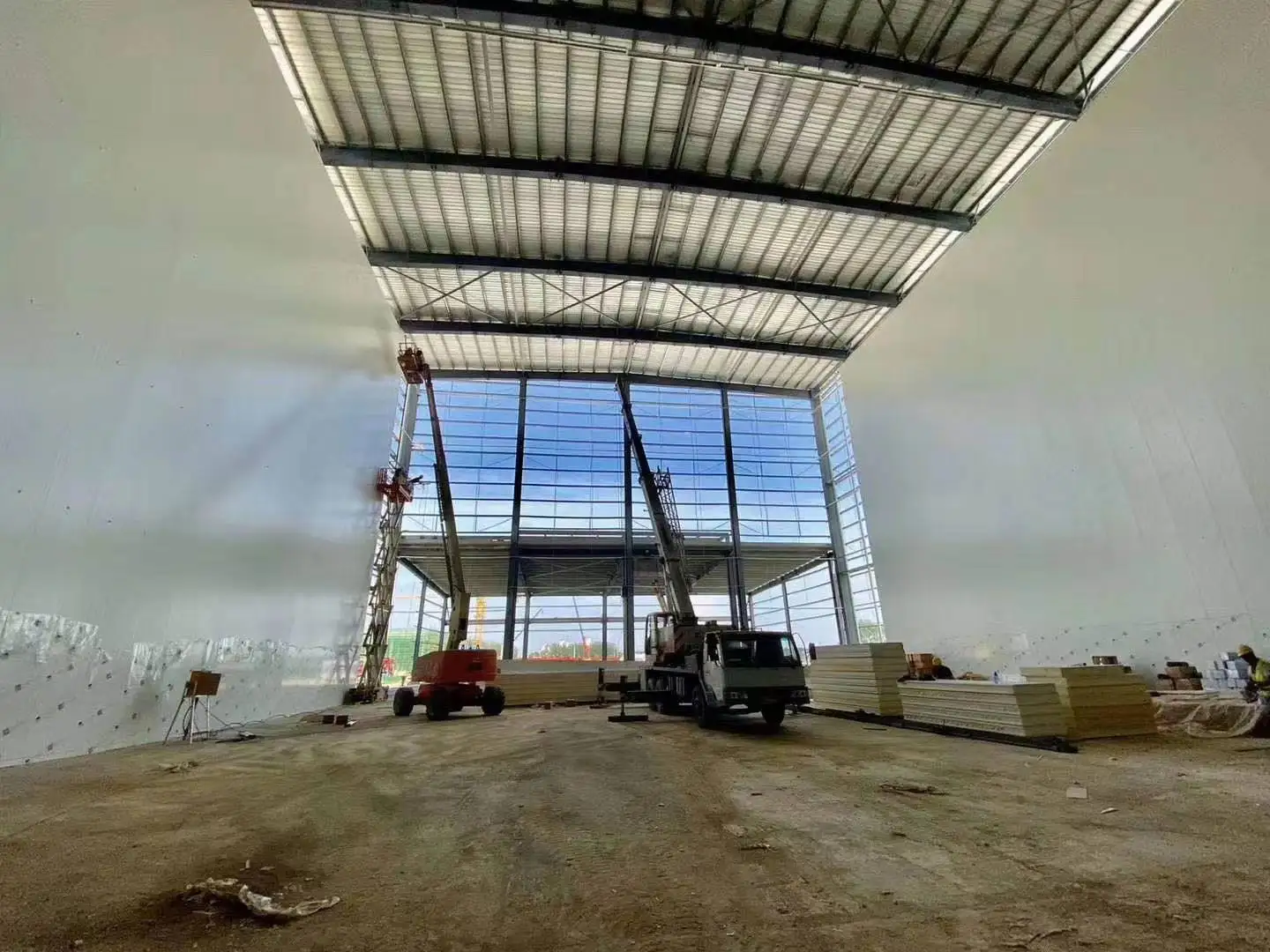

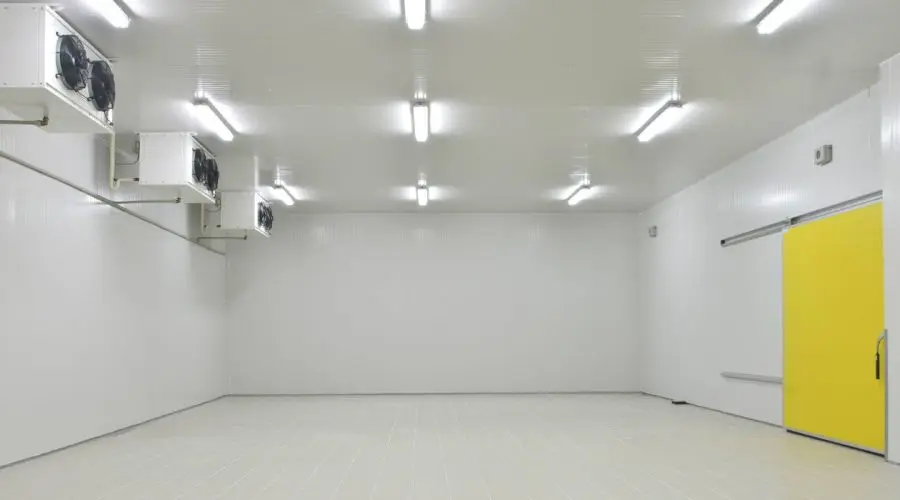

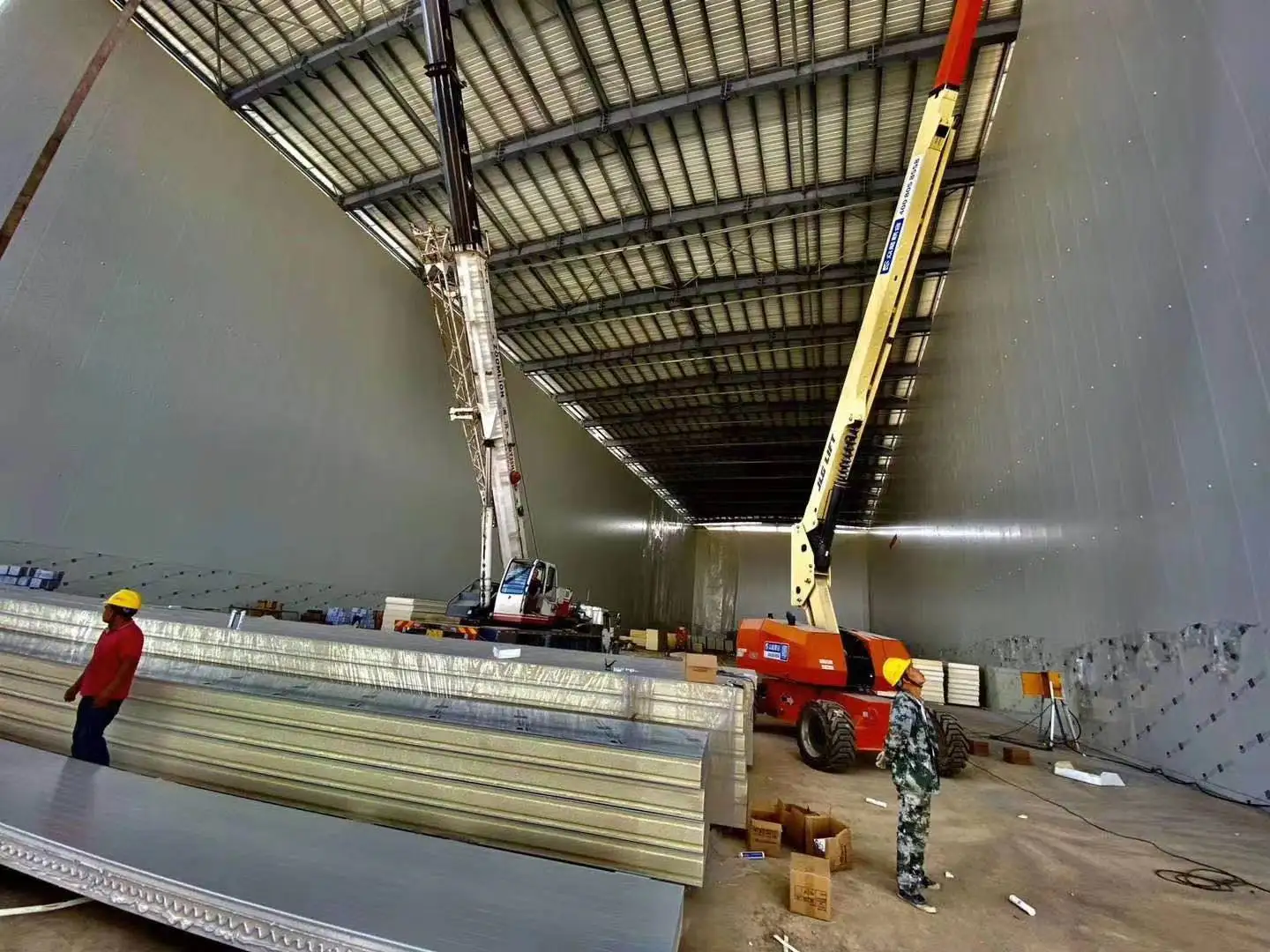

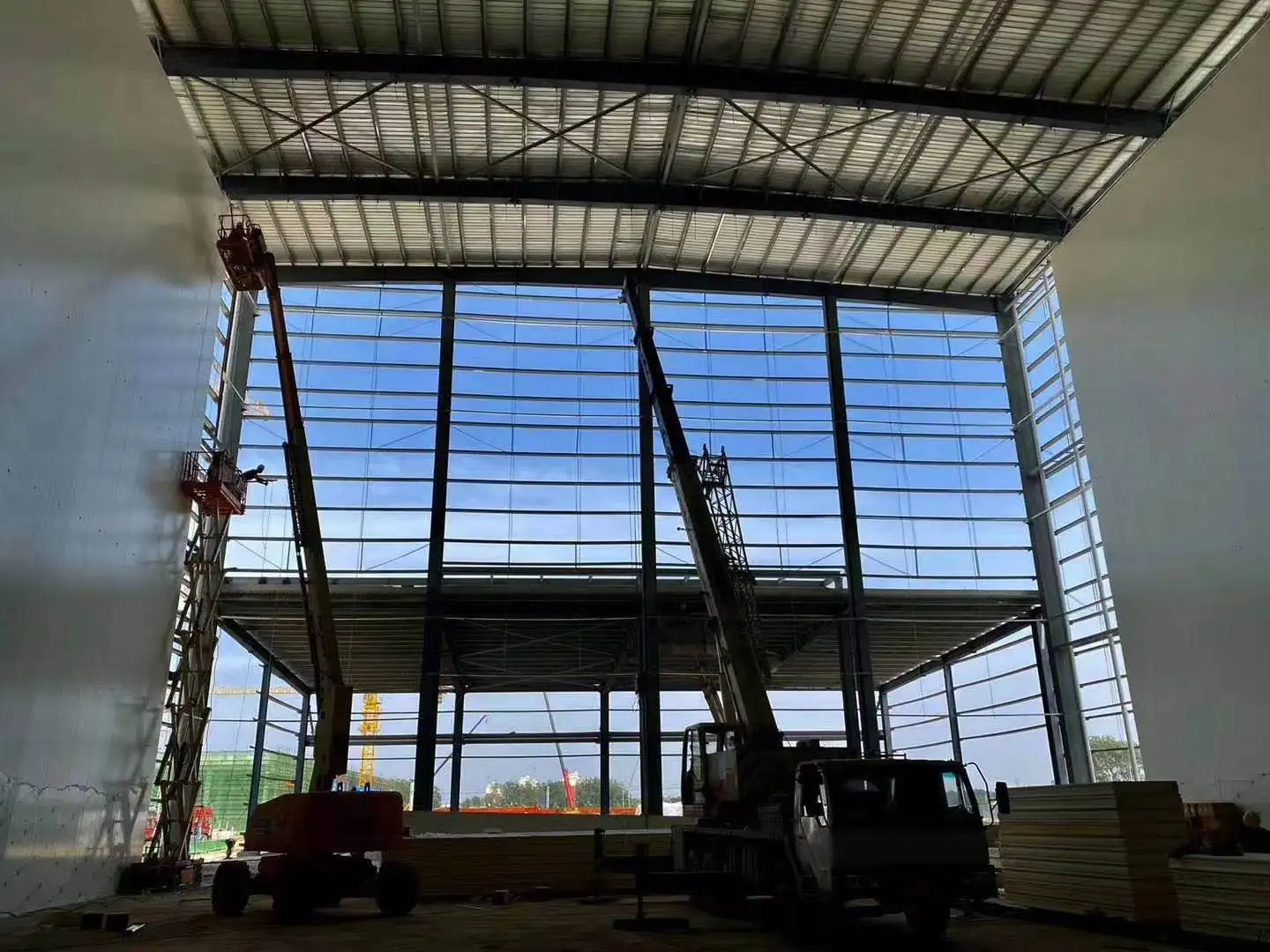

APPLICATION

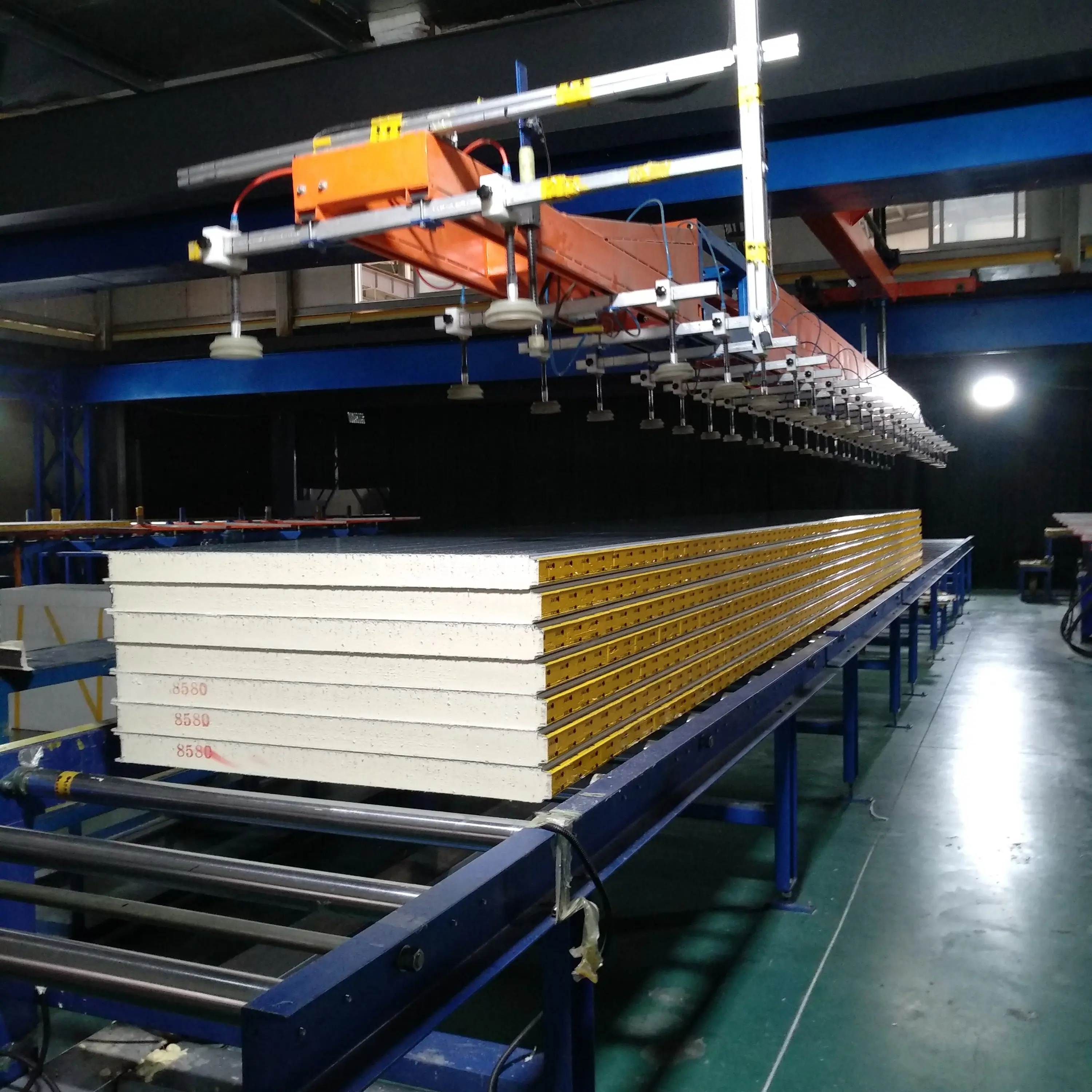

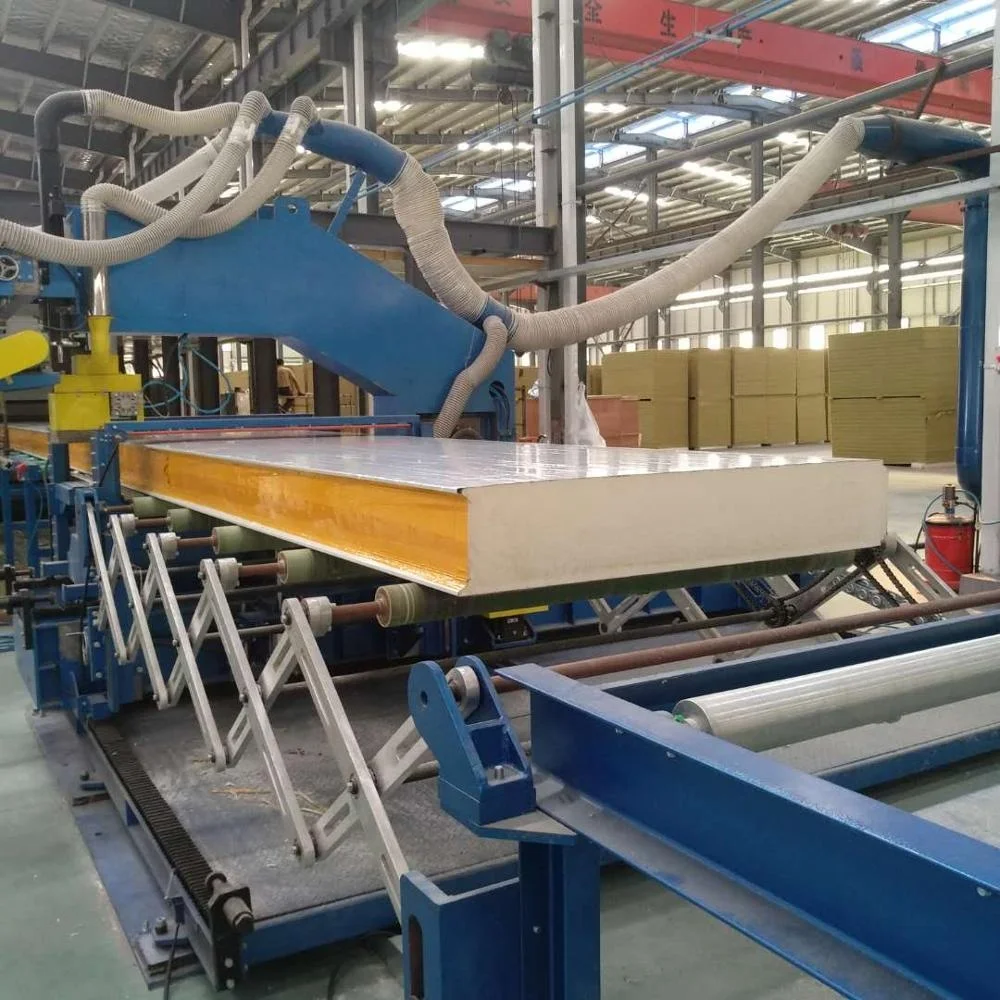

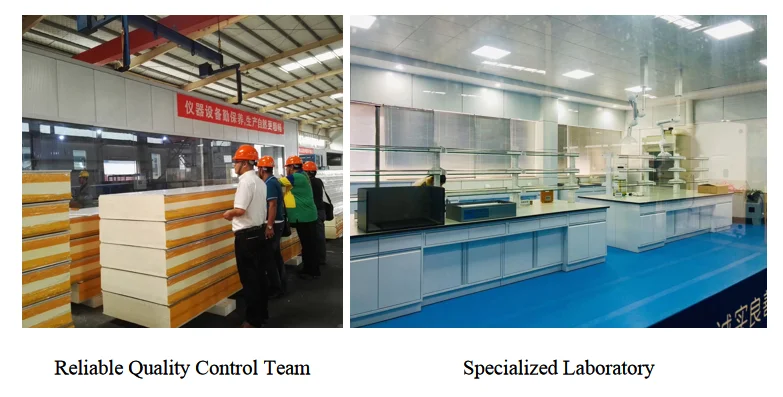

QUALITY&CONTROL

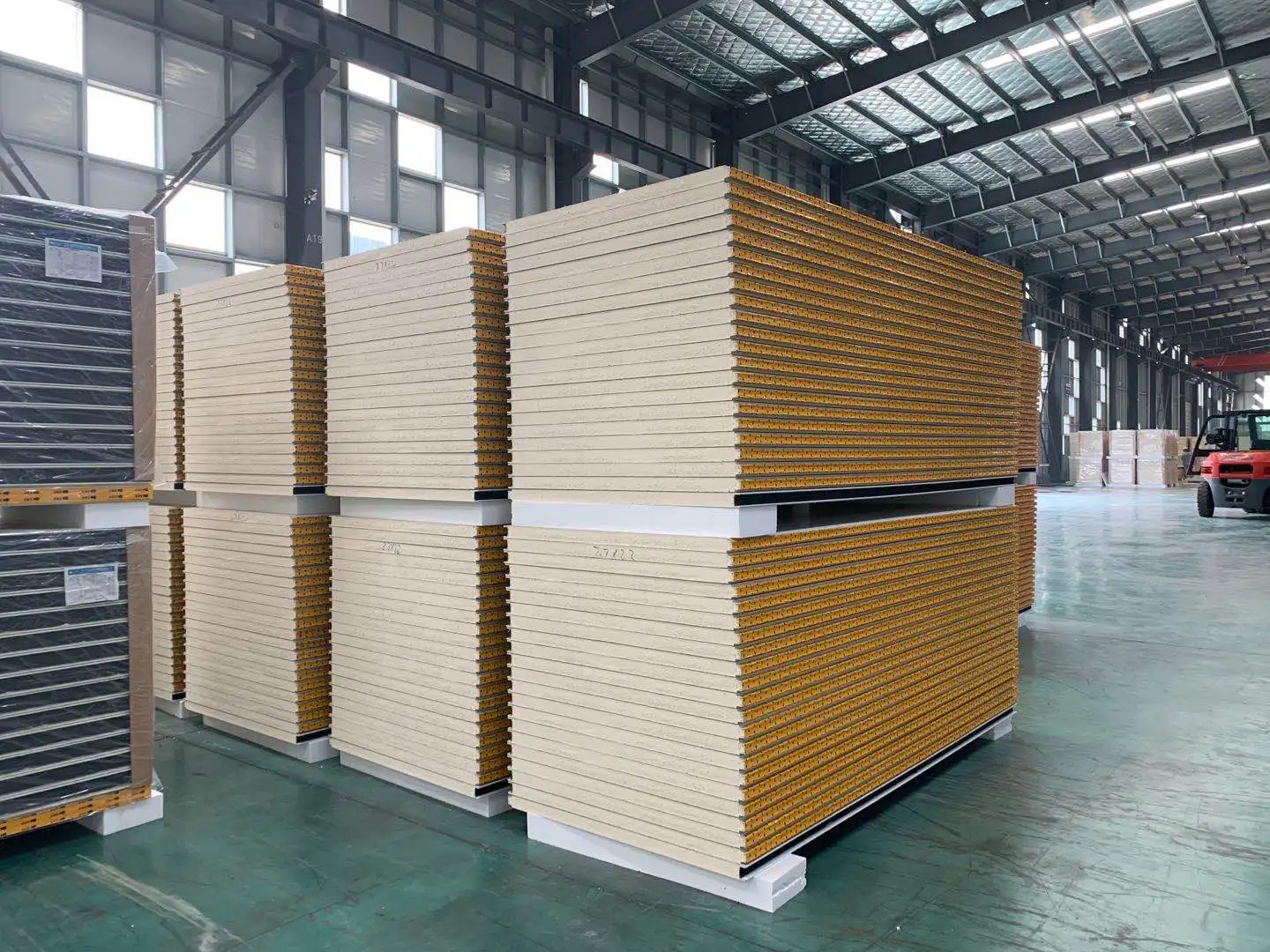

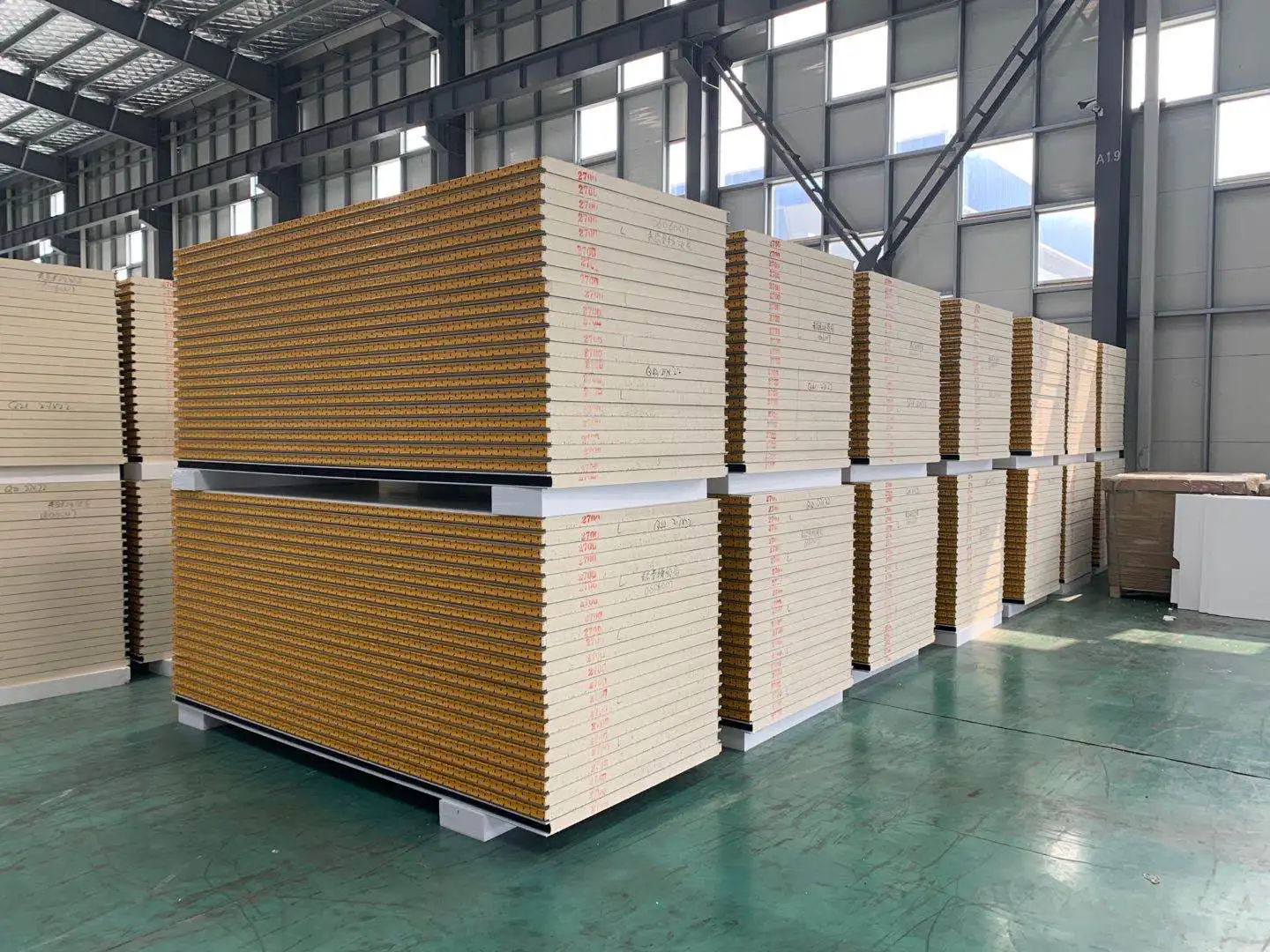

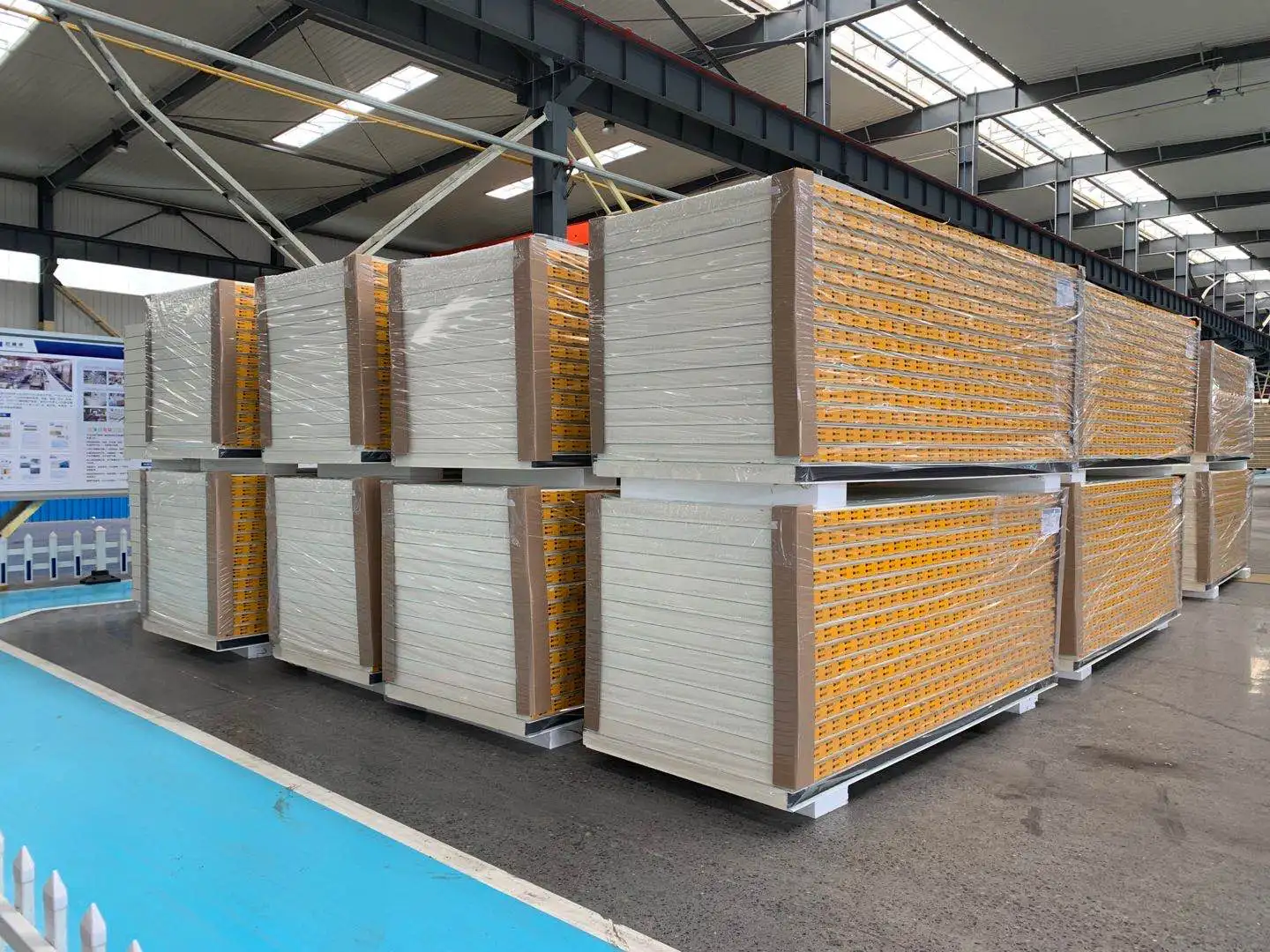

PACKING&DELIVERING
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in bulk and put into the soft EPS for protection to save the container space. If you have the requests, we also make the iron pallet package.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
B:100% Trade assurance
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
