Products Description

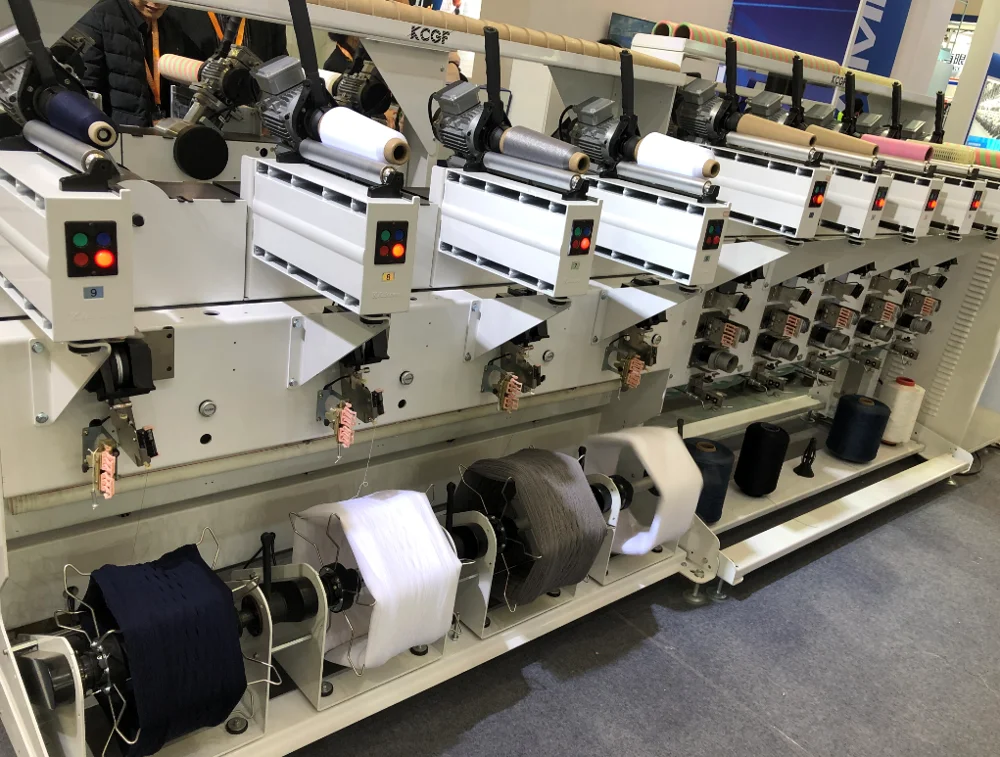

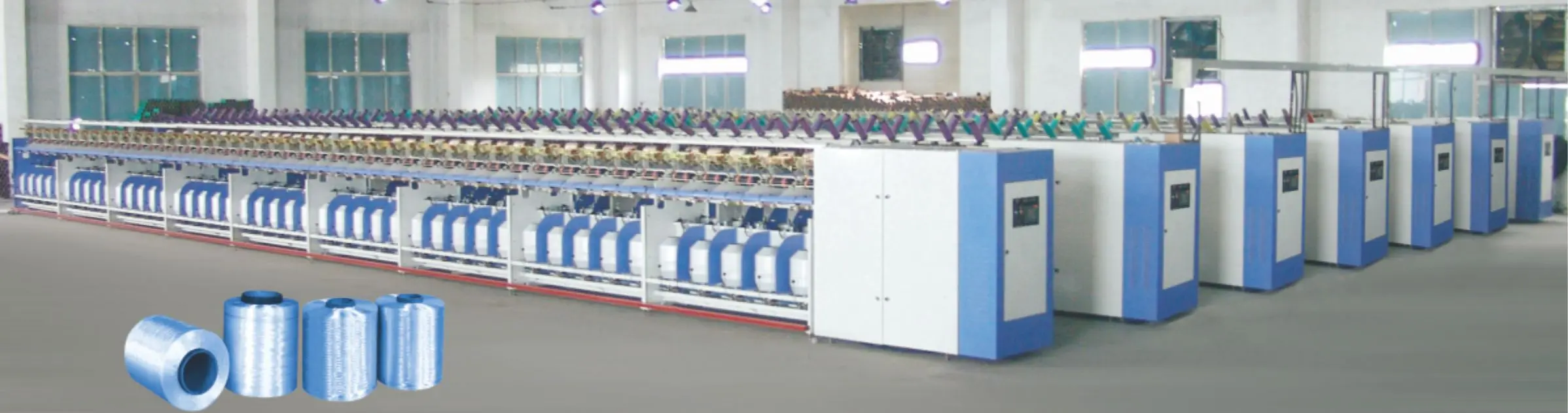

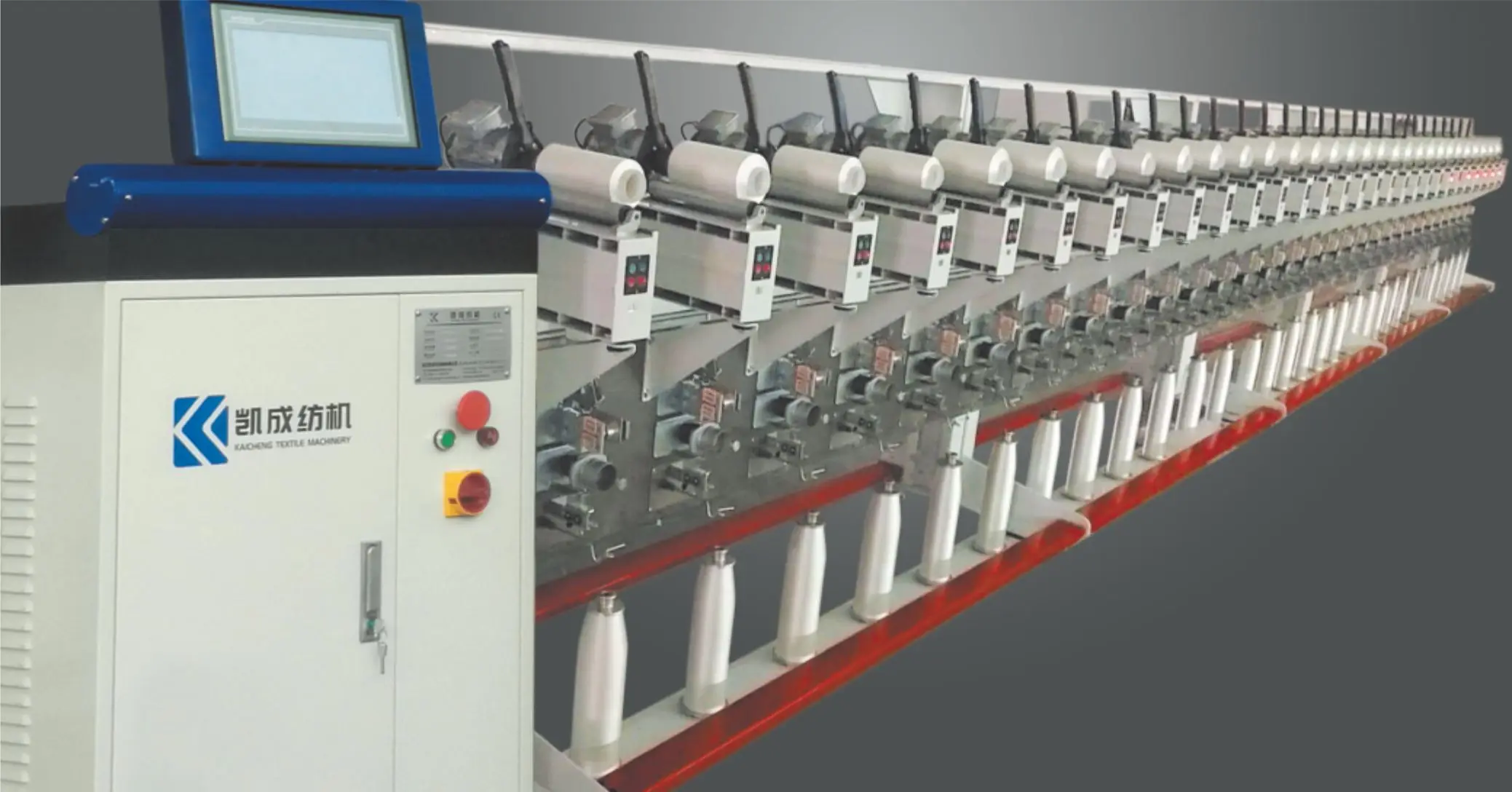

KC212 INTELLIGENT ELECTRONIC YARN GUIDE WINDER

◎High performance servo motor yarn guide, line speed can up to 800m/min, even reach 1100m/min, Improve production efficiency and
reduce cost;
◎Adopt comprehensive intelligent control technology, All parameters related to yarn quality can be adjustable at will . e.g.
Winding shape length, edge Angle, edge width, soft edge density, package shape cross Angle, winding tension, etc;
◎Adopting intelligent tension system, active unwinding device and automatic tracking overfeed system, ensure uniform density of
winding shape;
◎Whole machine with beautiful appearance, low noise, low power consumption and The human-machine interface is optimized ,
thecontrol is more reasonable

Type A: used for initiative unwinding ( Hank to Cone Winding)

Apply for hank or cone yarn initiative unwinding, main for unwinding DTY, viscose, short fiber and so on

Structure	single side, single layer
Spindle guage	440mm, which can be adjust
Speed	Max 1100m/min
Tension	Electronic tension + initiative winding
Take-up	cylindrical or cone
Winding	Digital or precision winding

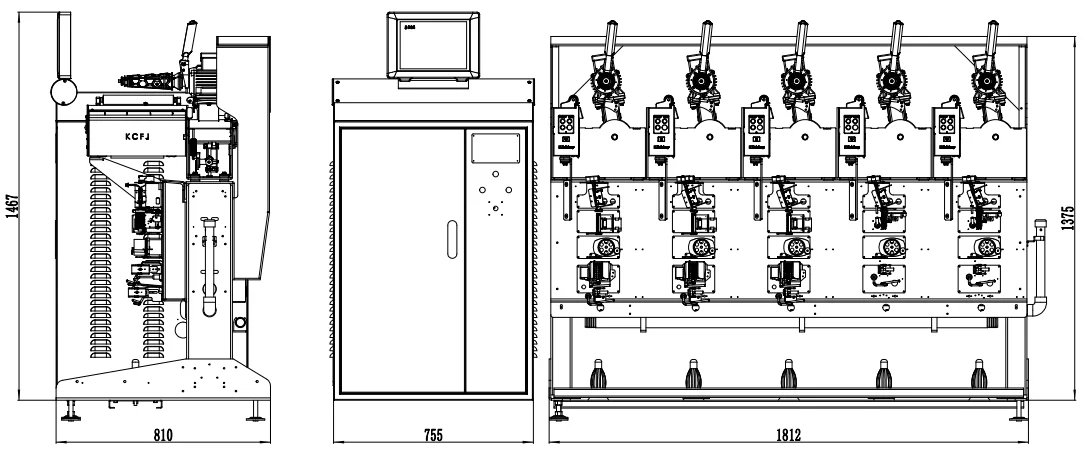

Machine Size

4spindles/section: 1780mm X 1380mm X 810mm

Machine head: 755mm X 1467mm X 810mm

Type B : used for soft and hard winding

Apply for winding yarn from cone to cone, main for winding DTY, FDY, POY, viscose rayon, indutrial yarns and so on

Structure	single size, single layer
Spindle Guage	360mm which can be adjust
Speed	Max 1100m/min
Traverse	130mm - 250mm
Rated Power	400W/spindle
Actural	25-50% of rated power
