Cnc cermet вставки режущие инструменты для обработки стали с высокой
- Категории: Turning Tool >>>
- Поставщик: Zhuzhou,Uko,Cemented,Carbide,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

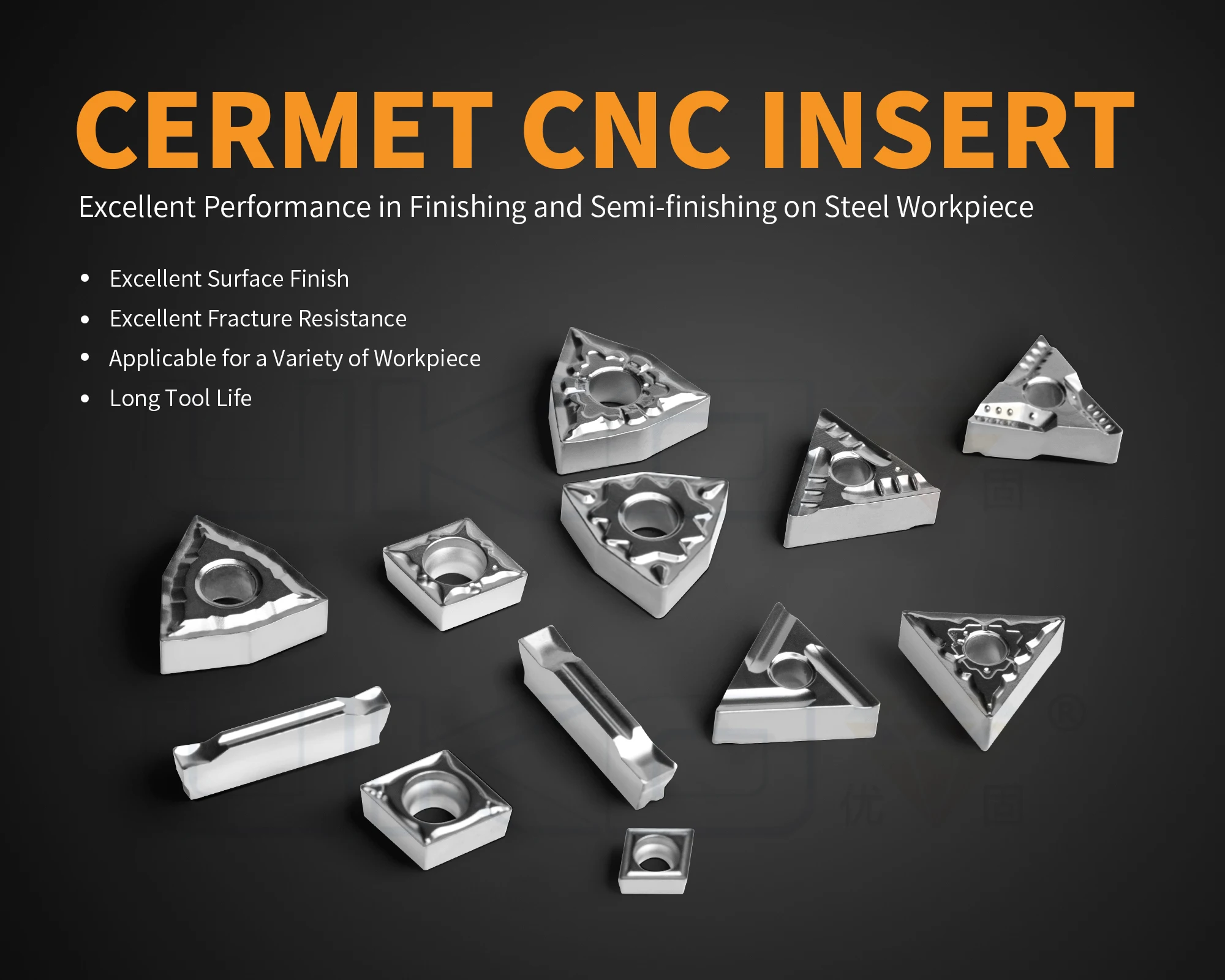

Product Description

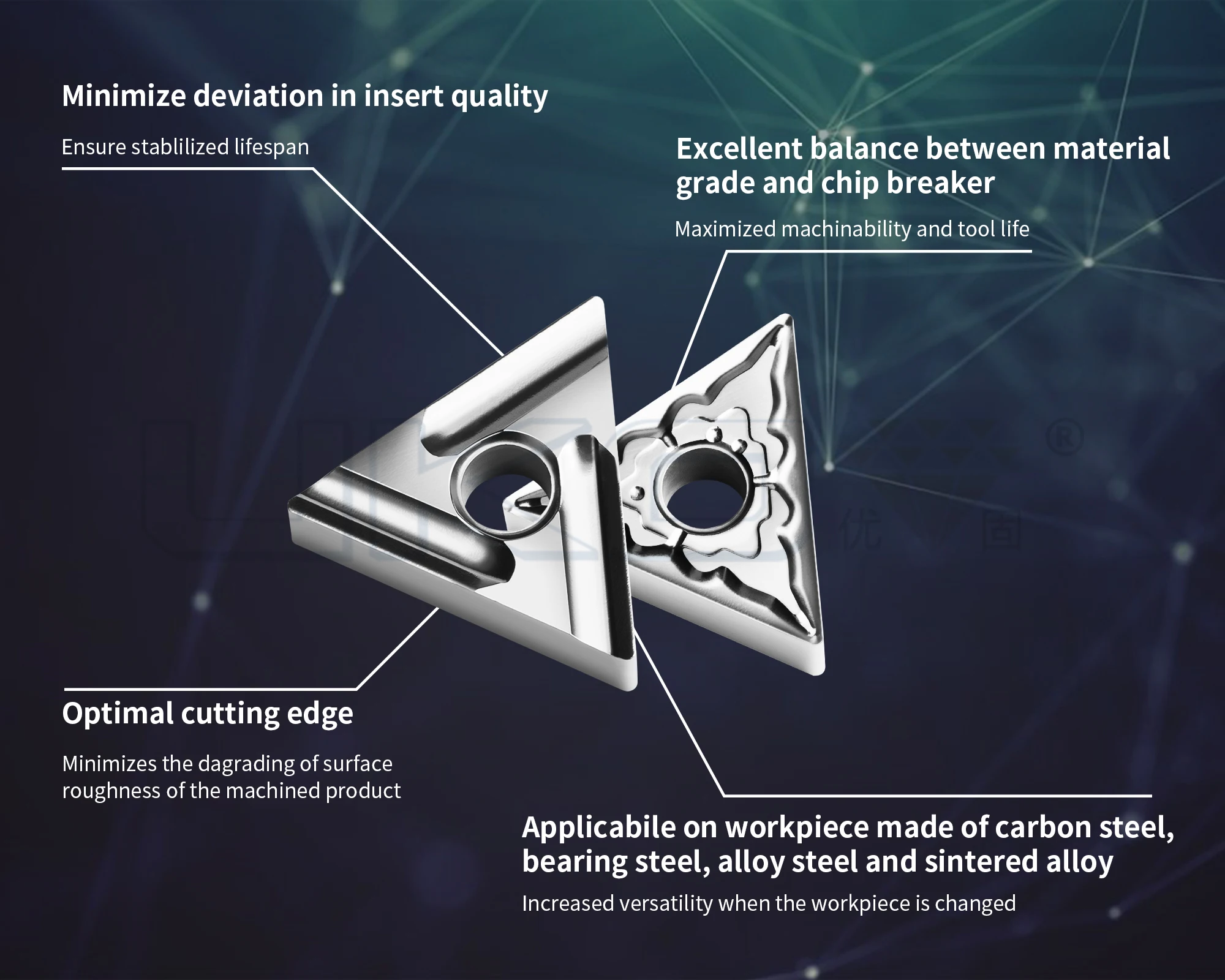

Our Advantages

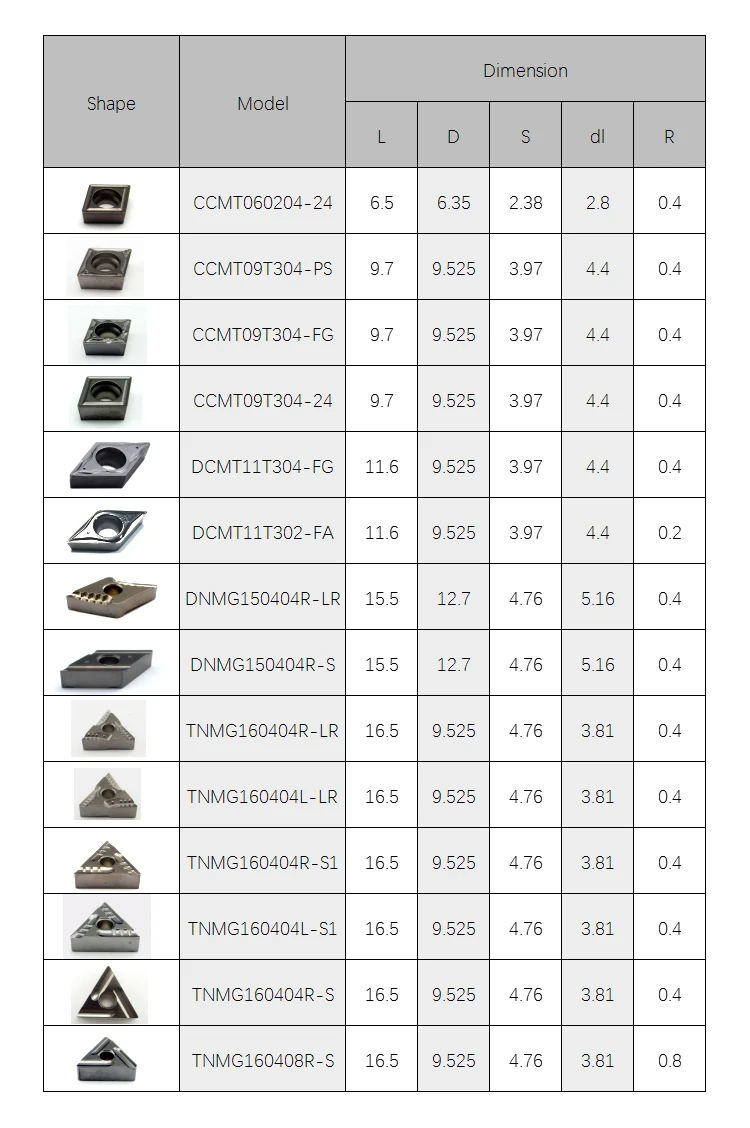

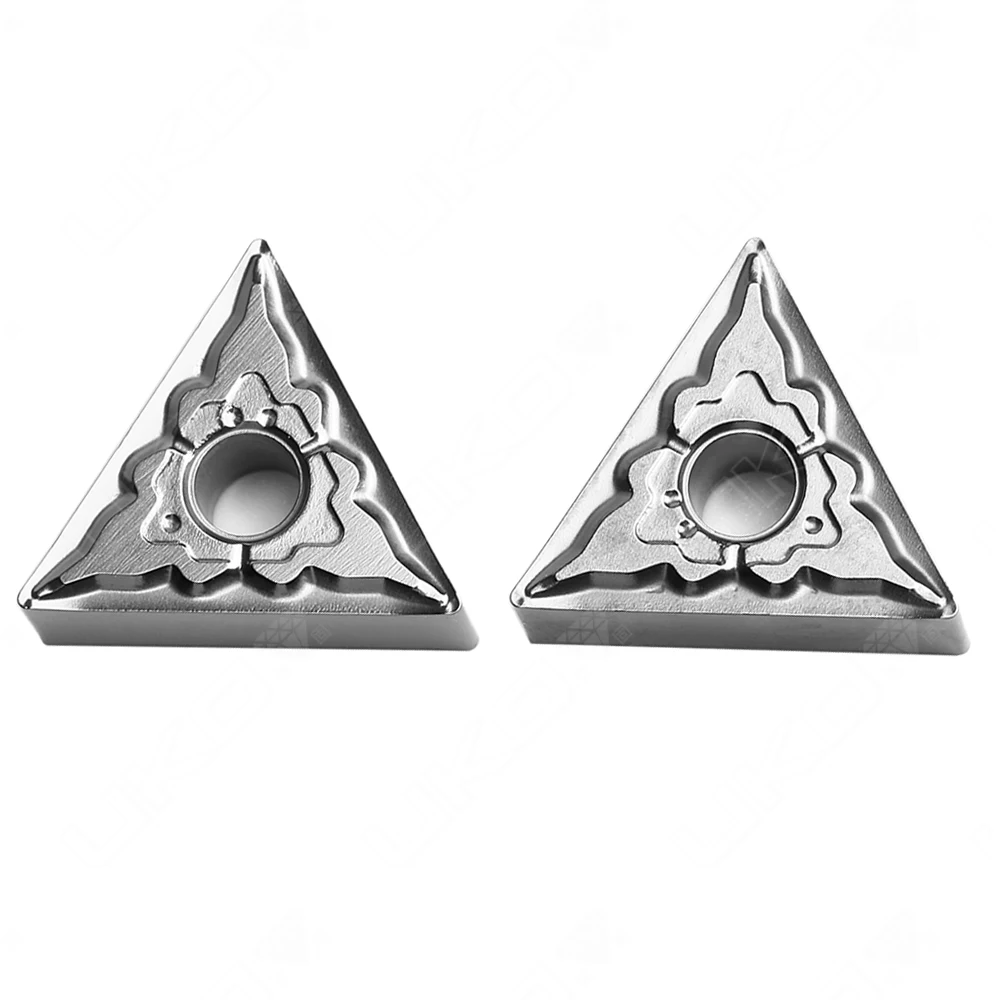

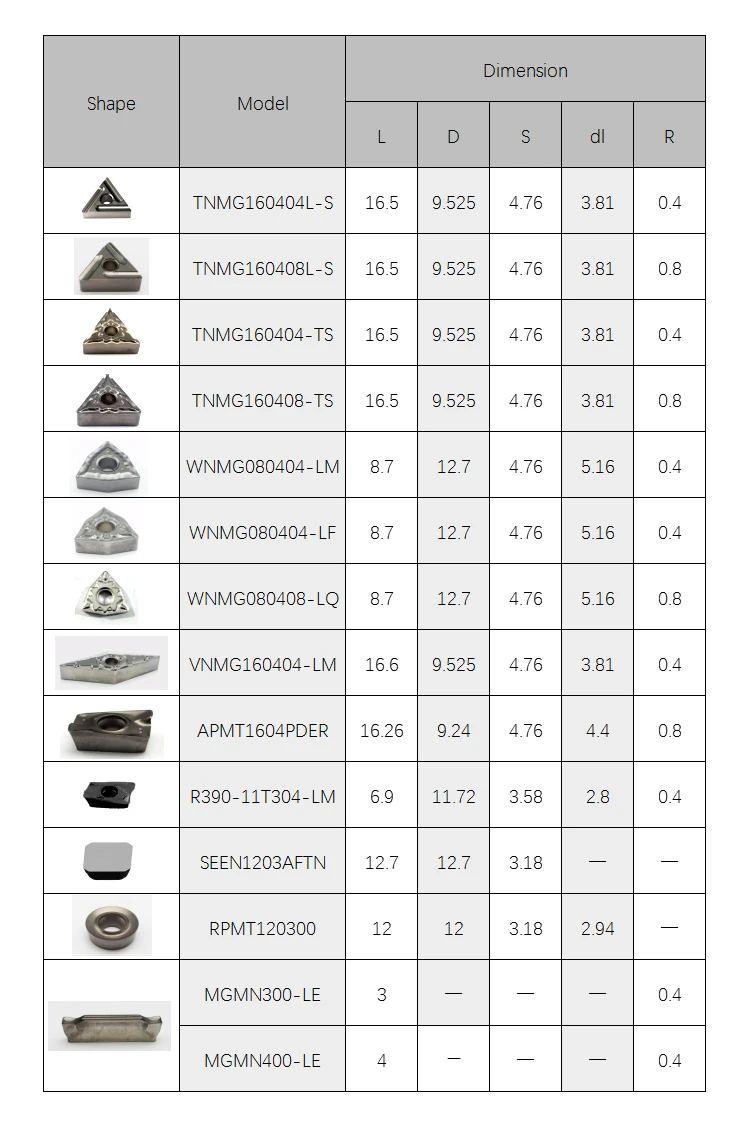

Details Images
TNMG160404L-S
TNMG160408L-S
TNMG160408L-S
TNMG160404R-S
TNMG160408R-S
TNMG160408R-S
TNMG160404L-S1
TNMG160408L-S1
TNMG160404R-S1
TNMG160408R-S1
TNMG160404L-LR
TNMG160408L-LR
TNMG160404R-LR
TNMG160408R-LR
TNMG160404-TS TNMG160408-TS
CCMT09T304-FG
CCMT09T304-PS
CCMT060204-24
MGMN
Basic Grade
Grade | Information |
UK215 | It is suitable for finishing and semi finishing of steel parts (< 40HRC carbon steel, alloy steel, tool steel, pre hardened steel), stainless steel (< 35HRC), cast iron (< HB350) and aluminum alloy series. Excellent strength, fracture toughness and surface finish. |
UK225 | It is suitable for finishing and semi finishing of steel parts (> 40HRC carbon steel, alloy steel, tool steel and pre hardened steel). High wear resistance, high strength and toughness, excellent surface finish. |

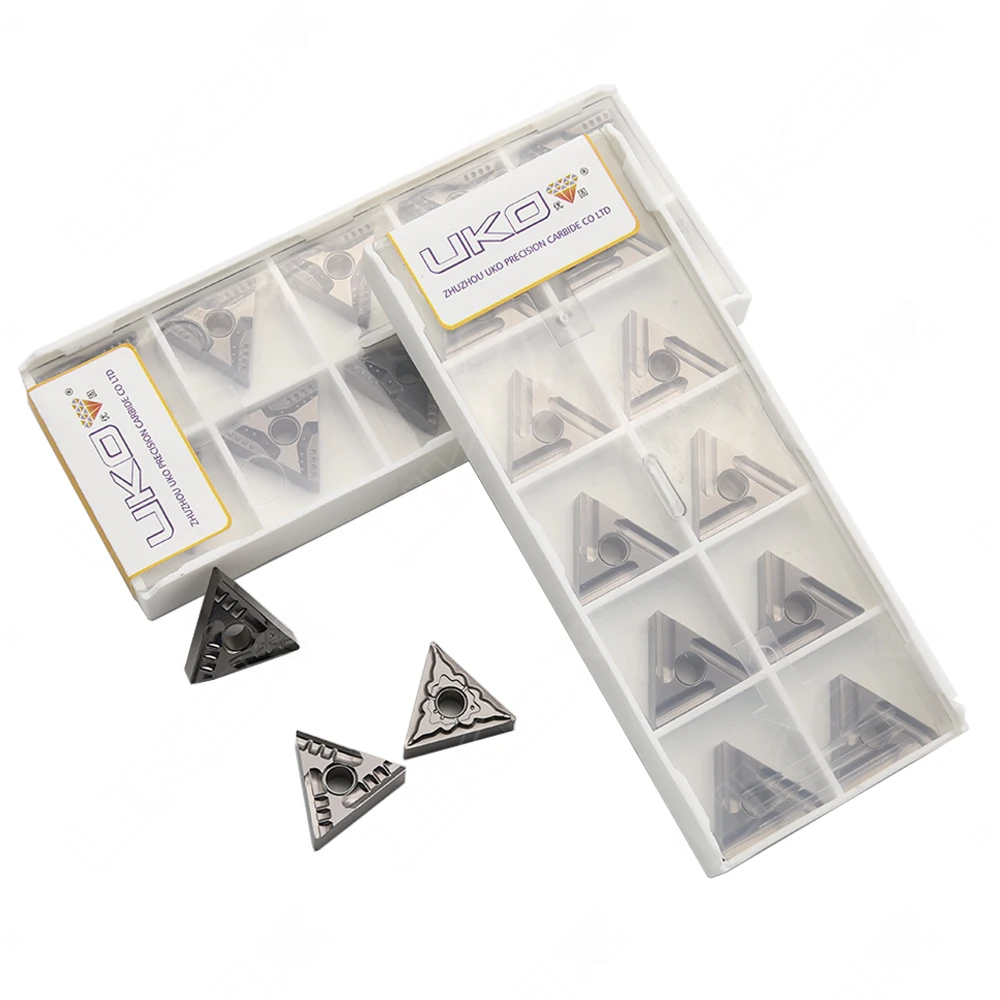

Package
10pcs/box
Customer Usage Scenarios
Top Equipment
Packing & Delivery
Packing Details : 10 PCS to a box
Delivery Details : For stocked items, we will deliver the products within 3-5 days after payment confirmed.

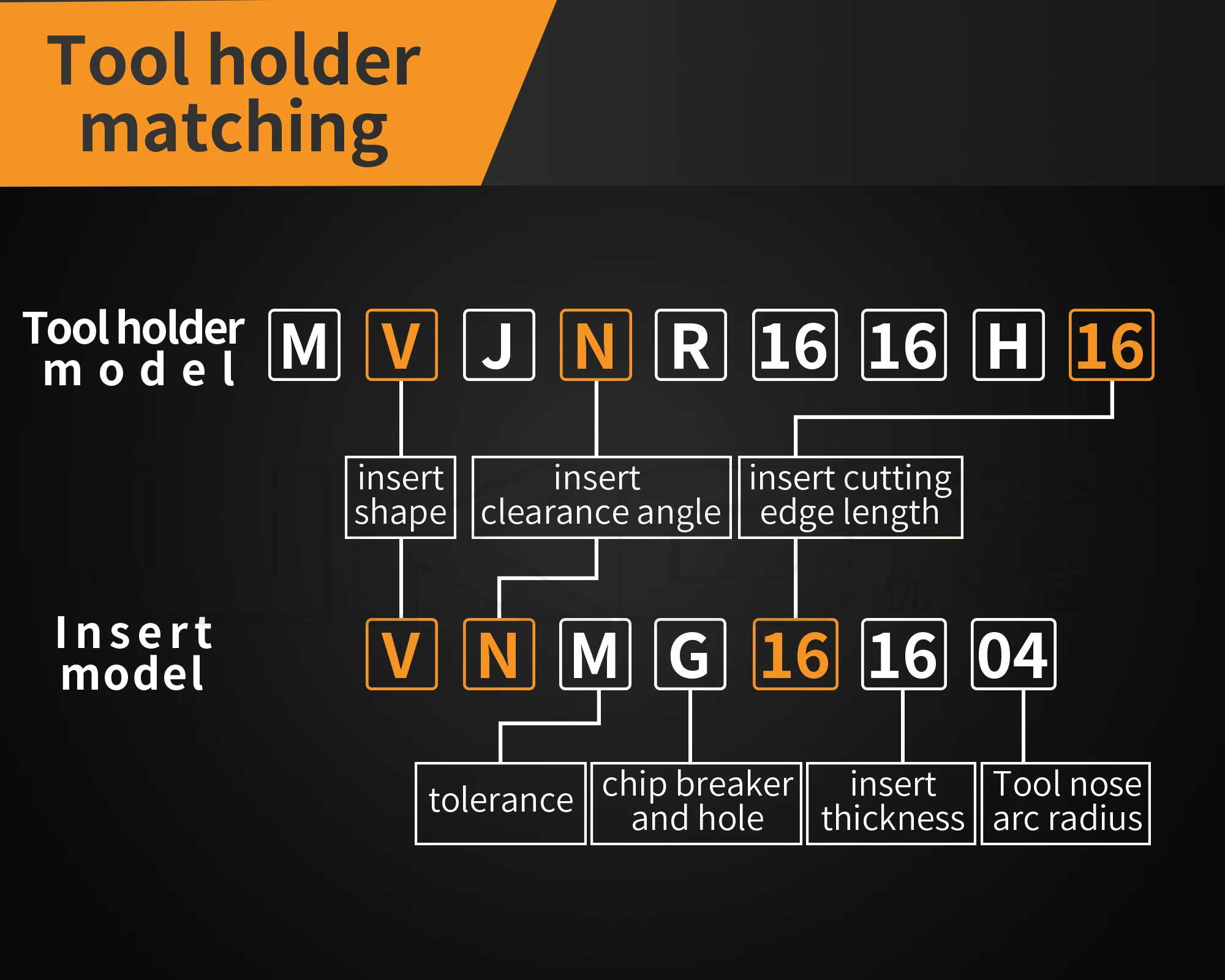

Tool Holder Matching
Our Company
Cermet inserts use FAQ
1. Worn face
Influence: Gradually changing workpiece size or surface finish
Reason: Line speed is too high, reaching tool life
Solution: Adjust processing parameters, such as reducing line speed and using more wear-resistant inserts
Reason: Line speed is too high, reaching tool life
Solution: Adjust processing parameters, such as reducing line speed and using more wear-resistant inserts
2. The insert broke
Influence: Sudden change in workpiece size or surface finish, sparks on the surface
Reason: Inappropriate parameter settings, inappropriate choice of insert material, poor workpiece rigidity, unstable blade clamping
Solution: Check whether the parameter setting is reasonable and select the corresponding tool according to the workpiece material
Reason: Inappropriate parameter settings, inappropriate choice of insert material, poor workpiece rigidity, unstable blade clamping
Solution: Check whether the parameter setting is reasonable and select the corresponding tool according to the workpiece material
3. Severe fracture
Influence: Sudden unpredictable conditions occur, resulting in scrap of tool holders or defective and scrapped workpieces
Reason: The processing parameters are set incorrectly, and the vibrating workpiece or insert is not installed in place.
Solution: Set reasonable processing parameters, should reduce the feed amount and reduce the chip selection of the corresponding processing inserts, strengthen the rigidity of the workpiece and the insert.
Reason: The processing parameters are set incorrectly, and the vibrating workpiece or insert is not installed in place.
Solution: Set reasonable processing parameters, should reduce the feed amount and reduce the chip selection of the corresponding processing inserts, strengthen the rigidity of the workpiece and the insert.
4. Scum tumor
Influence: Inconsistent workpiece size, poor surface finish, and fluff or burrs on the surface
Reason: Cutting speed is too low, feed is too low / not sharp enough
Solution: Increase cutting speed and use sharper inserts for feed
Reason: Cutting speed is too low, feed is too low / not sharp enough
Solution: Increase cutting speed and use sharper inserts for feed
