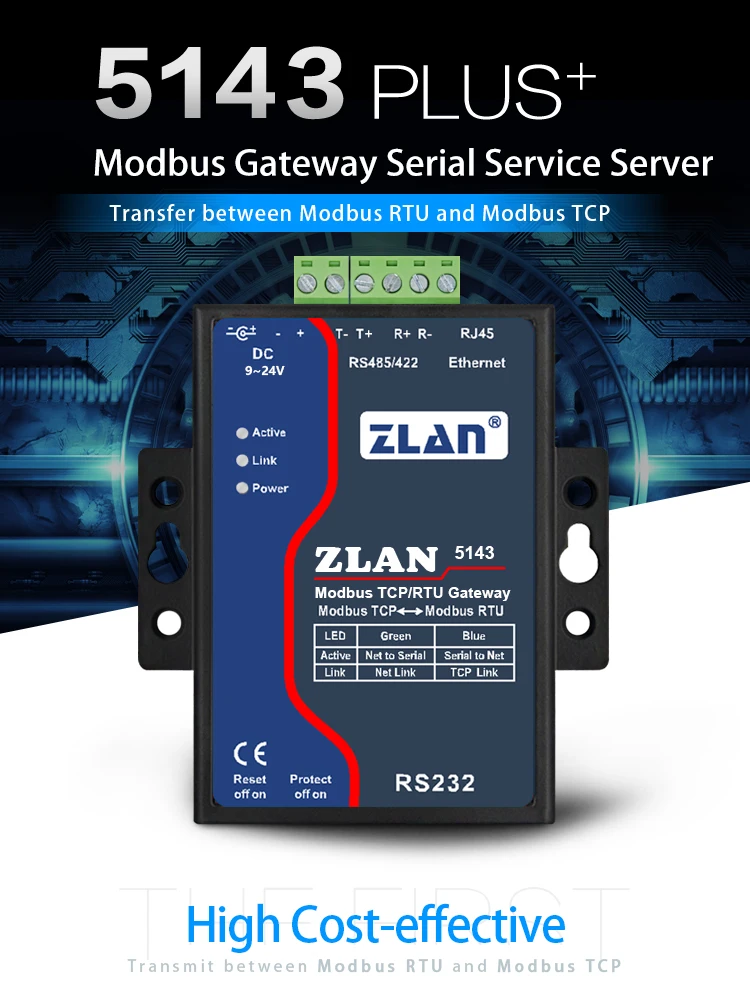

Последовательный порт RS232 RS485 RS422 для последовательного сервера

Figure

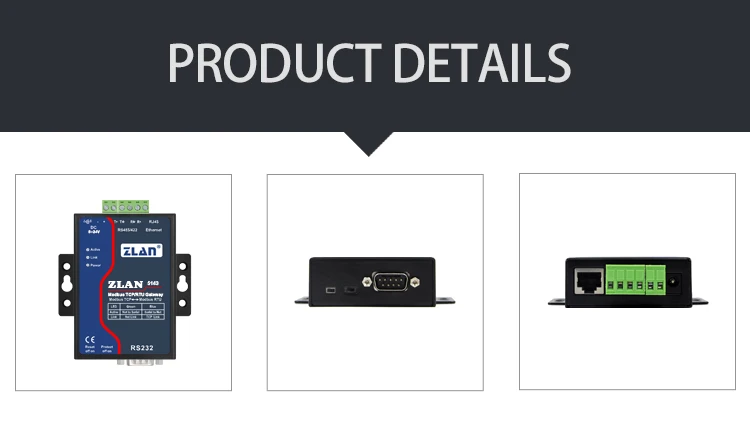

Interface:

Serial:DB9 Male for RS232, 2 PIN terminal for RS485; RJ45 Networking connecter; Power plug-in or terminal

Size:

L x W x H = 9.4cm x 6.5cm x 2.5cm

Communicate interface

Ethernet:

10M/100M, 2KV electrical plus protection

Serial

RS485/RS232 x 1:RXD,TXD,GND

Serial parameters

Baud rate:

1200~460800bps

Parity:

None, Odd, Even, Mark, Space

Data size:

5~9

Flow control:

CTS/RTS,DTR/DSR,XON/XOFF

Software

protocol:

ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, Modbus TCP

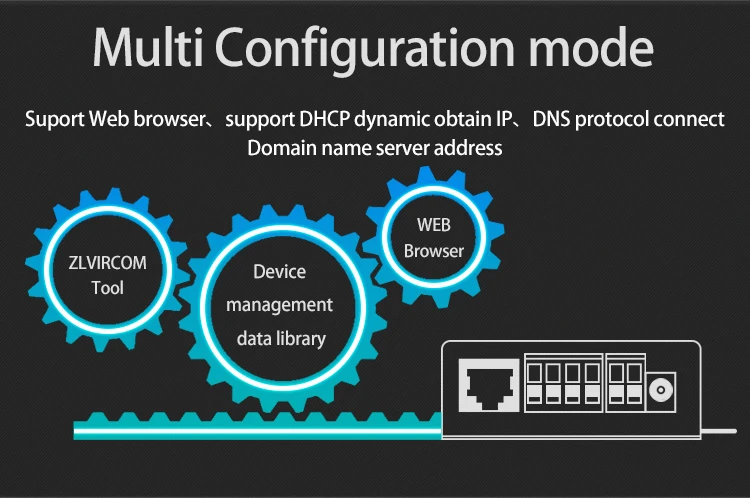

Setting method :

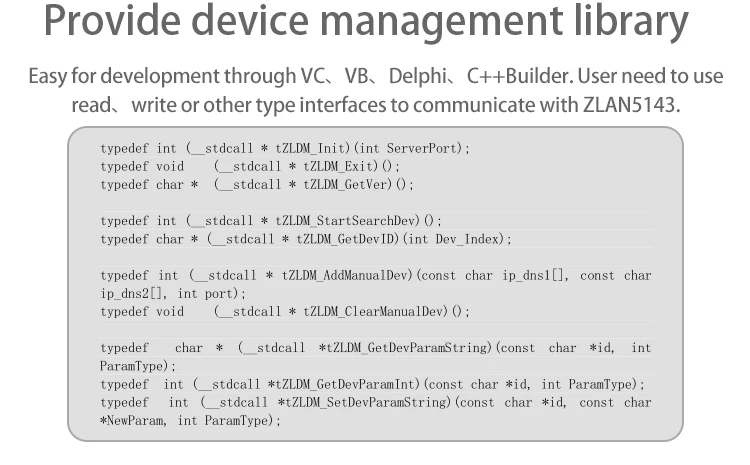

Socket, Modbus TCP , ZLVirCom, WEB browser, device management library

Net communication method:

Socket, Virtual serial , device management library

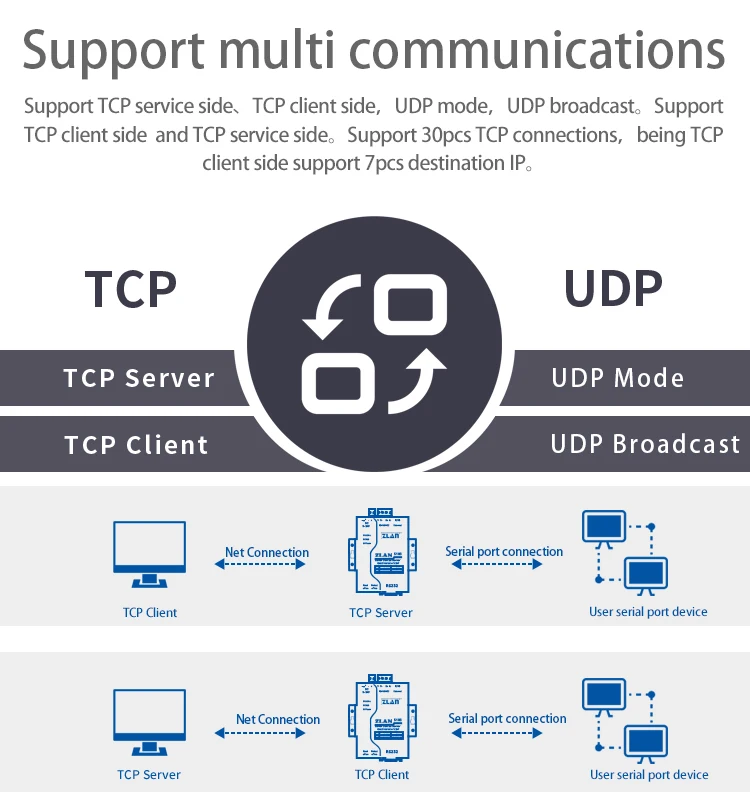

Work mode

TCP server, TCP client, UDP, Real Com Driver

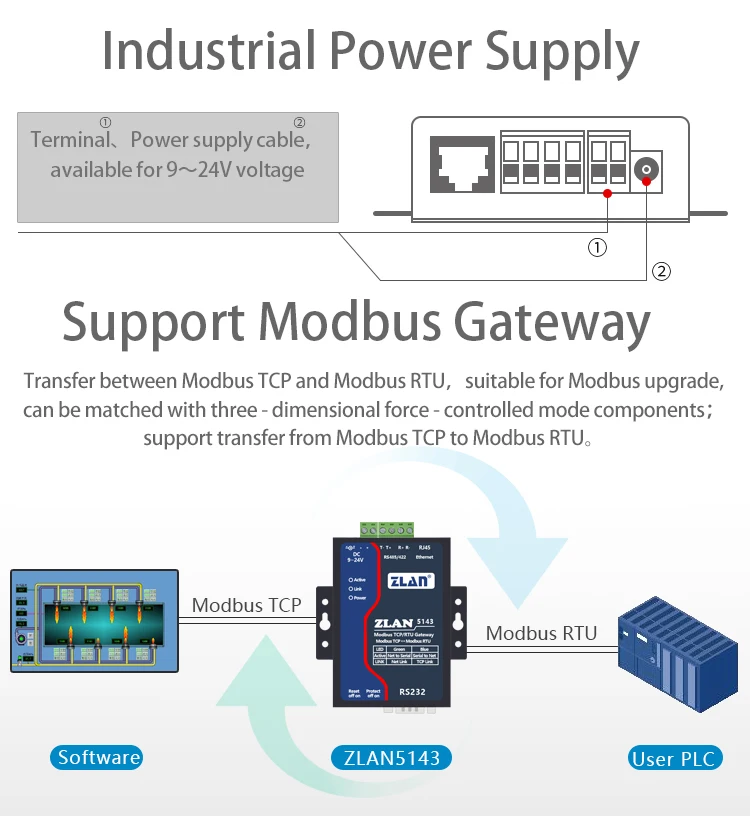

Power

Power:

9~24V DC.

Environment

Running temperature:

-40~85℃

Storage temp:

-40~120℃

Humidity:

5~95%RH
