Product Description

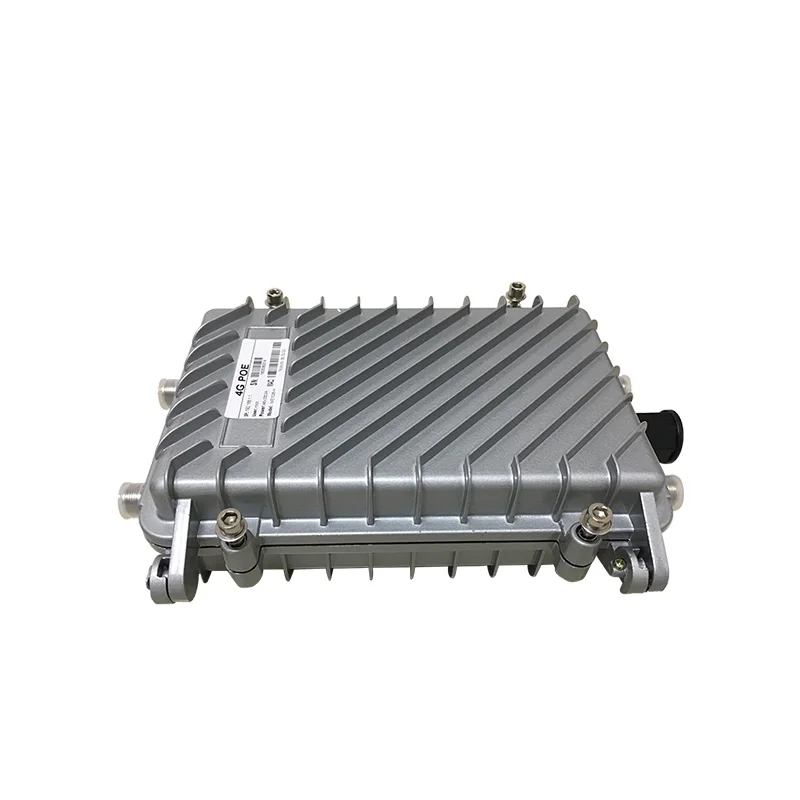

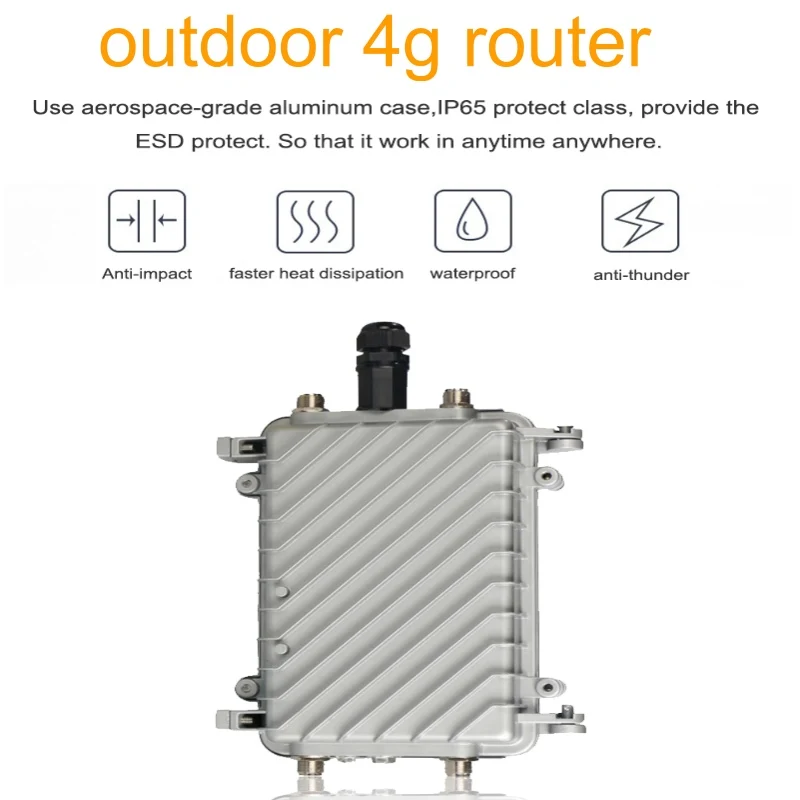

industrial 4g lte router openwrt sim card slot outdoor wifi router

1.1. Processor
The core processor is MIPs 74kc, with the highest dominant frequency of 560mhz. The built-in unit includes 64K instruction cache, 32K data cache, single cycle multiplication acceleration, and is compatible with mips32 and mips16 instruction sets. Big / little endian is supported.
1.2. memory
It supports 32-bit bus DDR2 SDRAM with a maximum memory capacity of 128MB.
1.3. FLASH
Use NAND flash at the same time of SPI flash. The startup data is stored in SPI flash. SPI flash is 16MB as standard, and NAND flash can expand up to 512MB.
1.4. WIFI
Wireless rate is 300m, supporting 2.4G IEEE 802.11b/g/n protocol function. The WiFi technology of Atheros has the characteristics of good signal quality, high transmitting power, high receiving sensitivity and strong anti-interference ability. Compared with other high-power WiFi schemes, it has certain technical advantages.
1.5. Right Mini PCIe expansion port
A standard 2.4g/5.8g Mini PCIe WiFi network card can be attached outside, which is convenient for customers to expand.
1.6. Network port
It supports two adaptive 100m RJ45 Ethernet interfaces and MDI / mdix automatic flipping. Built in switch supports QoS, VLAN and other functions, network port supports pluggable Poe module, Poe module input 48V, output 13W.
1.7.485 interface
Support RS485 interface and data communication with other equipment through supporting RS485 bus




bands Situation
For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules and update the price for you.



4G AU version （Australia / New Zealand / Taiwan / Brazil）
LTE-FDD: B1/B3/B4/B5/B7/B8/B28/
LTE-TDD:B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

4G EU version (Europe / Middle East / Africa / Korea / Thailand)
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

4G USA version （North American AT&T）
LTE-FDD: B2/B4/B12
WCDMA: B2/B4/B5

4G Global version
LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8


    • Product Feature
* Support 802.3/802.11u protocol, 3* 10/100Mbps Auto MDI/MDIX
* 1 Micro SIM Slot
* Support 3G/4G
* Support watchdog feature
* Many kinds of way to protect your data transmission；





Hardware Product Specification
Product Specification:
Hardware specification
Main Chip
QCA9531
Memory
DDR2 128MB (maximum support 128MB)
FLASH
SPI 16MB (maximum support 16MB)
Protocol Standards
IEEE 802.11n, 802.11g, 802.11b;
IEEE 802.3 and 802.3u;

Wireless Rate
Up to 300 Mbps
Working frequency band
2.4GHz
antenna
2*7dBi omnidirectional antenna
Interface
A 10/100M adaptive WAN port supports automatic flip (Auto MDI/MDIX)
A 10/100M adaptive LAN port supports automatic flip (Auto MDI/MDIX)
LED
SYS.4G.WIFI.LAN.WAN/LAN
Button
1 RESET button
The power adapter
DC 12V/2A




Packing&Shipping




Company Introduction


HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included POE switch, Access Point,openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G wifi router. with 30 people R&D team and around 500 people in factory






FAQ
