3 phase 380v 220v construction cnc stirrup bending machine for 12mm steel bar

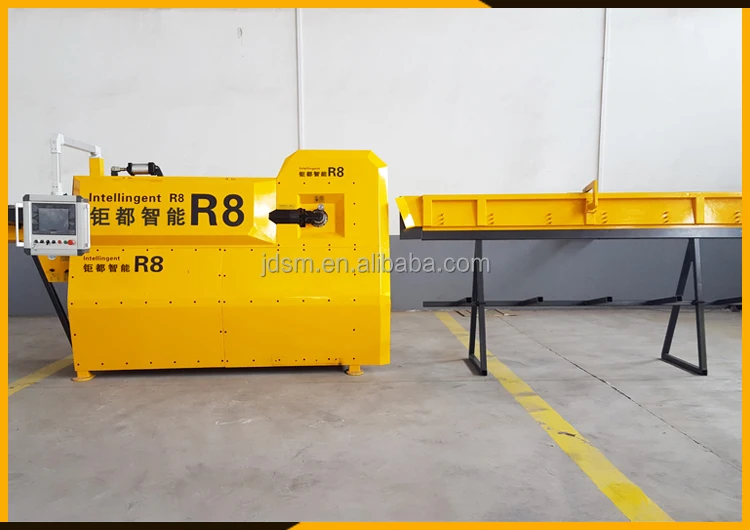

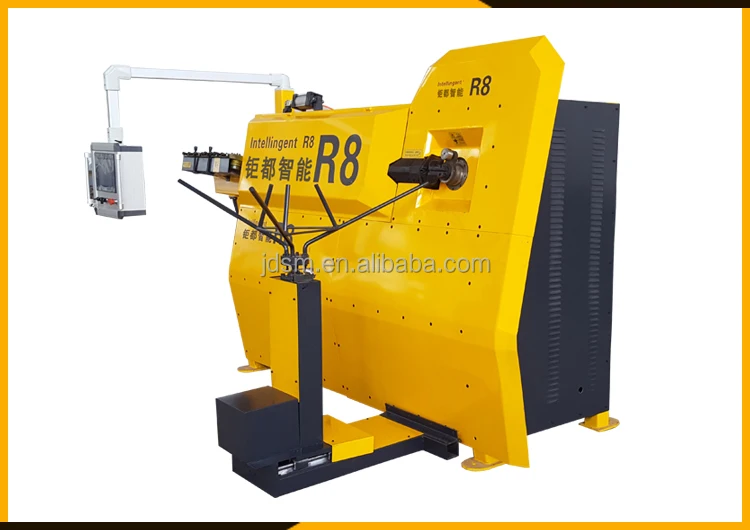

The unique specification R8 stirrup cnc bending machine model:



Model	R8 cnc stirup bending machinery
Singlet processing capacity	5-12 mm
Double processing capacity	5-10mm
Bending angle	180
Max bend speed	130 M/min
Max bend angle	1460 angles/set
Length accuracy	1 mm
Angular accuracy	1 angle

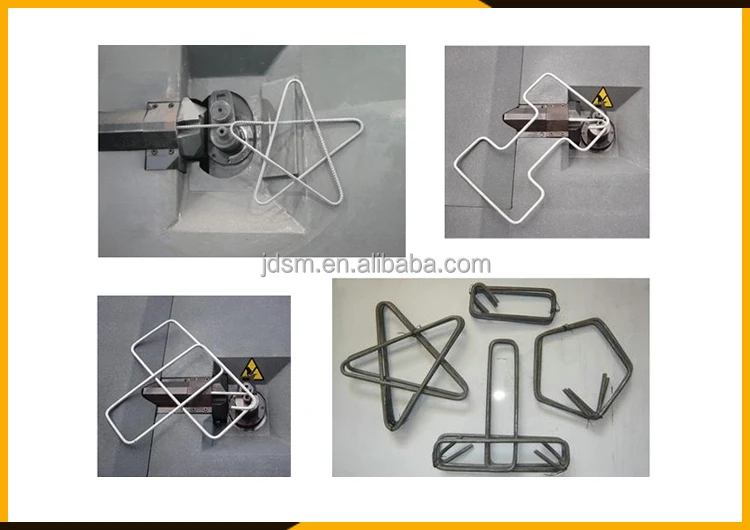

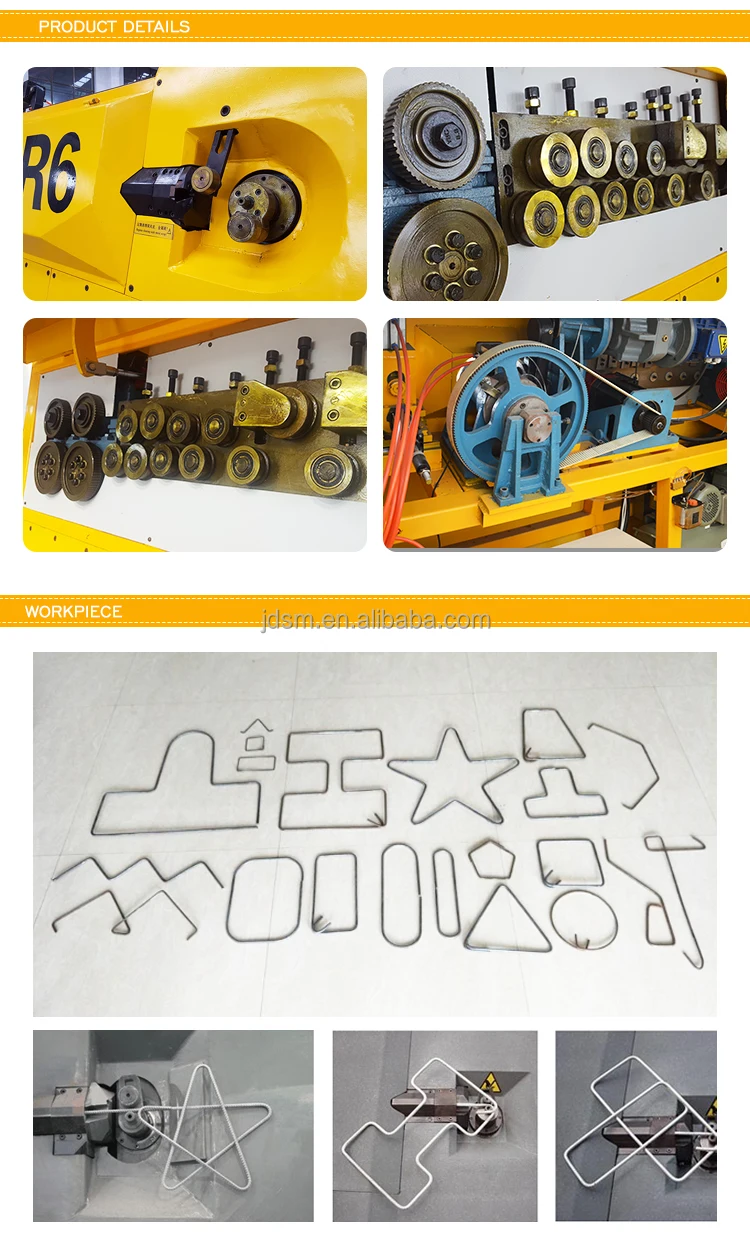

Steel shape	150 types
Gross weight	2980 Kg
Host size	3500*1500*2310 mm

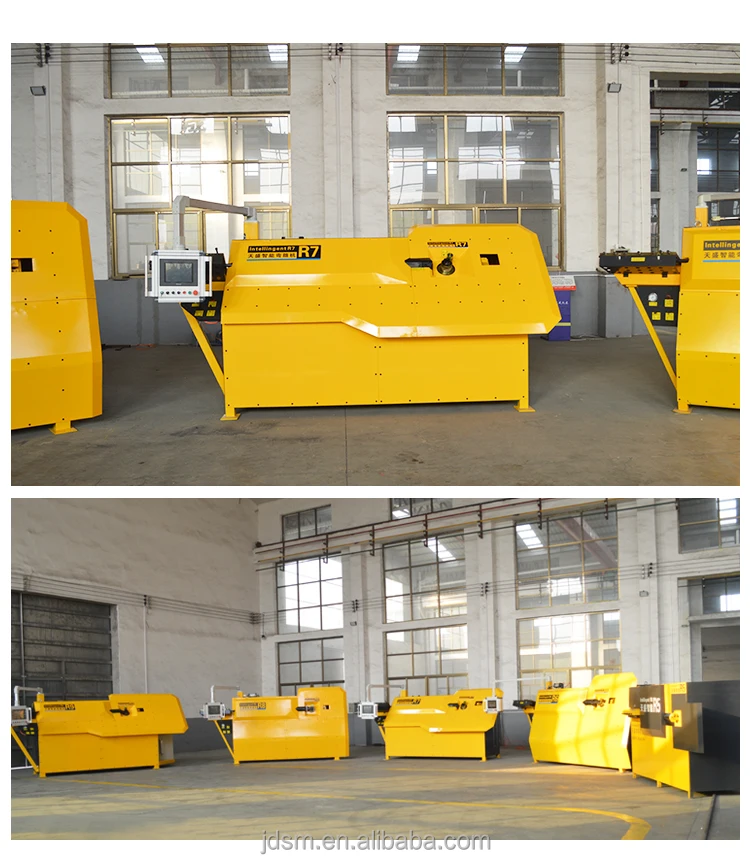

GreatCity is a Manufacturer of cnc stirrup bending machine that has experience in exportation of different models of cnc 4 motors bending machine which has different series(F-series and R-series) according to the diameter of the wire.



Below will present the R-series model with its proper specification defined the aptitude of high production of different shapes adapted in architectural area as different engineers can use.

As it is a type of air brake system the machine is fully equipped with the necessary part that ables the machine to work for a long run.



We are providing you a certified machine adequate for any construction utilization.
