220V 3G Quartz Tube Ozone Generator Water And Air Purification







Product Introduction:

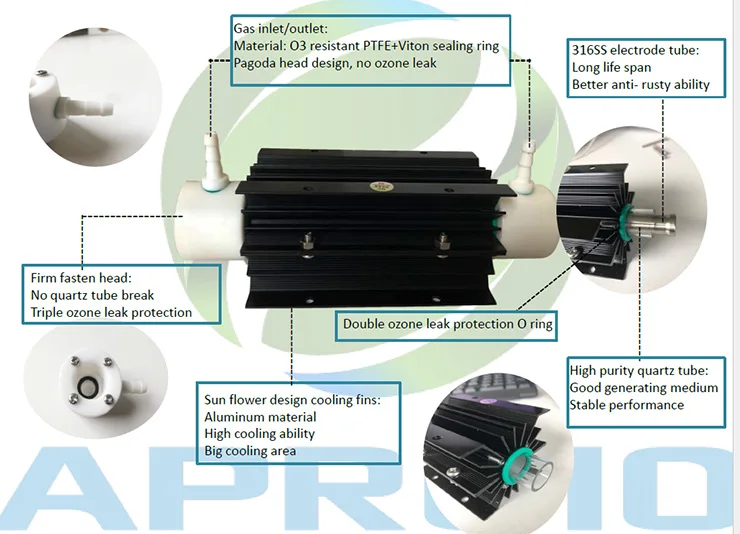

Dielectric material: Using high-purity silica dehydroxylated quartz tube, dehydroxylated up to 10PPM, high dielectric constant, twice of ceramic substrate, 2.5 times of ordinary glass tube, breakdown voltage 35KV, much larger than ozone started discharge voltage  (3-7KV), and there is no high voltage breakdown within 5 years of normal operation. The temperature of the quartz tube is up to1,800 degrees, which is 4 times that of ordinary glass. The accuracy of the discharge gap can still be ensured under high temperature conditions.



Discharge electrode: It is made of high-precision processing of medical grade 316L stainless steel, which will not rust or corrode after years of work.



Discharge gap: high-precision gap control, discharge gap 0.5mm, steady high-voltage discharge, high ozone concentration, high yield ratio, with efficient energy saving cooling method:

Air-cooling, aluminum alloy sun flower design, with oxidation treatment and harden surface, it will not change color after long time use



Ozone inlet /outlet head: Teflon and fluorine rubber seal, higher oxidation and corrosion resistance than PVDF (polyvinylidene fluoride) and ABS on the market.





Product  Specification:





Model     Number	Ozone Output	Air  Flow	Voltage	Power	Size Generator	Size Electronic	Weight
APL-OCB-3G	3g/h	10-15L/min	110VAC 220VAC	45W	137*57*52mm	128*57*42mm	0.60KG
APL-OCB-5G	5g/h	20-25L/min		55W	178*56*53mm	147*56*46mm	0.75KG
APL-OCB-7G	7g/h	20-25L/min		65W	226*56*53mm	147*56*46mm	0.80KG
APL-OCB-10G	10g/h	25-30L/min		90W	294x56x53mm	160*64*54mm	1.2KG















FAQ:



1.What’s your warranty?

One year warranty service and technical support



2. When will you delivery my order?

Normally  we can ship within 5 days for small order and depends on your order quantity, please feel free to contact us if you have  any problems on this.



3. What’s your payment method and payment term?

Bank transfer /credit card/ western Union/paypal, 100% pay before ship.



4. What your shipping method ?

Sea and air cargo service for bulk order ;



DHL, FEDEX, UPS, TNT, ARAMEX,EMS and some other special line express with competitive price are optional, door to door service.



5.How can I place order?

We will send invoice with our account  information.



220V 3G Quartz Tube Ozone Generator Water And Air Purification
