Working Principle:

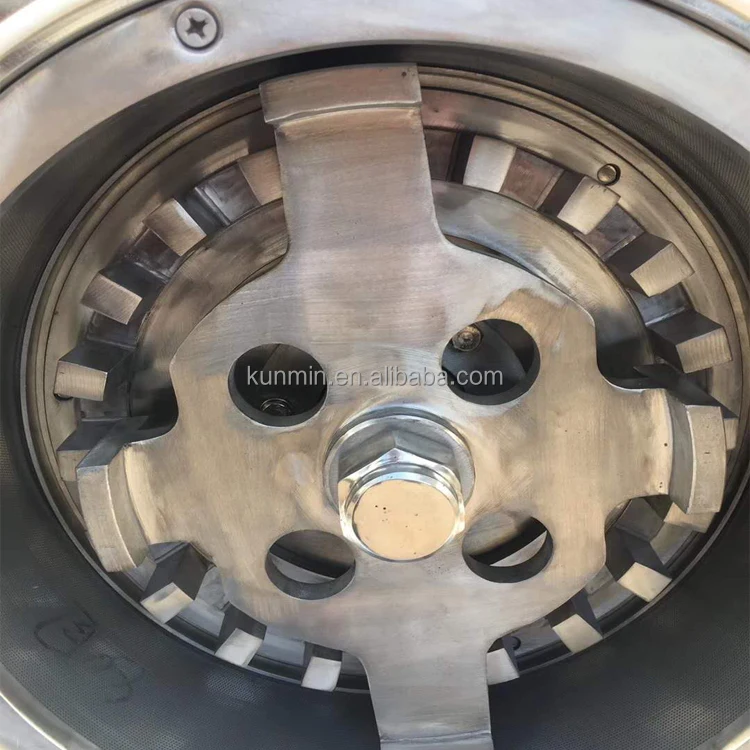

The crushing principle of this machine is high speed crushing with hammer return air. The crushed material can be directly discharged from the grinding chamber and discharged through the discharge port. After the general material is crushed, it is collected in a cotton bag. The crushed material is collected in the bag, and the air comes out from the small holes of the bag. The fine powder is discharged, thereby achieving the effects of no waste and no pollution. The particle size is determined by replacing the screens with different mesh numbers.

Our Feature:

1.Made of stainless steel 304;the smooth surface of machinery in wall to avoid material deposition and clogging.
2.Fineness of powder: 10-120Mesh, adjustable through changing sieves;

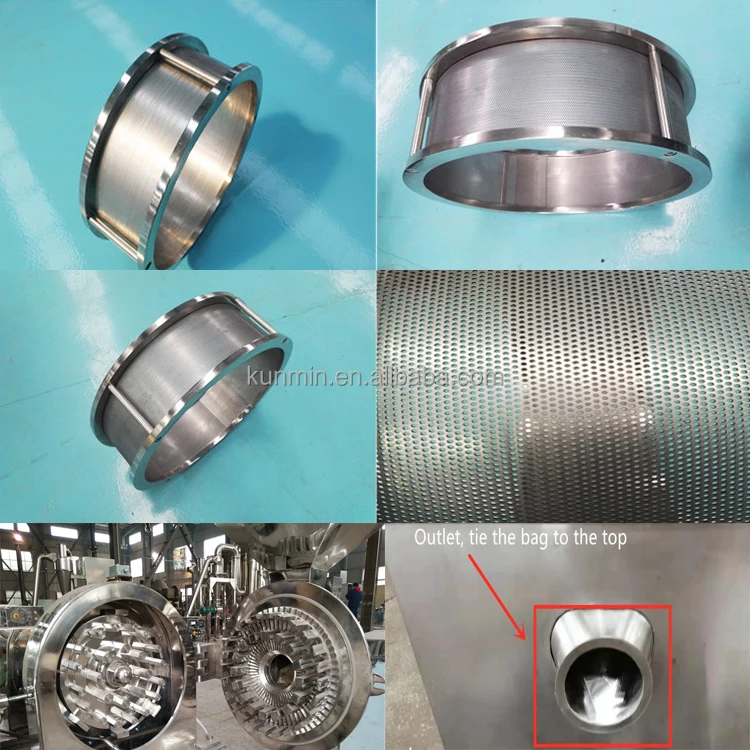

3.Sieve size we have 20/40/60/80/100/120 Mesh, the machine is equipped with one sieve, you can choose as per your needs.
4.Built-inner motor, lower gravity center, effectively reducing the noise of stainless steel crusher.
5.Grinding capacity of the stainless steel crusher is higher than the average crusher machine due to enhanced shears.

Specification of our pulverizer:

Product Name	Universal Grinder Crusher
Model	KM-GC-20	KM-GC-40	KM-GC-60	KM-GC-80
Capacity	20—150kg/h	40--800 kg/h	80--1200 kg/h	150--2000 kg/h
Speed of principal axis	4500 rpm	3400 rpm	3000 rpm	2100 rpm
Size of input granuless	6 mm	12 mm	15 mm	20 mm
Crushing Fineness	12--120 mm	12--120 mm	12--120 mm	12--120 mm
Motor power	4 kw	7.5--11 kw	18.5--22 kw	30--37 kw
Overall Size(L*W*H)	700*900*1500 mm	850*1200*1850 mm	950*1300*1950 mm	1100*1000*2100 mm
Weight	250 kg	450 kg	800 kg	1200 kg

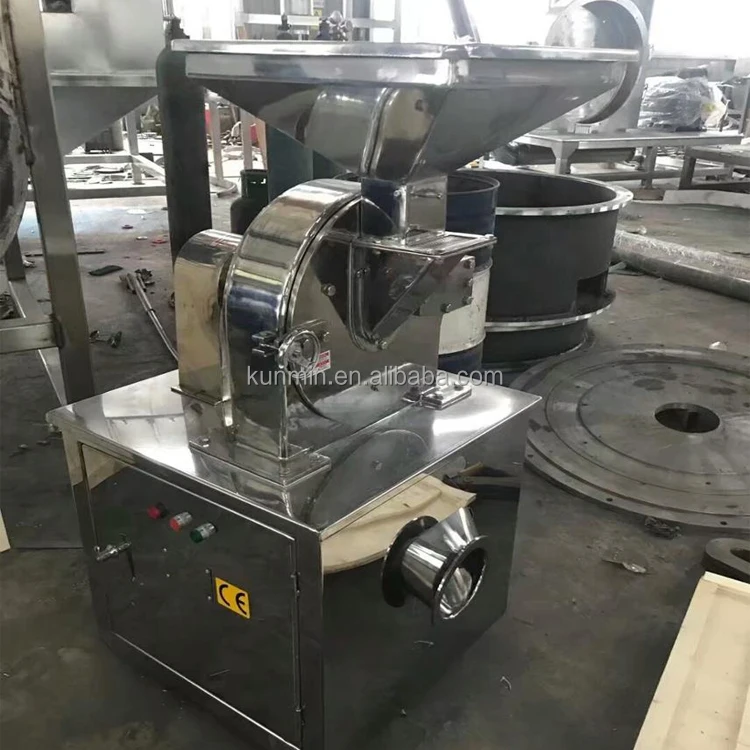

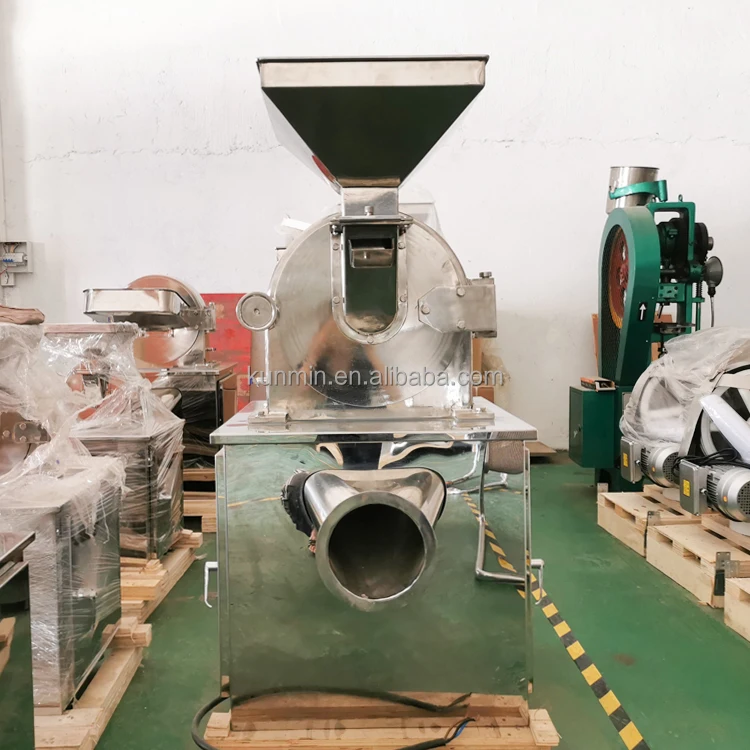

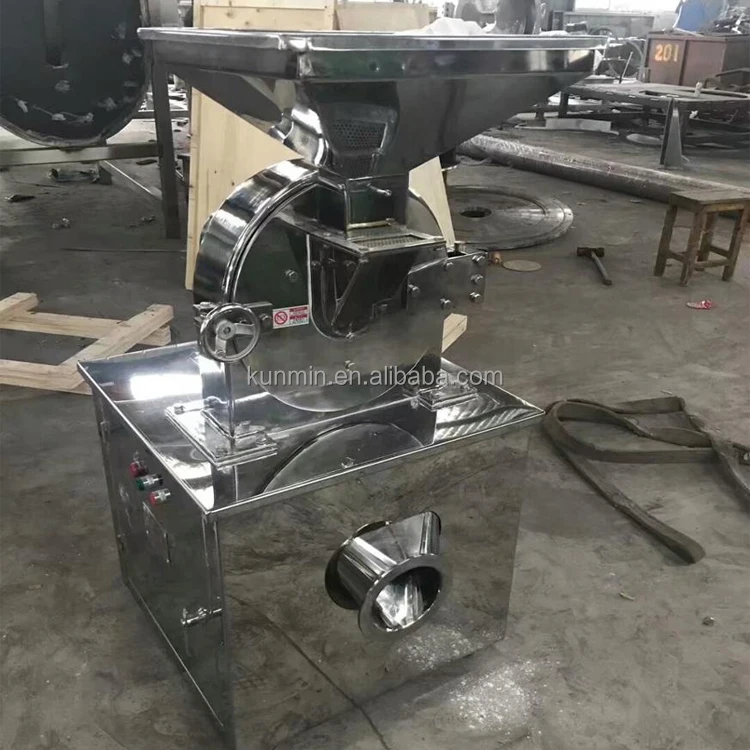

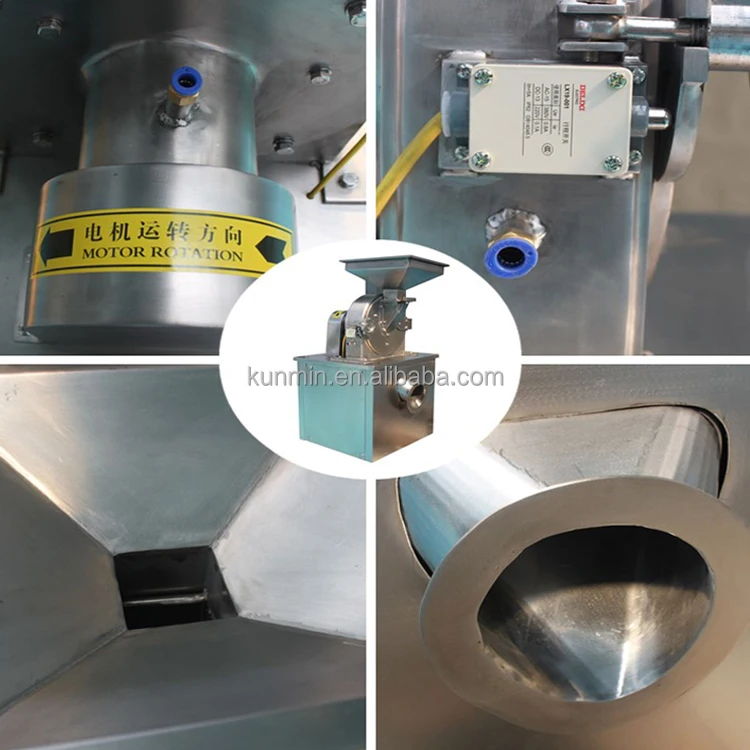

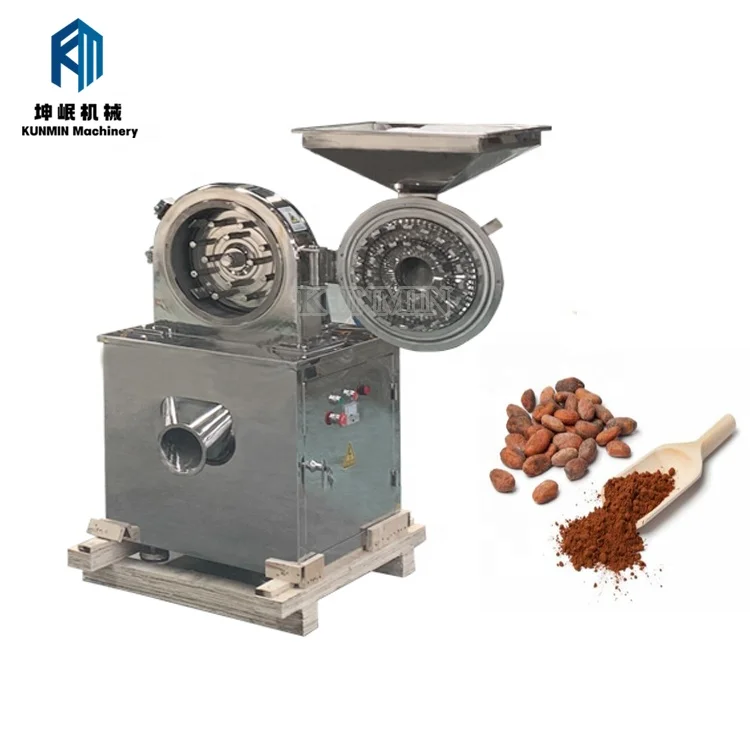

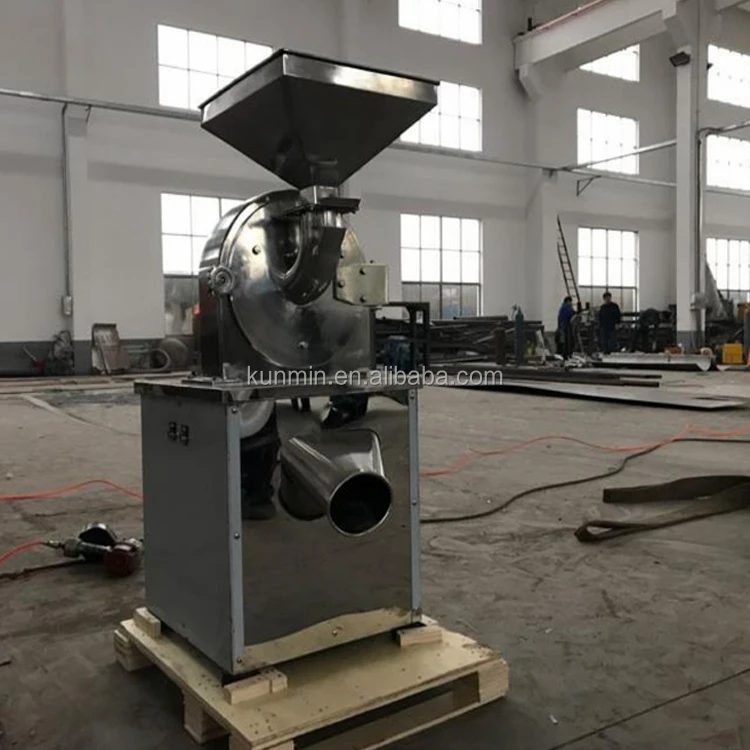

Products show of our pulverizer:
