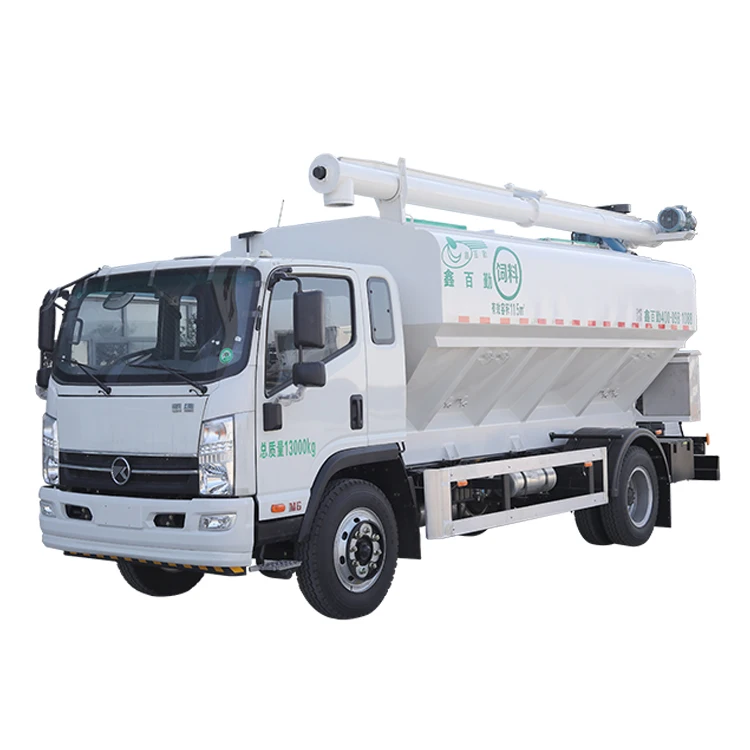

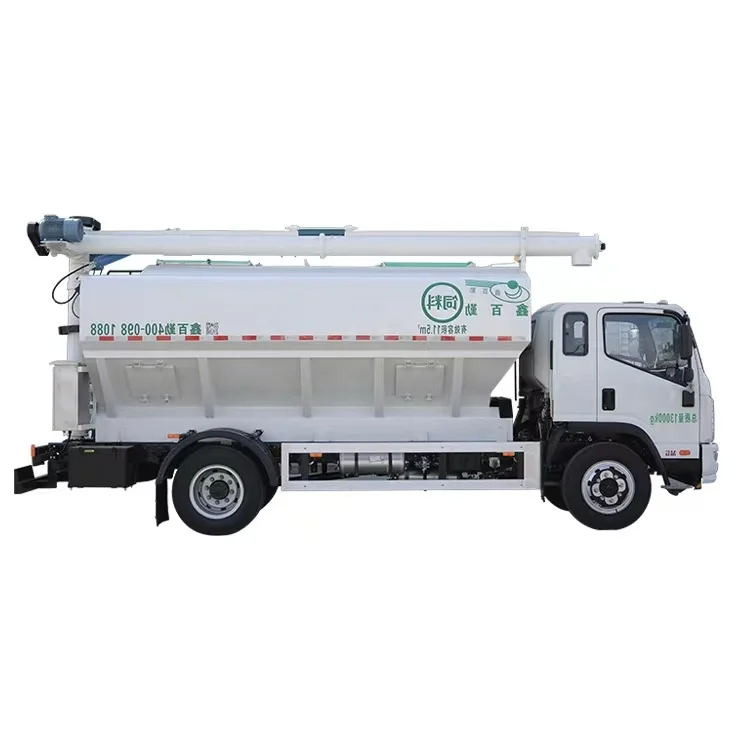

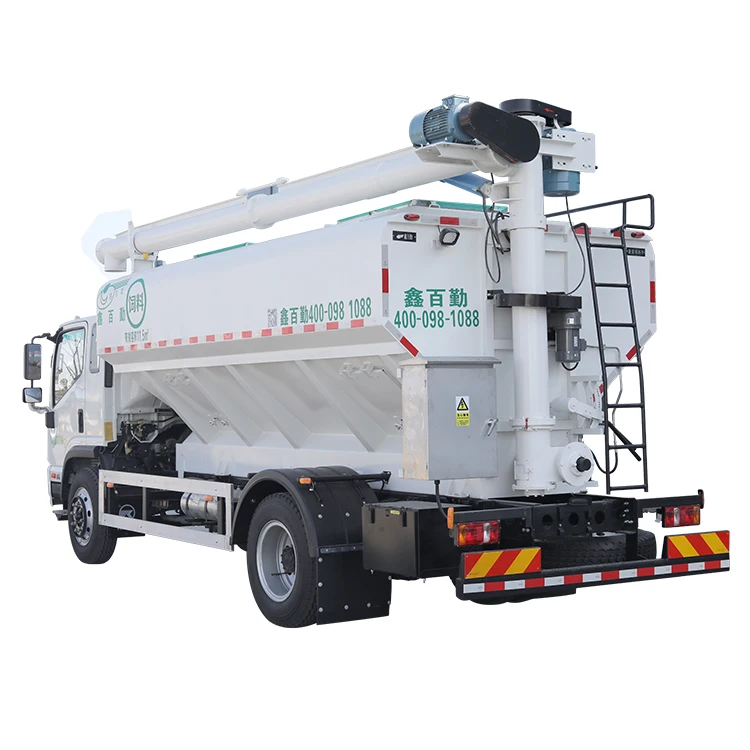

180 лошадиных сил углеродистая сталь 6 2 м 4x2 корм для животных тележка корма из

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

9000×2480×3880

Tank Dimension
(L*W*H)(mm)

6200×2400×2015

Total Mass(kg)

18000

Curb Weight(kg)

9400

Bulletin loading(kg)

8405

Theoretical loading(kg)

12000

Max speed(km/h)

89

Minimum turning radius(m)

8.5

Appearance color

White/ optional

Comprehensive fuel consumption

23.9

Certification

ISO9001, 3C

Chassis Parameters

Chassis Model/ Manufacturer

DFH1180BXIV/Dongfeng Trucks Company

Engine model / manufacturer

ISB180 50 /Dongfeng Cummins Engine Co., Ltd

Transmission model / manufacturer

DF6S900/Dongfeng Automobile Gearbox Co., Ltd

Max. output(kw)

132

Tire specifications

10.00R20 18PR

Cab Type

4×2 rear wheel drive , capacity 3 people

Engine capacity(ml)

5900

Wheelbase(mm)

5000

Travel recorder model

E-BOX

Tank Parameters

Tank gross volume (m³)

22

Space quantity

3

Conveying height(m)

8.3

Max conveying distance(m)

6.4

Discharge speed(Kg/min)

550-650

Residual rate(%)

≤0.22

Elevation angle of  discharge(°)

0~60

Rotation angle of discharge(°)

±180

Tank drive form

External power and generator (Permanent magnet generator 20kw/380V)

Electrical configuration

ABB engine in each hydraulic auger, 3 hydraulic augers in total; Schneider Electric Control System; Electronic control interlock protection such as under phase, under voltage and anti-reverse; Equipped with hydraulic auger alarm, rear work light.

Hydraulic auge

Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control.

Painting

Professional anti-corrosion paint., Process: sandblasting, polishing, painting

Tank

Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality.
