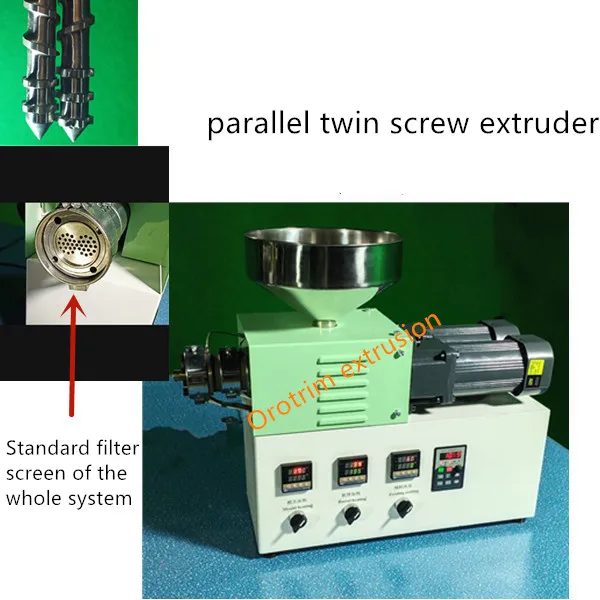

Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00

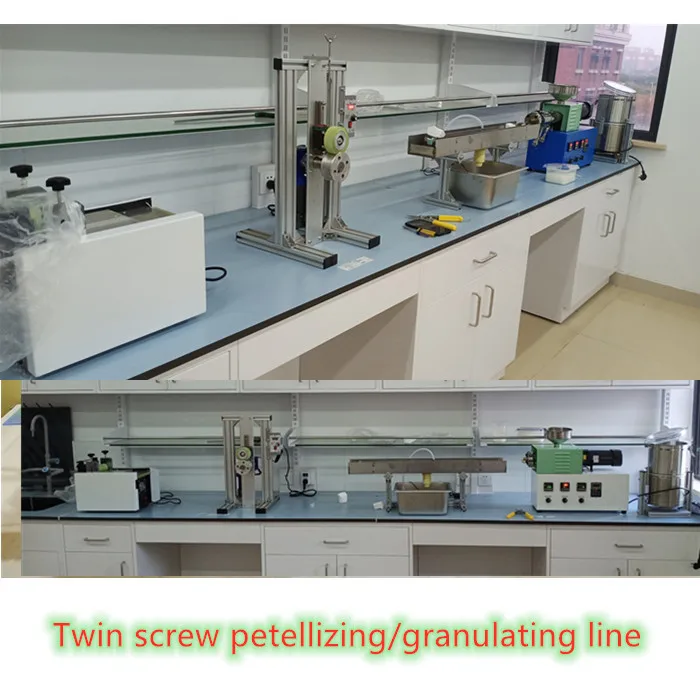

Лабораторный Настольный двойной винтовой экструдер гранулирующая линия пластиковая двойная
- Категории: Plastic Extruders >>>
- Поставщик: Zhangjiagang,Yuan,Imp.&Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1, The basic performance parameters:
1, Capacity: 0.1-2KG / hr
2, screw rotation speed: max to 15r/min
3, the production line center height: 300mm;
5, line direction: left and right to close the discharge →
6, the installation area: length×width*height = 1.75m * 0.2m * 0.5m
; weight: about 40KG
7. Motor Power: 180W
8. Voltage: 220V 110V, or customers can specify
Main extruder equipment configuration and performance parameters: For ABS/PLA/PCL/PETG/PC/PEEK/PE/PP/TPU/TPE... | |
Control System | Not PLC |
Voltage | 220/60 Hz,1phases |
Raw Material | PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG... |
Output | 0 -2 kg/h |
Main Motor Power | 180W |
Heating Power: | 1000W |
Screw | twin screw Extruder |
Diameter | 21 mm. |
Screw L/D | 12:1 |
Raw material | 38CrMoAlA |
surface treatment | Nitrogenization and polished |
Inner surface treatment | Nitrogenization and polished |
Max heating temperature | 300℃ |
Barrel Material | 38CrMoAlA |
Inner surface treatment | Nitrogenization and polished |
The nitride layer thickness | 0.5~0.7 mm. |
The surface hardness | HV850~940 |
Controlling system |
|
Extruder total Power | 940W |
Control Type | Single phase electronic speed governor control |
The control system |
|
Heating control zone | 3 |
