Автоматический крен для рулона CCD выравнивание трафаретная печатная машина сенсорного экрана FPC
- Категории: Screen Printers >>>
- Поставщик: Lingtie,(Xiamen),Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Model | LTA-5070 |
Print Area | 530*750mm |
Print Speed | 0-2500t/h |
Screen Frame Area | 800*1100mm |
Max. Paper Width | 520mm |
Inspection Table Max. Size | 600*600mm |
Air Source | 0.4-0.6mpa |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) |
Printing Material Thickness | 0.02-0.5mm |
Weight | 1700kg |
Machine Size | L2950*W1160*H1865mm |

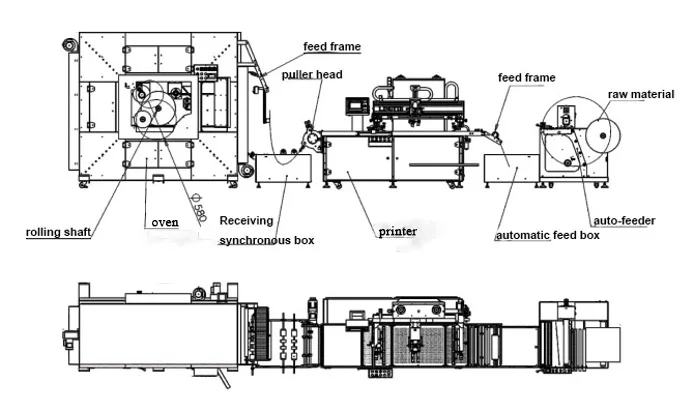

1) This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.

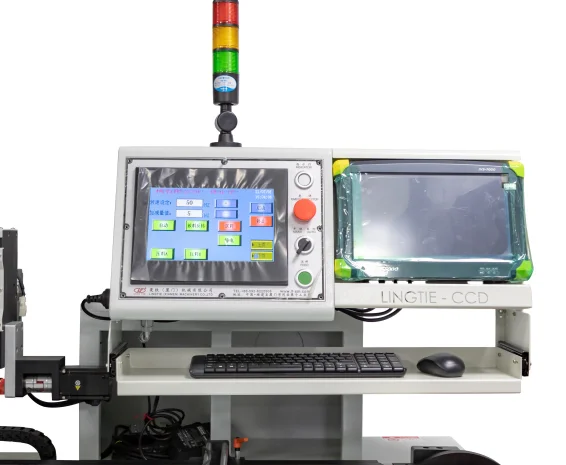

2) It differs from other printing presses in owning CCD automatic register function, automatic edge detection function and automatic point to point register function, which can increase the accuracy of printing.
3）Application
This machine is special for printing for the electronic industry, touch screen, FPC, RFID, etc.
Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
1-Automatic Feeding Machine
1. The feeder has dust removal rollers.
2. It is able to alarm when the roll material runs out.
3. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
4. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
Optional functions
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
Technical Parameters | ||||||||
Name | Automatic feeding machine | |||||||
Model | LTC-480B | LTC-600B | LTC-700B | LTC-900B | ||||
Max.Wed Width | 490mm | 610mm | 710mm | 910mm | ||||
Power | 0.3kw | |||||||
Tension | ≤0.1N | |||||||
Weight | 300kg | 320kg | 350kg | 400kg | ||||
Machine Size | L1100*W1000*H1200mm | L1100*W1080*H1200mm | L1100*W1220*H1200mm | L1750*W1250*H1260mm | ||||

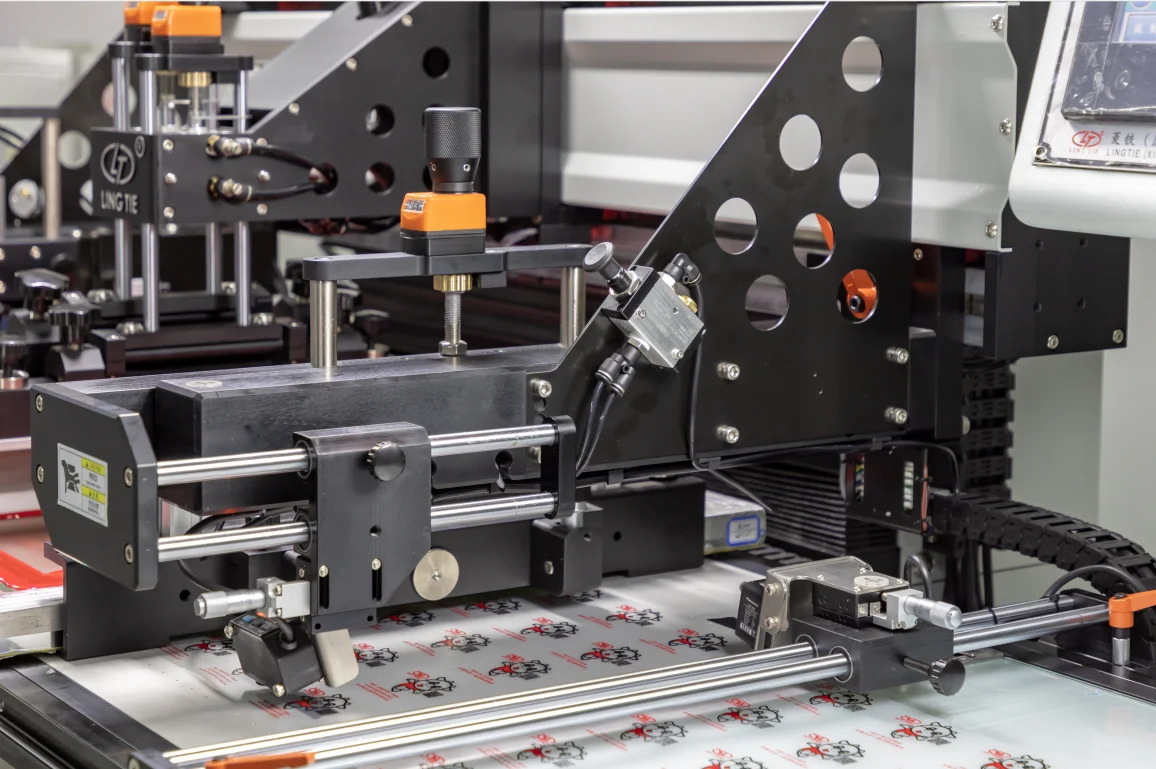

2-Automatic Screen Printer
1. The printing unit table has a vacuum to fix PET film in position to ensure printing accuracy.
2. It is equipped with three photocell sensors for automatic registration.
3. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
4. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
4. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
Optional functions:
1) Automatic punching function
2) automatic register system
3) dust elimination roller
4) pneumatic frame fixing function
1) Automatic punching function
2) automatic register system
3) dust elimination roller
4) pneumatic frame fixing function
Model | LTA-3040 | LTA-4050 | LTA-6080 | ||
Print Area | 330*450mm | 430*550mm | 630*850mm | ||
Print Speed | 0-6000t/h | 0-6000t/h | 0-2500t/h | ||
Screen Frame Area | 600*800mm | 700*900mm | 900*1200mm | ||
Max. Paper Width | 320mm | 420mm | 620mm | ||
Inspection Table Max. Size | 400*400mm | 500*500mm | 700*800mm | ||
Air Source | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa | ||
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) | ||||
Printing Material Thickness | 0.02-0.5mm | 0.02-0.5mm | 0.02-0.5mm | ||
Weight | 1200kg | 1500kg | 2000kg | ||
Machine Size | L2560*W980*H1865mm | L2620*W1100*H1865mm | L3150*W1260*H1865mm | ||

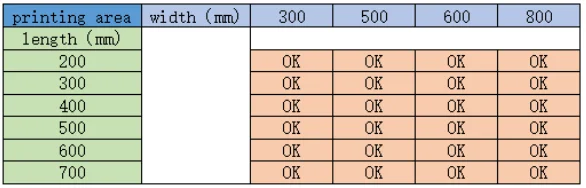

While the printing area could be as custom made below shows:

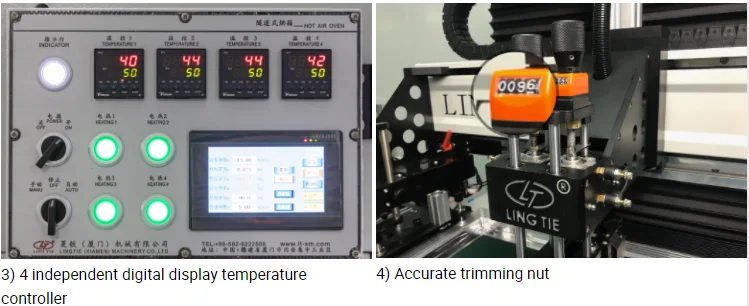

3-Hot Air Dryer
1. Oven with 4 sides, 4 sides heating, air circulation more smooth.
2. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
3. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
2. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
3. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
Technical Parameters | ||||||||
Name | Hot air dryer | |||||||
Model | LTB-350 | LTB-460 | LTB-600 | LTB-800 | ||||
Material quality | Baogang-45#steel plate | |||||||
Power | 14kw | 14kw | 22kw | 22kw | ||||
temperature | Room temperature-140℃ | |||||||
Insulation layer thickness | 50mm | 50mm | 50mm | 100mm | ||||
Temperaturer controller | 2pcs | 2pcs | 4pcs | 4pcs | ||||
Weight | 400kg | 500kg | 600kg | 700kg | ||||
Machine Size | L1970*W780*H1810mm | L1970*W900*H1810mm | L2830*W1060*H2150mm | L3000*W1260*H2260mm | ||||
Our Highlights
Our Services & Strength
1. Annual warranty, lifetime maintenance!
Engineers from time to time personally visit the enterprise, understand the use of the situation, and provide technical support and upgrade services.
2. High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
3. At a high level of automation, only one person can operate the whole printing line.
4. High printing accuracy, multi color overprint can be done on the machine.
5. Our company has been operating for more than 10 years and has a good reputation in the industry. Our company has strong strength, various specifications of dozens of stocks, and has a professional technology, business, and after-sales team.
6. We not only have a large standard assembly workshop, but also a machine processing workshop, a number of CNC machining centers and other processing equipment, so that the equipment of the machine is optimized, higher precision, faster delivery.
6. We not only have a large standard assembly workshop, but also a machine processing workshop, a number of CNC machining centers and other processing equipment, so that the equipment of the machine is optimized, higher precision, faster delivery.

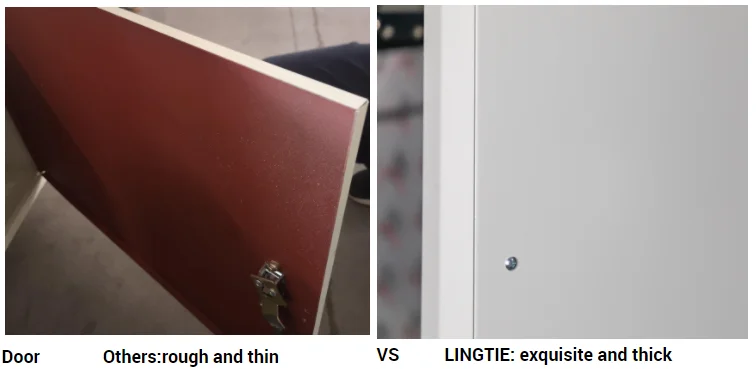

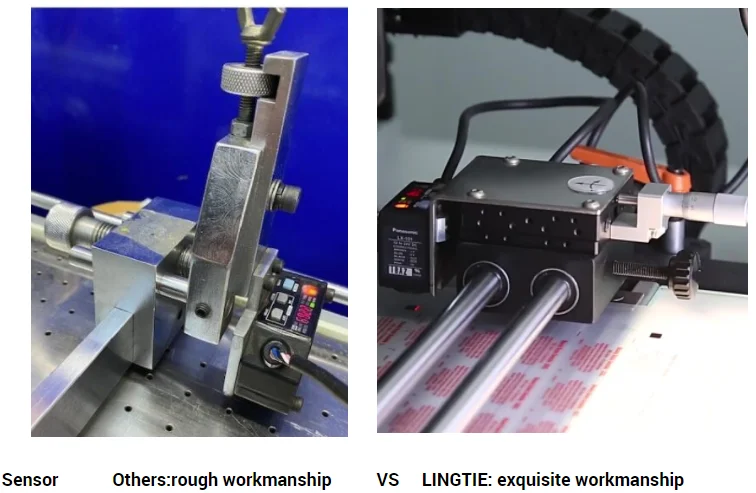

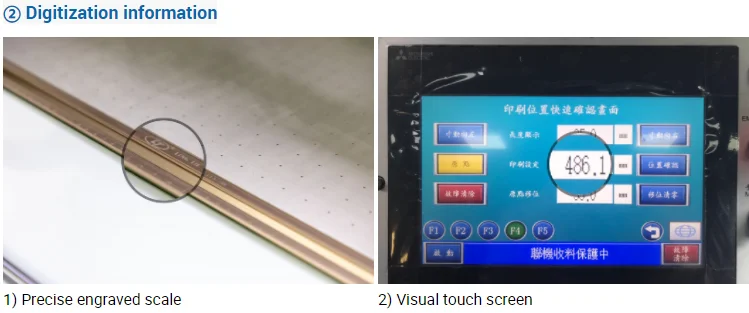

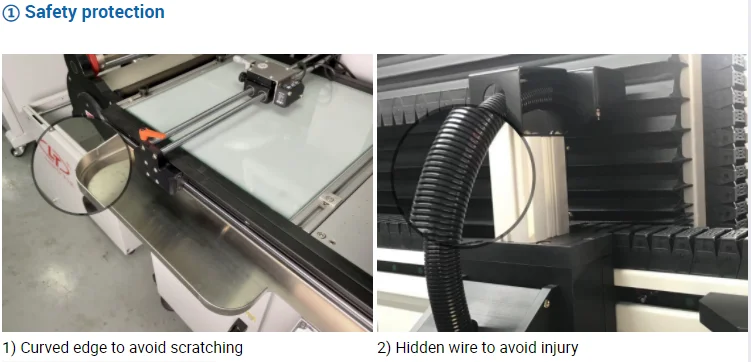

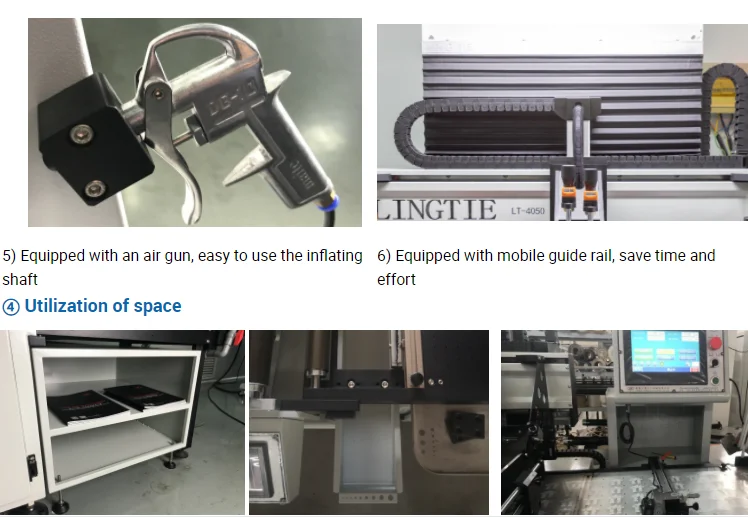

Our details compared to others
