1000 литров 10HL индивидуальная нержавеющая сталь с электрическим подогревом комбинированные три сосуда Пивоваренная система для продажи
- Категории: Food & Beverage Machinery >>>
- Поставщик: Ningbo,Xg,Food,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
300L(3.5bbl) to 2500L(20bbl) Combo system

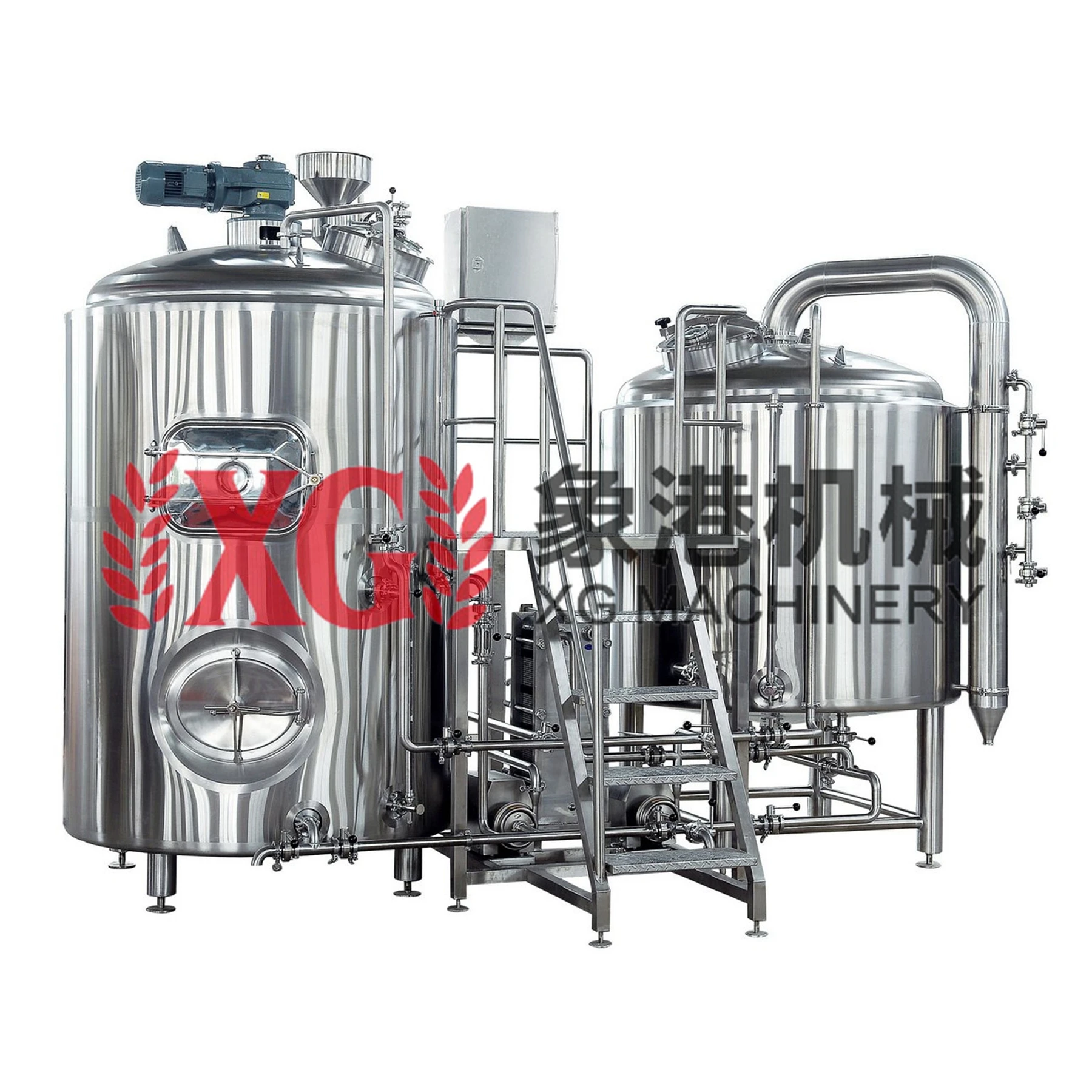

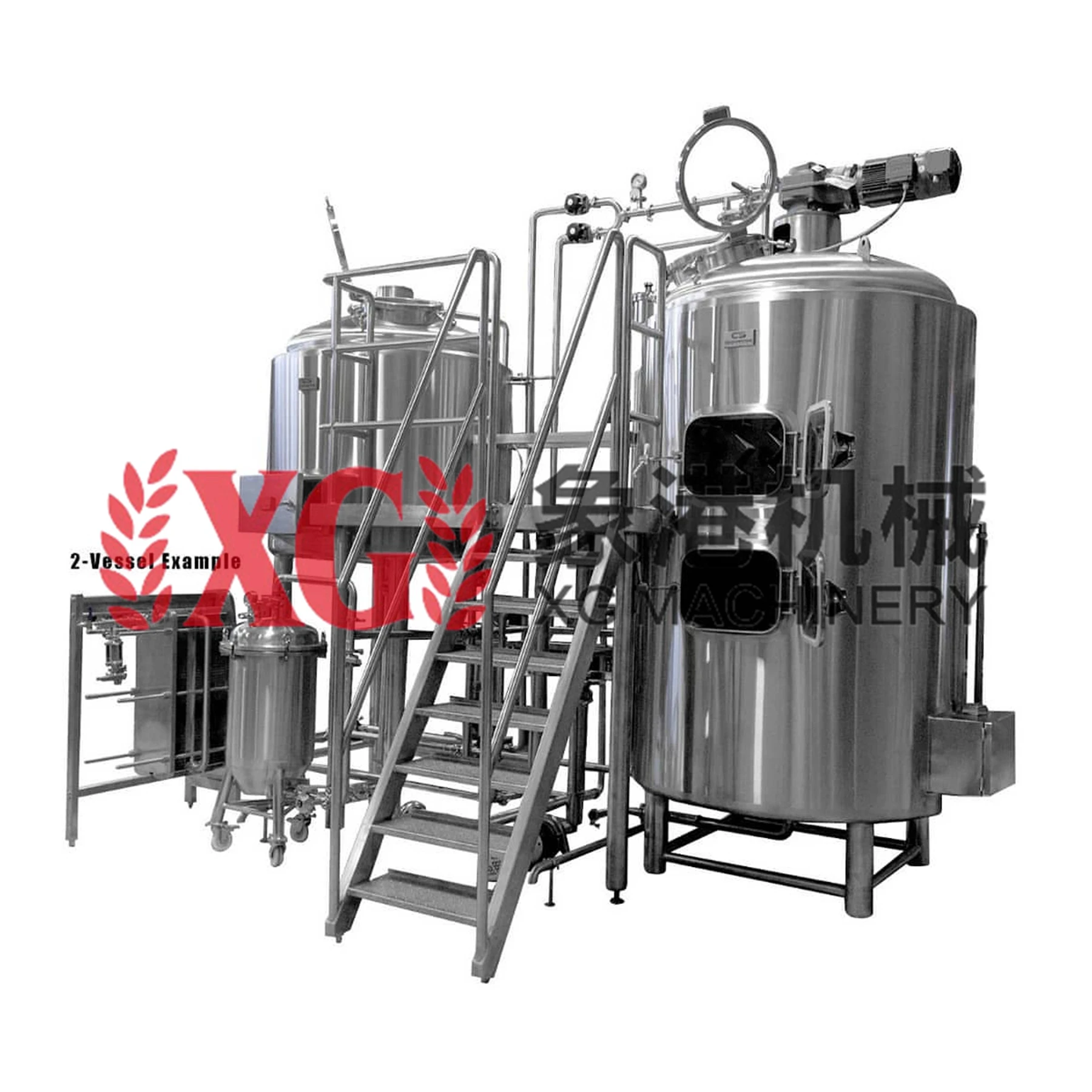

The Combi system is the perfect setup for larger breweries looking to increase their volume while maintaining
quality assurances. Combo brewhouses in a combined configuration with the Mash Lauter Tun/ Hot liquor tank and Wort Kettle/ Whirlpool, each brewhouse includes piping, fittings, and a centralized, automated control system to easily and accurately manage, monitor, and regulate your current batch.
quality assurances. Combo brewhouses in a combined configuration with the Mash Lauter Tun/ Hot liquor tank and Wort Kettle/ Whirlpool, each brewhouse includes piping, fittings, and a centralized, automated control system to easily and accurately manage, monitor, and regulate your current batch.
Length | Width | Height | |
400L/3.5bbl | 3200mm/126’’ | 1630mm/64.2’’ | 2026mm/79.8'' |
600L/5bbl | 3450mm/135.8’’ | 1800mm/70.9’’ | 2200mm/86.6'' |
820L/7bbl | 3840mm/151.2’’ | 2120mm/83.5’’ | 2235mm/88.0'' |
1200L/10bbl | 4100mm/161.4’’ | 2440mm/96.0’’ | 2550mm/100.4'' |
1700L/15bbl | 4650mm/183.1’’ | 2500mm/98.4’’ | 2760mm/108.7'' |
2300L/20bbl | 4890mm/192.5’’ | 2600mm/102.4’’ | 2850mm/112.2'' |
Equipment Specification
Main Features
Key Features:

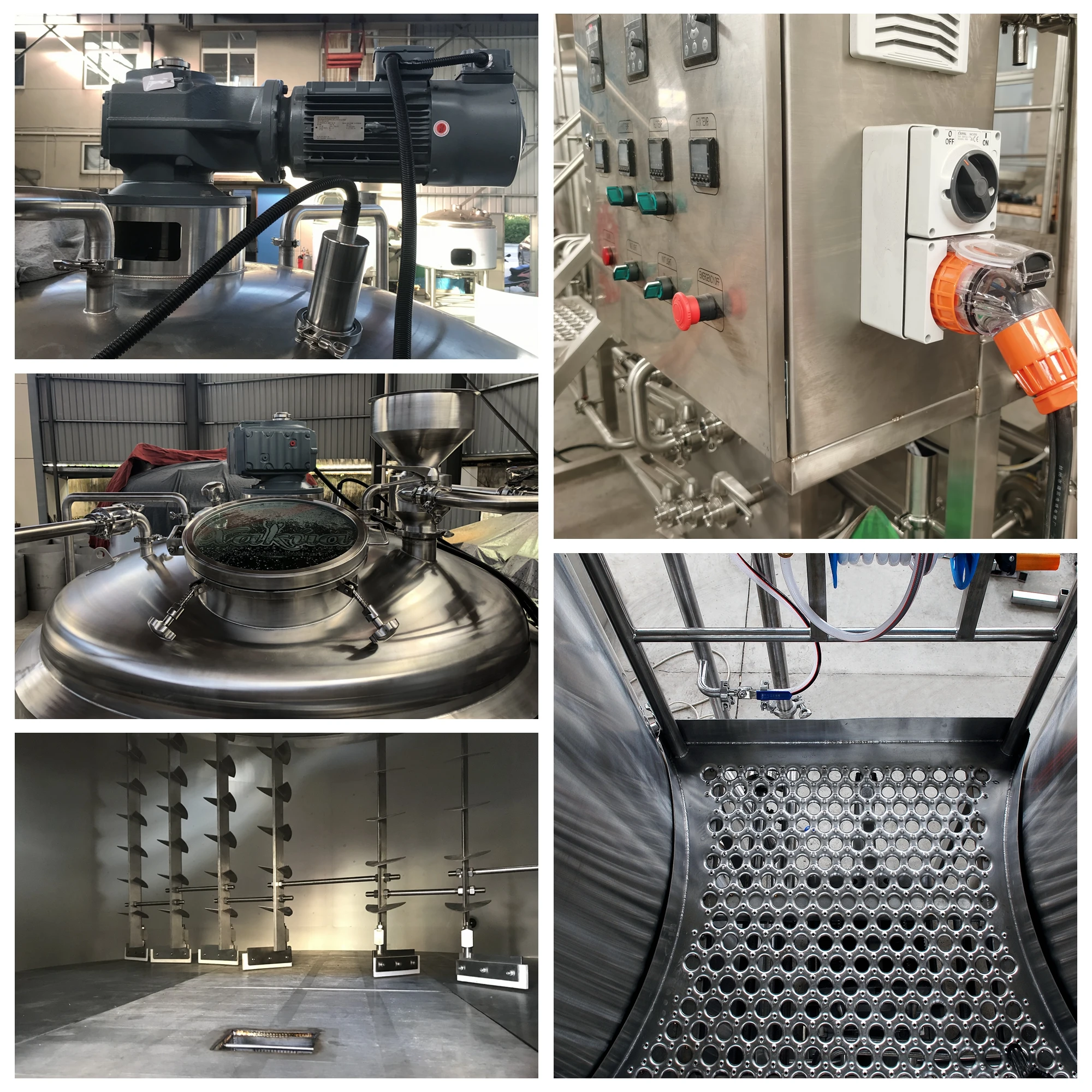

1) Mash lauter tun with Lauter rakes and grain plows with Hot liquor tank underneath
1) Mash lauter tun with Lauter rakes and grain plows with Hot liquor tank underneath
2) Integrated brew kettle/ whirlpool
2) Ski-mounted stainless steel working platform with manifolds and wort grant
3) NanHua heat exchanger and wort aeration system
4) UL listed NEMA Control Panel
5) LED light assemblies
6) Mash hydration assembly
7) Sanitary pumps(ABB motor) with variable frequency drive (VFD) controls
Options:
Steam heating, Direct firing, and Electric heating elements
Touch screen programmable logic controller (PLC) with Pneumatic valves
IFM flowmeter
Dual-stage heat exchanger
Kettle Steam condenser
2) Ski-mounted stainless steel working platform with manifolds and wort grant
3) NanHua heat exchanger and wort aeration system
4) UL listed NEMA Control Panel
5) LED light assemblies
6) Mash hydration assembly
7) Sanitary pumps(ABB motor) with variable frequency drive (VFD) controls
Options:
Steam heating, Direct firing, and Electric heating elements
Touch screen programmable logic controller (PLC) with Pneumatic valves
IFM flowmeter
Dual-stage heat exchanger
Kettle Steam condenser
Details
Customer Reference

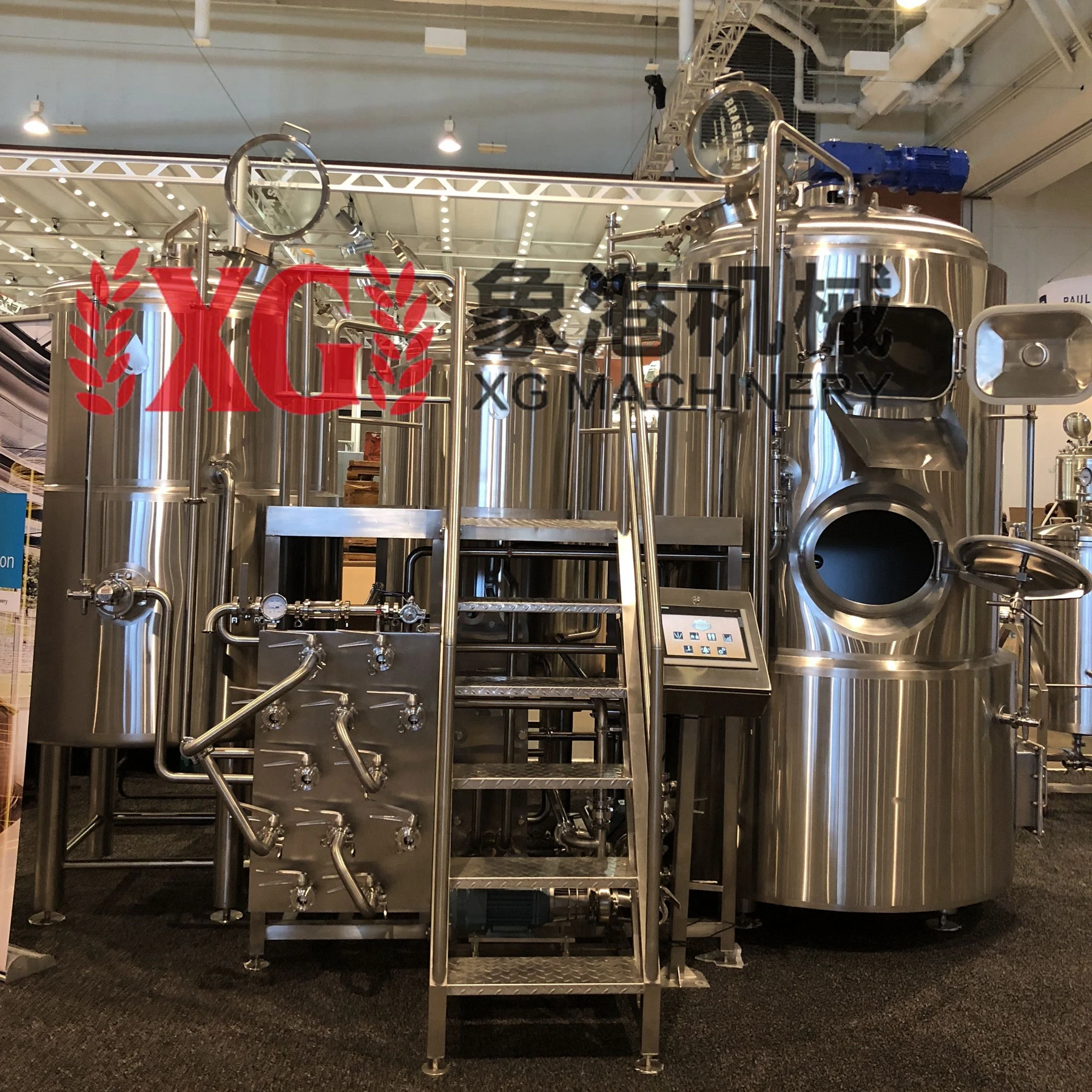

Exhibition Shows
Manufacturing Process
Packaging and Shipment
