8.8 inch IPS display 1920x480 LCD screenRaspberry PI Compatible Monitor Advertising Screen 8.8" stretched bar LCD Panel Display














































































General Features



Diagonal Size



8.8 inch



Type



LCM ,   a-Si TFT-LCD



Pixel Format



1920×480(RGB)  222PPI



Configuration



RGB Horizontal Stripe

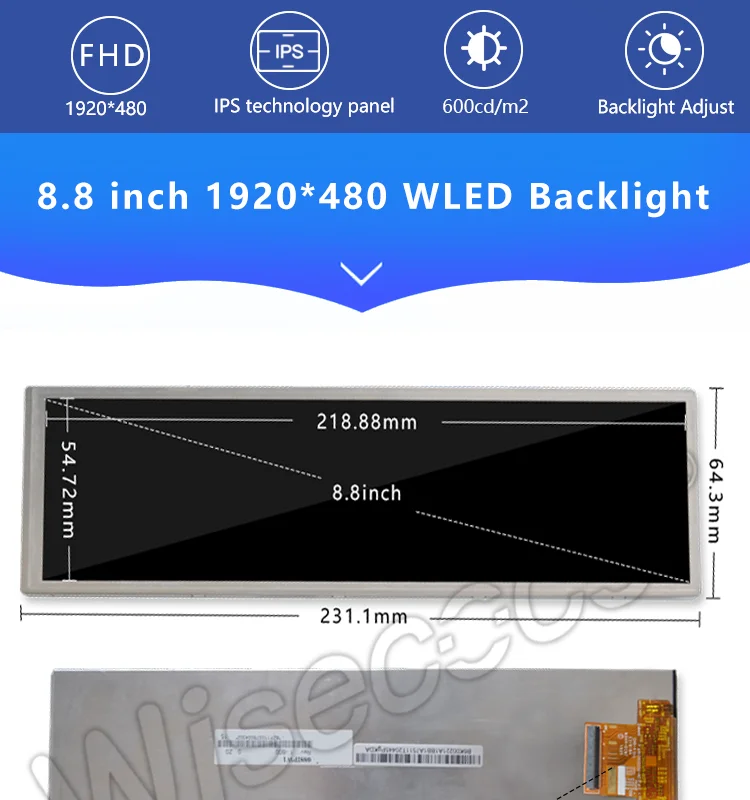

Active Area



218.88(H)×54.72(V) mm



Outline Dim.



231.3 × 64.3 × 6.4 (H×V×D) mm



Luminance



-



Contrast Ratio



800:1 (Typ.) (TM)



View Direction



Symmetry



Response Time



30 (Typ.)(Tr+Td) ms



Viewing Angle



85/85/85/85 (Typ.)(CR≥10) 50% NTSC



Operating Mode



IPS Pro, Normally Black, Transmissive



Support Color



16.7M



Light Source



White LED backlight, 30K hours , without Driver board



Aspect Ratio



>3:1(H:V)



Designed For



Advertising Display, system monitor


Frame Rate

60Hz



Touch Panel



Optional



Interface Type

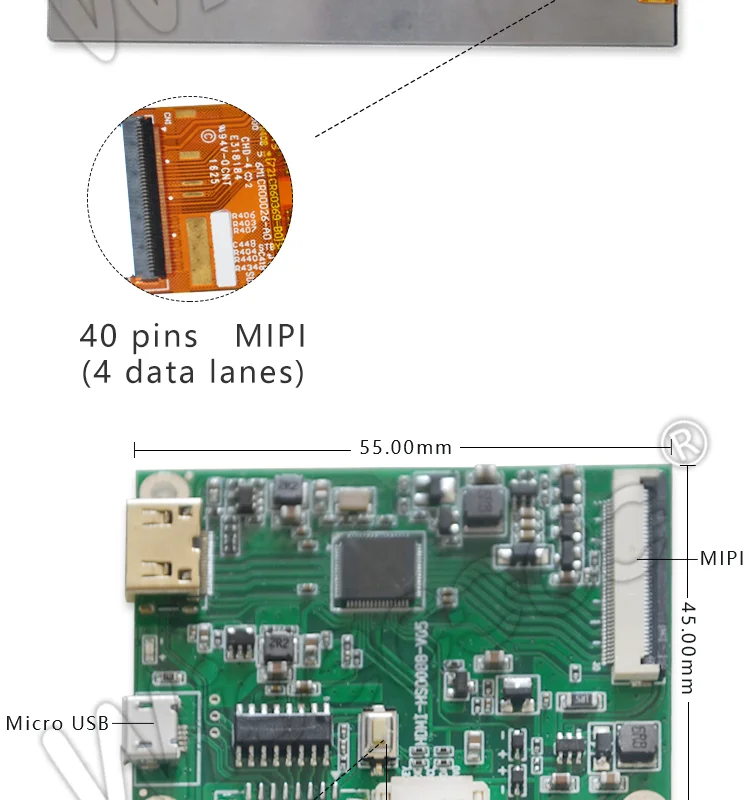

 MIPI (4 data lanes) , 40 pins , Connector



Power Supply



3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)



Environment



Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C

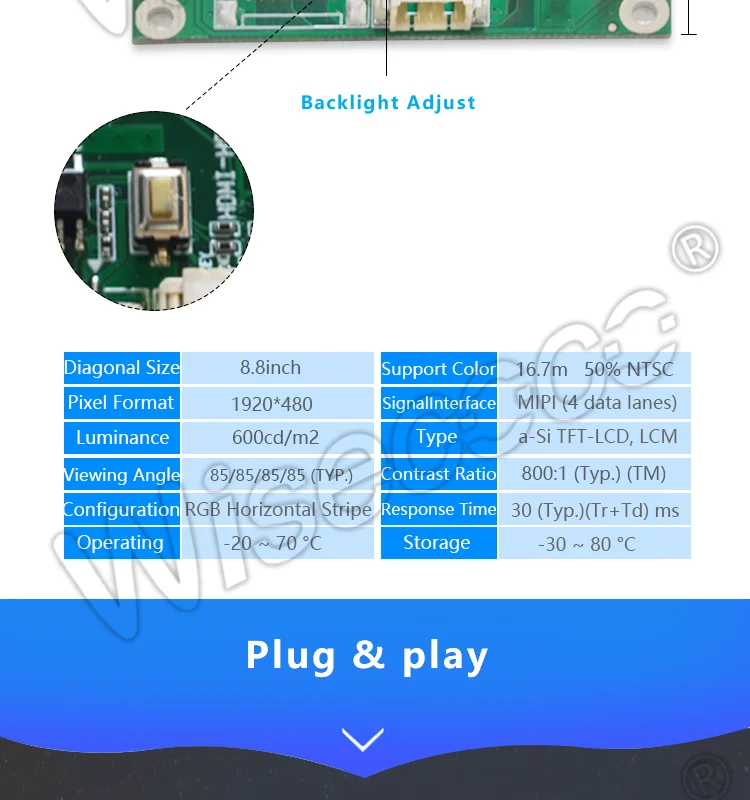

NOTE: You can adjust the backlight by the button  of the driver board. Feel free to contact us if you need more technical information or technical support.

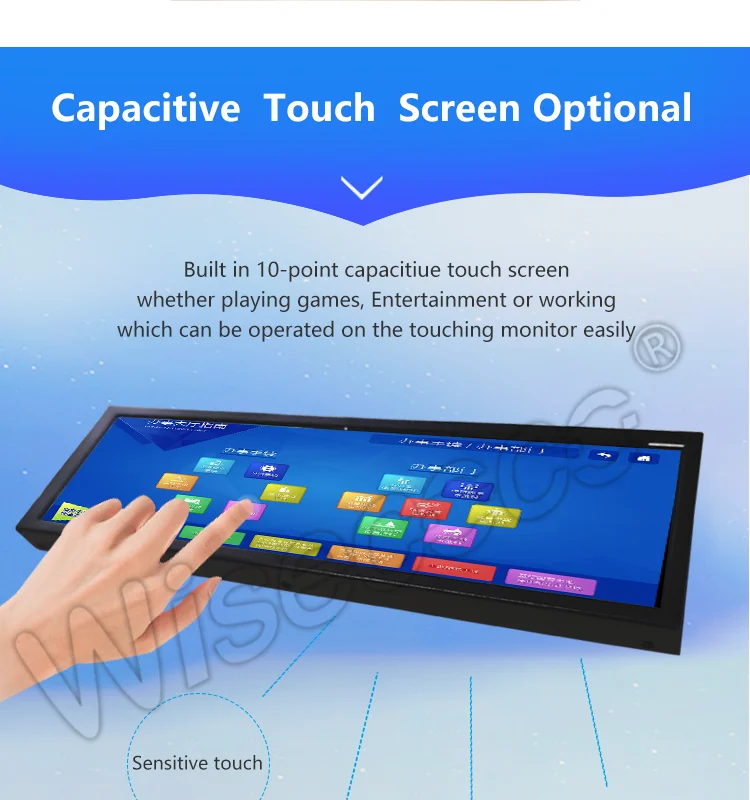

Capacitive touch screen is optional now.


We are specialized in turnkey display solutions for many years. Our engineering team and sales team are willing to help you with your project.
