Блок развертки тележки YUCHAI YC60-9 китайский Micro сверлильный станок маленький гигиенических прокладок для экскаватора daewoo мини
- Категории: Экскаваторы >>>
- Поставщик: Guangxi,Yuchai,Heavy,Industry,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
YUCHAI
Founded in 1989, Guangxi Yuchai Heavy Industry Co., Ltd. is a chinese-foreign joint venture authorized and managed by Guangxi Yuchai Machinery Group Co., Ltd., and is the main export base of small excavators in China. It has been awarded "National High-tech Enterprise" and "Key High-tech Enterprise" title of National Torch Plan"
Today 31 years ago, China's first batch mini excavator WY1.3 was shipped to Europe from Yuchai.
After 31 years of experience, our products have been exported more than 100 countries and regions on five continents.
After 31 years of experience, our products have been exported more than 100 countries and regions on five continents.
The main products of our company are crawler type hydraulic excavators (0.8 tons to 31 tons), with two series: standard and zero tail, 9 platforms, and more than 20 models.
Yuchai Heavy Industry' products are known for their exquisite structure, reliable quality, high efficiency and energy saving. The performance indicators of the products have reached the international advanced level, and they have obtained more than 300 national patents. They have passed the CE certification of the European authority and the CU-TR certification of the Russian authority.
Yuchai Heavy Industry' products are known for their exquisite structure, reliable quality, high efficiency and energy saving. The performance indicators of the products have reached the international advanced level, and they have obtained more than 300 national patents. They have passed the CE certification of the European authority and the CU-TR certification of the Russian authority.
Products Description

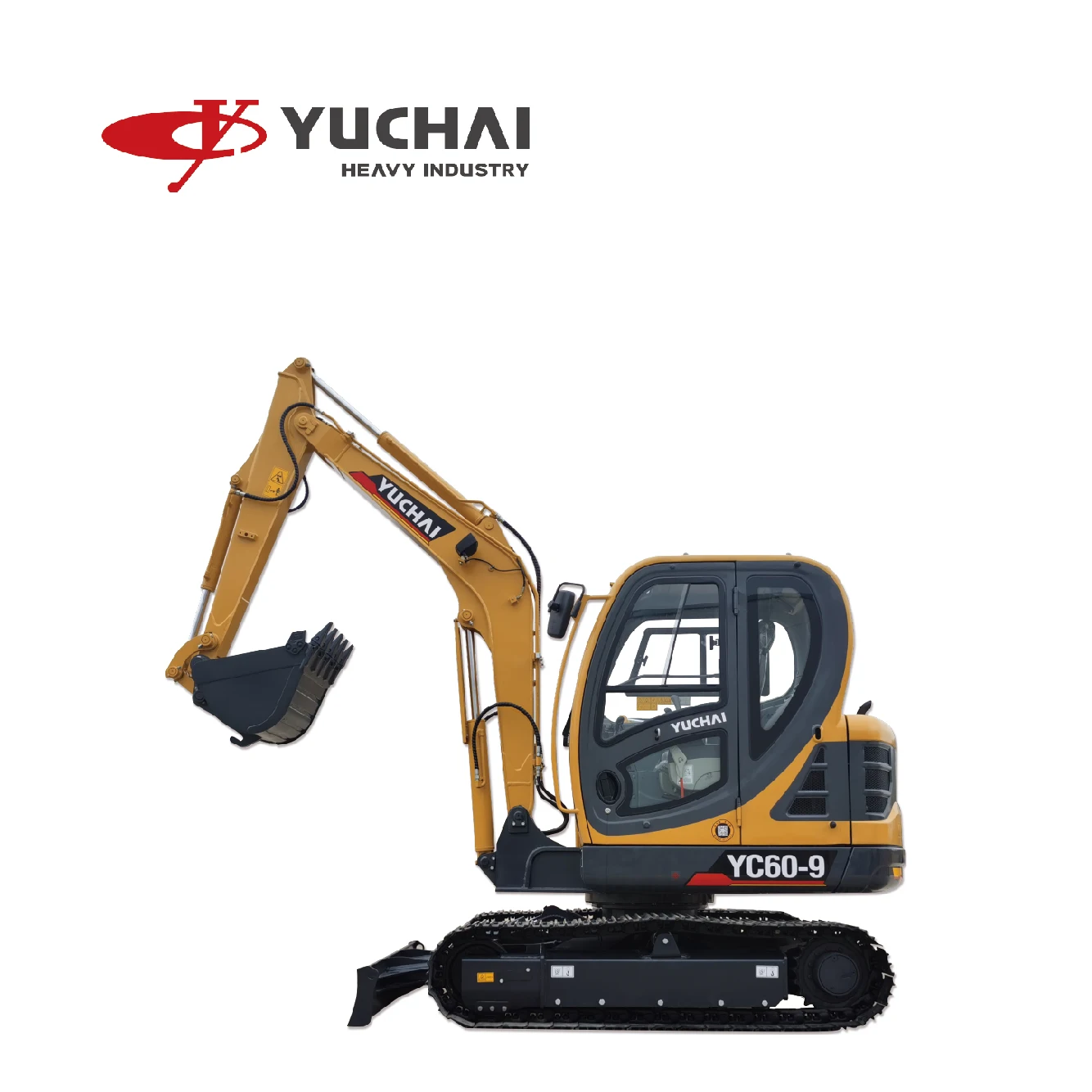

YC60-9
Details Images
Kubota V2304 engine.
Equipped with original imported Kubota,
Fuel saving, low noise, and sufficient power;
Fuel saving, low noise, and sufficient power;
Convenient maintenance.
Multi-way valve in front, higher maintenance and inspection efficiency
Big fuel tank
The large-capacity fuel tank can meet the machine's continuous work for more than 16 hours, reducing the burden of refueling
Newly designed air-conditioning system: CFD numerical analysis is used for simulation to make the air outlet layout reasonable and reduce the loss of the air duct; the cooling speed is faster and the cooling capacity is stronger.
The new shock-absorbing aviation seat can realize stepless adjustment between 50-130kg.
It adopts a two-stage sliding structure, which can be adjusted freely before and after the seat.
The ear plate is thickened by 40% + bushing, the strength is obviously enhanced, the reliability is higher, and the maintenance cost is greatly reduced
Product Paramenters
Description | Unit | YC60-9 | |
Basic parameter | |||
Machine weight | kg | 5700 | |
Bucket capacity | M³ | 0.21 | |
Width of bucket | mm | 742 | |
Performance parameter | |||
Engine model | Kubota | ||
Engine power | kW/rpm | 30.7/2200 | |
Max.digging force of arm | kN | 27.5 | |
Max.digging force of bucket | kN | 36.6 | |
Traveling speed | km/h | 2.2/3.6 | |
Slewing speed of platform | rpm | 9-11 | |
Operating parameter | |||
Max. digging height | mm | 5740 | |
Max. digging depth | mm | 3720 | |
Max. dumping height | mm | 4040 | |
Min. slewing radius | mm | 2175 | |
Max. vertical digging depth | mm | 2750 | |
Transportation dimension | |||
Overall length | mm | 5656 | |
Overall width | mm | 1920 | |
Overall height | mm | 2585 | |
Our Advantages
Customer Photos
Exhibition
Company Profile
