Автоматическое оборудование для переработки резиновых шин установка машина
- Категории: >>>
- Поставщик: Xuchang,Zhenda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
. Waste tyre recycling machine plant/rubber granule from
waste tyre production line for sale
AUTO series tire recycling machines

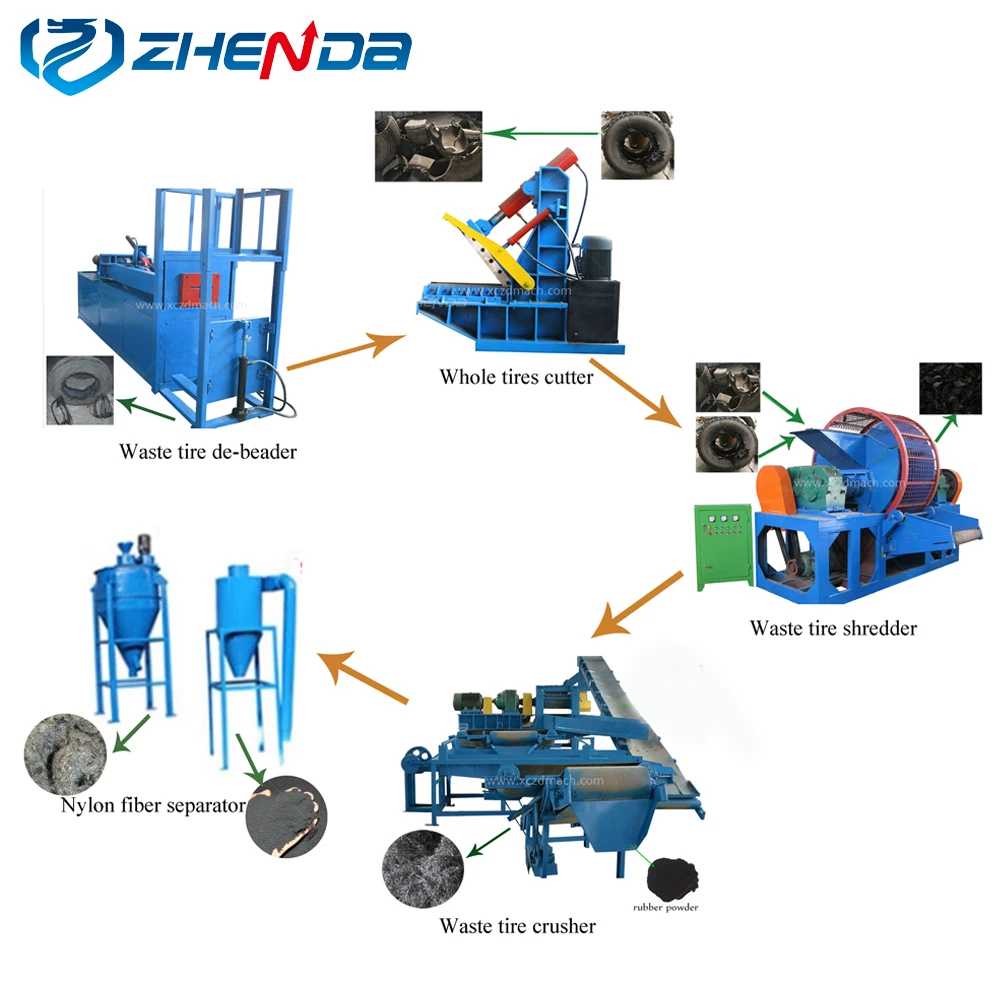

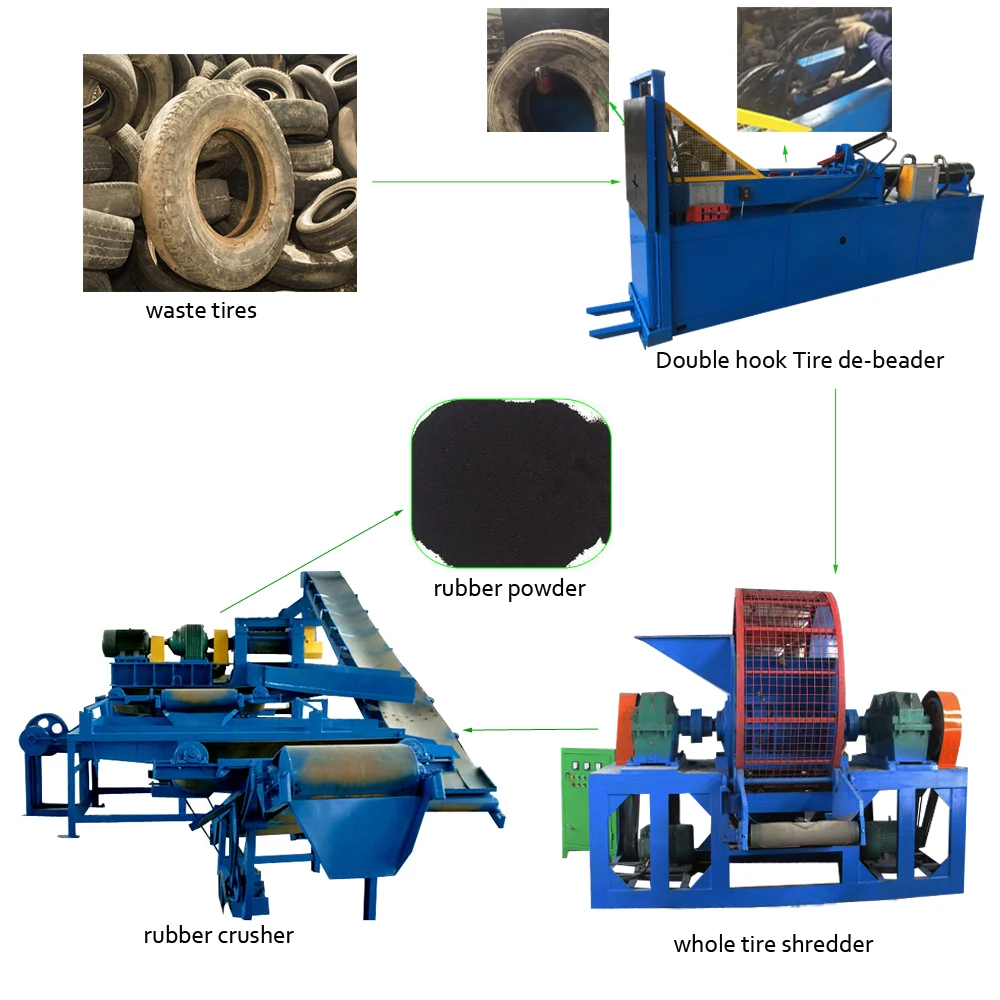

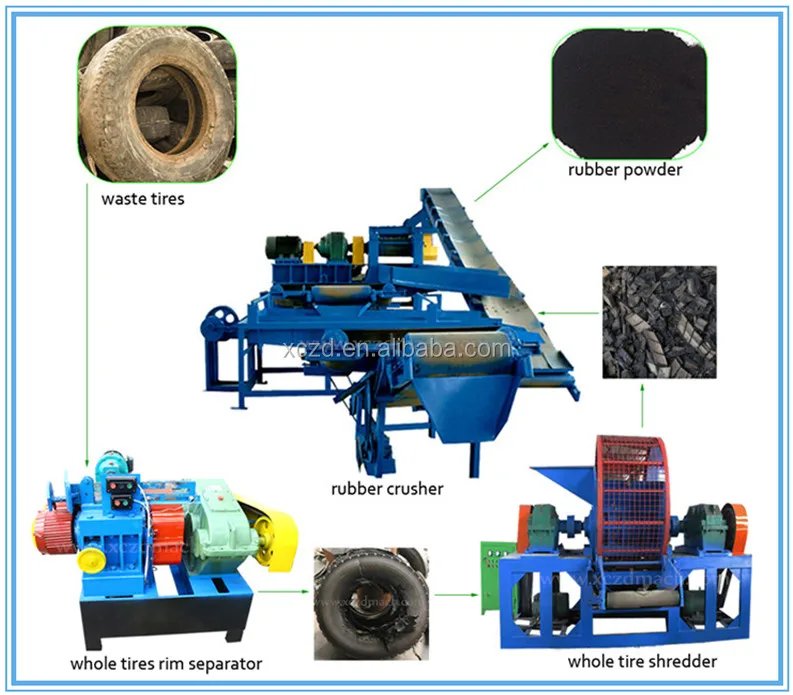

.Waste tire - Tire Double Sidewall Cutting Machine -Whole tire shredder- Tire crusher- magnetic separator - fiber separator -
Rubber powder
Rubber powder
Product Description
1.Tire Double Sidewall Cutting Machine
Name | Power | Capacity | Weight | Waste tires range | Size |
Tire Double Sidewall Cutting Machine | 7.5kw | 60tires/h | 1.5T | ≤Φ1300mm | 2.45*1*1.7m |

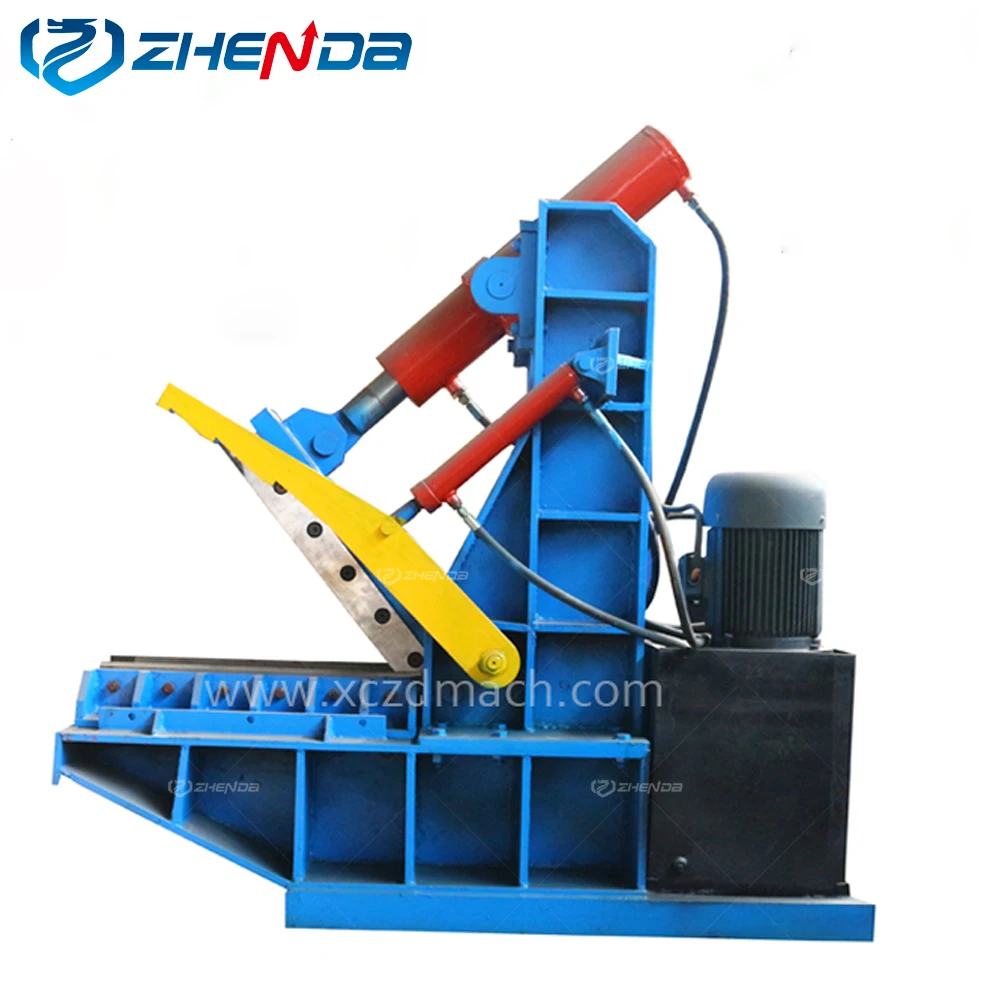

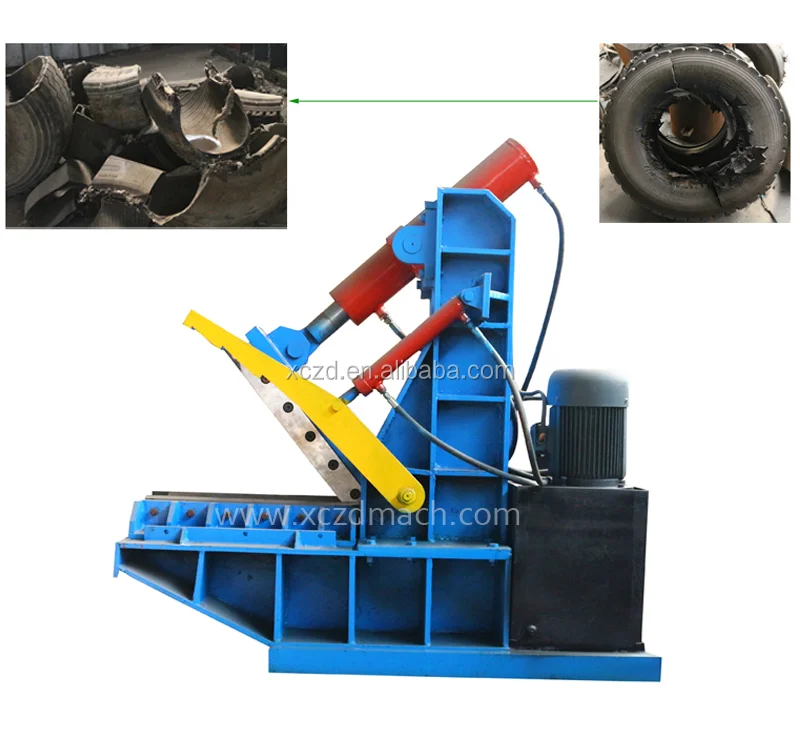

2.Whole tires cutter(To cut the whole tire into several parts)
Name | Power | Capacity | Weight | Waste tires range |
whole tires cutter | 7.5kw | 30--40 tires/h | 2T | ≤Φ1200mm |

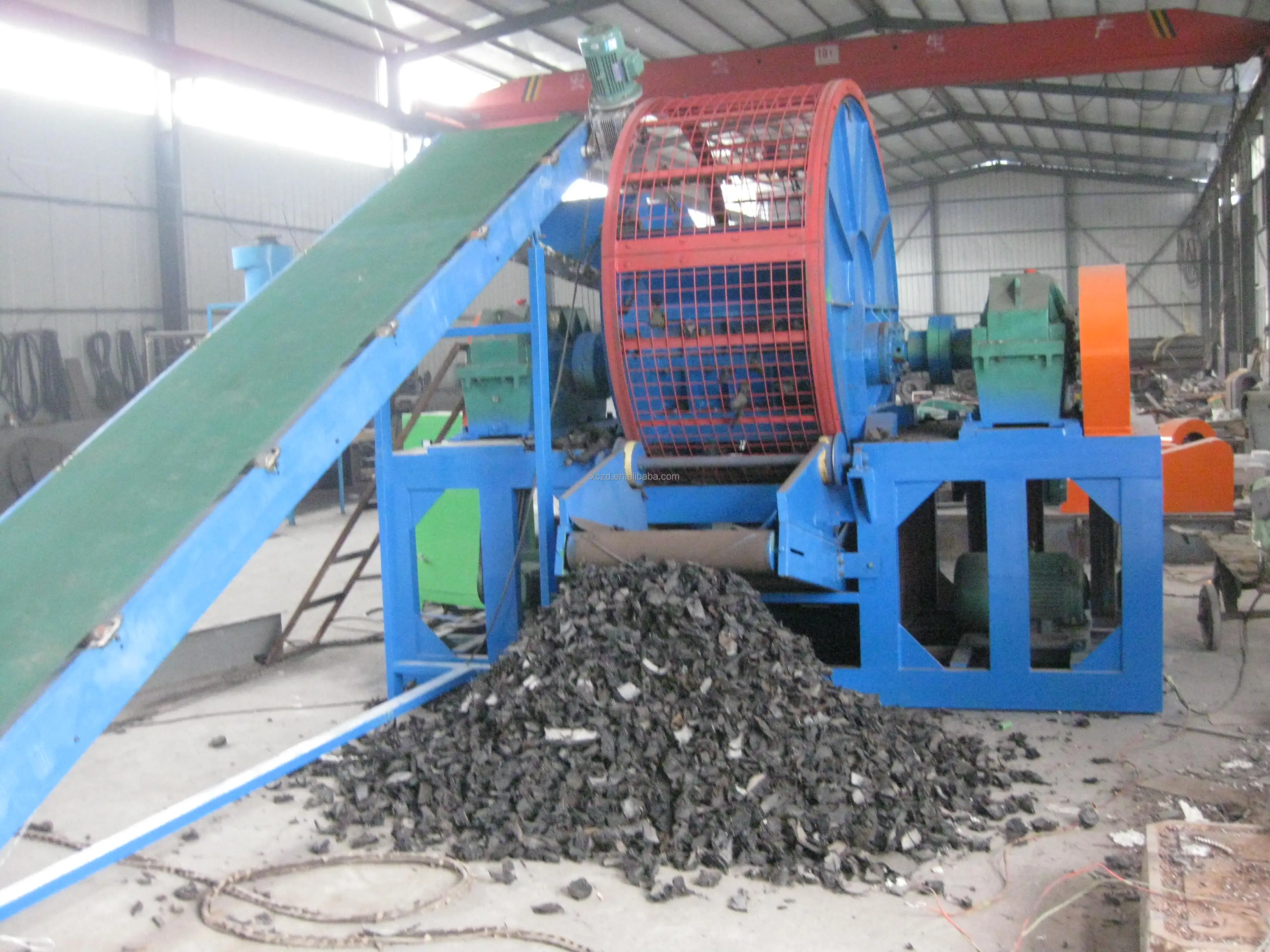

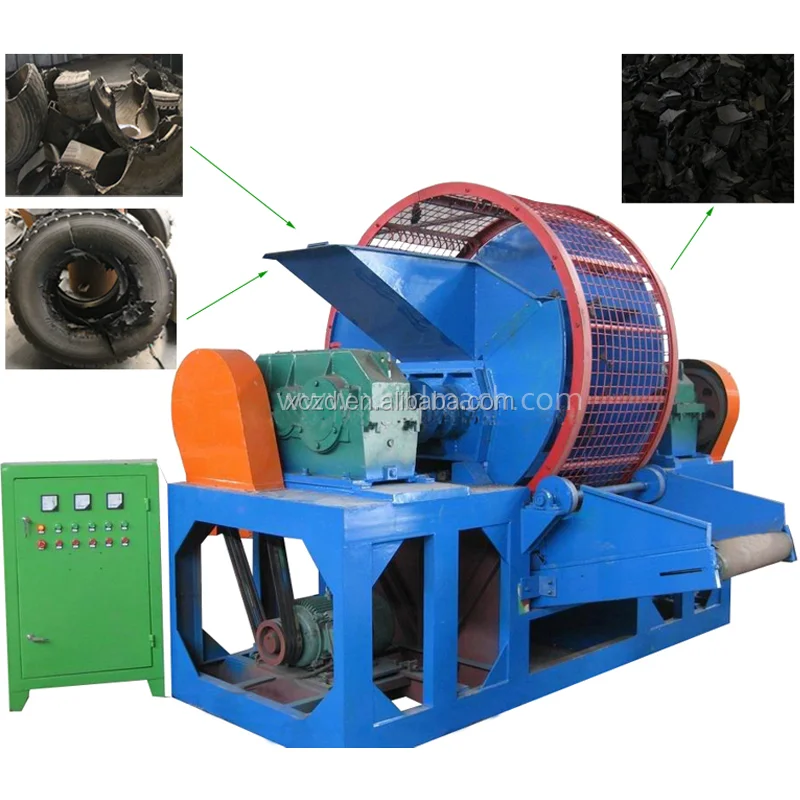

3.Waste tire shredder(to separate the steel wire of tire circle).
Name | Power | Capacity | Weight | Waste tires range | SIse of the silce |
DS-800 | (22/30*2+4+1.5)kw | 1-2ton/h | 8.5T | ≤Φ900mm | ≤50*50 |
DS-1000 | (45*2+4+1.5)kw | 3-4ton/h | 12T | ≤Φ1000mm | ≤50*50 |
DS-1200 | (75*2+5.5+1.5)kw | 4-6ton/h | 15.6T | ≤Φ1200mm | ≤50*50 |

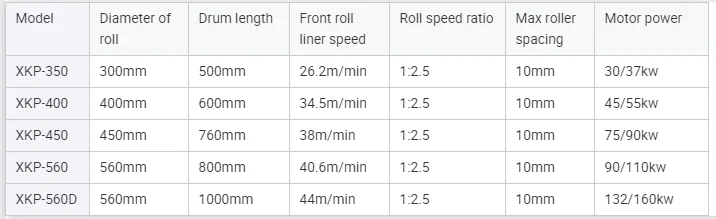

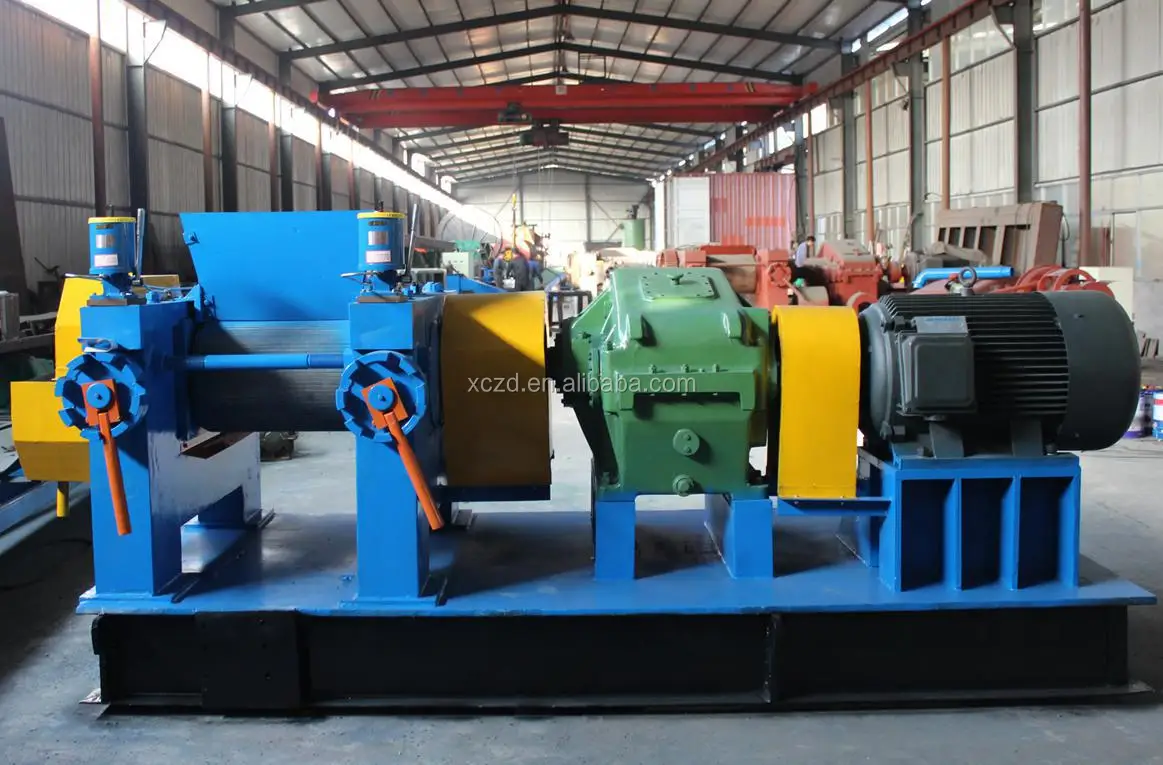

4.Waste tire crusher

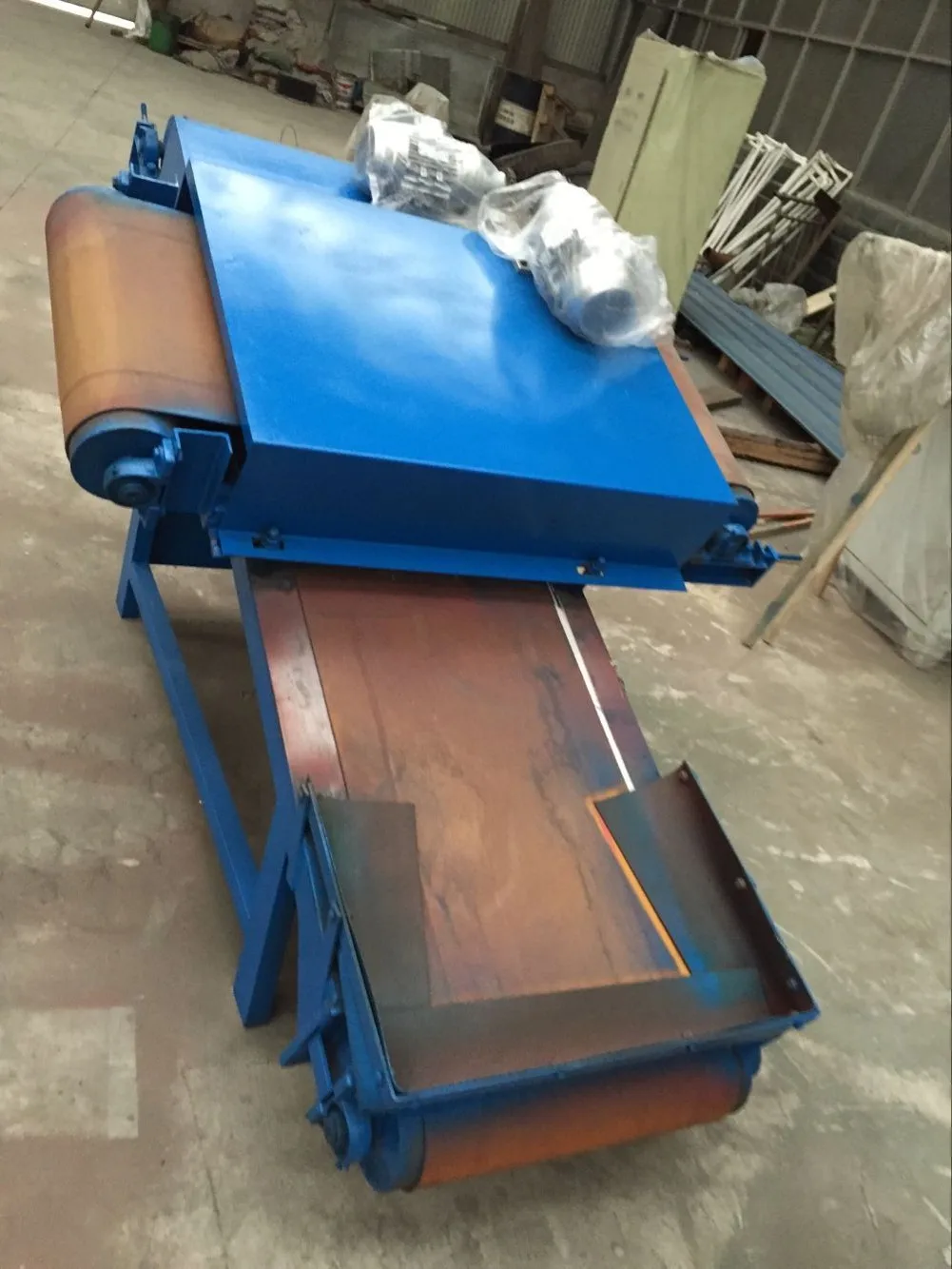

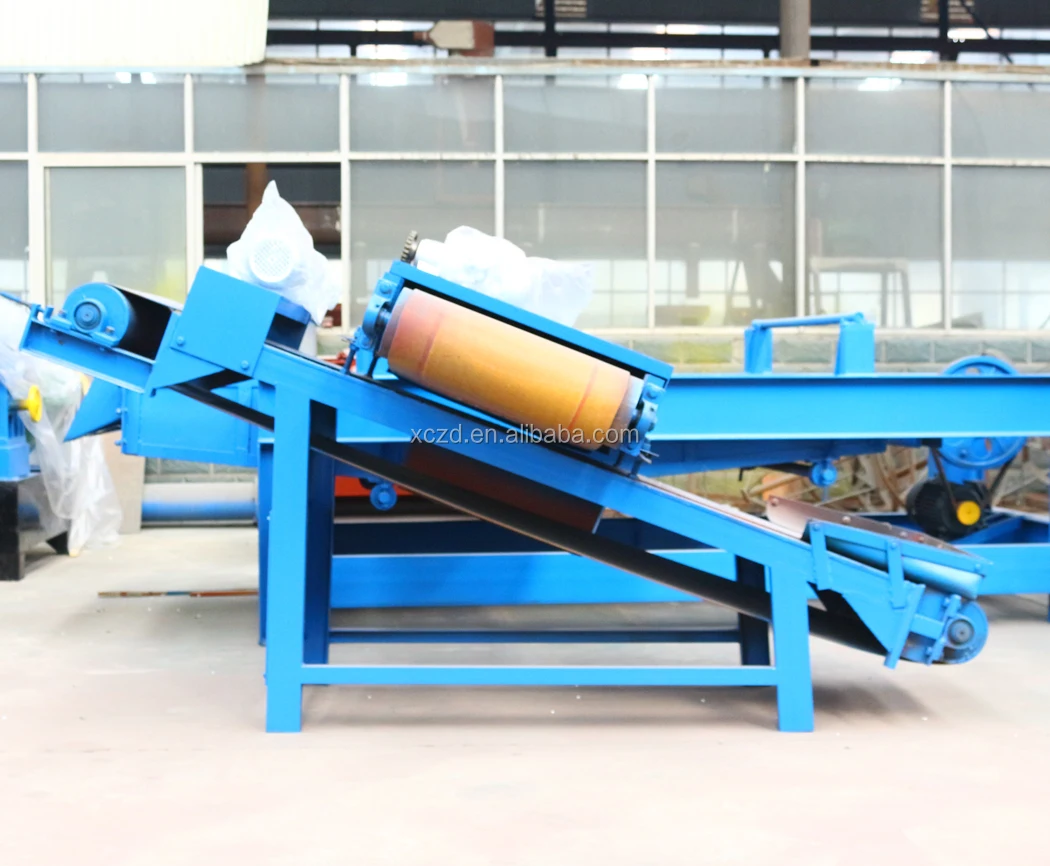

5. Magnetic separator(separate the steel wire from the rubber powder)

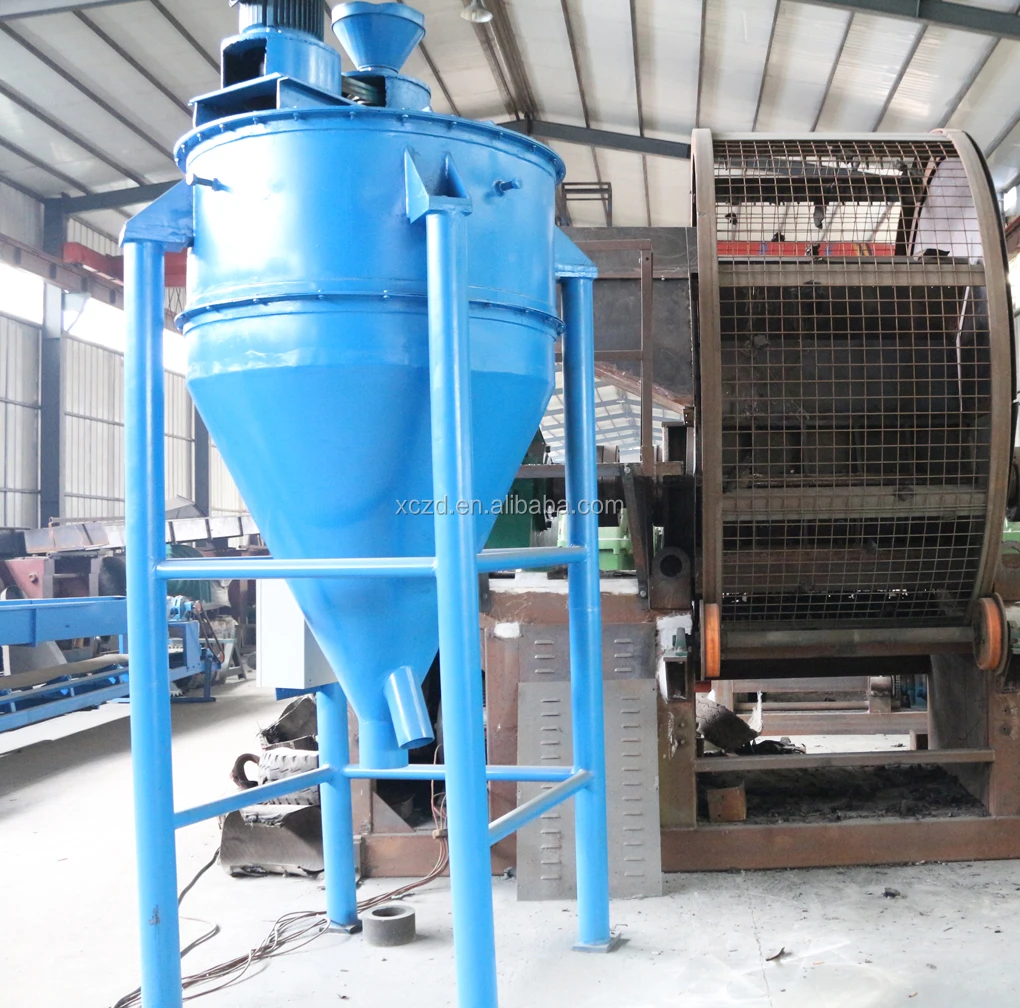

6.Nylon fiber separator ( to separate the fiber impurities, nylon)

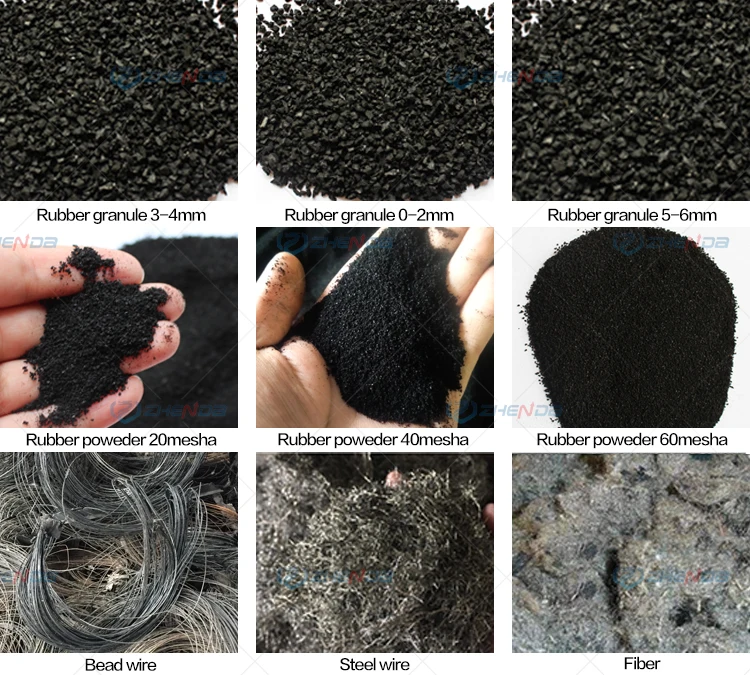

FINAL PRODUCTS

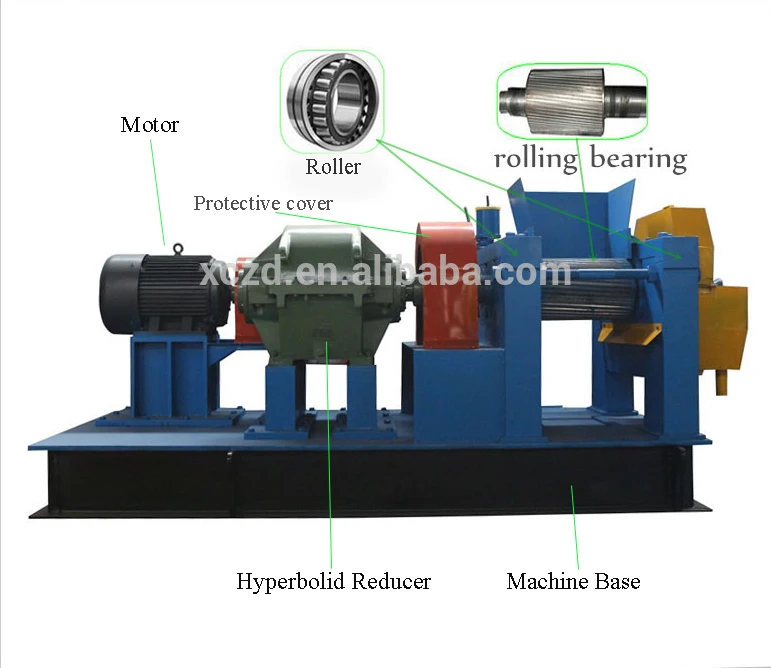

Advantages of our products
1.Advantage of our rollers:
1.The first advantage is very energy-saving, because the rolling friction is less than the sliding friction, so very
energy-saving.
2The second advantage is very convenient maintenance, quality is very reliable, and at the same time the roller has three
remarkable features, they are specialization, advancement, and automation.3.The material of our rollers is very strong and wear resistant. It is life-long time using, no need to change, only welding and
polishing after long time using.Our both rollers are grooved, the crush ability is stronger.
2.The advantage of our bearing:
Our bearings can support the mechanical rotating body, reduce the friction coefficient during its movement, and ensure its
rotation accuracy. Ball bearing is used in our tire crusher. This operation mode not only greatly reduces the friction and heat of
the equipment, improves the working efficiency and service life of the equipment, but also reduces the energy loss compared with
the traditional rubber equipment, it saves electricity.
3.The advantage of our reducer :
The reducer is hyperbolic gear reducer, double-row gear, with a large load-bearing capacity, long service life, low noise, good
sealing, easy installation and use.
1.The first advantage is very energy-saving, because the rolling friction is less than the sliding friction, so very
energy-saving.
2The second advantage is very convenient maintenance, quality is very reliable, and at the same time the roller has three
remarkable features, they are specialization, advancement, and automation.3.The material of our rollers is very strong and wear resistant. It is life-long time using, no need to change, only welding and
polishing after long time using.Our both rollers are grooved, the crush ability is stronger.
2.The advantage of our bearing:
Our bearings can support the mechanical rotating body, reduce the friction coefficient during its movement, and ensure its
rotation accuracy. Ball bearing is used in our tire crusher. This operation mode not only greatly reduces the friction and heat of
the equipment, improves the working efficiency and service life of the equipment, but also reduces the energy loss compared with
the traditional rubber equipment, it saves electricity.
3.The advantage of our reducer :
The reducer is hyperbolic gear reducer, double-row gear, with a large load-bearing capacity, long service life, low noise, good
sealing, easy installation and use.

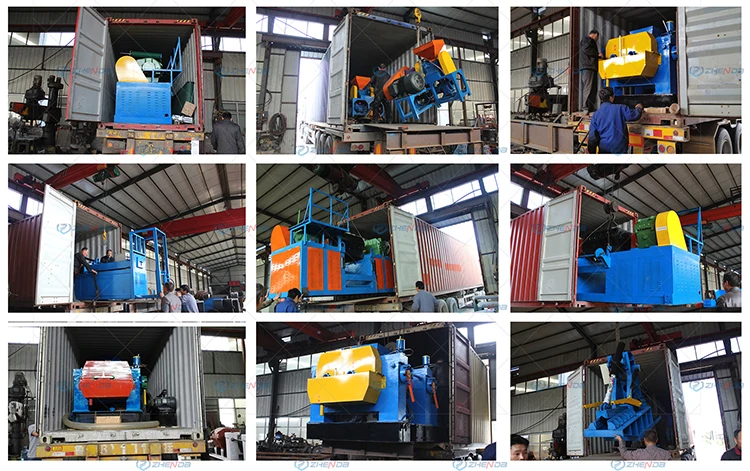

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer visit
client feedback
Related Products
Waste Tire Recycling Equipment Machine Plant Tyre Powder Making Machinery To Grinding Rubber Powder For Sale.
High Quality Waste Tyre Recycling Plant/ Tire Recycling Machine/Waste Tyre Cutting Machine
FAQ
FAQ
Q: How To Choose A Suitable Tire Recycling Line?
A: The capacity and final output size will decide the tire recycling line, if you have no ideas about this,
we also can recommend you the most suitable one according to your budget.
Q: What Kinds of Tires Can Be Processed By This Recycling Line?
A: Various kinds of tires, such as car tire, motorcycle tire, truck tire, OTR tire, etc.
Q: How Do You Control The Machine Quality?
A: We have our own quality control department and quality control system, and unqualified products must not leave our factory,
before delivery, every recycling line and every machine will have the trial run
in our factory and will not be delivered until up to standard.
Q: What About The Machine Installation?
A: With The Sound After-sales Services:
1. After confirm the order, within one week our technical department will design and provide the recycling line layout and its CAD
drawing as per customer's factory size;
2. When machines reach customer's working site, we will send engineers to customer site for the installation, commissioning and
professional training. The engineers will not leave until customer have no any questions.
3. During normal production, if have any questions, our technical department will provide full technical support to solve the
problem in time by online communication, phone call, video and email. If need, our engineers will go to customer site again.
Q: How To Do Operation And Maintenance?
A: At customer site, after finishing installation and commissioning, our engineers will teach how to operate the machine
carefully, how to do daily maintenance and how to change spare parts, etc.
Q: What's The Application Of Rubber Crumb And Rubber Powder?
A: The rubber crumb and rubber powder can be widely used in modified asphalt, rubber floor tile, playground, park,
artificial turf, reclaimed rubber product, and can be as fuel as well.
Q: How To Choose A Suitable Tire Recycling Line?
A: The capacity and final output size will decide the tire recycling line, if you have no ideas about this,
we also can recommend you the most suitable one according to your budget.
Q: What Kinds of Tires Can Be Processed By This Recycling Line?
A: Various kinds of tires, such as car tire, motorcycle tire, truck tire, OTR tire, etc.
Q: How Do You Control The Machine Quality?
A: We have our own quality control department and quality control system, and unqualified products must not leave our factory,
before delivery, every recycling line and every machine will have the trial run
in our factory and will not be delivered until up to standard.
Q: What About The Machine Installation?
A: With The Sound After-sales Services:
1. After confirm the order, within one week our technical department will design and provide the recycling line layout and its CAD
drawing as per customer's factory size;
2. When machines reach customer's working site, we will send engineers to customer site for the installation, commissioning and
professional training. The engineers will not leave until customer have no any questions.
3. During normal production, if have any questions, our technical department will provide full technical support to solve the
problem in time by online communication, phone call, video and email. If need, our engineers will go to customer site again.
Q: How To Do Operation And Maintenance?
A: At customer site, after finishing installation and commissioning, our engineers will teach how to operate the machine
carefully, how to do daily maintenance and how to change spare parts, etc.
Q: What's The Application Of Rubber Crumb And Rubber Powder?
A: The rubber crumb and rubber powder can be widely used in modified asphalt, rubber floor tile, playground, park,
artificial turf, reclaimed rubber product, and can be as fuel as well.
