Автоматическая машина для розлива и консервирования молочного

Product description:

      This machine is designed for powder, superfine powder and other materials and   the design and manufacture, can automatically measure, filling, nitrogen filling etc..   Can match with all kinds of bag packing machine, used for filling powder materials.   Suitable for packing those easy flow or poor liquidity of powder and granular materials such as milk powder, feedstuff, Rice noodles, sugar, monosodium glutamate, glucose, Rice noodles, solid beverage, food additives, food, dyestuff, spices etc..

Main features

1.Designed for dosing all types of powder in different filling range.
2.All products contact parts are made of SS304 and are designed for easy changeover and cleaning.
3.Servo motor and servo drive for the filling auger, high accuracy.

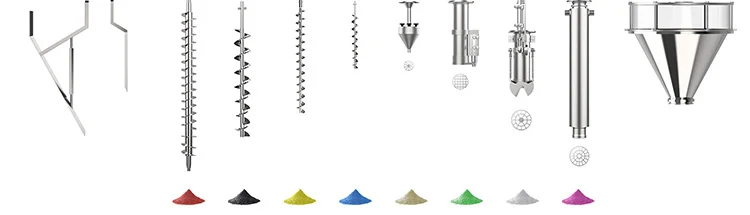

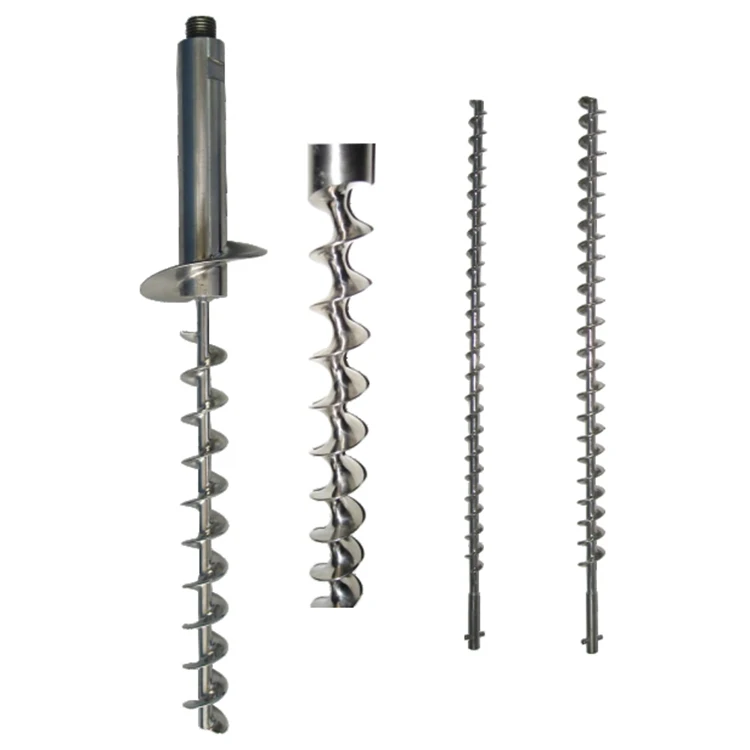

4.By changing the auger tooling can meet different weight range.
5.The PLC, Powder Cabinet and Touch Screen is optional.

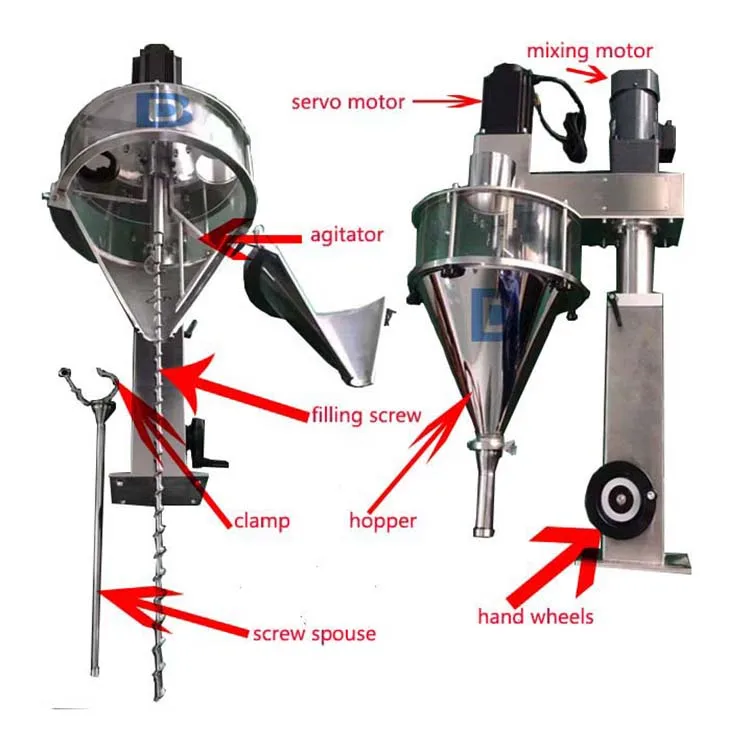

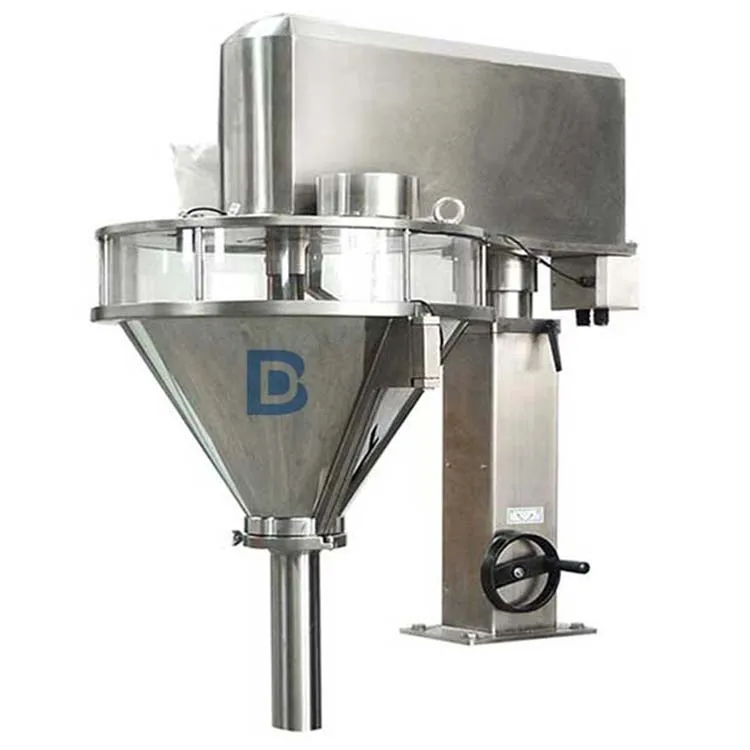

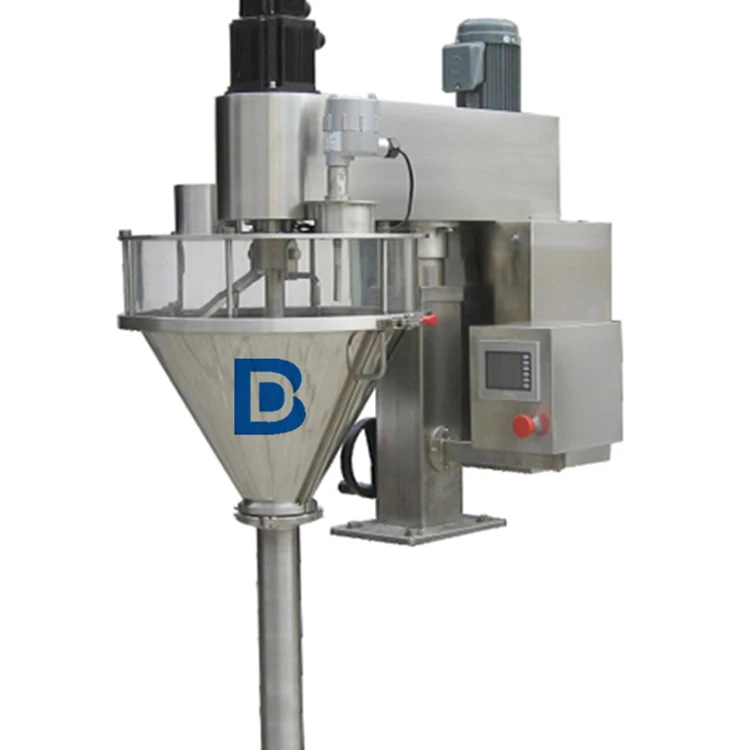

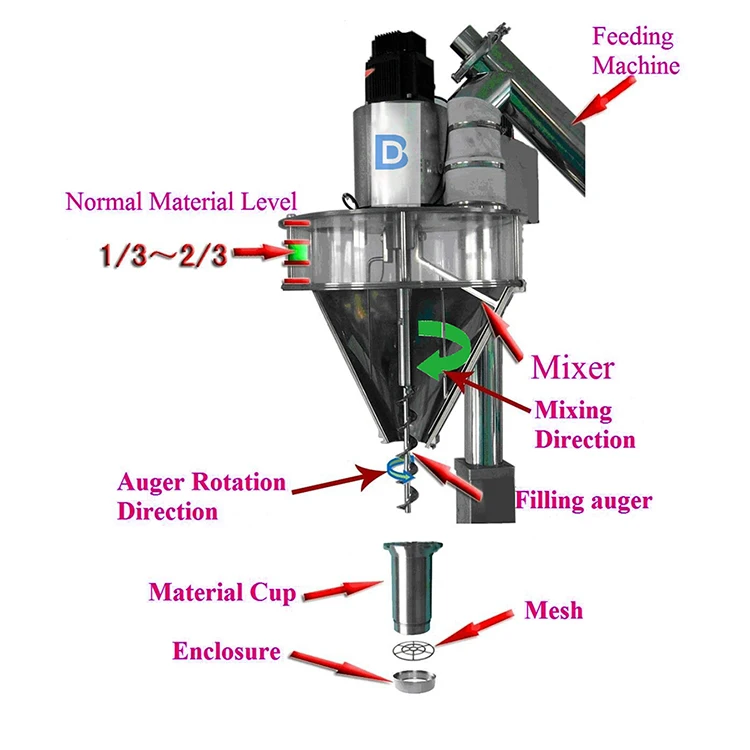

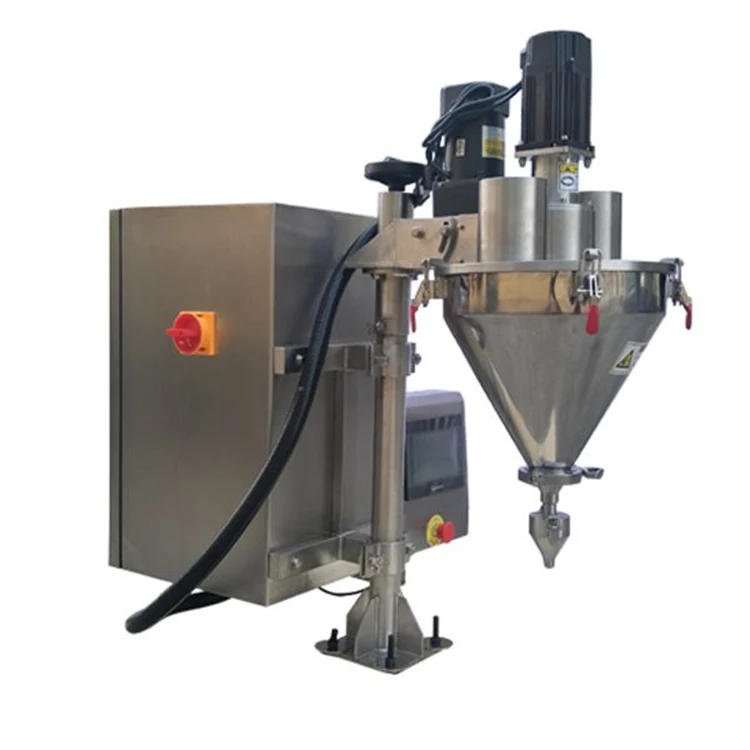

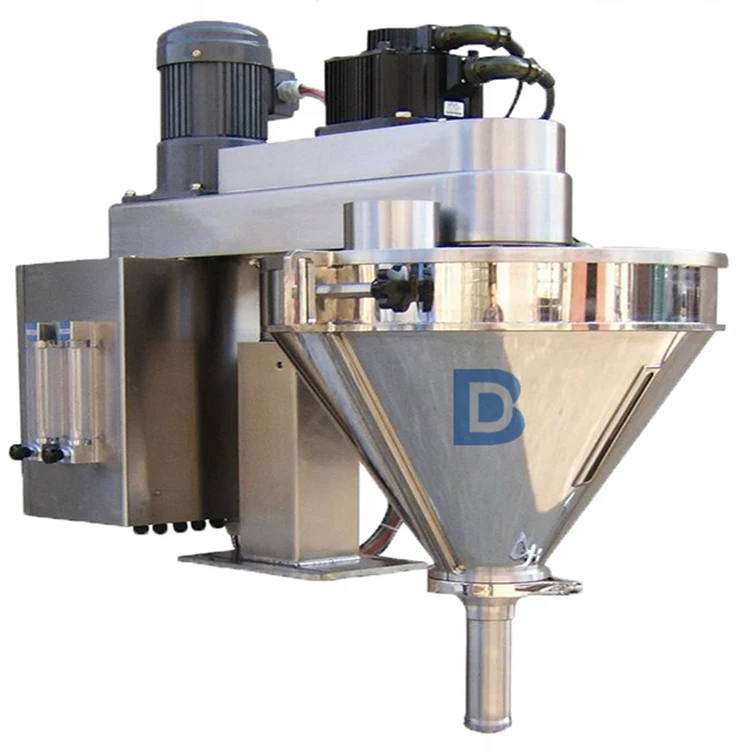

Auger filler

BD-FA3

BD-FB2

BD-FB3

screw  diameter

17~46

22~84

22~100

filling  weight

1-500g

10-1000g

100-3000g

filling  speed

10-100bags/min

10-100bags/min

20-80bags/min

filling  accuracy

≤±0.3~1%

power

0.9KW

1.8KW

3.5KW

hopper volume

26L

50L

60L

fill torque

2.39N.m

5~10N.m

23N.m

weight

130kg

220kg

260kg

dimension

860*460*880mm

1060*650*1100mm

1125*700*1200mm
