Product Description
The circular vibrating screen causes the motion trajectory to approximate a circle, so it is simply referred to as a circular vibrating screen. The circular vibrating screen is a multi-layer, high-efficiency new vibrating screen. The circular vibrating screen adopts the simplified eccentric shaft exciter and the eccentric block to adjust the amplitude. The material sieve has a long line and many screening specifications. It is widely used in product classification of mining, building materials,transportation, energy, chemical and other industries.
Suitable material:
Granite, marble, basalt, limestone, quartz, pebble, iron ore, copper ore, etc.
Performance Characteristics:
① The material sieve line length is long, and the screening specifications are many.
② The block eccentricity is used as the exciting force, and the exciting force is strong.
③ The sieve beam and the screen box are connected by high-strength bolts without welding.
④ The sieve machine has a simple structure and is convenient and quick to repair.
⑤ Adopting small amplitude, high frequency and large dip angle structure, the machine has high screening efficiency, maximum processing, long life, low power consumption and low noise.
① The material sieve line length is long, and the screening specifications are many.
② The block eccentricity is used as the exciting force, and the exciting force is strong.
③ The sieve beam and the screen box are connected by high-strength bolts without welding.
④ The sieve machine has a simple structure and is convenient and quick to repair.
⑤ Adopting small amplitude, high frequency and large dip angle structure, the machine has high screening efficiency, maximum processing, long life, low power consumption and low noise.
Parameters
Model | Screen Size(mm) | Layers | Screen Mesh (mm) | Max Feed Size(mm) | Capacity (t/h) | Power (Kw) | Vibrating Frequency (r/min) | Double Swing (mm) |
2YD1237 | 3700*1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 6-9 |
3YD1237 | 3700*1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 6-9 |
2YD1548 | 4800*1500 | 2 | 3-80 | 100 | 30-200 | 11 | 750-950 | 6-9 |
3YD1548 | 4800*1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 6-9 |
4YD1548 | 4800*1500 | 4 | 3-80 | 100 | 30-200 | 15 | 750-950 | 6-9 |
2YD1848 | 4800*1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 6-9 |
3YD1848 | 4800*1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 6-9 |
2YD1860 | 6000*1800 | 2 | 3-80 | 100 | 60-300 | 18.5 | 750-950 | 6-9 |
3YD1860 | 6000*1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 6-9 |
4YD1860 | 6000*1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 6-9 |
2YD2160 | 6000*2100 | 2 | 3-80 | 100 | 80-400 | 22 | 750-900 | 6-9 |
3YD2160 | 6000*2100 | 3 | 3-80 | 100 | 80-400 | 30 | 750-900 | 6-9 |
4YD2160 | 6000*2100 | 4 | 3-80 | 100 | 80-400 | 30 | 750-900 | 6-9 |

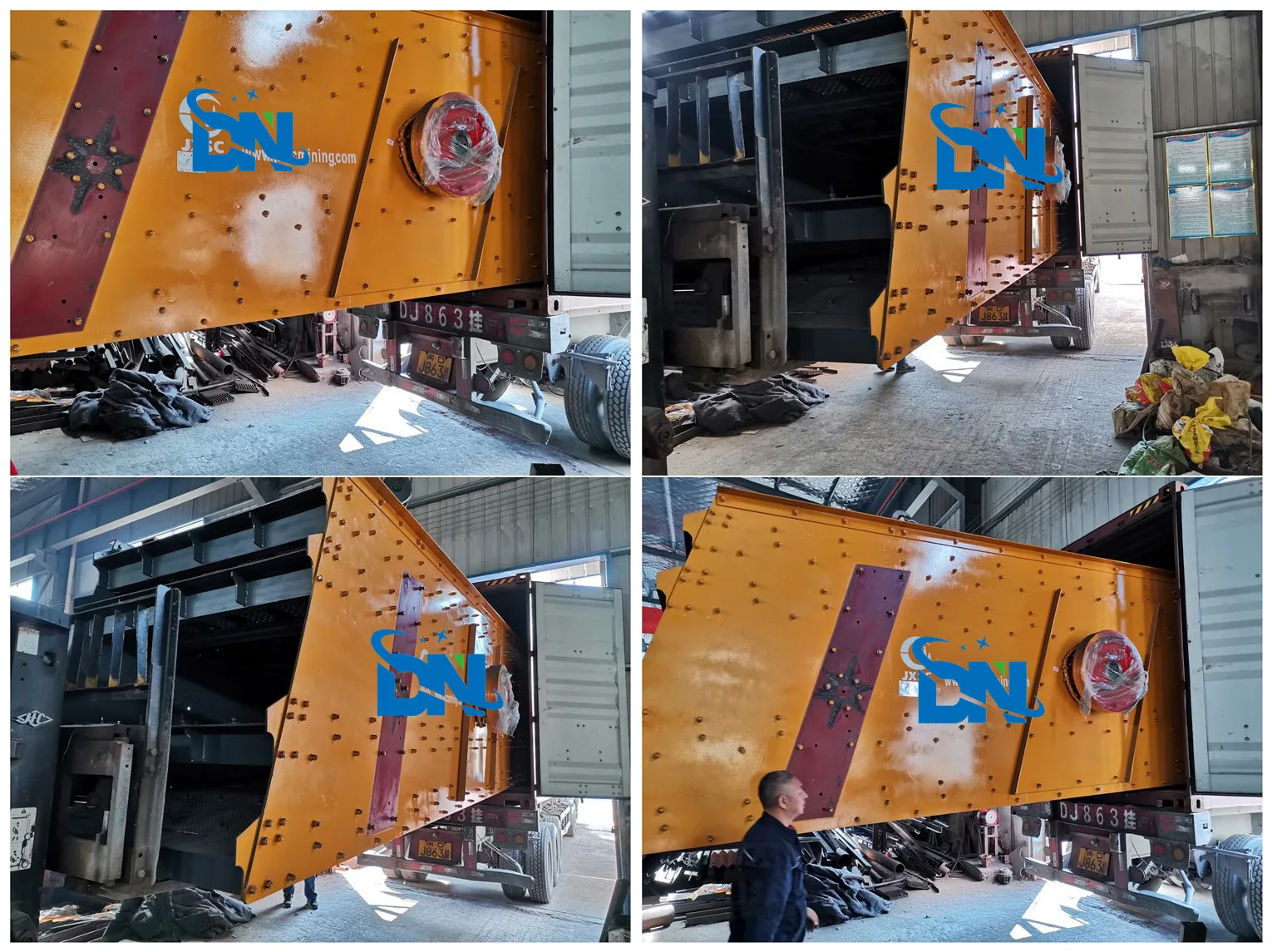

Shipping and package
1.Small parts packed in the wooden cases
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container4.Shipping by sea freight or any way the customer requires
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container4.Shipping by sea freight or any way the customer requires
Maybe you are interested in
Company Introduction
Our Services & Strength
1. 40 years history FACTORY at industrial pumps2. Provide engineer team after sales service
3. Provide spare parts for long-term
4. Provide solutions that are easy to maintain and service
5. With a wide range of pump kinds and models, can meet your specific needs
Our Workshop
DN Customers
FAQ
Questions customers asked
1.Q:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
1.Q:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
