Specifications | ||||||||
Interfaces | USB or LAN x printer thermal printer | |||||||
Print Comand | TSPL command/CPCLcommand (ESC/POS command) | |||||||
Print Method | Direct Line Thermal | |||||||
Pirnt Speed | 260mm/sec (MAX) | |||||||
Resolution | 203DPI (8dot/mm) | |||||||
Inner Code | Supported 11 types font size | |||||||
Print parameters | Support to download the Logo trademark | |||||||
Media Sensor | Dual-media sensors: transmissive and reflective | |||||||
One-dimensional code | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 | |||||||
Two-dimensional code | QR Code, PDF417 | |||||||
Printer Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android | |||||||
Paper | ||||||||
Thermal Paper Types | continuous paper, label paper, folded paper, tag paper | |||||||
Effective Print Width | 20-80mm (Max 80 points) | |||||||
Available Max Paper Width | 80 ± 0.5mm | |||||||
Paper Thickness | 0.06-0.30 mm | |||||||
Electrical | ||||||||
Charging Method | external charger DC 24V/2.5A | |||||||
Print Head | Reliability | |||||||
Print Reliability | 100000000 pulse / dot or 50km | |||||||
Physical | ||||||||
Printer Dimension | 226*180*147mm | |||||||
Unit Weight | 1.75kgs (with accessories) | |||||||
Pieces Per CTN | 12 Pieces | |||||||
Printer Color | White | |||||||
CTN Dimension | 40 X 38 X 40 cm | |||||||
Gross Weight | 18kgs | |||||||
Environmental | ||||||||
Operating Temperature | +0 ℃ ~ 50 ℃ (no condensation allowed) | |||||||
Working Humidity | 20% ~ 85% RH (no condensation allowed) | |||||||
Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation allowed) | |||||||
Storage Humidity | 5% ~ 95% RH (no condensation allowed) | |||||||
Mechanical Noise | less than 60dB (A weighted RMS) | |||||||

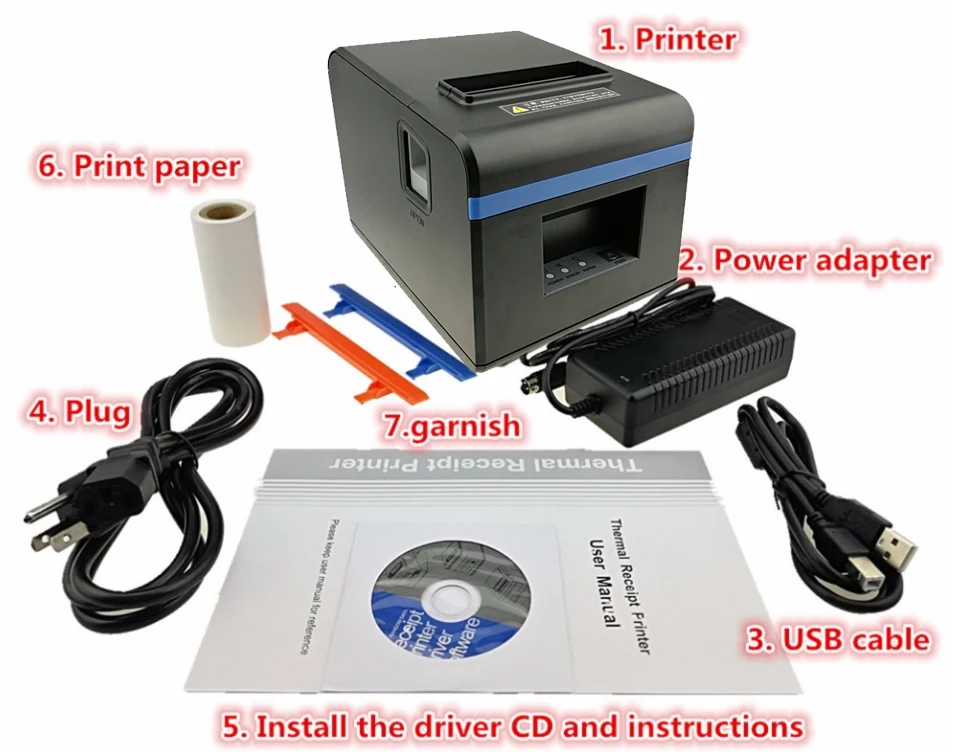

Accessories | ||||||||
USB Cable | 1 x 1M Cable | |||||||
CD Driver | 1 Piece | |||||||
Power Adapter | 1 Piece | |||||||
Power Cable | 1 Piece | |||||||
Manual | 1 Piece |
