LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный
LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный

LEYO станок с ЧПУ вертикальный обрабатывающий центр vmc 1060 Вертикальный


Поделиться:

Цена:50 769,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

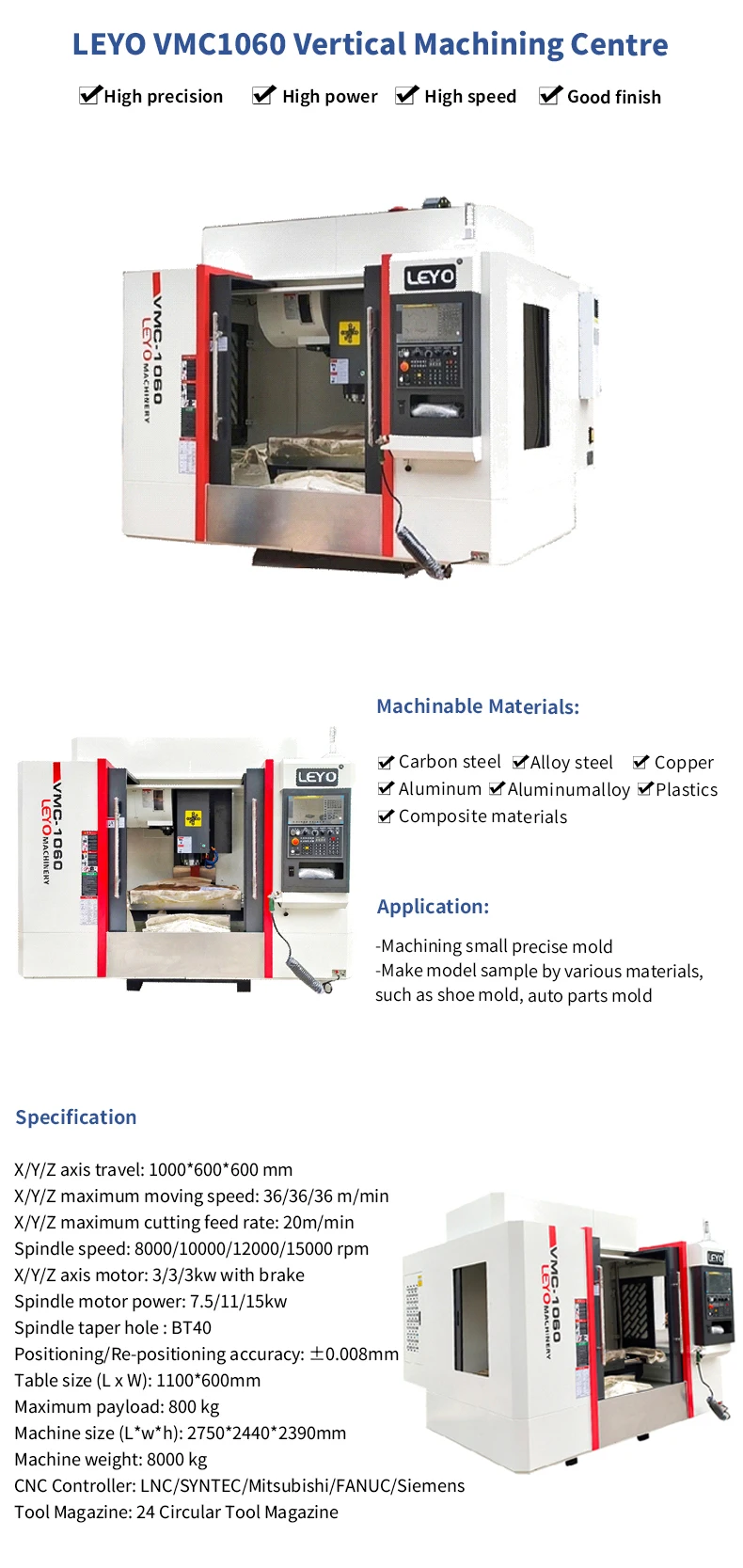

LEYO VMC1060-1165 series
Model
Unit
LY-1060
LY-1165
LY-1165Z
X/Y/Z axis travel
mm
1000*600*600
1100*650*600
X/Y/Z maximum moving speed
m/min
36
36/36/24
X/Y/Z maximum cutting feed rate
m/min
20
Spindle speed
rpm
8000/10000/12000/15000
X/Y/Z axis motor
kw
3/3/3 with brake
Spindle motor power
kw
7.5/11/15
Spindle taper hole
BT40
Positioning/Re-positioning accuracy
mm
±0.008
Table size (L x W)
mm
1100*600
1200*600
Maximum payload
kg
800
1000
Machine size (L*w*h)
mm
2750*2440*2390
3150*2640*2490
Machine weight
kg
8000
8500
CNC Controller
LNC/Syntec/Mitsubishi/FANUC/Siemens
Tool Magazine
24 Circular Tool Magazine
T-slot size
mm
18T*5*100
Distance between spindle nose and worktable
mm
150-750
130-730
Distance from spindle center to column track surface
mm
655
710
680
Linear Guide(Rail width / slider number)
mm
X:35*2
XY:45mm*3
X:45mm*3
YZ:45*2
Z :45mm*2
Y:45mm*2/Z hard rail
Ball screw
mm
40*12 double nut
Optional
Controller /Spindle/Nitrogen counterweight/Tool setting instrument/4th 5th rotary table/Chip conveyor






1. Your product look similar, but the price is different. What's the difference?
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The higher the configuration, the higher the price. If you want to get an accurate quotation, please contact customer service.

2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.

3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the model suitable for you according to the products you need to process.

4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need know the size you need for 4th 5th rotary table,NC controller ,motor brand and models,so that can offer a accurate quotation to you.

5.Can you offer me a quotation with shipping fees ?
-Usually, we offer FOB price. Because the shipping fees is different in different countries at different times. We usually provide you with an FOB quotation first. If the price you are satisfied, we will find the forwarder to provide you with a freight quotation.
