220 В Вибрационный двигатель для машины
US $22.00-$45.00
3 0 в 27000 об/мин 610 микро двигатель постоянного тока с металлическим
- Категории: Vibration Motor >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

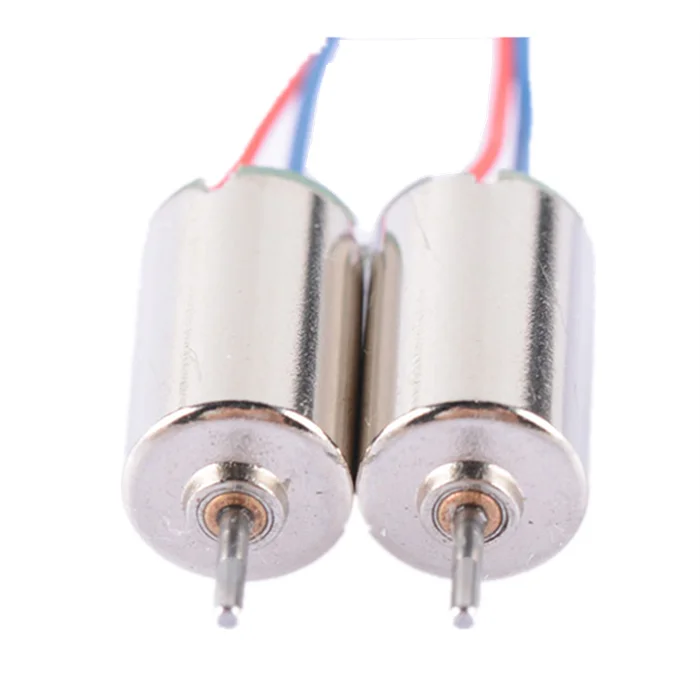

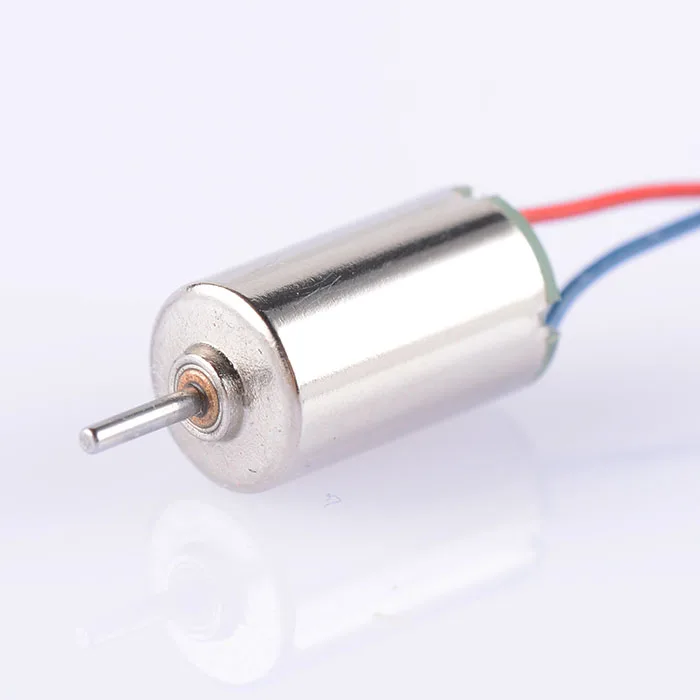

610 driving motor
Diameter: 6 mm
Body length: 10mmWire length: 50mm or customized

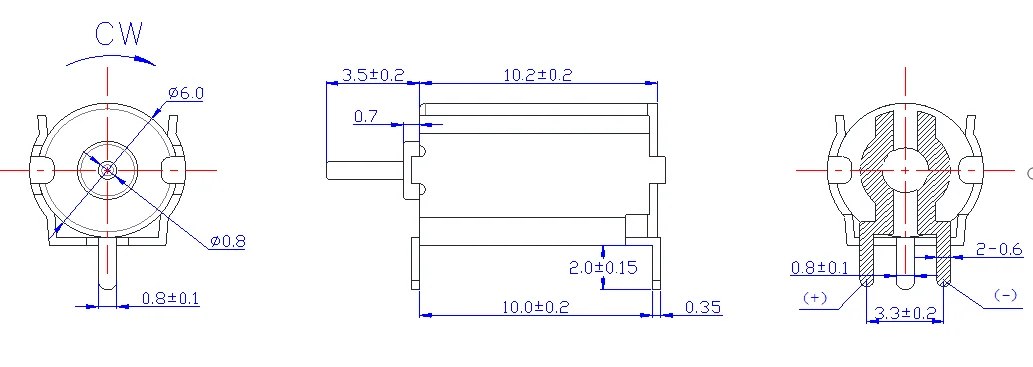

Size Information
We can customize according to customer's need, but need to provide detailed specification.
№ | Item | Specifications | Remark |
1 | Model Number | JMM1690-BY0610ZT05120CK | |
2 | Rated Voltage | 3.0V DC | |
3 | The use of Voltage range | 1.0 ~4.5V DC | |
4 | Rotation Direction | CW | |
5 | Rated Current | 20mA Max | |
6 | Rated speed | 27000 ± 10% rpm | Under the rated voltage motor operates on load |
7 | Stall Current | 190mA Max | |
8 | The use of temperature range | -10℃～60℃≤60%RH | |
9 | Terminal Resistance | 12.5 ± 5%Ω | Measure between two terminals |
11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell |
12 | Appearance | The machine no damage and rusting | |
13 | Weight | About 1.5g | |
14 | Clearance between shafts | 0.1~0.2mm |
Typical Application
Mainly used in:
1,Electric Toys
2,Hand Generator
3,Small Fan
4,Scientific Experiment Equipment
5,Intelligent Toy
6,Solar Toy Car
7,Model Aircraft, etc
2,Hand Generator
3,Small Fan
4,Scientific Experiment Equipment
5,Intelligent Toy
6,Solar Toy Car
7,Model Aircraft, etc
Detailed Images
We can customize according to customer's need, but need to provide detailed specification.
Related Products
Certifications
Packing&Shipping
Shipping:
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
UPS:5-10 working days
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton

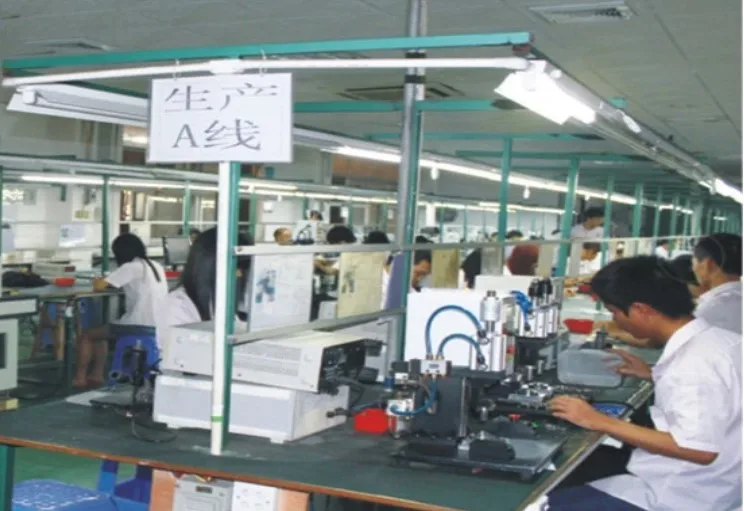

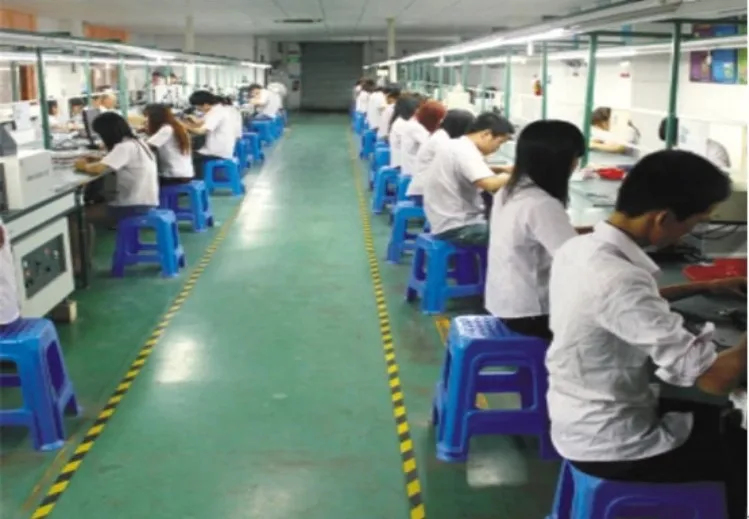

Company Introduction
Yichang Wingfong Industry & Trade Co.,Ltd
Our company was established in 2004, with 15 years experience specializing in the production of motor, main product is driving motor, vibration motor, motor iron core, double spindle motor, gear motor, etc., our company passed SGS and CE product quality certification, the products are mainly sold to Germany, the United States, Japan, South Korea, Italy, Russia, etc., because of good quality and professional service, received customer consistent high praise, we will return you with better products to consumers.
Our company was established in 2004, with 15 years experience specializing in the production of motor, main product is driving motor, vibration motor, motor iron core, double spindle motor, gear motor, etc., our company passed SGS and CE product quality certification, the products are mainly sold to Germany, the United States, Japan, South Korea, Italy, Russia, etc., because of good quality and professional service, received customer consistent high praise, we will return you with better products to consumers.
