220 В Вибрационный двигатель для машины
US $22.00-$45.00
Лидер продаж вибрирующий двигатель 1 5 в 612 9000 об/мин с клеммой для электрической зубной
- Категории: Vibration Motor >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

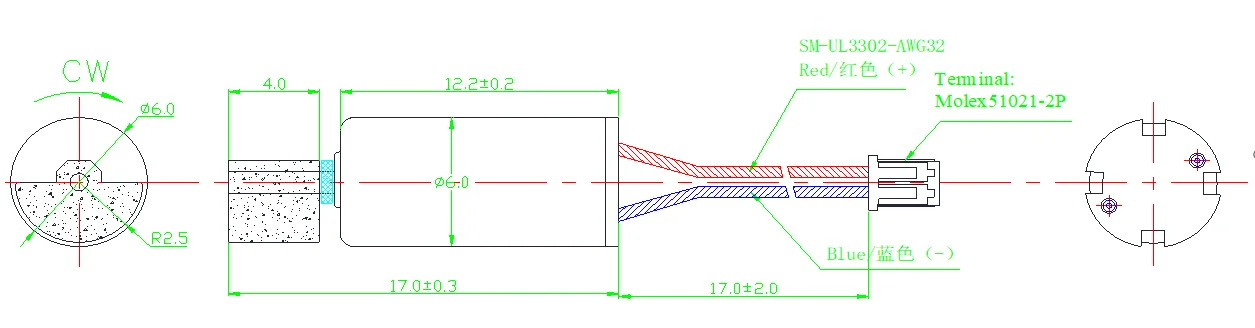

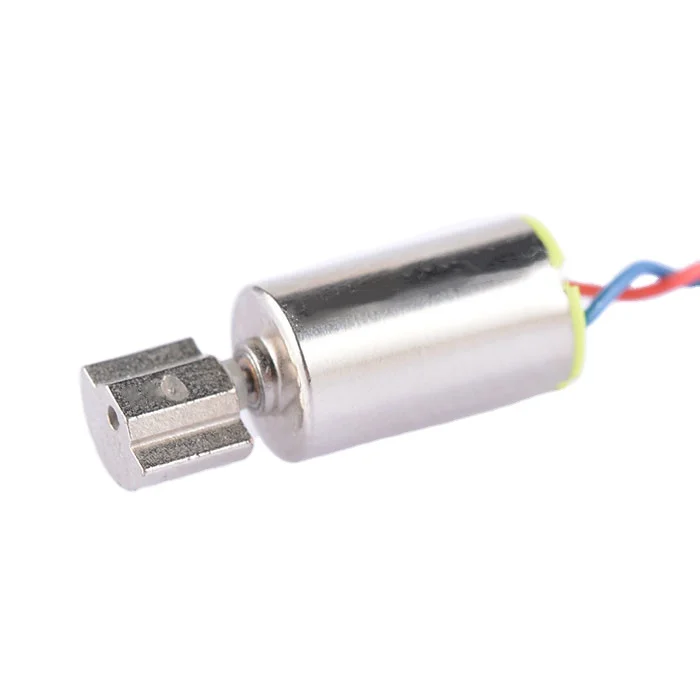

612 vibrating motor

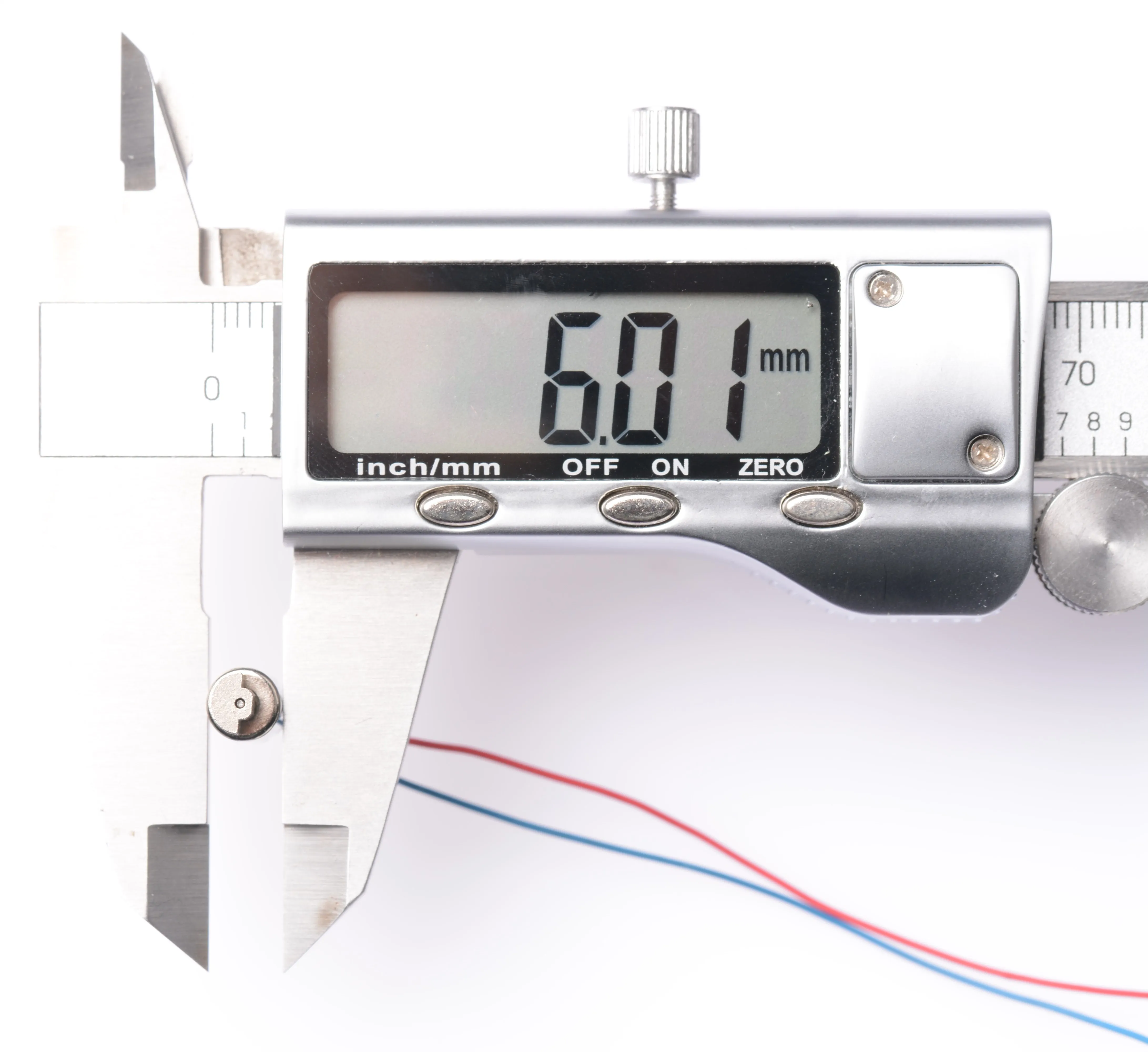

Diameter: 6 mm

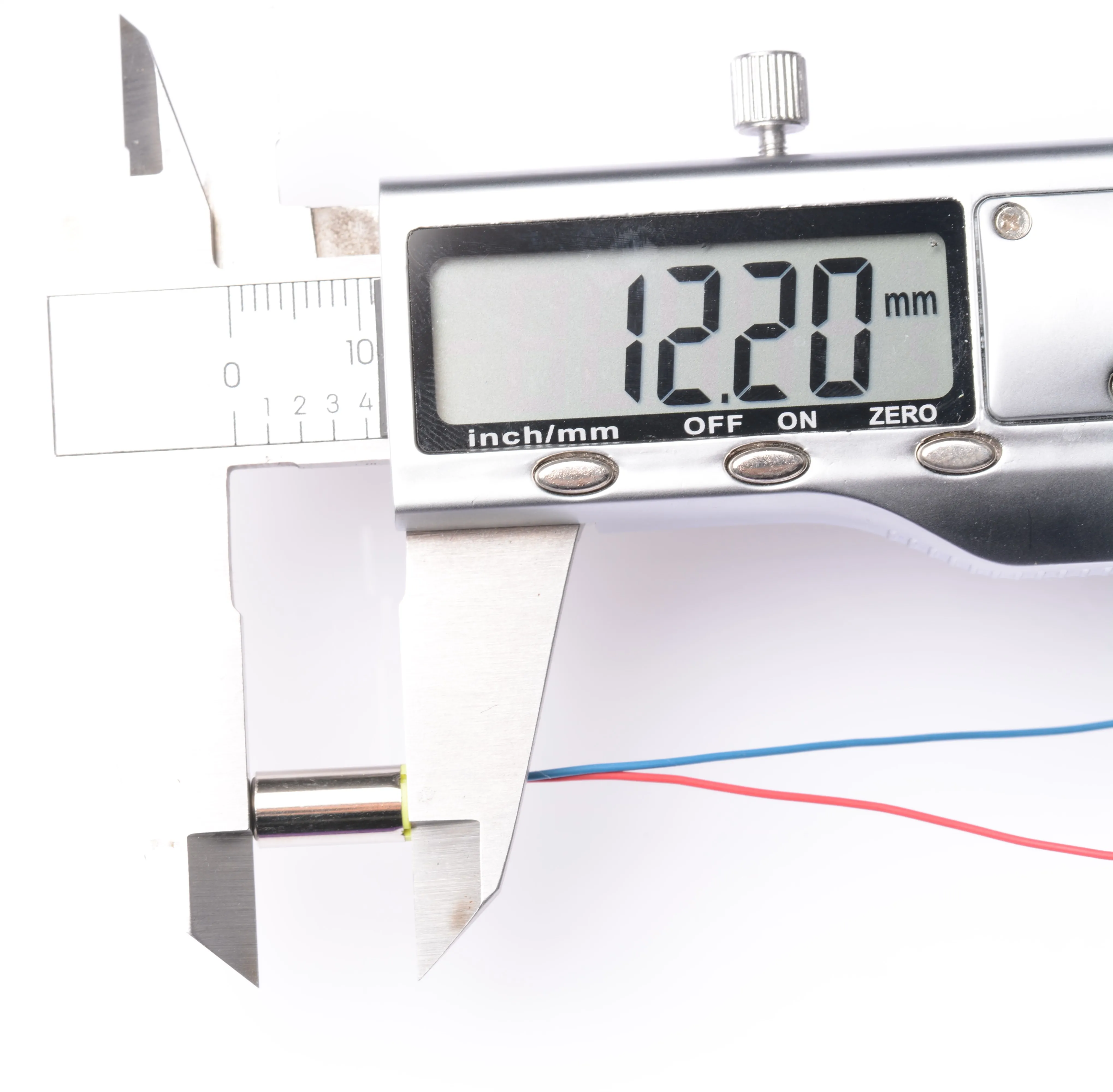

Body length: 12mmWire length: 17mm or customized
Counter weight : R2.5*L4
(We can also make R3 * L4.0, or R2.5 * L4.0, R2.5 * L3.0,R3.0 * L2.4)
Size Information
We can customize according to customer's need, but need to provide detailed specification.
№ | Item | Specifications | Remark |
1 | Model Number | JMM1422-BY0612ZT55110T | |
2 | Rated Voltage | 1.5V DC | |
3 | The use of Voltage range | 1.0 ~2.0V DC | |
4 | Rotation Direction | CW | |
5 | Rated Current | 40mA Max | |
6 | Rated speed | 9000 ± 10% rpm | Under the rated voltage motor operates on load |
7 | Stall Current | 100mA Max | |
8 | The use of temperature range | -10℃～60℃≤60%RH | |
9 | Terminal Resistance | 10± 5%Ω | Measure between two terminals |
11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell |
12 | Appearance | The machine no damage and rusting | |
13 | Weight | About 1.35g | |
14 | Clearance between shafts | 0.1~0.2mm |
Typical Application
Mainly used in:
1.Electric Toothbrush
2.Eye Beauty Instrument
3.Face Cleaner
4.Eye Massager
5.Massager
6.Sex Toys
7.Medical Vibration Instrument, etc
2.Eye Beauty Instrument
3.Face Cleaner
4.Eye Massager
5.Massager
6.Sex Toys
7.Medical Vibration Instrument, etc
Detailed Images
We can customize according to customer's need, but need to provide detailed specification.
Certifications
Related Products
Packing&Shipping
Shipping:
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton
Company Introduction
Yichang Wingfong Industry & Trade Co.,Ltd
Our company was established in 2004, with 15 years experience specializing in the production of motor, main product is driving motor, vibration motor, motor iron core, double spindle motor, gear motor, etc., our company passed SGS and CE product quality certification, the products are mainly sold to Germany, the United States, Japan, South Korea, Italy, Russia, etc., because of good quality and professional service, received customer consistent high praise, we will return you with better products to consumers.
Our company was established in 2004, with 15 years experience specializing in the production of motor, main product is driving motor, vibration motor, motor iron core, double spindle motor, gear motor, etc., our company passed SGS and CE product quality certification, the products are mainly sold to Germany, the United States, Japan, South Korea, Italy, Russia, etc., because of good quality and professional service, received customer consistent high praise, we will return you with better products to consumers.
