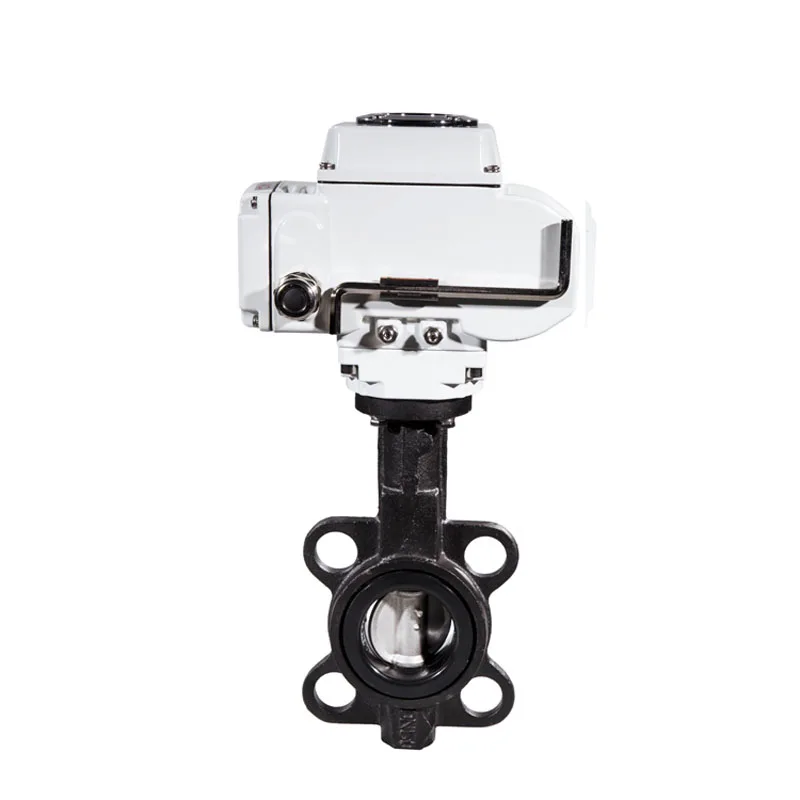

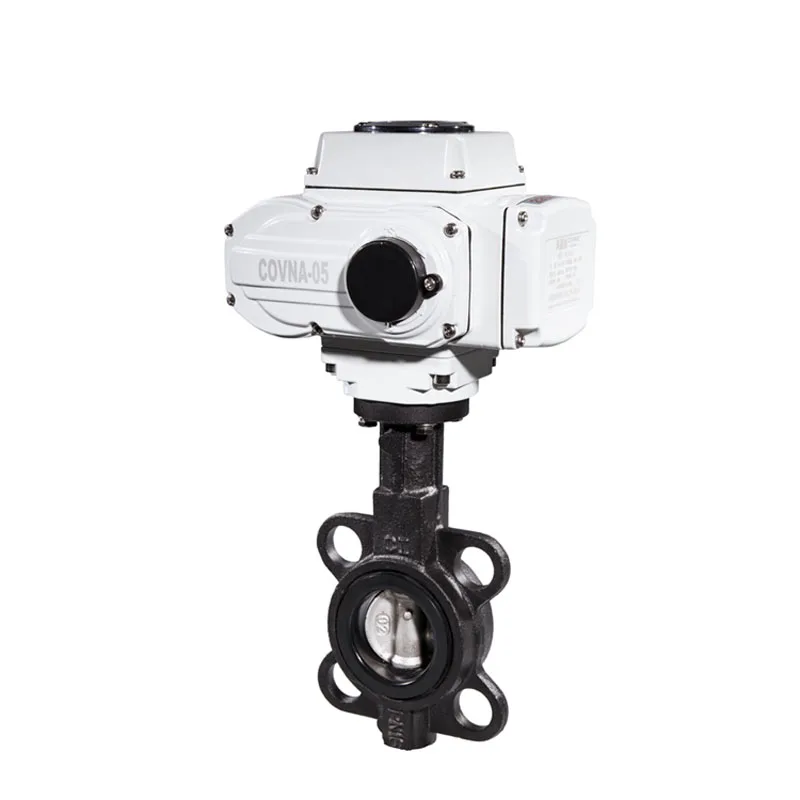

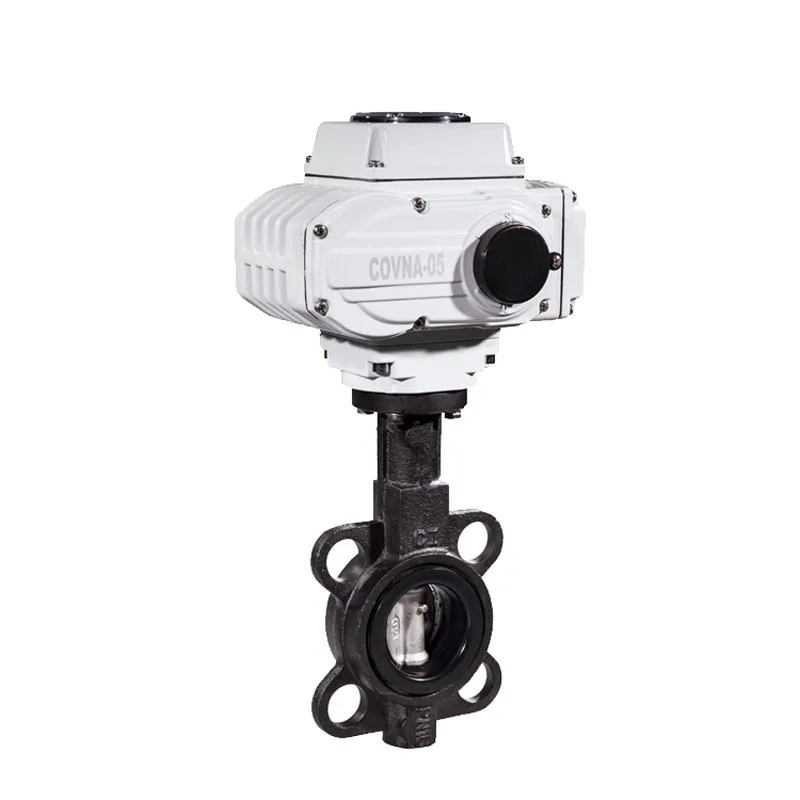

Моторизованные клапаны COVNA цена чугунные 110 В переменного тока DN150 электрический привод клапан-бабочка для
- Категории: Butterfly Valves >>>
- Поставщик: Dongguan,Chuancheng,Pneumatic,Components,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Item | Price Cast Iron 110VAC DN150 Electric Actuator Butterfly Valve For Water | ||||
Applicable Standards | GB, DIN, ANSI, ASME, JIS, API | ||||
Size Range | DN50 to DN500 | ||||
Operating Pressure | Low Pressure, PN1.0 to 1.6MPa, 145 to 232PSI | ||||
Body Material | Cast Iron, stainless steel | ||||
Core Material | Cast Iron, stainless steel | ||||
Stem Material | Cast Iron, stainless steel | ||||
Sealing Material | NBR, EPDM, PTFE | ||||
Structure | Midline | ||||
End Connection | Wafer, Flange End, lug | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -20 to +150°C (14 to 212°F) with EPDM Sealing | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Technical Parameter for Actuator | ||||||
Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Series | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 | |||||||
Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | |||||||
90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S | |||||||
Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |||||||
Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A | |||||||
Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W | |||||||
Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | ||||||||||||||
Input Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Output Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Protection Class | IP65 protection class | ||||||||||||||
Ambient Temp | -20 to +60°C | ||||||||||||||

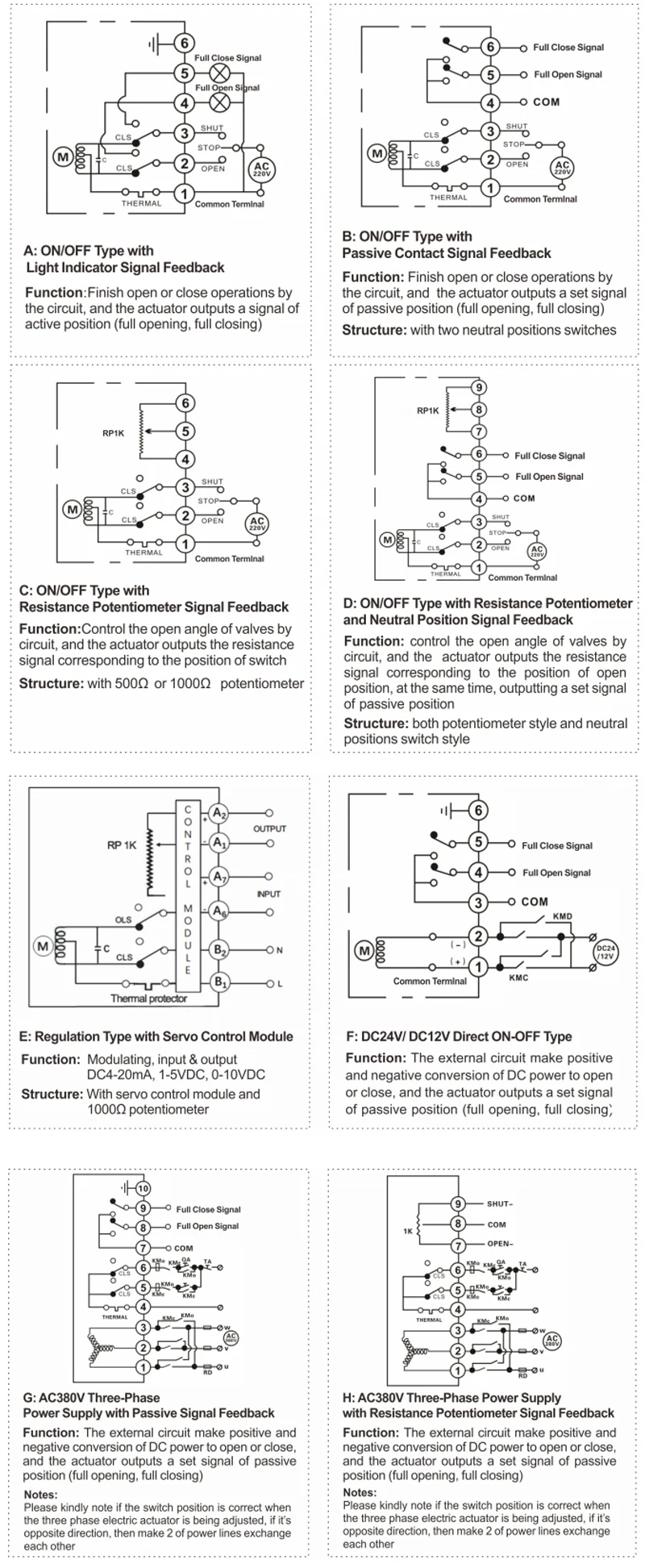

Wiring Diagram | A: ON/OFF type with light indicator signal feedback B: ON/OFF type with passive contact signal feedback C: ON/OFF type with resisance potentiometer signal feedback D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback E: Regulation type with servo control module F: DC24/DC12V direct ON/OFF type G: AC380V 3-phase power supply with passive signal feedback H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||||||||
About COVNA
Company Profile
COVNA Group Co.,Ltd is a manufaturer of solenoid valve, electric actuator valve, pneumatic actuator valve, ball valve, butterfly valve, check valve, gate valve, globe valve and so on. As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies.
20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Whatever you are a valve distributor, machine manufacturer or industries contractor, we will try our best to meet you requirements and offer the suitable valve with best price for you.
● If you are a valve distributor, we will share our market info to you and select the right valve basic on your market to help you earn more benefits.
● If you are a machine manufacturer, we will help you select the right valve basic on your system design and let your machine run well. Sample testing is available.
● If you are a industry contractor, as a one-stop valve solution provider, we will offer all the valves what you need and let your project runs well to improve the production efficiency.
Still confuse? Contact us! We are willing to help you resove the problem!
#ALIBABA SELECTION SUPPLIER WITH 20 YEARS MANUFACTURING EXPERIENCE | ||||||

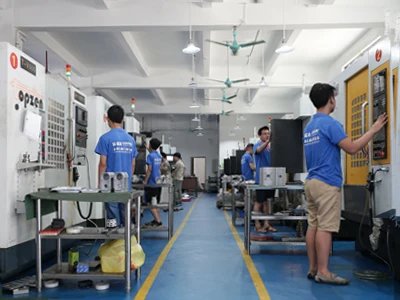

GERMAN TECHNOLOGY
COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.
MADE BY EXPERIENCED ENGINEERS
All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.
Certifications
Our Service
Packing
Packing: Electric valves packed with foam in carton.
Delivery Time: 10 working days after payment confirmed.
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
