Product Description

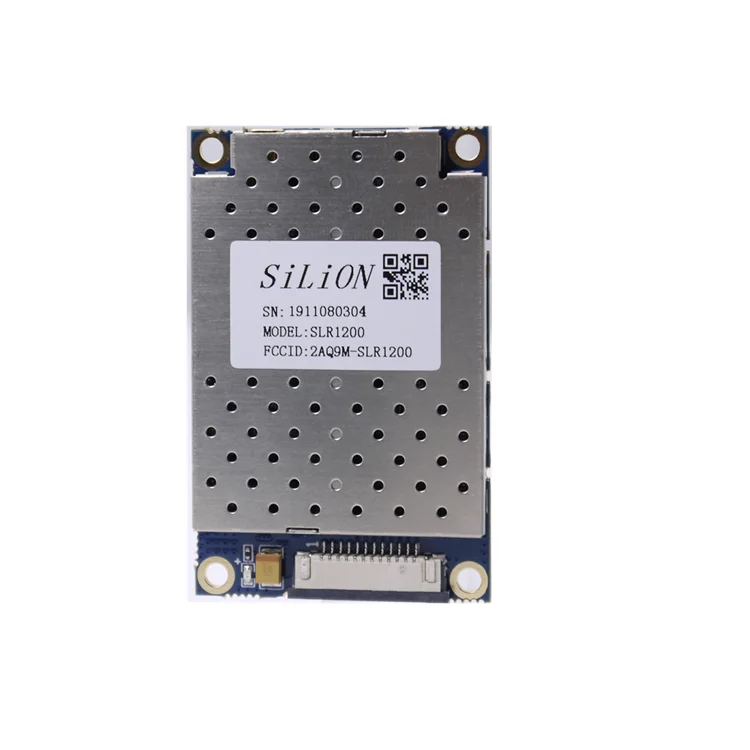

Free SDK API Impinj R2000 One Wire RF Transmitter and UHF Receiver Module RFID Reader
single port MMCX connector
Impinj R2000 chipset, support EPC global Gen2 (ISO 18000-6C)
High Performance of anti-collision recognition algorithm
Impinj R2000 chipset, support EPC global Gen2 (ISO 18000-6C)
High Performance of anti-collision recognition algorithm
12PIN SFW12R-1STE1LF
Real-time Monitoring of On-board temperature
Aluminum housing, helpful in heat dissipation
Smart size and fully packaged, suitable module of integration with handheld UHF PDA or tablet
Real-time Monitoring of On-board temperature
Aluminum housing, helpful in heat dissipation
Smart size and fully packaged, suitable module of integration with handheld UHF PDA or tablet
Certificate: FCC, CE, RoHS
Product Paramenters
Physical Characteristics | ||

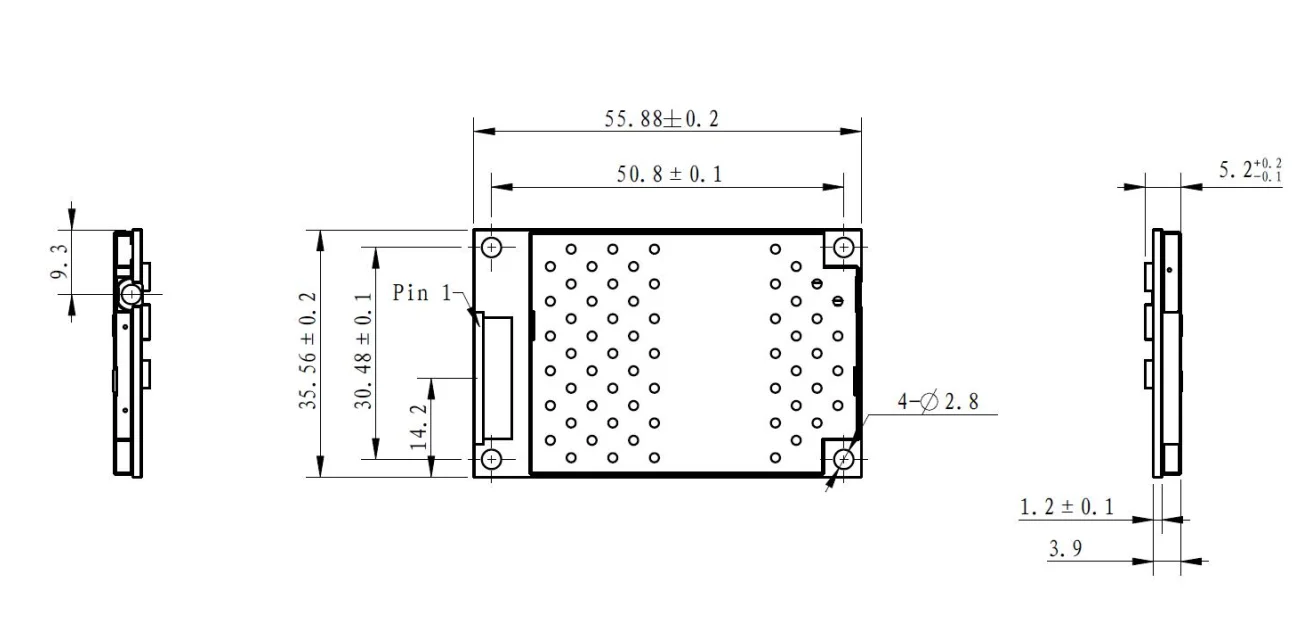

Dimensions | 55.88mm x 35.56mm x 5.2mm | |
Net weight | 13.4g | |
RFID Characteristics | ||
Air Protocols | EPC Class 1 Gen 2 (ISO 18000-6C) | |
Frequency | USA: 902-928MHz FCC (NA, SA) | |
EU: 865-868MHz (ETSI) | ||
CN: 920-925MHz (CMIIT) | ||
Other customizable: OPEN 840-960MHz | ||
Antenna Ports | One 50 Ω MMCX Connector | |
Output Power | 5dBm-30dBm (±1dBm) adjustable | |
Work Mode | Fixed / hop frequency optional | |
Connector Interface | 12 pin SFW12R-1STE1LF connector | |
(Power supply, Communication, GPIO) | ||
Tag RSSI | Support | |
Atenna Detector | Support | |
Temperature Detector | Support | |
RFID Performance | ||
Max Read Rate | ≥700 tags/s | |
Max Tag Read Distance | ≥10m, 8dBi antenna | |
Certificates | ||
Certificates | FCC 47 CFR, Part 15; CE; RoHS | |
CE, ETSI EN 302 208 V3.1.1, RED 2014/53/EU | ||
RoHS compliant, 2011/65/EU, 2015/863/EU | ||
Application Interface | ||
Host API | C, C#/.NET, Java | |
Communication Interface | ||
Communications | UART serial port (RS232), Baud rate 9600~115200bps | |
GPIO (Optional) | Optional, 2 inputs (DC 0~3.3V), 2 Outputs (DC 0~3.3V) | |
Power Supply | ||
Input Voltage | 3.6~5.0 VDC+/-5% | |
Power consumption in RF output mode | 5.5W (Peak Value), 0.35W (Idle) | |
Power consumption in standby | 0.35W | |
Working Environment | ||
Operating Temp. | -20°C to +55°C | |
Storage Temp. | -40 °C to +85°C | |
Humidity | 5-90% non-condensing (+25°C) | |

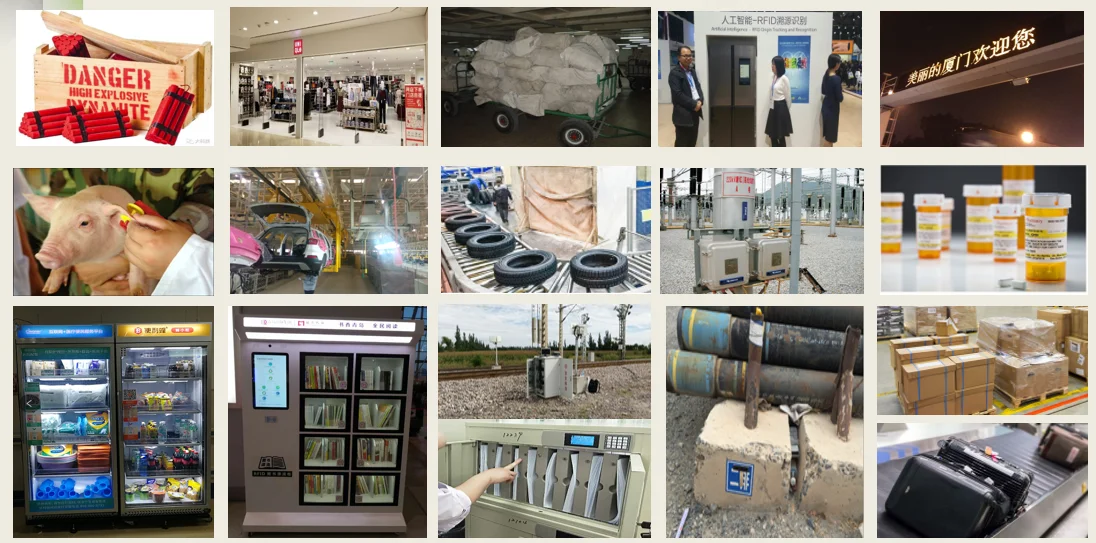

Application Fields
Applications
Silion's UHF rfid readers and modules have been widely used in world-wide various applications during our 15years experience specially in UHF application fields.
Our good products and services win many customers positive feedback!

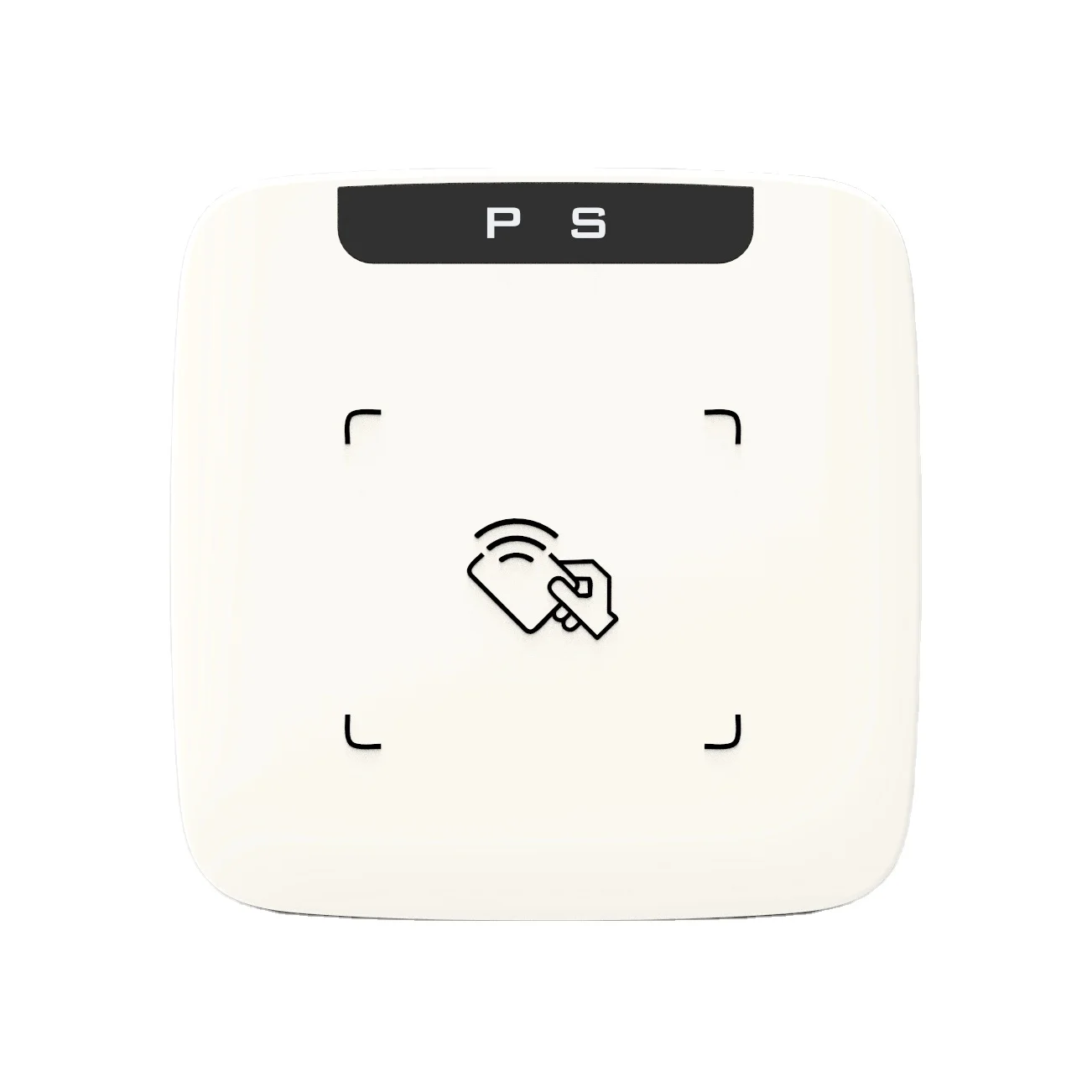

Recommend Products

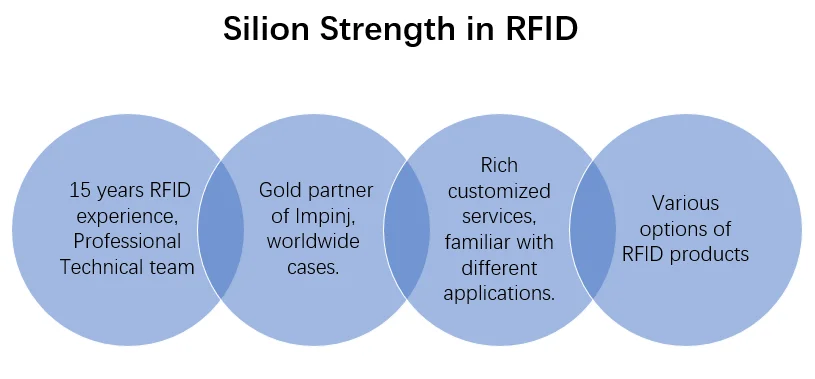

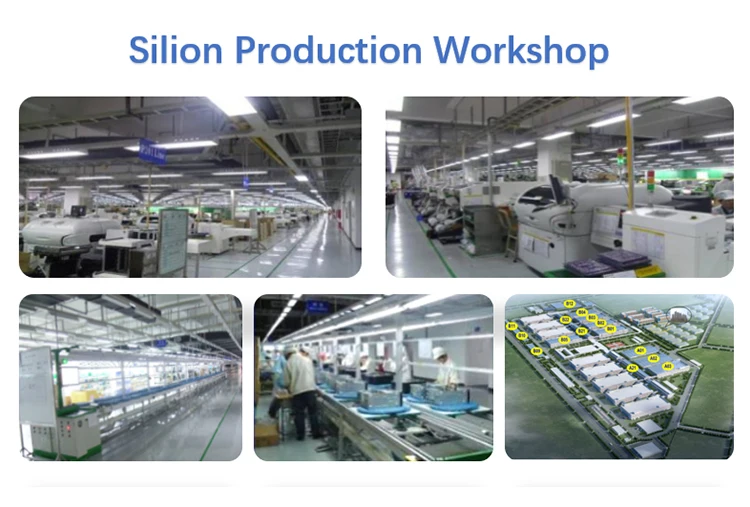

Company Introduction
After Sales Service
Warranty:
1. 13months warranty;
2. Free SDK and technical support;
3. Available API document;
4. Warranty Service will be provided if the damage is not caused by man-made.
