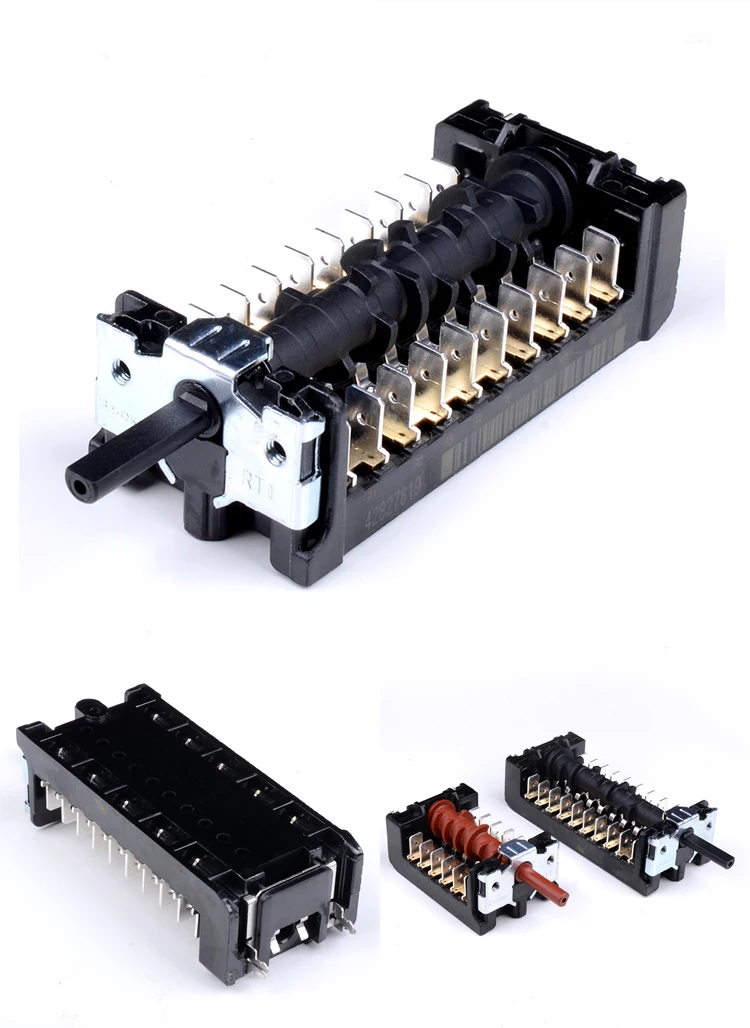

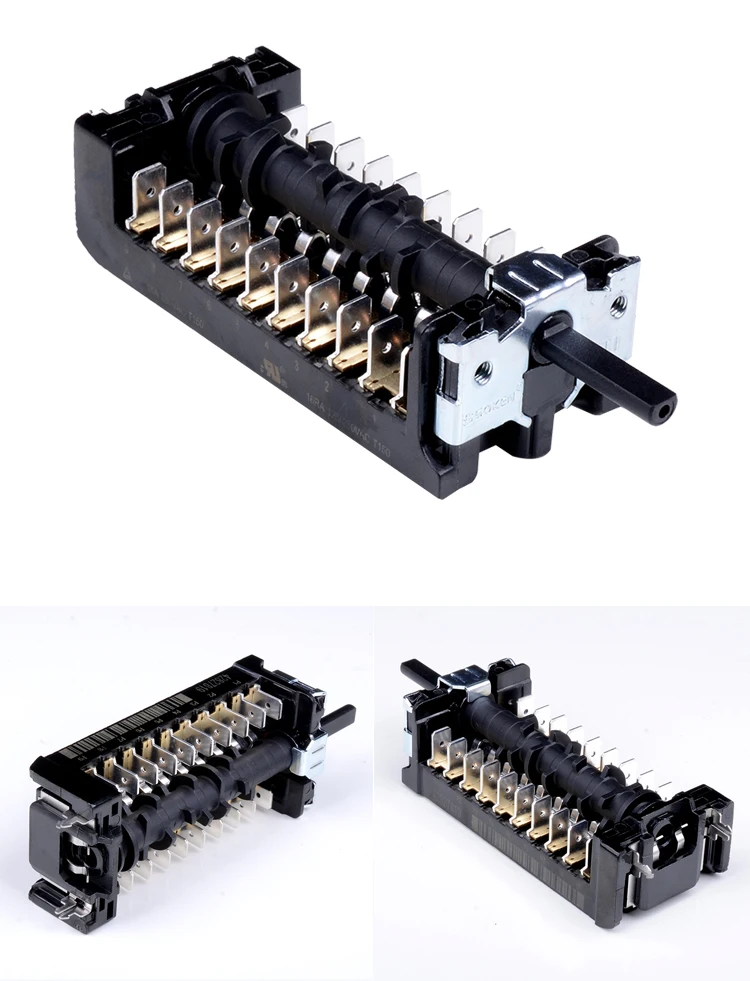

Новый SOKEN многопозиционная печи вращающийся электрораспределительной коробкой многопозиционного переключателя
- Категории: Rotary Switches >>>
- Поставщик: Ningbo,Master,Soken,Electrical,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

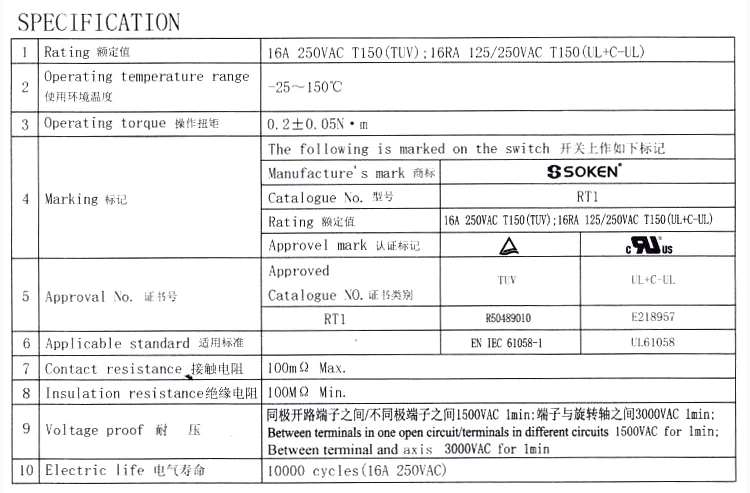

Rating | 16A 250VAC T150(TUV);16RA 125/250VAC T150(UL+C-UL) |
Contact Resistance | 100MΩ Max |
Insulation resistance | 100mΩ Max |
Electrical life | 10000cycles(16A 250VAC T150) |
Operating Temperature | -25~150°C |
Voltage proof | Between terminals in one open circuit/terminals in different circuit 1500VAC for 1 Min; Between terminals and axis 3000VAC for 1 Min; |
Operating torque | 0.2±0.05N · m |
Contact Resistance： | 100mΩ Max |
Insulation Resistance： | 500VDC，100MΩ Min |
Dielectric Strength： | Terminal and terminal：1500VAC 5s |
Terminal and ground：3000VAC 5s | |
Operating Temperature： | -25～150°C |
Electrical Life： | 10000 Cycles |
Rating： | 16A 250VAC T150(TUV);16RA 125/250VAC T150(UL+C-UL) |
Contact leg | Beryllium copper alloy | |||
Contact | Silver alloy | |||
Terminals | Brass T=0.8mm | |||
Case | Bakelite | |||
Gear | Bakelite |
Company Display

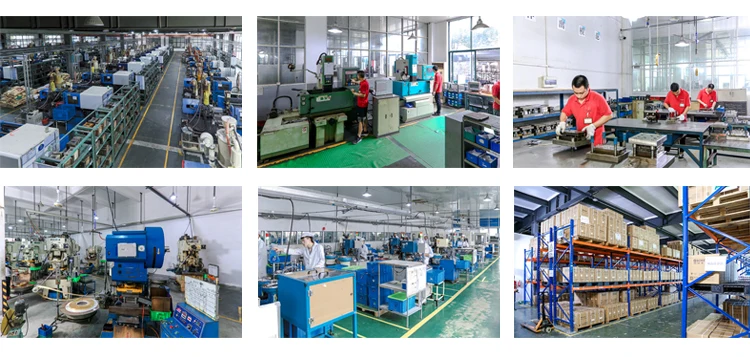

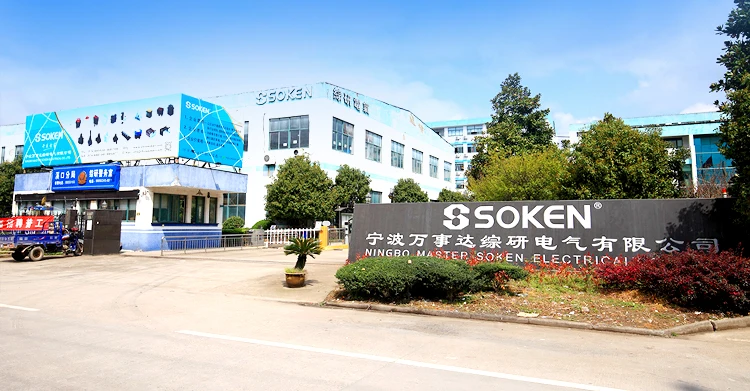

Ningbo Master Soken Electrical Co., Ltd. established in 1999, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
