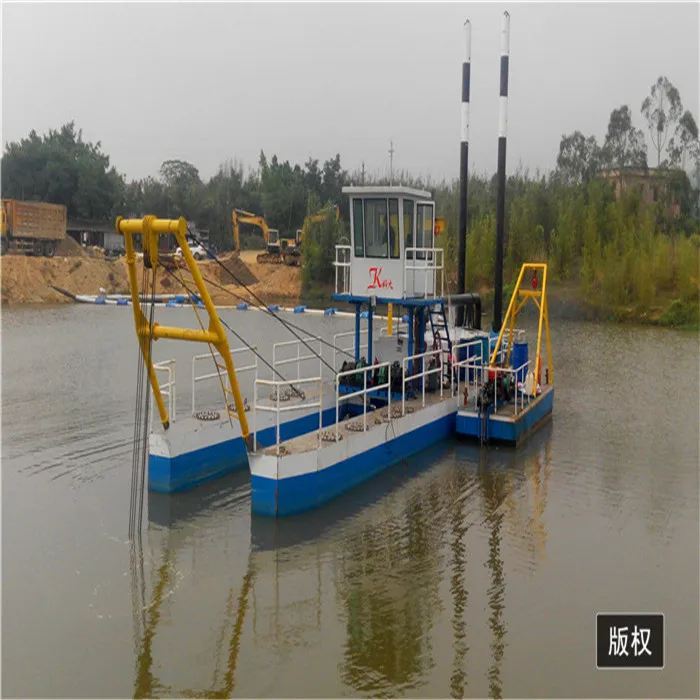

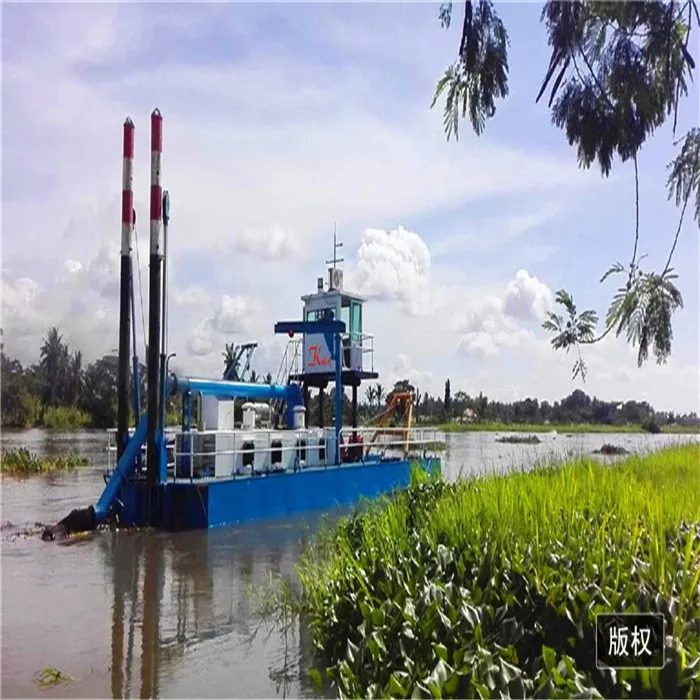

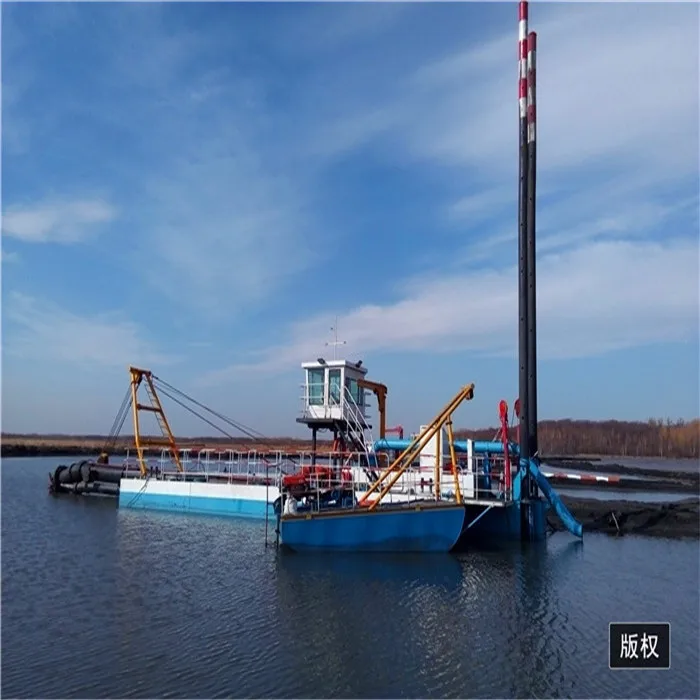

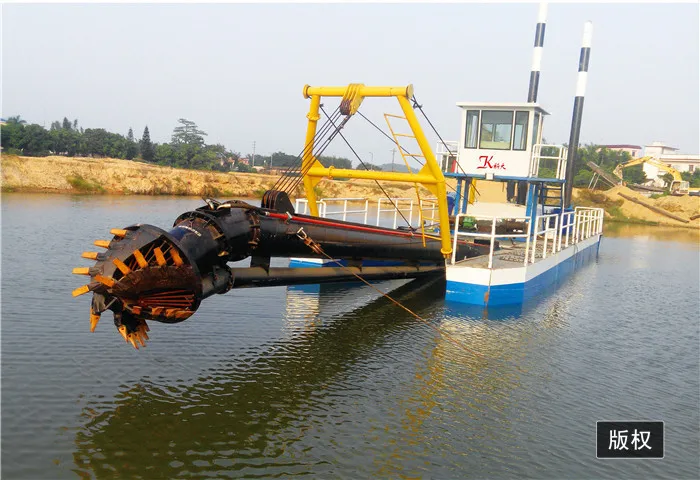

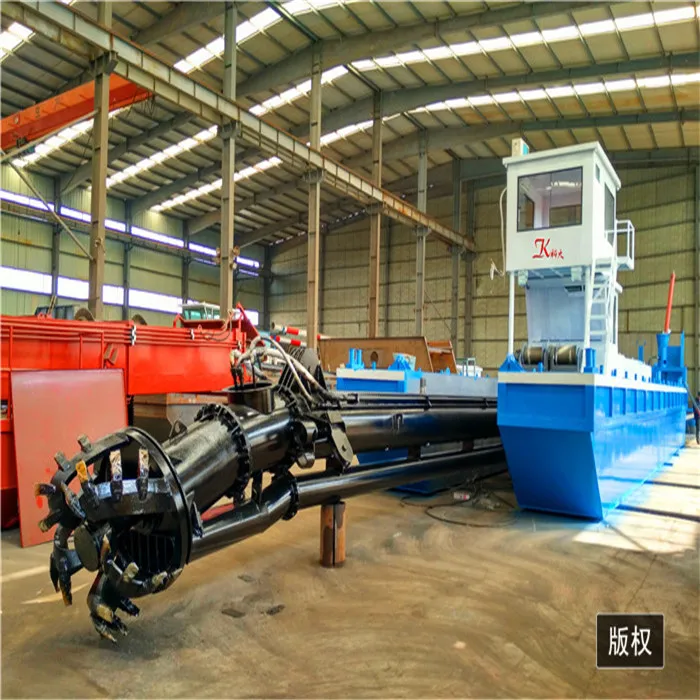

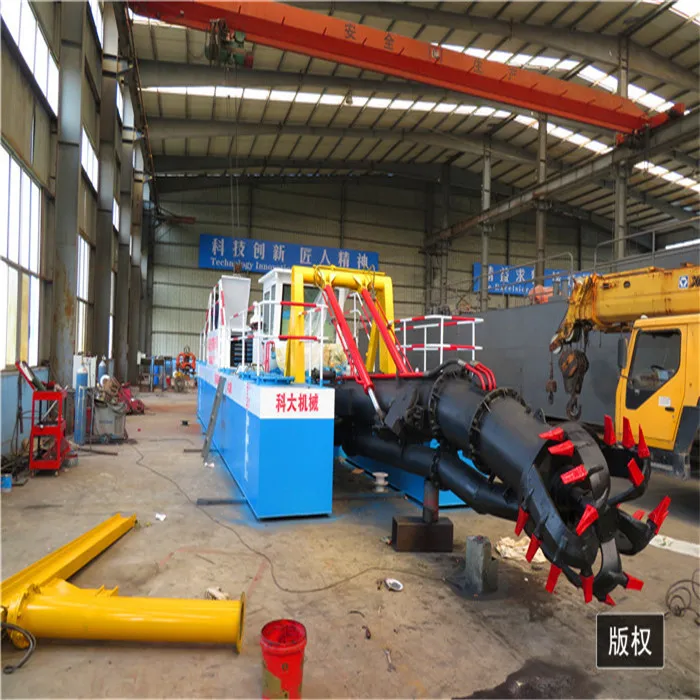

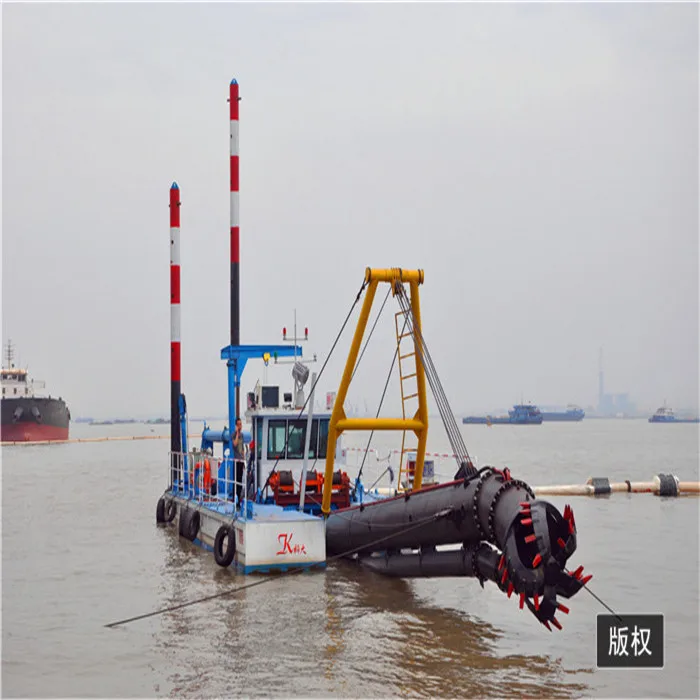

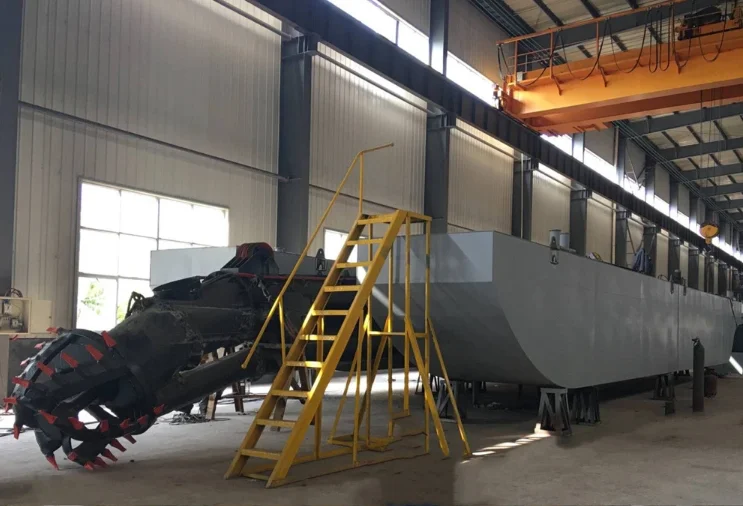

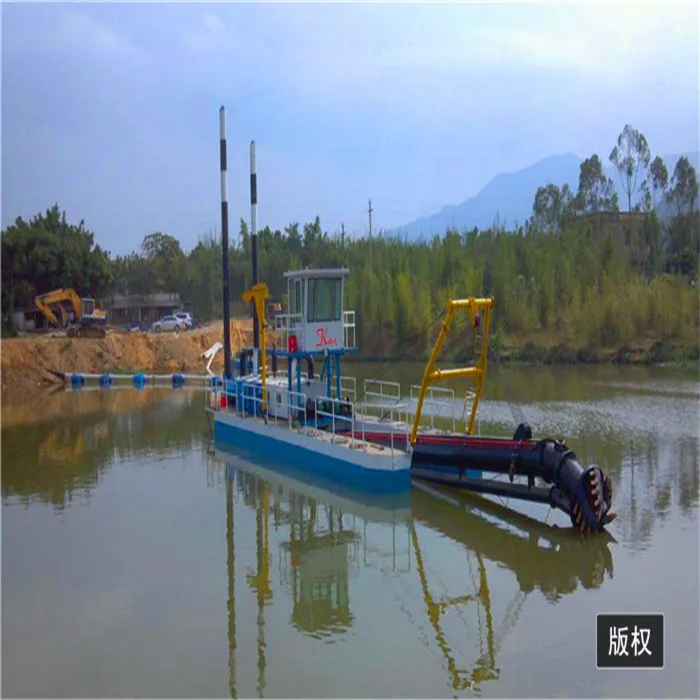

Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses the front end of suction pipe. The cutter suction pipe is equipped with a rotating cutter device to cut and agitate the river bottom sediment, and then through the suction pipe, the sl Mud, mud transport, mud unloading and other work processes can be completed continuously at one time. It is a high-efficiency, low-cost dredger and a good underwater excavating machine.
KDCSD100 | KDCSD150 | KDCSD200 | KDCSD250 | KDCSD300 | KDCSD350 | KDCSD450 | |
Water Flow(m3/hour) | 280 | 450 | 800 | 1200 | 1800 | 2500 | 3500 |
Length(m) | 19 | 22 | 26 | 33 | 35 | 39 | 41 |
Width(m) | 3.5 | 4 | 5.3 | 6.6 | 6.6 | 7 | 8 |
Height(m) | 1 | 1.25 | 1.5 | 1.8 | 1.8 | 2 | 2.5 |
Max. Dredging Depth(m) | 8 | 10 | 12 | 15 | 15 | 17 | 17 |
Suction Diameter(mm) | 150 | 200 | 250 | 300 | 400 | 450 | 650 |
Discharge Diameter(mm) | 100 | 150 | 200 | 250 | 300 | 350 | 450 |
Total Power(kw) | 132 | 220 | 336 | 460 | 670 | 895 | 1166 |
Cutter Head Diameter(mm) | 650 | 850 | 950 | 1200 | 1200 | 1500 | 1700 |
Discharge Distance(m) | 400 | 500 | 800 | 1000 | 1200 | 1500 | 1800 |
We are located in Qingzhou city, Shandong province, China with 12000m2 area and more than 100 staff, very convenient to Qingdao sea Port, Weifang airport and Qingdao International Airport . To be honest and adhering client-first is our service concept. To make first-class quality and service is our brand goal. To take clients as the center, strive for survival by quality and seek development by innovation is our enterprise tenet. We provide high quality products and faultless service. We would like to invite you to create a bright future together.
1.When we purchase a dredge , will we receive operator training from you?
We provides training on each dredge when it is delivered and commissioned. Additionally, customers will receive classroom training, as well as dredge simulator training.
2.What depth can your dredges reach?
Our standard cutter suction dredge's digging depths range from our smallest at 20′ (6 m) up to 58′ (18 m). For special applications, digging depths can be increased substantially.
3.Would a dredge with a larger engine consume more fuel?
Not necessarily.
Fuel consumption depends primarily on the parameters of the dredging operation, such as the material density,pumping distance, and terminal elevation.
