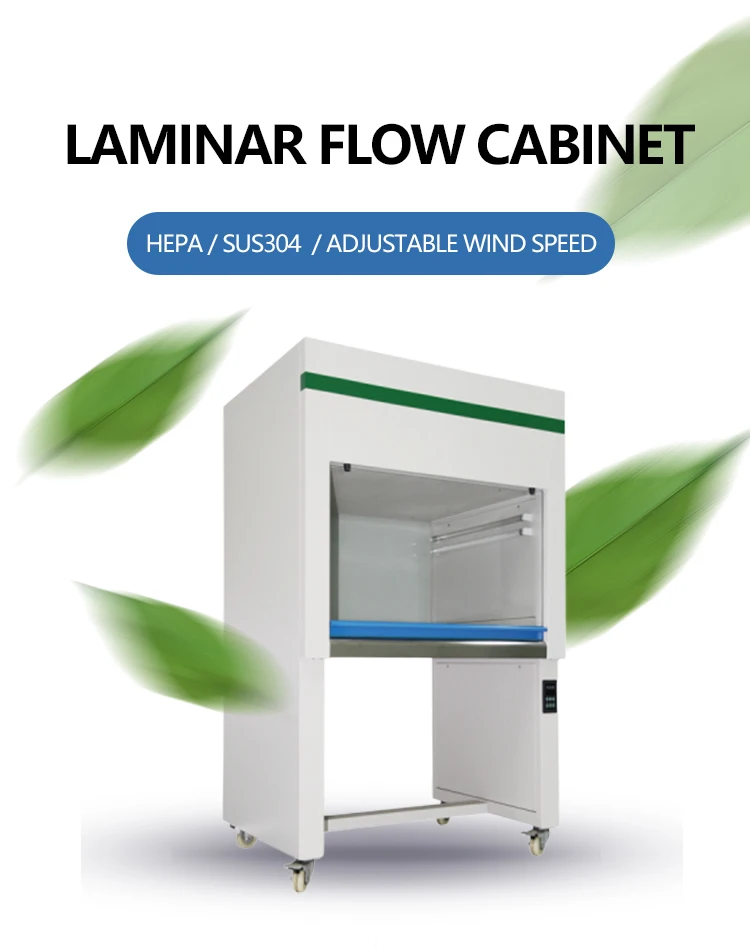

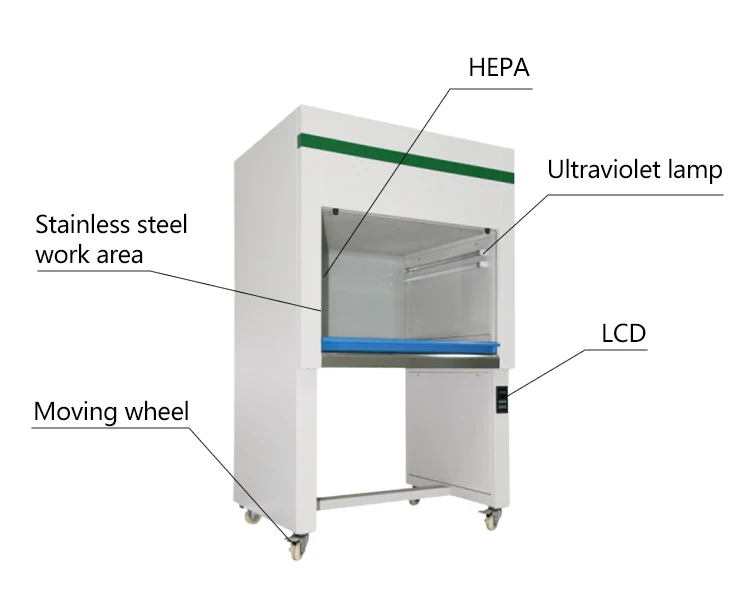

Desktop Laminar Flow Cabinet - Vertical Air Flow Model VD-650
Working Principle
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Vertical air flow

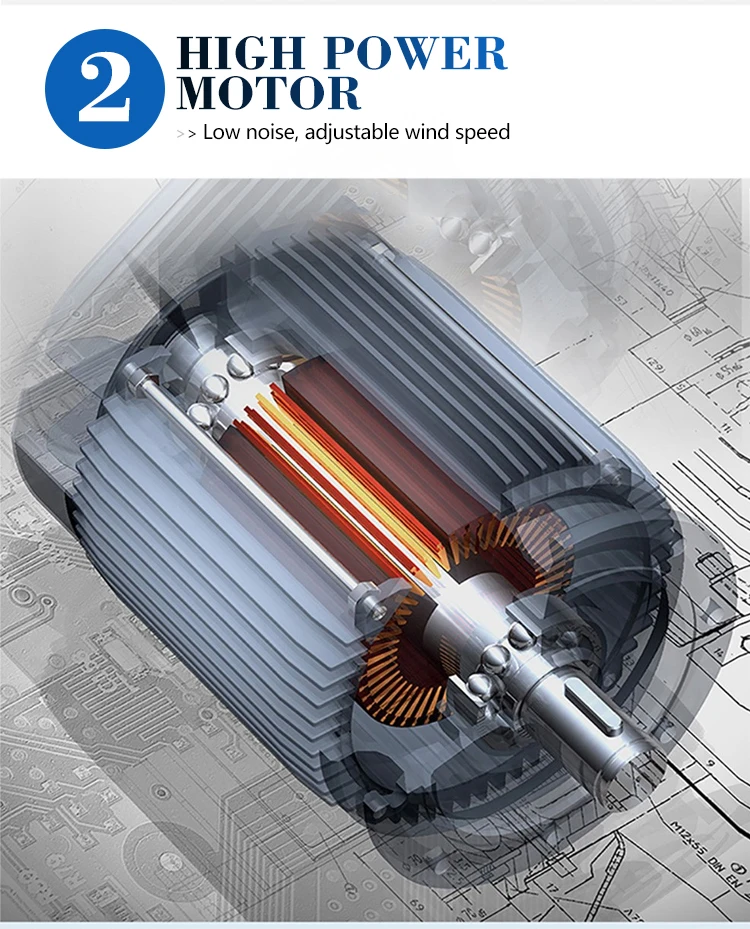

2. Using remote to control the wind speed (two-stage wind speeds)
3.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter
Technical Parameters
Working Principle
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Vertical air flow
2. Using remote to control the wind speed (two-stage wind speeds)
3.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter
Technical Parameters
Model | VD-650 |
Clean grade | Grade 100(209 E U.S. Federal) |
Number of bacteria | ≤0.5per utensil.hour(90mm utensil) |
Noise | ≤62dB |
Power | 220V/50HZ |
wind speed | 0.25-0.45m/s |
illumination | ≥300LX |
Working area dimension(W*D*H) | 485*475*455mm |
Overall dimension(W*D*H) | 640*530*845mm |
HEPA filter size and quantity | 480*460*38*1pc |

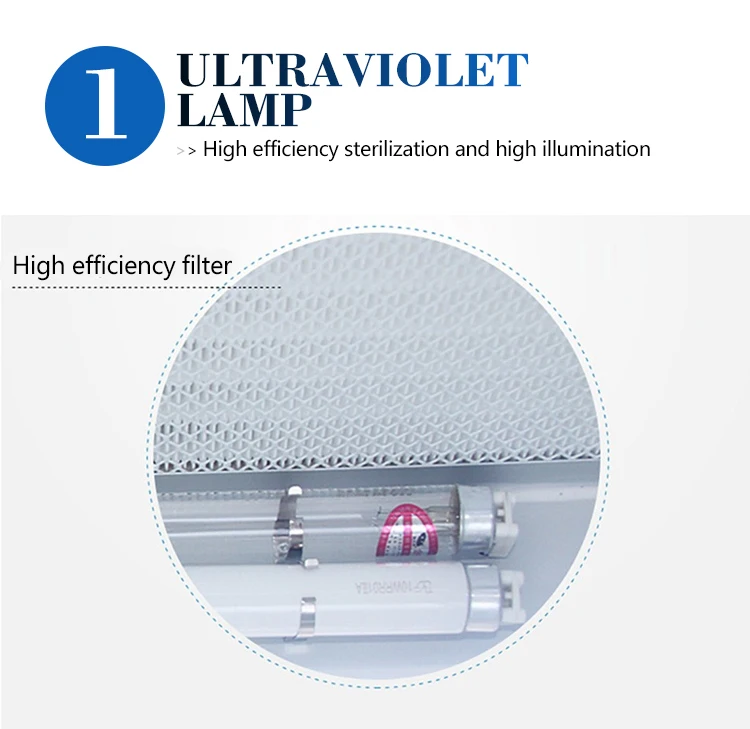

Fluorescent/UV lamp specifications and quantity | 10W*1PC / 10W*1PC |
Operator | Two person |
Application Field

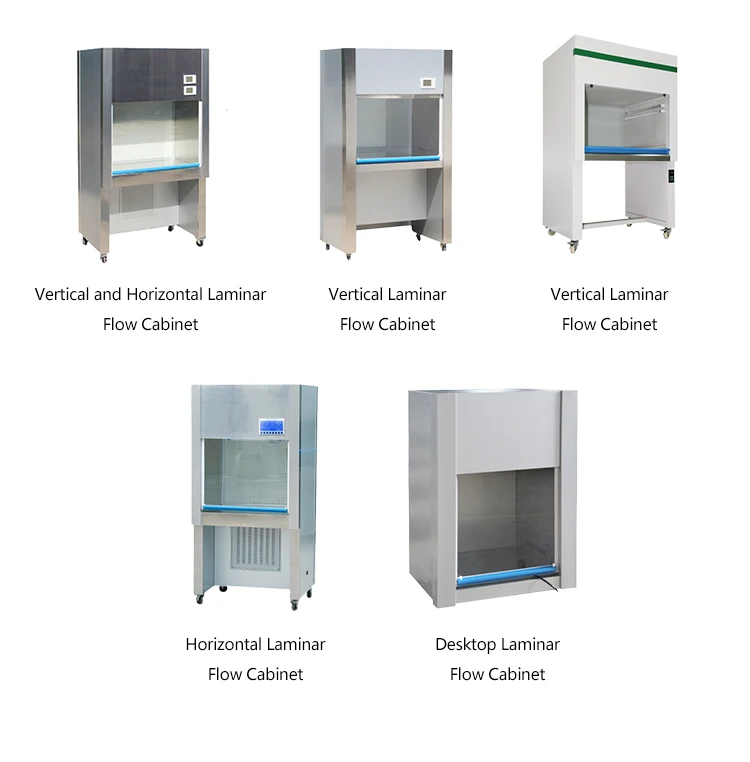

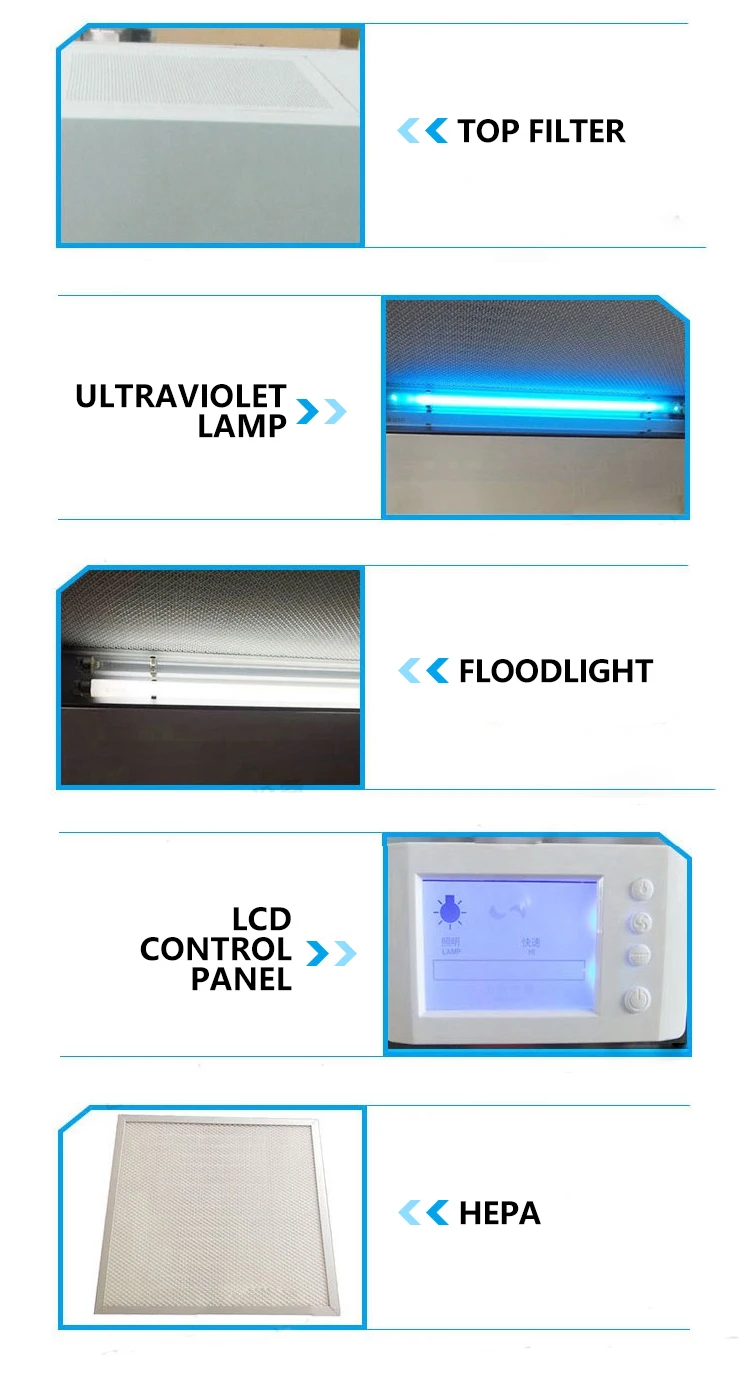

Products Description
Certifications
Company Profile
Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014.
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer,
Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in
Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer,
Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in
Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .
Exhibition
Logistics & payment
FAQ
Q1. Are you factory or trading company? We are a factory.
Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the different products. But the quantity still can be
negotiated.
Q3. What is your principle for the samples ?
We do not provide free sample.
Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.
Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment.Depend on the quantity.
Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective products, Protective packaging to avoid
destroy during delivery.
Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will be provided to you as a guidance
Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat,During warranty time, we can send product accessories when you need for free;Technical guidance is free and ready forever.
Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go your place for local support( installation ,
training, debugging, maintenance);Products can be customized according to your requirements; OEM service is available with customers' brand.
Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the different products. But the quantity still can be
negotiated.
Q3. What is your principle for the samples ?
We do not provide free sample.
Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.
Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment.Depend on the quantity.
Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective products, Protective packaging to avoid
destroy during delivery.
Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will be provided to you as a guidance
Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat,During warranty time, we can send product accessories when you need for free;Technical guidance is free and ready forever.
Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go your place for local support( installation ,
training, debugging, maintenance);Products can be customized according to your requirements; OEM service is available with customers' brand.
