Широко Китай 18 дюймов река добычи песка земснаряд с роторным разрыхлителем для продажи Река Озеро дноуглубительные
- Категории: Земснаряд >>>
- Поставщик: Qingdao,Head,Dredging,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

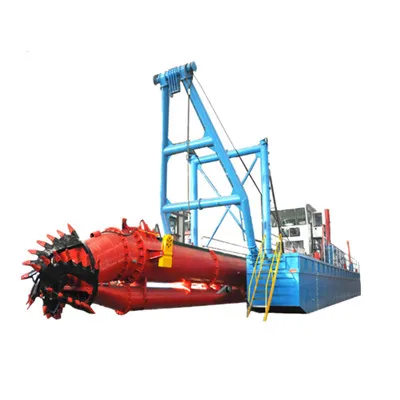

Head Dredging Cutter Suction Dredger
The products have many series, including 500-10000m3/h large scale dredging and sand mining equipment, gold panning ship, sand transportation ship, multi-function service work boat, protection boat, etc., which widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, blowing land reclamation, port construction, cleaning river etc. All the products can be customized according to client's requirements and formed a complete ship machinery industry chain.
FEATURES AT A GLANCE
HIGH EFFICIENCY
SUPERIOR QUALITY
HEAVY DUTY ROBUST DESIGN
FULL HYDRAULIC DRIVE
COMPLATE MODELS
CUSTOMIZABLE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | CSD200 | CSD300 | CSD400 | CSD500 | CSD600 |
1 | Dredging Depth | 8m | 12m | 15m | 18m | 20m |
2 | Working Capacity | 500m3/h | 1200m3/h | 2200m3/h | 3500m3/h | 6000m3/h |
3 | Discharging Distance | 1000m | 1500m | 1500m | 2000m | 2000m |
4 | Dimensions | 21*4.8*1.5m | 27*5.5*1.6m | 33m*6.5m*2.8m | 40*7.8*2m | 48*9*2.5 |
5 | Suction/Discharging Pipe Dia. | 250/200mm | 350/300mm | 450/400mm | 550/500mm | 700/600mm |
6 | Engine Power | 224kw | 559kw | 746kw | 1342kw | 2190kw |
7 | Brand of Engine | CUMMINS | CUMMINS | CUMMINS | CUMMINS | CUMMINS |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Successful Project
Project in Nigeria
Project in Bengla
Project in Maldives
SIMILAR PRODUCTS
FAQ
Q1：*****
A1：*****
