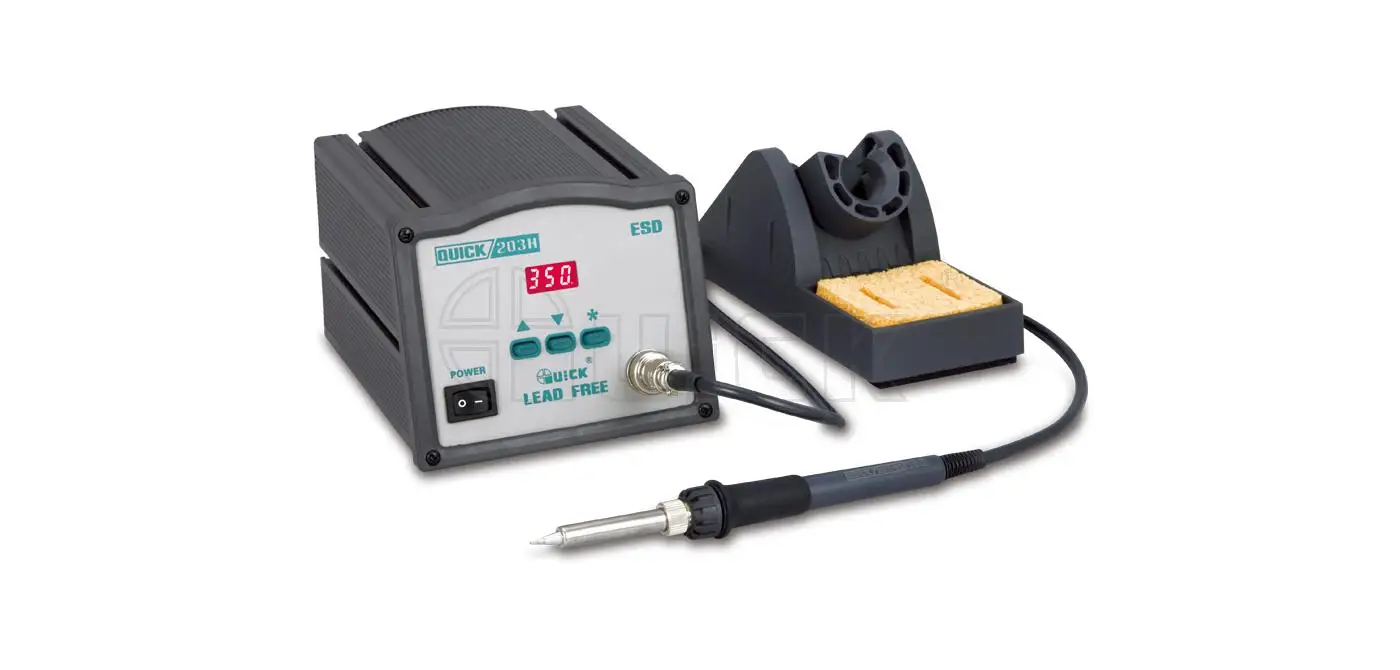

Интеллектуальная Бессвинцовая паяльная станция QUICK 203H
- Категории: Soldering Stations >>>
- Поставщик: Octopus,Technology,(dongguan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features
1.Low cost consumables, separate design of soldering tip, sensor and heating element.
2.Accurate temperature control, rapid thermal recovery.
3.Auto sleep function available.
4.Temperature lock function available.
5.Digital temperature calibration, easy and convenient operation.
6.Anti-static design
1.Low cost consumables, separate design of soldering tip, sensor and heating element.
2.Accurate temperature control, rapid thermal recovery.
3.Auto sleep function available.
4.Temperature lock function available.
5.Digital temperature calibration, easy and convenient operation.
6.Anti-static design
SPECIFICATION
Model | QUICK 203H |
Power | 90W |
Heating principle | High Frequency Eddy Current |
Operational Voltage | 110V/220V AC |
Temperature range | 50~600℃ |
Temperature stability | ±2℃ (Still air without load) |
Tip to ground resistance | ＜2Ω |
Tip to ground potential | ＜2mV |
Handle model | QUICK 20H-90 |
Heating Element model | H1203 Heating Element Ass'y-90W |
Sensor | S1203 |
Soldering Tip | Series200 |
Heating Element & Soldering Tip | Split Type |
Outer Dimension | 160*130*100(mm) |
Weight | About 3.2kg |

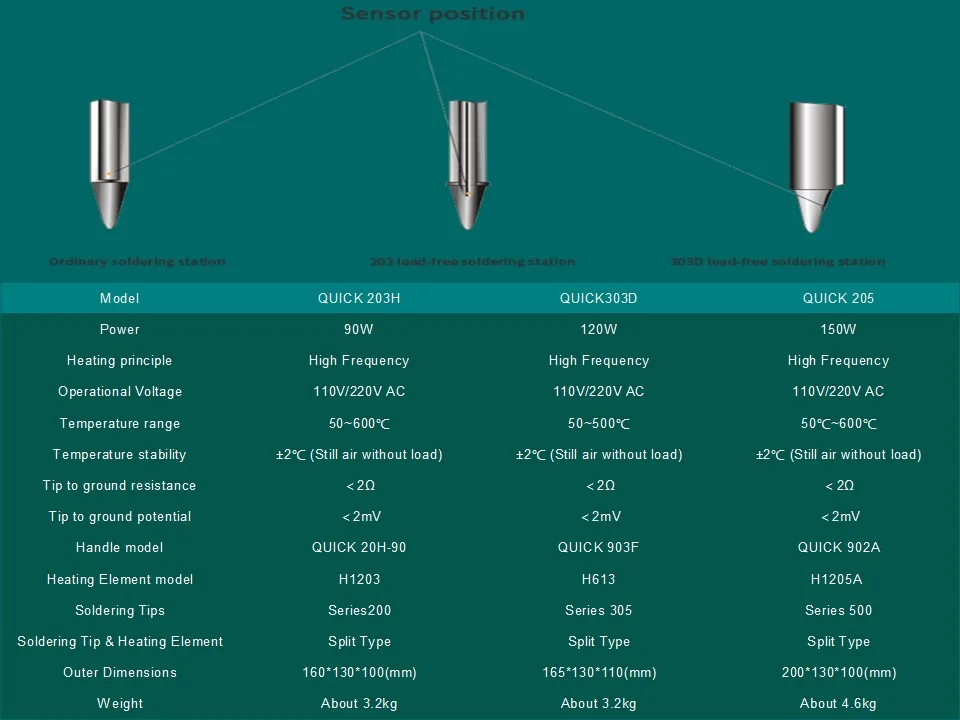

Comparison for 203H,303D,205

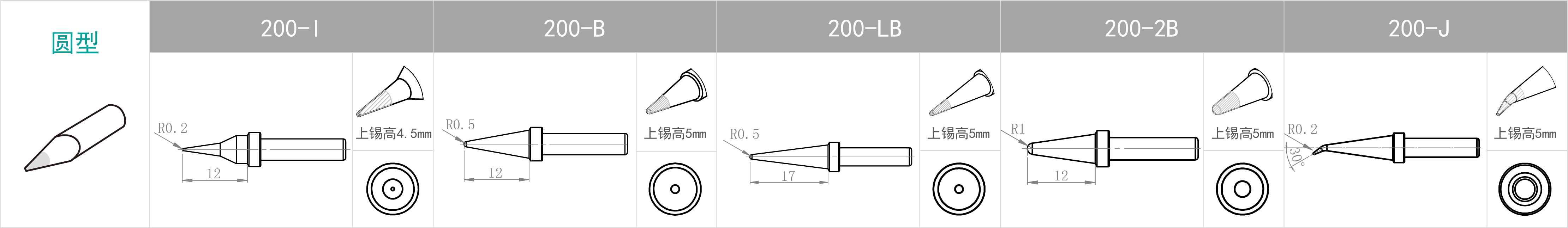

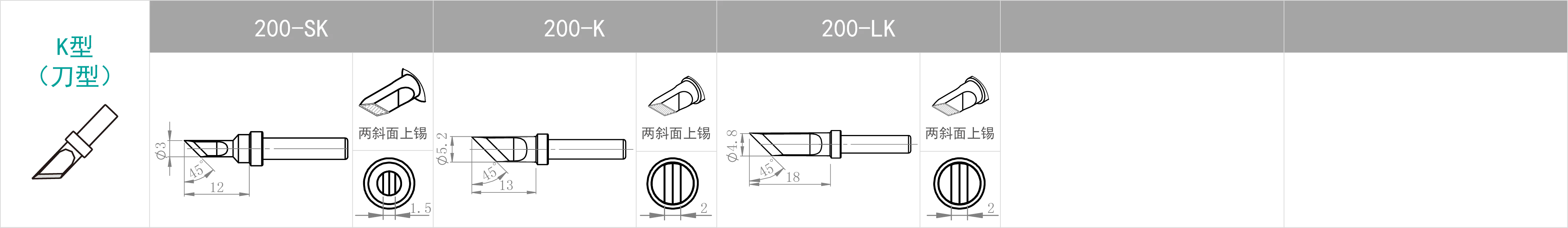

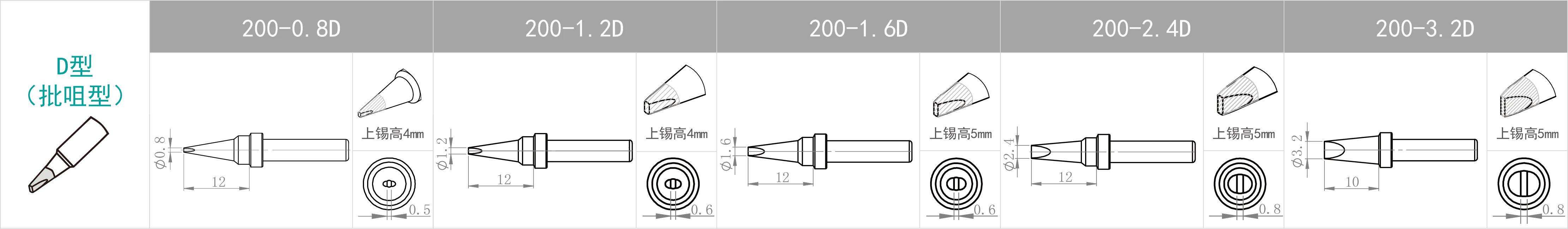

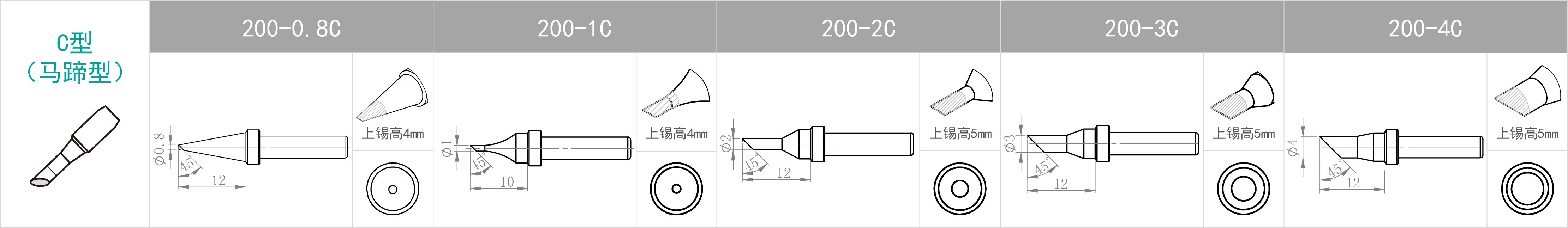

Standard soldering tips are as follows, they can be customized for different applications.
