Пожарная машина резервуар для воды маленький пожарный двигатель пожарная водяной насос грузовик
- Категории: Пожарные автомобили >>>
- Поставщик: Jinan,Sino,Truck,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Production Configuration
SPECIFICATIONS | ||||||
Product Information | ||||||
Product | HOWO 64 fire truck | |||||
Brand Name | SINOTRUK-HOWO | |||||
Truck Model | JDF5280GXFPM120Z | |||||
Chassis Model | ZZ1257M4647C | |||||
Place of Origin | Jinan, China | |||||
Color | Red | |||||
Manufacture | China National Heavy Duty Truck Group Co., Ltd. | |||||
Product Specifications | ||||||
Overall dimension | 10025*2500*3420 | |||||
Wheel base | 4325+1350 | |||||
Curb weight (kg) | 13100 | |||||
Rated payload(kg) | 15000 | |||||
Total weight(kg) | 28550 | |||||
Engine model | WD615.62 | |||||
Horse power | 266HP | |||||
Emission standard | Euro II | |||||
Max. speed | 90 | |||||
Front axle | HF7 | |||||
Rear axle | HC16 | |||||
Tyre | 12.00-20 | |||||
Special Function | ||||||
Water tank capacity(L) | 12000 | |||||
Foam tank capacity(L) | 3000 | |||||
Fire water nozzle | Model | PP48 | ||||
Range | Water ≥60m/1.0Mpa Foam ≥55m/1.0MPa | |||||
Fire pump (normal pressure pump) | Model | BS60 | ||||
Rated pressure | 1.0MPa | |||||
Rated flow | 60L/s | |||||
Time of drawing | ≤35s | |||||
Fire pump (mesolow pump) | Model | CB20.10/30.60 | ||||
Time of drawing | ≤50s | |||||
Low pressure flow rate | 60L/s/1.0MPa | |||||
Medium pressure flow rate | 30L/s/2.0MPa | |||||
Cab | All-steel flat top cab, doubel row site, four-door. One alarm lamp under the cab, one telescoping light on the auto body, with DOT emergency kit, 100 Watt siren. | |||||
Fire Equipments | ||||||
Name | Quantity | Model | ||||
Thirteen 4000mm fire suction hose | 2 | |||||
suction hose spanner | 2 | |||||
water filter | 1 | |||||
three-way wye | 1 | |||||
Siamese | 1 | |||||
DC switch squirt gun | 1 | QZG19 | ||||
squirt gun | 1 | QZ19 | ||||
16 type 65 diameter water hose | 8 | |||||
16 type 80 diameter water hose | 4 | |||||
Water hose housing | 1 | |||||
Hose strap | 1 | |||||
Hose bandage | 1 | |||||
overground hydrant wrench | 1 | |||||
underground hydrant wrench | 1 | |||||
fire bucket | 1 | |||||
shovel | 1 | |||||
fire axe | 1 | |||||
persuader | 1 | |||||
Cab
Forward control four-door conjoined cab of all steel frame welding unibody construction.
2 persons in front row and 4 in rear row. The rear row seats are equipped with 4 air breathing apparatus holders and suspension protective device. The safety barriers are about 1.2m high in the front.
Tank
Water tank carrying capacity: 6000kg
B type foam tank capacity: 2000kg
Fire pump
Model: CB10/60
Rated flow: 60 L/S
Installing type: Rear-mounted
PTO
Type: Sandwich type
Operation: the magnetic valve, air control and control position are on the dash board in the cab with indicator lamps to show engagement and disengagement of PTO
Lubricating method: splash lubrication
Storage compartment and pump room
The main skeleton is of steel sectional material and the equipment rack is of Luminal alloy sections. The interior plates are made of 1.5mm aluminum alloy checkered plate and the interior bottom plate is of 2.5mm aluminum alloy checkered plate.
Additional electrical and warning system
The total power of the electric equipment is below 1.4 times the rated power of the generator.
Packing & Delivery
Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Company Profile

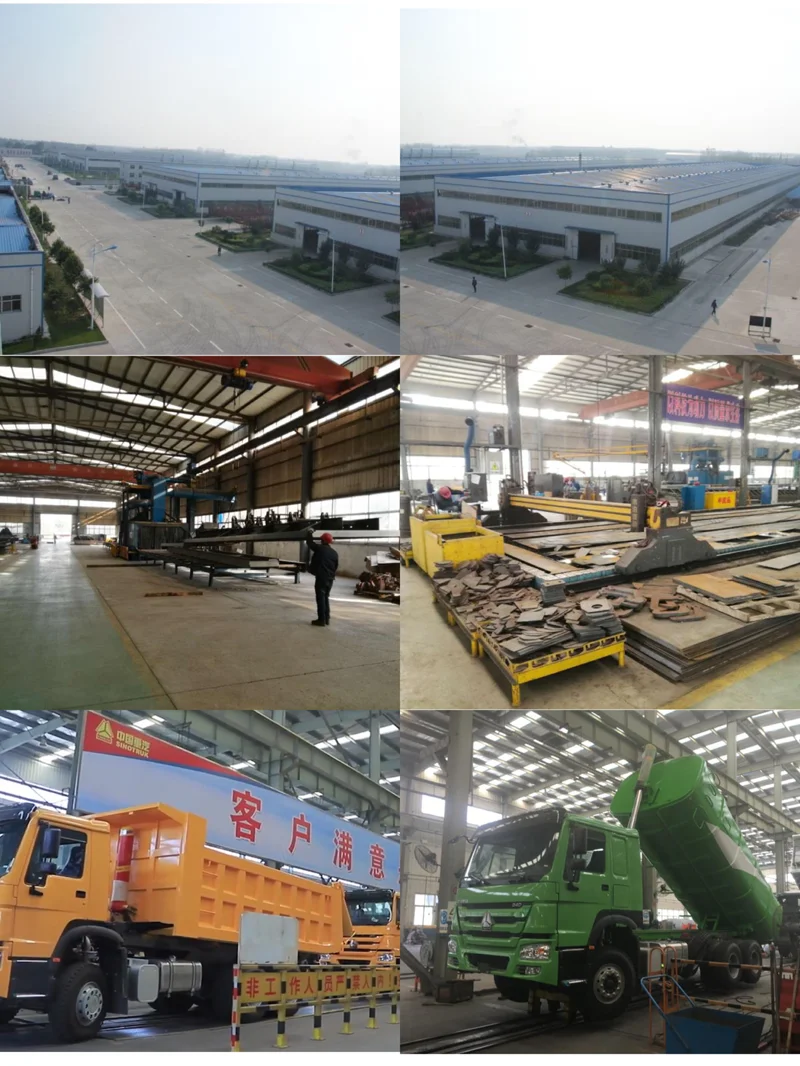

We are Jinan Sino Truck Sales Co.,Ltd, Located in Jinan, Shandong, China, the first heavy duty truck-Yellow River birth in here on 1956, The trucks that we can supply are all series of SINOTRUK, The branch brand as below : HOWO (HOWO 7) Series, HOWO A7 Series, Golden Prince and the New Yellow River (H7) Series,T7H Series, T5G series, HOWO light truck, which in terms of model, include dump trucks, tractor trucks, concrete mixers trucks, cargo trucks, water tank truck, oil tank truck, cement powder truck, suction truck, special trucks for army,different type semi trailer, flatbed semi trailer, skeleton semi trailer, tipper semi trailer, cargo type semi trailer, stake type van semi trailer, curtain semi trailer, low bed semi trailer, oil tank semi trailer and so on. Our company undertakes all kinds of CNHTC’s truck’s sales service both at home and abroad.
INTERNATIONAL STANDARD MANUFACTURING
Strength casting legend, advanced production technology ensures the first-class quality level,
Professional heavy truck production lines of international standards create the most trusted card products for you.

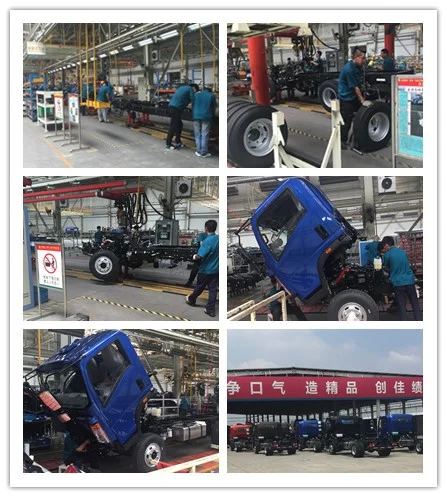

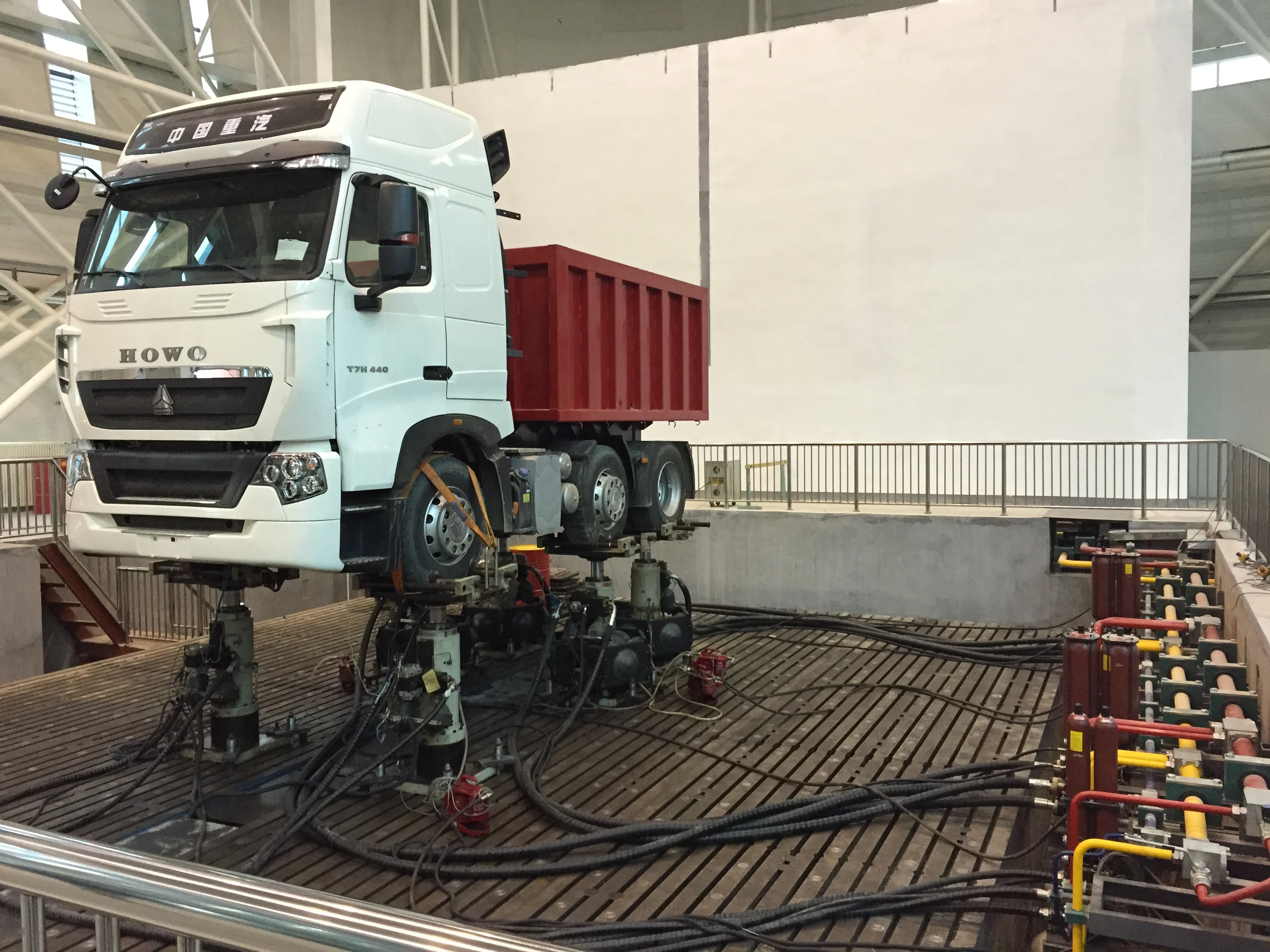

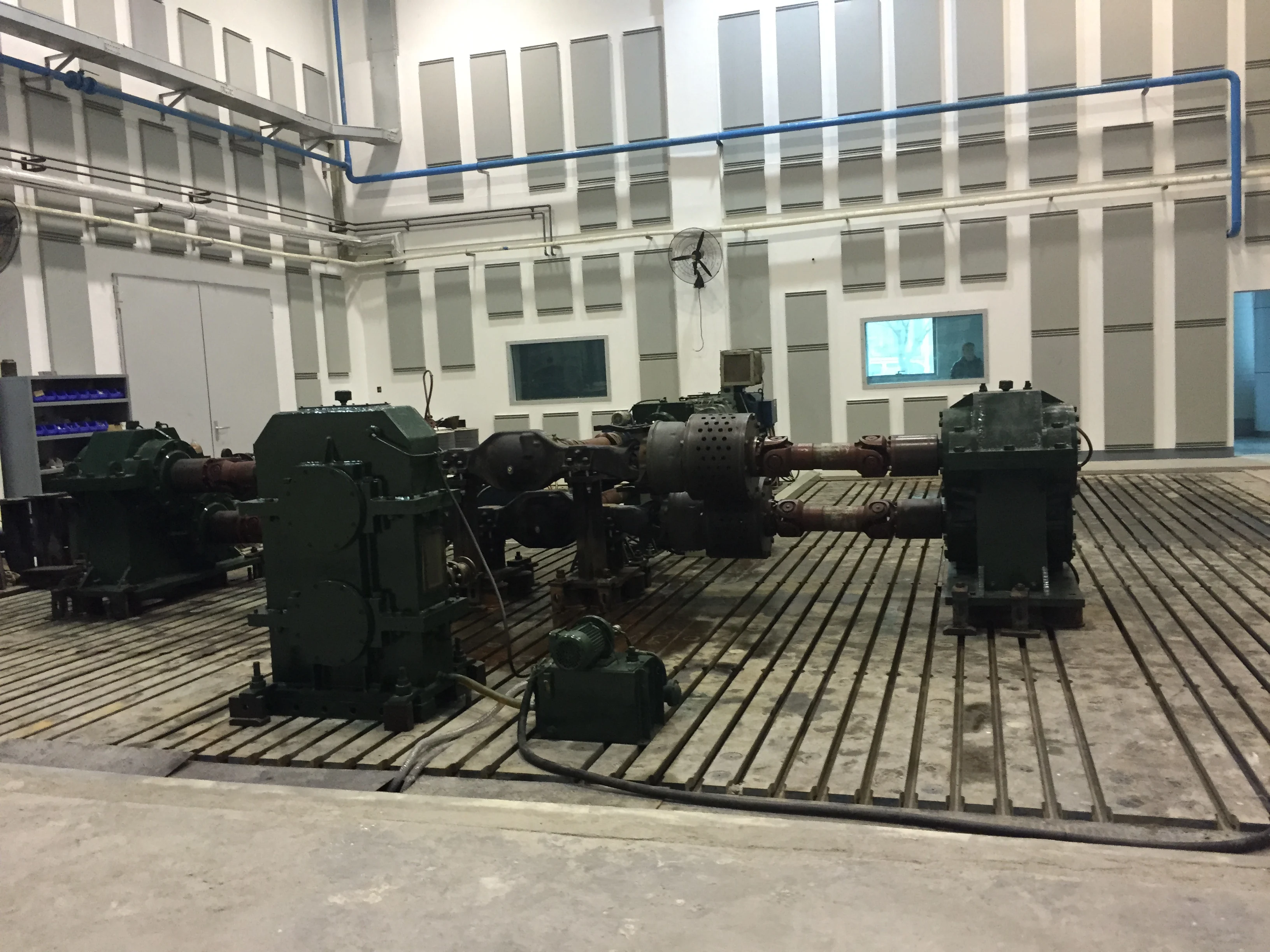

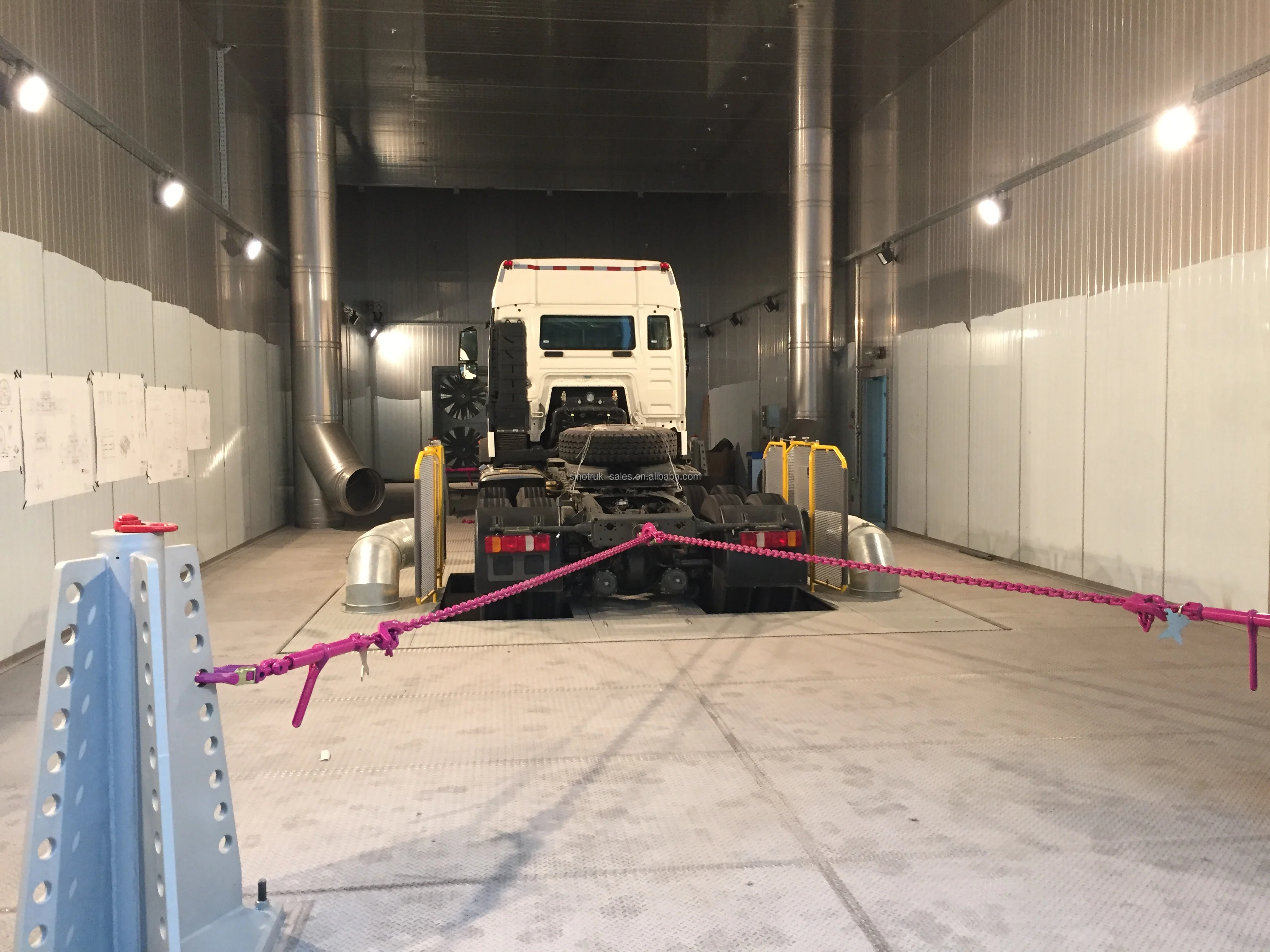

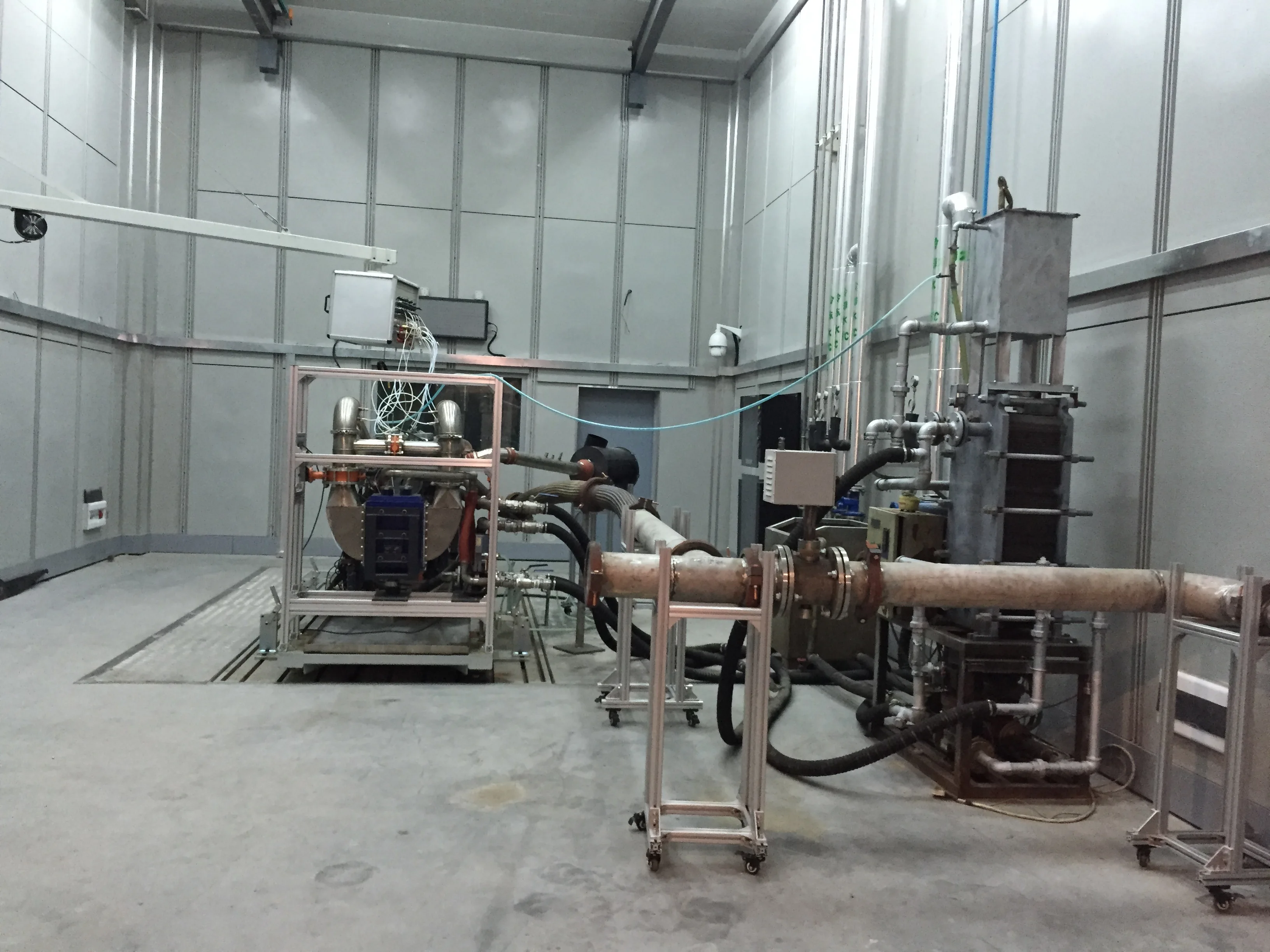

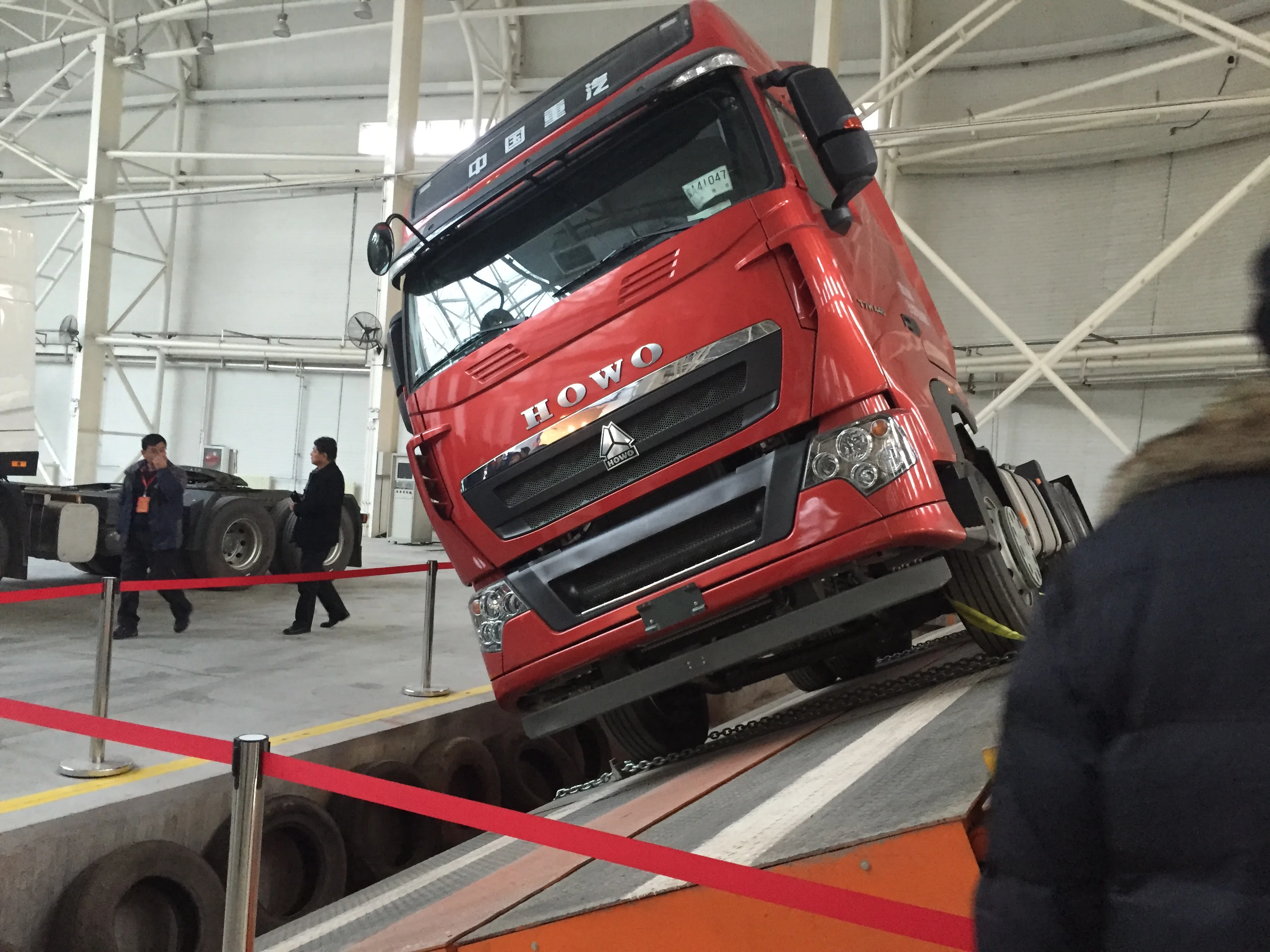

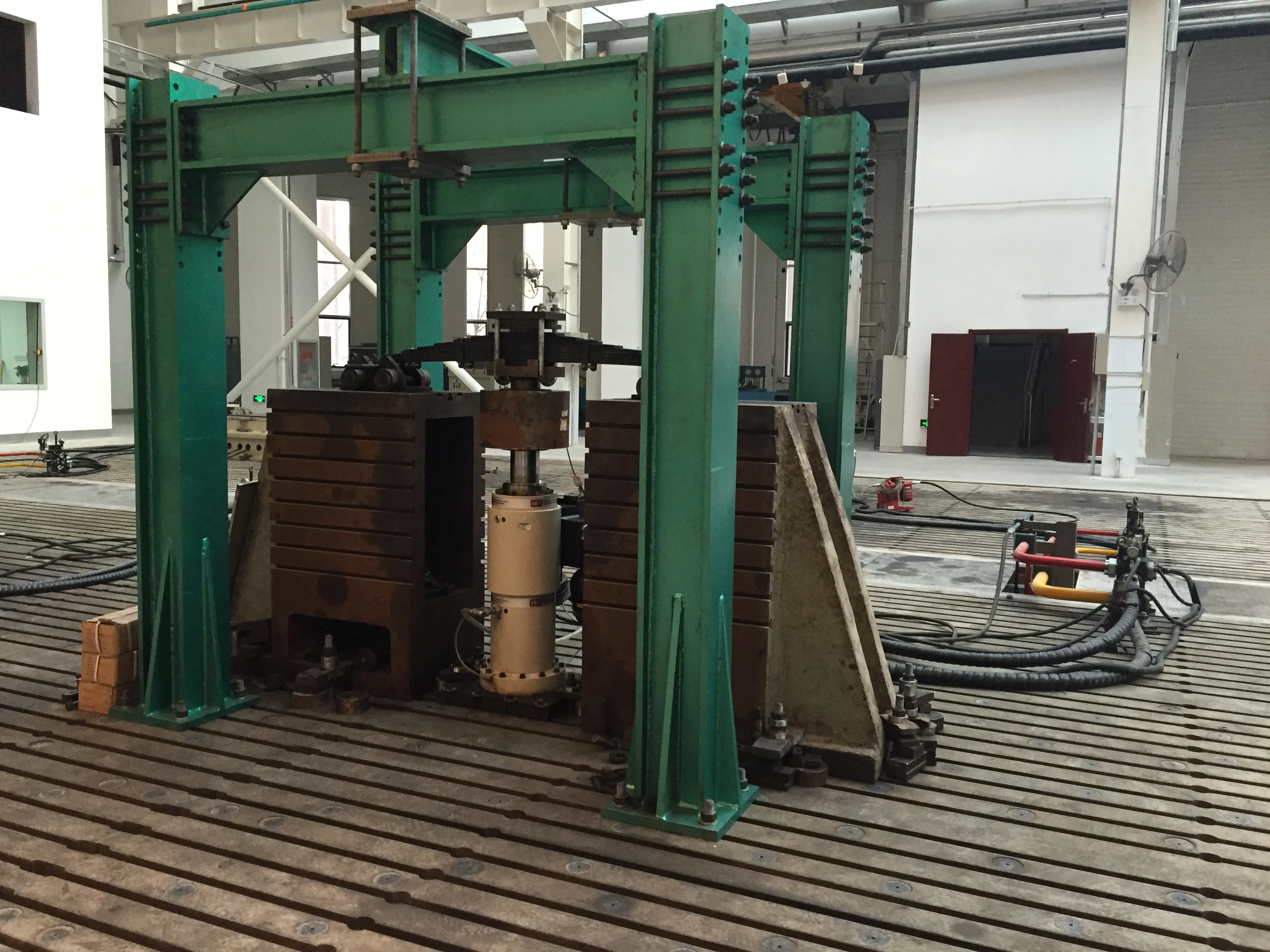

SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.

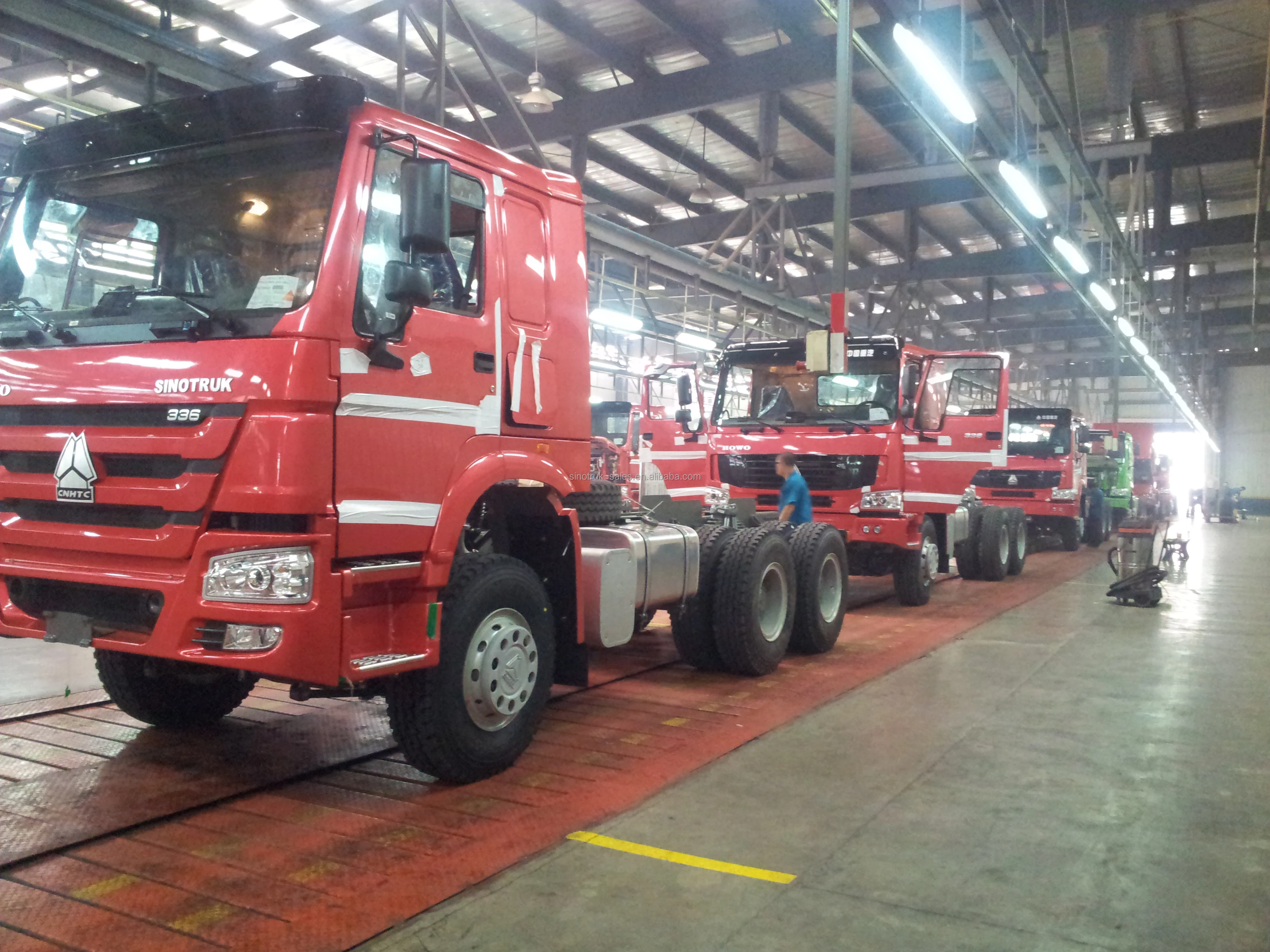

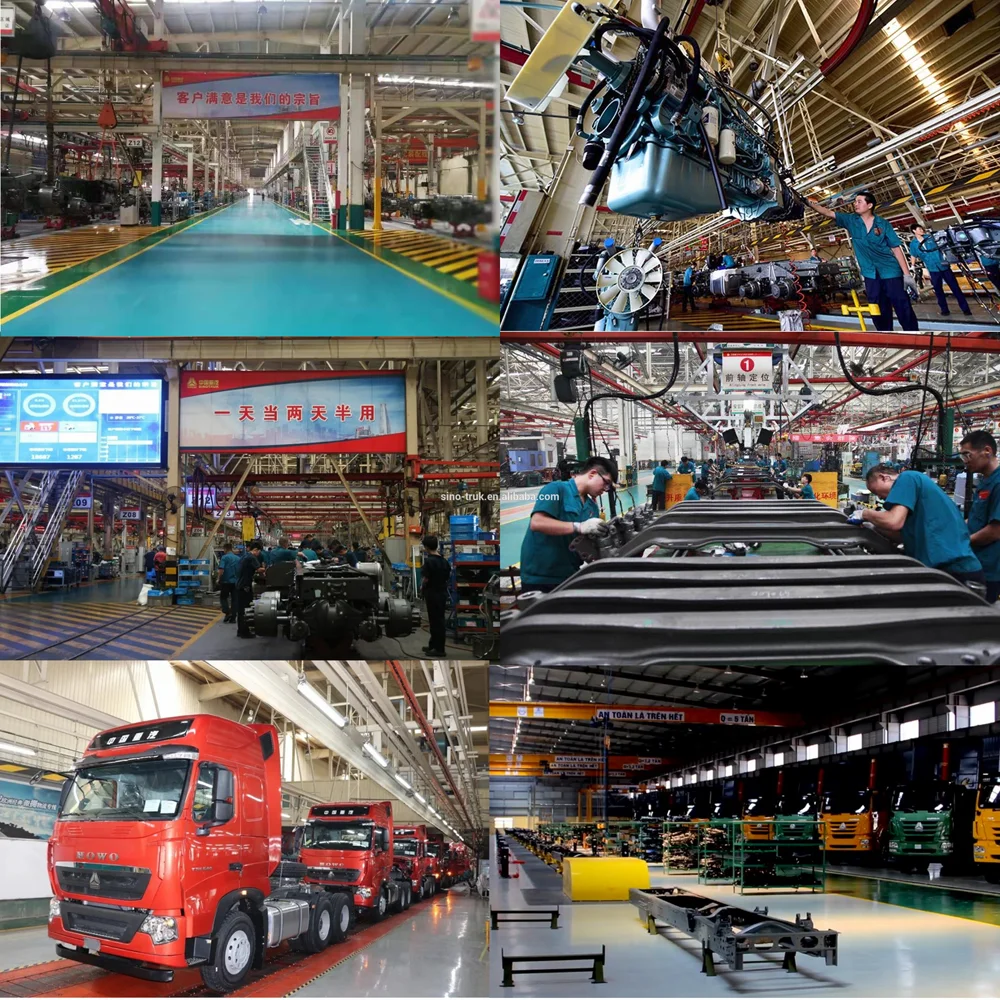

Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.
Strength casting legend, advanced production technology ensures the first-class quality level,
Professional heavy truck production lines of international standards create the most trusted card products for you.
SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.
Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.
Certifications
FAQ
Q. Can your trucks be legally used in our country ?
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
Our Service
Excellent Quality First-class Service
1.Near 20 years Wholesaler experience in truck field
2.Specialization: Accurately meet your requirement, Experienced engineers serving for you
3.Good quality: Original products & OEM services, with many Certifications
4.Great variety and wide range: your “One-shop purchasing service”
5.English operation Manual
6.We will reply you for your inquiry in 24 hours
7.Important partner with SINOTRUK & SHACMAN and know the market very well
8.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
2.Specialization: Accurately meet your requirement, Experienced engineers serving for you
3.Good quality: Original products & OEM services, with many Certifications
4.Great variety and wide range: your “One-shop purchasing service”
5.English operation Manual
6.We will reply you for your inquiry in 24 hours
7.Important partner with SINOTRUK & SHACMAN and know the market very well
8.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
