Кнопка выключения TLed сенсорный переключатель без касания одиночный индикатор
- Категории: Push Button Switches >>>
- Поставщик: Secukey,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Sbutton 100

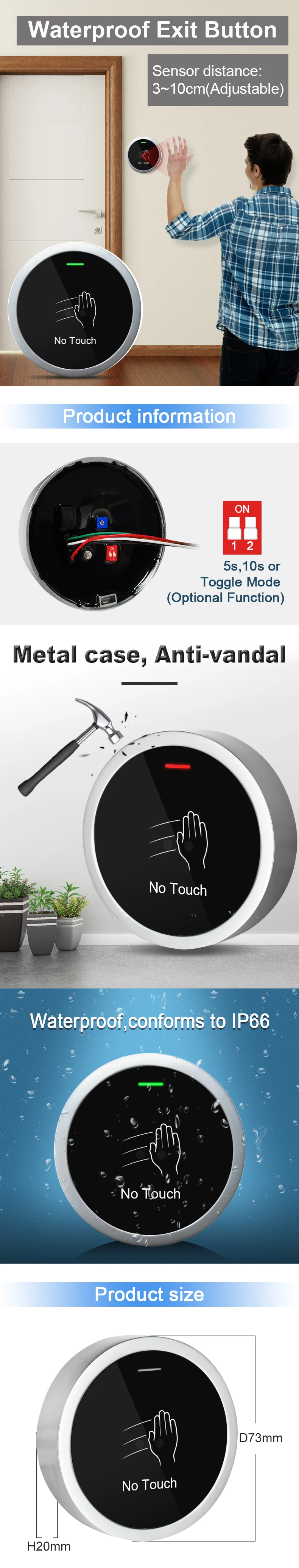

Waterproof No Touch Exit Button
Main Features
> IP66 waterproof
> Zinc-alloy housing
> Output contact: NO/NC/COM
> Sensor distance: 3~10cm (Adjustable)
> Red LED indicator: standby
> Green LED indicator: active
> Optional function: 5s, 10s or Toggle Mode Timer Delay (Sbutton 100-X)
> Zinc-alloy housing
> Output contact: NO/NC/COM
> Sensor distance: 3~10cm (Adjustable)
> Red LED indicator: standby
> Green LED indicator: active
> Optional function: 5s, 10s or Toggle Mode Timer Delay (Sbutton 100-X)
> Diameter: 73mm, Thickness: 20mm
Specification
| Operating Voltage Idle Current Working Current | 10~24V DC ≤15mA ≤25mA |
Sensor Distance | 3~10cm (Adjustable) |
Output | NC or NO |
Infrared Wavelength | 940 nm |
Timer Delay (Optional) | 5s / 10s / Toggle Mode |
Environment Operating Temperature Operating Humidity | IP66 Waterproof -20°C~+60°C 0%~86% |
Physical Dimension Unit Weight Shipping Weight | Zinc-alloy Diameter: 73mm, Thickness: 20mm 150g 210g |
Most Welcome to communicate with Secukey Team!
