Products Description:

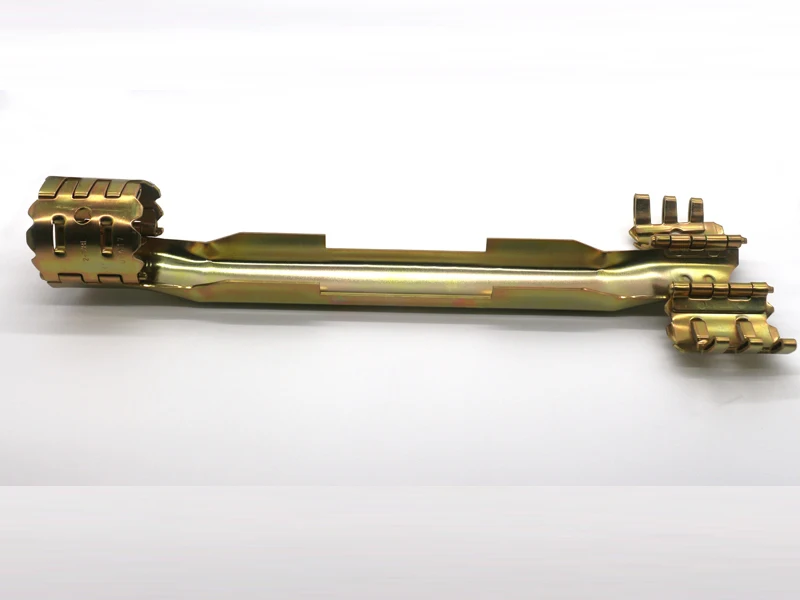

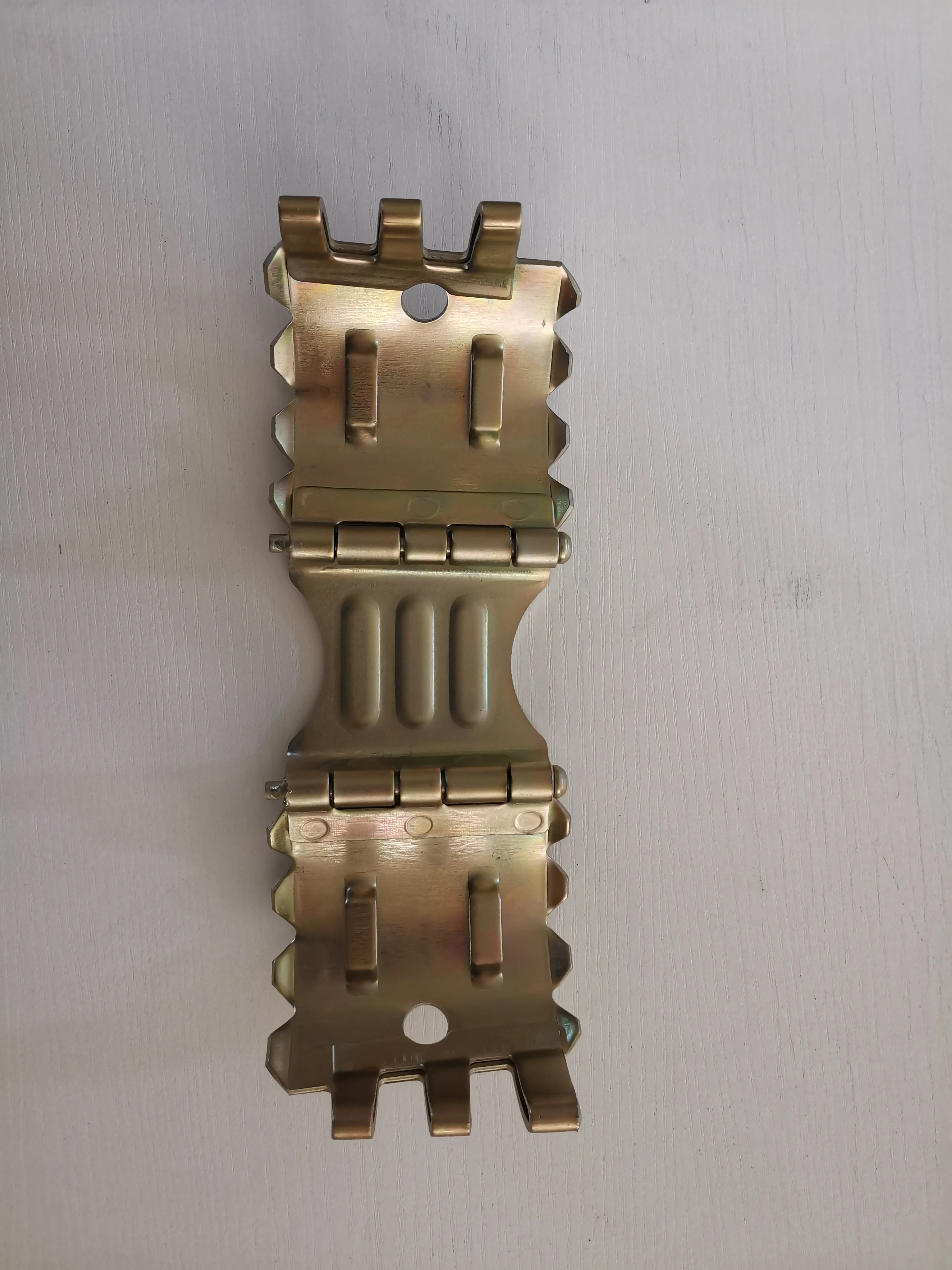

Our Cable protectors are widely used to protect the wide range of ESP cable, control line, umbilical lines or encapsulated bundles in the wellbore.Using channels to shield cables or lines as they transition across the coupling to prevent damage during installation or retrieval of Completions.
specification
The material can be low carbon steel or stainless steel according to customer needs.
It can also design and develop multi-channel protectors according to different working conditions, so as to effectively isolate various pipelines.
Description | Tube Size | Cable Type | Cable Size |
Cable Protector 2- 3/8R6-8 | 2-3/8" | Round | Ø6-8mm |
Cable Protector 2- 3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
Cable Protector 2- 3/8R32-34 | 2-3/8” | Round | Ø32-34mm |
Cable Protector 2- 7/8R6-8 | 2-7/8" | Round | Ø6-8mm |
Cable Protector 2- 7/8R30-33 | 2-7/8" | Round | Ø30-33mm |
Cable Protector 2- 7/8R34-37 | 2-7/8" | Round | Ø34-37mm |
Cable Protector 2- 7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
Cable Protector 2- 7/8F16-19/56 | 2-7/8" | Flat | 16-19mm |
Cable Protector 2- 7/8F16-19/70 | 2-7/8" | Flat | 16-19mm |
Cable Protector 3- 1/2R6-8 | 3-1/2" | Round | Ø6-8mm |
Cable Protector 3- 1/2R30-33 | 3-1/2" | Round | Ø30-33mm |
Cable Protector 3- 1/2R34-37 | 3-1/2" | Round | Ø34-37mm |
Cable Protector 3- 1/2R38-42 | 3-1/2" | Round | Ø38-42mm |
Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
Cable Protector 3- 1/2F16-19/60 | 3-1/2" | Flat | 16-19mm |
Cable Protector 3- 1/2F19-23/70 | 3-1/2" | Flat | 19-23mm |
Cable Protector 4- 1/2R6-8 | 4-1/2" | Round | Ø6-8mm |
Cable Protector 4- 1/2R34-37 | 4-1/2" | Round | Ø34-37mm |
Cable Protector 4- 1/2R38-42 | 4-1/2" | Round | Ø38-42mm |
Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
Cable Protector 4- 1/2F16-19/60 | 4-1/2" | Flat | 16-19mm |
Cable Protector 4- 1/2F19-23/60 | 4-1/2" | Flat | 19-23mm |
Cable Protector 5- 1/2R6-8 | 5-1/2" | Round | Ø6-8mm |
Cable Protector 5- 1/2R34-37 | 5-1/2" | Round | Ø34-37mm |
Cable Protector 5- 1/2R38-42 | 5-1/2" | Round | Ø38-42mm |
Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
Cable Protector 5- 1/2F11-16/56 | 5-1/2" | Flat | 11-16mm |
Cable Protector 7R6-8 | 7" | Round | Ø6-8mm |
Applations:
• ESP cable
• Subsurface safety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing
Products Fetures:
• Engineered for optimal down-hole protection of ESP conductors
• Strategically placed contact points for superior grip
• Holds cables in place with minimal slipping and rotation
• Galvanized coating for maximum rust protection
• Choice of hydraulic or manual tools for installation and removal
• Materials and design can be customized to user specififications
Packing and Shipping :
• Standard Export Wooden crates
• Usually 100pcs /crate
Company Information :
SHANDONG UNITOOLS MACHINERY CO., LTD is a specialized company integrating r&d, production and sales.The company has more than 30 employees, with a professional technical research and development team and experienced equipment operators . The company's main products are cable protectors and centralizers The company has more than 60 sheet metal processing equipment and more than 10 machinery processing equipment. The company is also equipped with 3 test equipment for cable protector and centralizer performance test. The company's existing cable protector products for stamping form, we will develop casting form of cable protector products. The company's existing cementing tools are mainly centralizers, we will develop floating hoop floating shoes and other cementing tools. In order to improve production efficiency, the company will vigorously develop automated production lines.
