Product Description

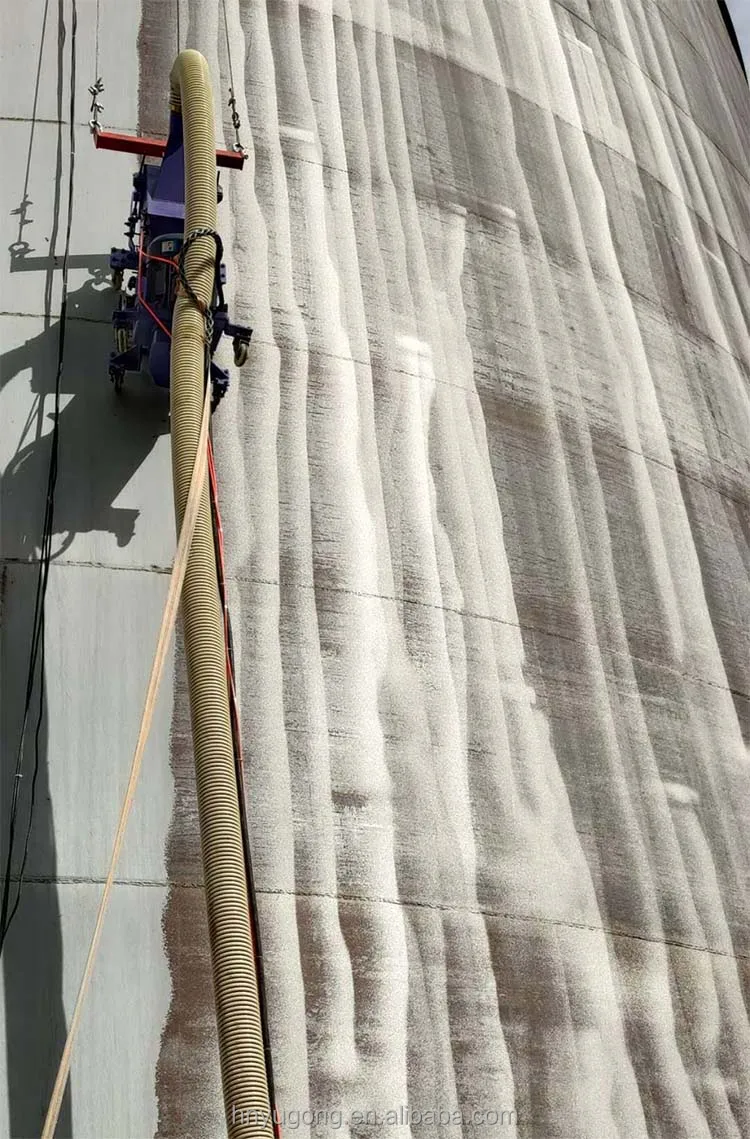

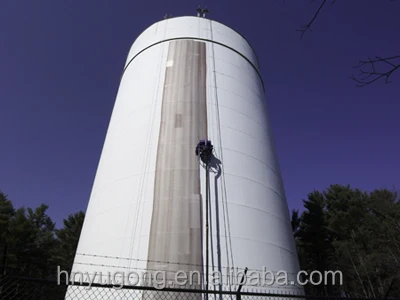

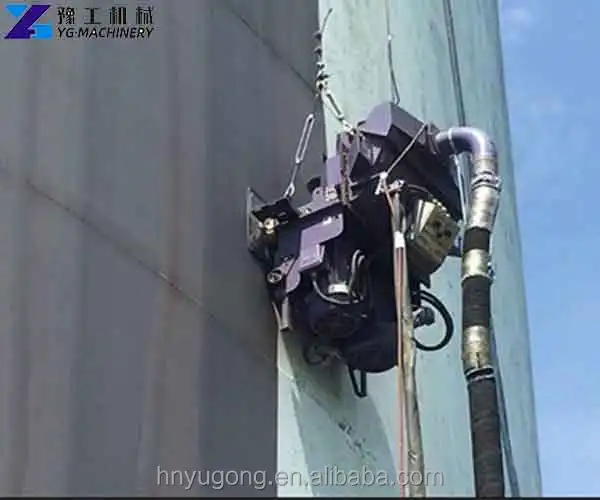

YG Machinery is specialized in Vertical Shotblaster, the oil tank cleaning shot blasting machine is designed for the blasting of large vertical / near vertical surfaces, and offering a complete service in the removal of old coatings from storage tanks
The vertical movable shot blasting machine is widely used for pretreatment of paint tank and hull facade before construction, especially for sandblasting of vertical plate of large oil storage tank and side plate of large hull. The whole treatment process has no dust pollution, can effectively remove the surface laitance, rust, stains, etc., after treatment, the surface is even, clean, can effectively improve the adhesion of the coating, enhance the anti-corrosion ability of the surface.
Specification
Model | YG-270 | YG-550 | YG-850 |
Diameter of shot blasting wheel | 270mm | 550mm | 850mm |
Impeller diameter | 200mm | 200mm | 200mm |
Motor power | 11kw | 2*11kw | 2*15kw |
Steel shot consumption | 10g/m2 | 10g/m2 | 10g/m2 |
Cleaning efficiency of concrete surface | ≥180m2/h | ≥400m2/h | ≥600m2/h |
Cleaning efficiency of steel plate surface | ≥15-25m2/h | ≥75-100m2/h | ≥100-160m2/h |
Diameter of dust removal connecting pipe | 120mm | 150mm | 150mm |

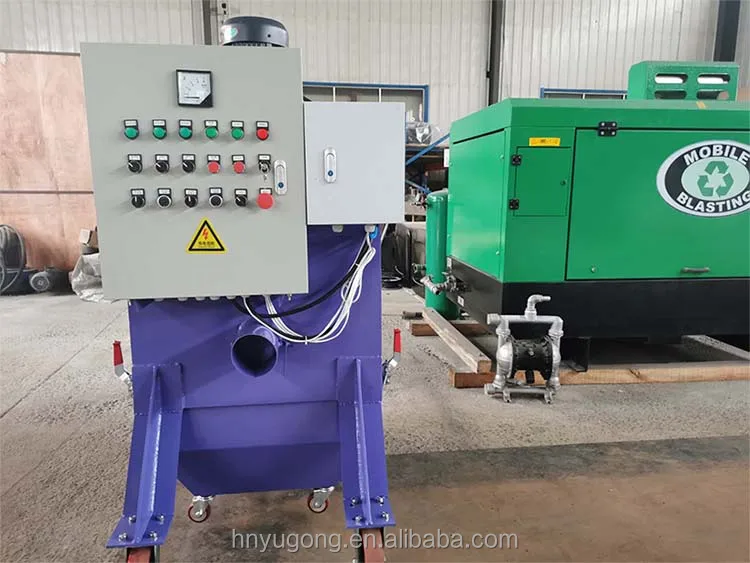

Matching dust collector | Seven core automatic back blowing vacuum cleaner | Eight core automatic back blowing vacuum cleaner | Eight core automatic back blowing vacuum cleaner |
Dust Collector | ||
Model | YGHC0810D | |
Number of filter elements | 8 | |
Rated power | 4KW fan + 3KW air compressor | |
Cleaning form | Automatic blowback cleaning | |
Ash hopper | small barrow | |
Size | 2030*870*1500mm | |
Weight | 580kg | |

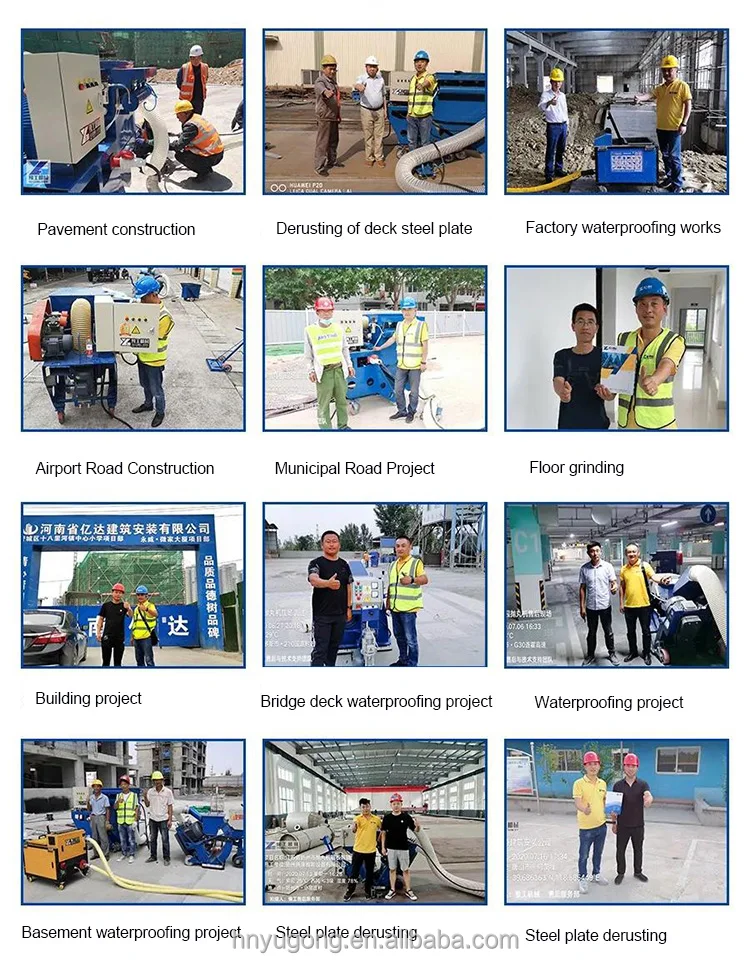

Application
Pavement road shot blasting machine can clean up the surface of concrete floating slurry and impurities at one time, and has other wide applications:
1. Cleaning of surface attachments and preparation of base layer in front of thin cover;
2. Surface roughening, renovation, pre-treatment of various functional pavement to waterproof: highway bridge deck, tunnel concrete floor, high-speed railway floor, bridge deck, workshop floor, underground garage, sidewalk, airport runway, municipal road.
3. Road Marking Line Removal Machine. Clean up signs and old coatings;
4. Recovery of skid resistance;
5. Painting cleaning: large cruise deck, large oil storage tank, steel deck derusting, steel plate derusting;
5. Painting cleaning: large cruise deck, large oil storage tank, steel deck derusting, steel plate derusting;
Details Images
Packing & Delivery

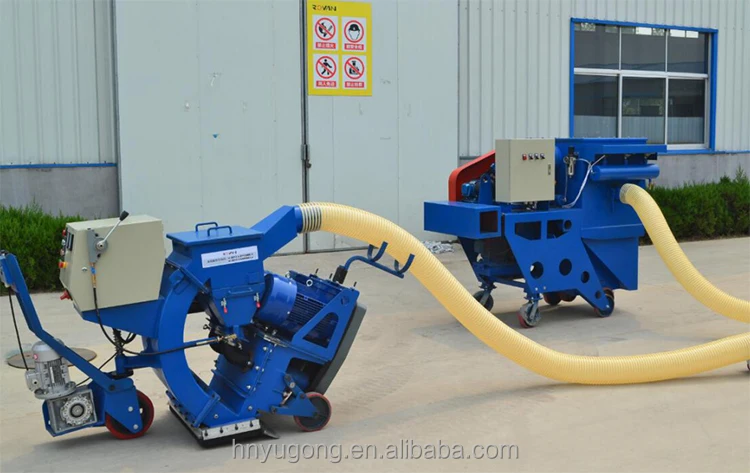

Shot blaster concrete road shot blasting machine, Steel plate derusting shot blasting machine
wooden case package
wooden case package
Company Profile
Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose.
We warmly welcome your corporation from all fields and build great future for us all.
Any need, feel free to contact us!
