Product Description

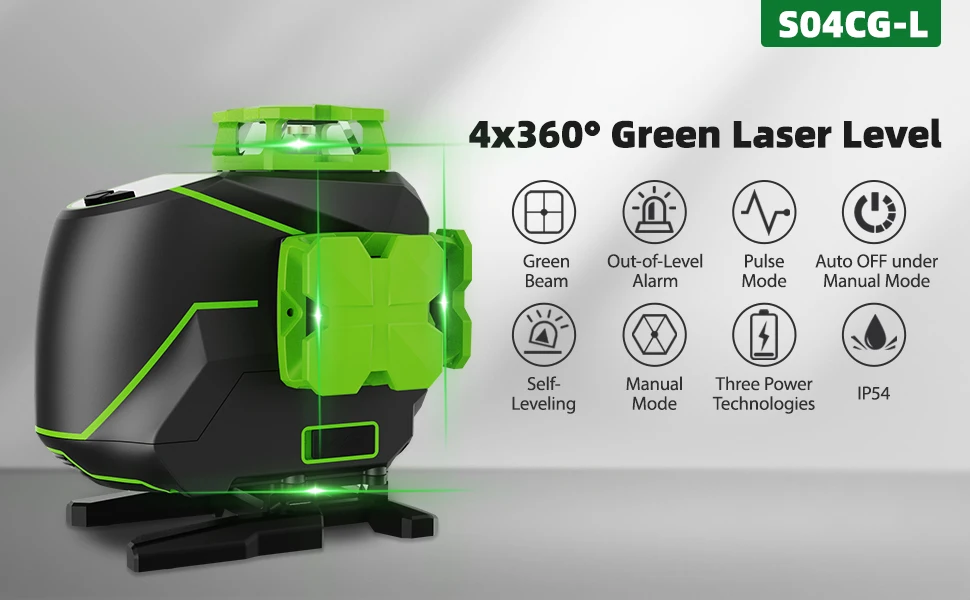

S04CG-L 16 Line Laser Specification
Type：4 x 360°Laser class：Class 2 ＜1mw
Beam source：Green/OSRAM
Laser wavelength：520±10nm
H/V accuracy：±2mm/10m ±1/13 In. at 33 Ft.
Self-leveling range：4°±1°
Self-leveling time：≤3s
Working distance：25m、≥50m with detector
Operating time：＞5h
Power source：Li-Ion battery+AA battery+USB Charging
IP rating：IP54
Operating Temp：-10°C to 50°C
Storage Temp：-20°C to 70°C
Beam source：Green/OSRAM
Laser wavelength：520±10nm
H/V accuracy：±2mm/10m ±1/13 In. at 33 Ft.
Self-leveling range：4°±1°
Self-leveling time：≤3s
Working distance：25m、≥50m with detector
Operating time：＞5h
Power source：Li-Ion battery+AA battery+USB Charging
IP rating：IP54
Operating Temp：-10°C to 50°C
Storage Temp：-20°C to 70°C
Specification
Product item | S04CG-L |
Certification | CE,FCC, ROHS |
Dot Numbers | 0 |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | Huepar |
Warranty | 2 years |
Size | 23*23*21cm |
Precision | ±3mm/10m ±1/13 In. at 33 Ft. |
Wavelength | 520±10nm |
Laser class | Class 2 <1mw |
Beam source | Green/OSRAM |
Laser wavelength | 520±10nm |
H/V accuracy | ±3mm/10m ±1/13 In. at 33 Ft. |
Self-leveling range | 4°±1° |
Self-leveling time | ≤3s |
Working distance | 25m,≥50m with detector |
Operating time | >5h |
Power source | Li-Ion battery+AA battery+USB Charging |
IP rating | IP54 |
Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

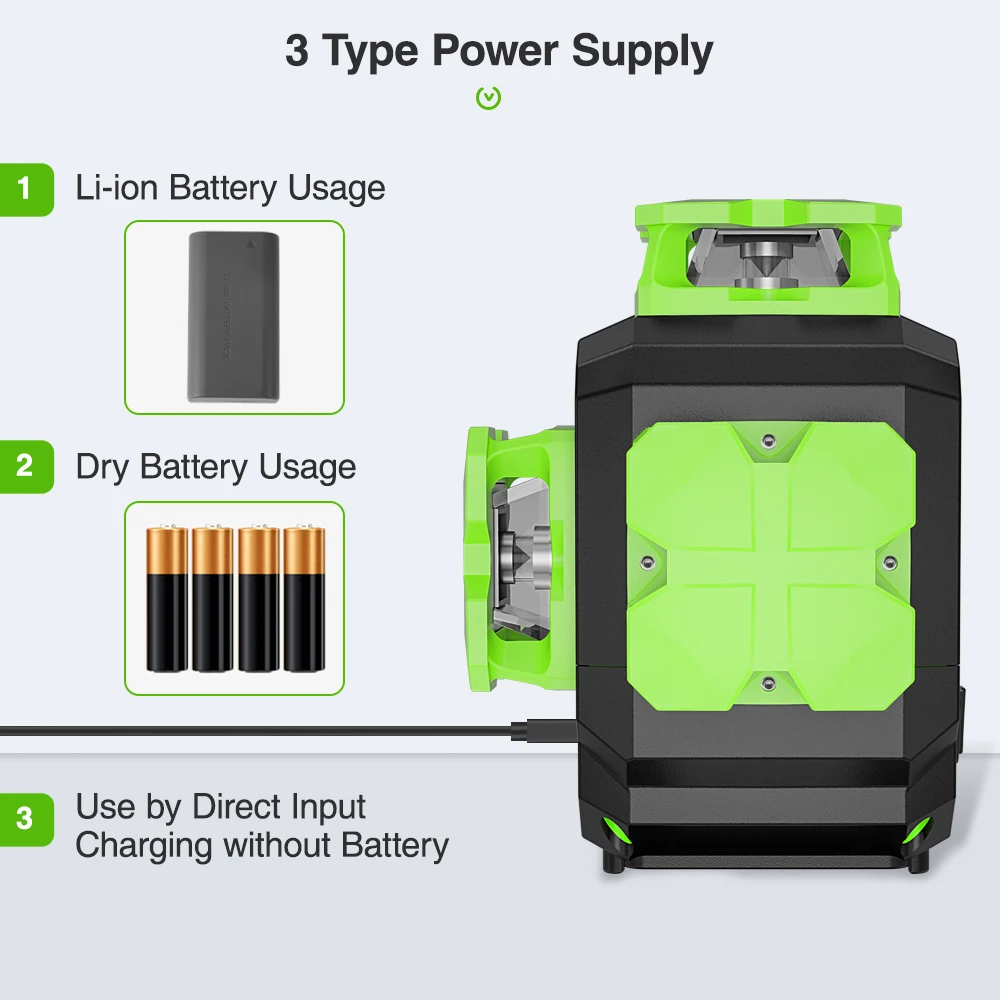

Diverse Power Supply
* Large-capacity li-ion battery: 5 hours of extra-long working
* AA battery: 4x AA battery for 0.5h usage
* Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
* Charging protection help prevent the tool from overcharge.
* AA battery: 4x AA battery for 0.5h usage
* Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
* Charging protection help prevent the tool from overcharge.
WARNING:
● Do not point the laser beam directly into the eyes.
● Do not point the laser beam directly into the eyes.
Pulse Mode:
Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
Packing & Delivery

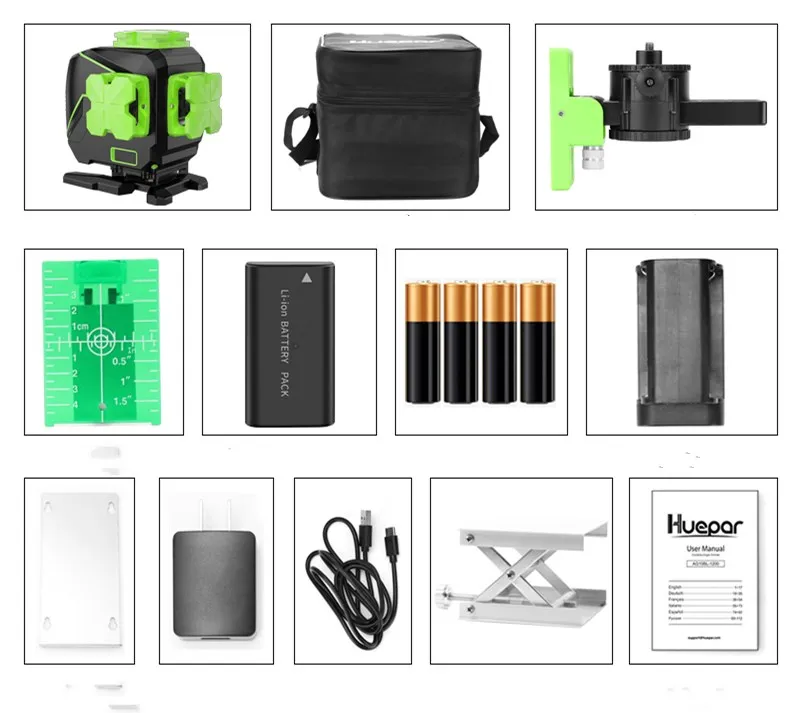

Package include:
Packaging item including:
1 x Green Laser Level S03CG
1 x Wall Hanging Plate
1 x Multi-functional Pivoting Base
1 x 2600mAh Li-ion Battery
1 x Remote Control
1 x Power Adapter
1 x lifting base
4 x AA battery
1 x User Manual
1 x Hard Carry Case
