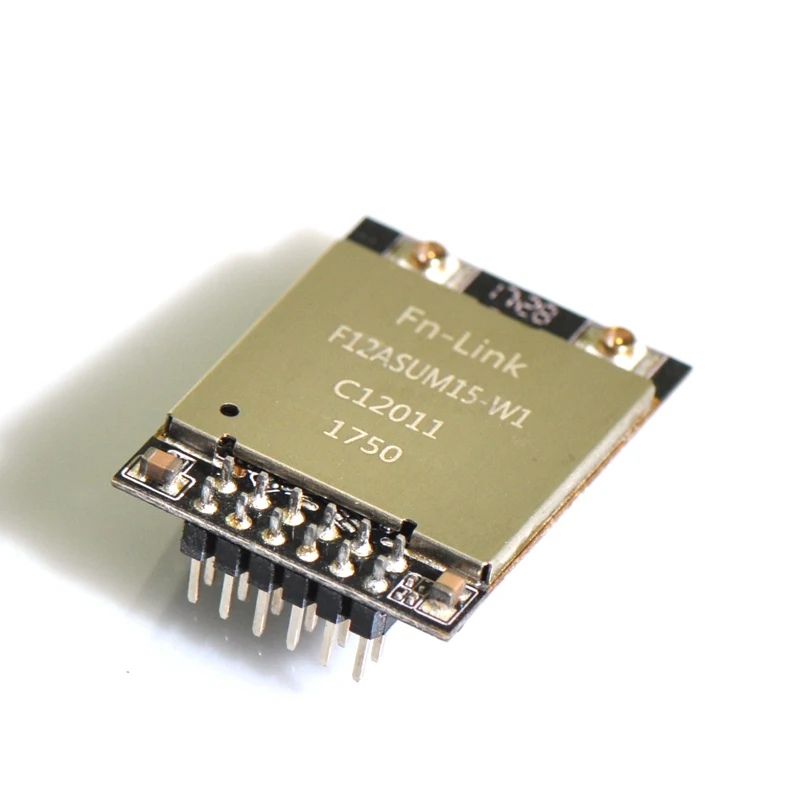

F12ASUM15-W1 is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN(WLAN) USB2.0 network interface controller complying with the wireless very high throughput IEEE 802.11ac Draft 2.0 and 802.11n specifications. The RTL8812AU provides a complete solution for a high-performance wireless client and also supports WIFI Direct feature that can easily build a WIFI P2P PAN network.
This WLAN Module design is based on Realtek RTL8812AU. It is a highly integrated single-chip MIMO Wireless LAN (WLAN) controller complying with the 802.11a/b/g/n/ac specification. It combines a MAC, a 2T2R capablebaseband,support2.4G&5Gband,andRF inasingle chip.Itisdesignedto provide excellent performance and enhance the advantages of robust system and cost-effective.
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ. 802.11ac, or 2.4G/5G 802.11n WLAN applications. Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
Medical equipments/Medical instruments & Other Consumer Electronic Products
HI3131S intelligent doorbell module wifi module
Detailed Parameters
Model No
F12ASUM15-W1
Main Chipset
RTL8812AU
WIFI/BT Interface
USB
WIFI Standards
IEEE802.11a/b/g/n/ac
Date Rates
867Mbps
Certification
RoHS,REACH
RF Antenna
external Antenna
OS Supported
Android /Linux/ Windows
Operating Frequency
2.4/5.8GHz
Operating Voltage
5V
Dimensions
L x W : 27x 20 mm
RF Chains
2T2R
Operating Temperature
-0°C to 70°C
Storage Temperature
-40°C to 85°C
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory. Detailed specifications docs,please download form the official website or sales. skype:1570155824@qq.com
