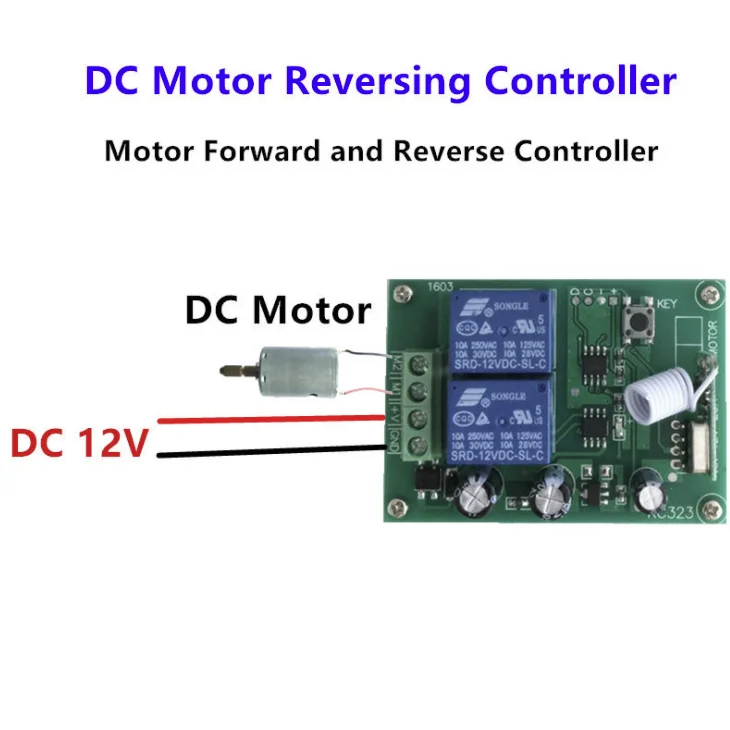

12V 2 channel wireless remote control switch 2CH relay DC motor controller garage door remote control
Product Description
Features:
*Support Multiple Working Mode: Momentary and Toggle Mode.
*Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
*Support storing the quantity of remote control: 25Pcs(Note: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost.).
*RF Working Mode: Superheterodyne Reception(Modulation Mode:ASK).Adopting Wireless Coding Technology, No Direction, Switch without disturbing each other.
*Perfect suitable for remote control of electrically operated gate, electrically operated window, roller shutter door, garage door and other telecommand equipments.
Specifications(Technical Index):
Model: KR1202.
Product Type: Dual Channel Remote Control Switch.
Encoding Type: Intelligent Learning Code.
RF Working Mode: Superheterodyne Reception.
Modulation Mode:ASK.
Working Mode: Momentary and Toggle.
Working Voltage: DC 12V.
Quiescent Current:5mA.
RF Frequency: 433MHz.
Signal Channel Working Current: ≤40mA/Dual Channel Working Current:(Self-locking Mode) ≤80 mA.
Quiescent Current:5mA.
Output Current: ≤10A.
Output Mode: Dry Contact/Voltage Output.
Receiving Sensitivity: >104dbm.
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Color: Green (PCB Board), White (Outside Shell).

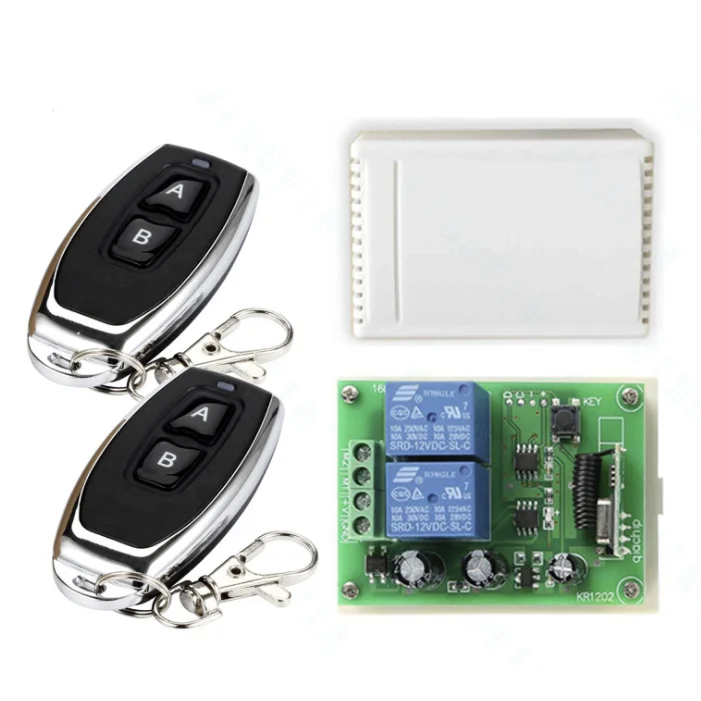

Package include:
Remote control *2pcs(include battery)

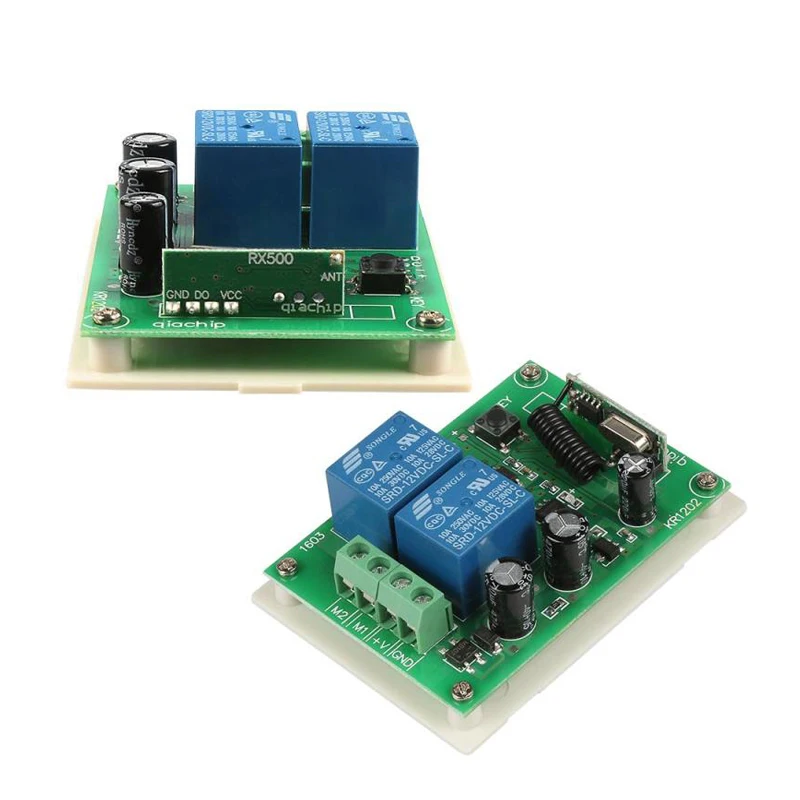

KR1202 Receiver module *1pcs(include Shell)
Operation instructions:
Deleting Existing Remote Controls Data:
Pressing 8 times the learning key button on the receiver board, the LED indicator on receiver board will turn off then turn on; It means that the existing remote controls are deleted successfully.
Momentary Mode:
1)Press once button (the learning key on the receiver board),
LED Indicator(on the receiver board) turns off. LED is off now, before it is bright.
2)Press"A"button, then press "B"button, LED Indicator(on the receiver board) turn on, it means that successfully setting "Momentary Mode".
Toggle Mode:
1)Pressing 2 times button (the learning key on the receiver board),
LED Indicator(on the receiver board) turn off. LED is off now, before it is bright.
2)Press "A" Button, then press "B" Button, LED Indicator (on the receiver board) turn on, it means successfully setting "Toggle Mode".
Toggle Mode 2:
1)Pressing 3 times button (the learning key on the receiver board),
LED Indicator(on the receiver board) turn off. LED is off now, before it is bright.
2)Press "A" Button, then press "B" Button, LED(on the receiver board) turn on, it means successfully setting"Toggle mode 2".
NOTES:
1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
2. Please promptly change battery when remote control voltage is insufficient(when the battery voltage is insufficient, generally get close transmitting).
3. Please pay attention to avoid metal mask, large equipment, strong interference electromagnetic filed when using wireless RF products, and avoid too short distance between the remote control and receiver board.
4. Please avoid abnormal using of the product. Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe.
Packaging & Shipping
FAQ
1Q. What is the delivery time? | ||
| 1A:depends on orders, delivery time is negotiable. | ||
| 2Q.If the products can't work after receiving it,what should I do? | ||
| 2A:We will replace new items for you. | ||
| 3Q.What if the goods broken on the way? | ||
3A.Dont be worried ,the package is strongly protected and if really broken by accident ,we will send again to you.
|
