LEJIANG YJ-125 круглая машина для резки ткани
US $10.00-$1000
Китай ультразвуковая ленточная тесьма машина для горячей резки
- Категории: Раскройная машина >>>
- Поставщик: Changzhou,Wujin,Dongnan,Machinery,&,Electrical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Ultrasonic cutting machine (ultrasonic cutting machine) is the use of ultrasonic welding technology and traditional shear combined in the ultrasonic generator work, the ultrasonic energy through the ultrasonic transducer to the welding head and die with a sharp vibration friction, So as to achieve the effect of cutting,so that cutting products with a more beautiful, more solid, more efficient and efficient production advantages.
1.Using ultrasonic shear,full of incision and beautifu,neat smooth cutting edges,burrs, not loose edge,excellent shear effect
2.The machine adopts PLC control automatic feeding,computer count,high precision, high speed,can adjust length and angle,automatic shearing,efficient,fast,beautiful incision and efficient,and can be multiple shear at the same time
3.used for gift belt,nylon belt,ribbon bar,bar shear straight knife,oblique knife,fish tail knife
4.Ultrasound frequency and power is decided by the cutting ribbon
5.Automatic ultrasonic cutting machine used in ribbon industry,
6.Cut the ribbon section,automatic sealing,no burrs
7.Using special integrated circuit control stepping motor drive,can be designed in advance cutting length,number of belt speed and continuous cutting.
| Supply power | 220v / 50HZ |
| Power | 2800W |
| Cutting speed | 100-180beats/min |
| Cutting length | 1-99999mm |
| Cutting width | 75mm |
| Cutting thickness | 1-4.5mm |
| Roller material | Stainless steel |
| Dinension | 980*110*530mm |
| Weight | 98kg |
| APpication material | Ribbon tape, silk ribbon, elastic tape,braided tape,ribbon, etc.woven belt,elastic band,nylon ribbon,zipper and other nylon material, color ribbon,backpack belt, shoelace, etc. water Mark, stickers, |

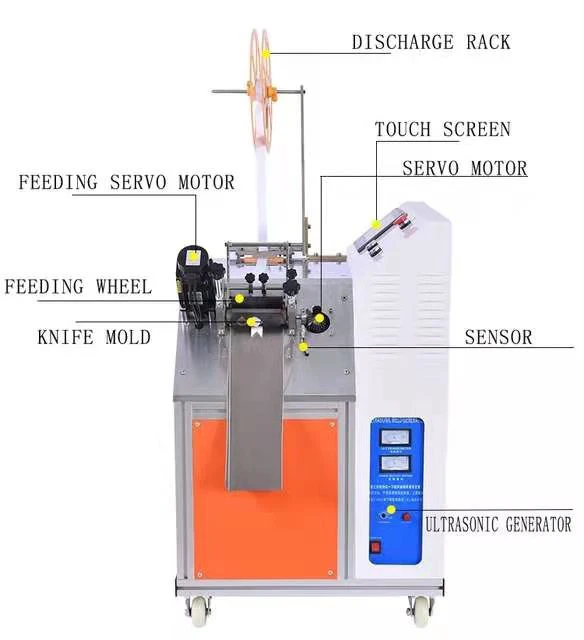

Ultrasonic cutting machine working characteristics
Fast - up to 150 times per minute.
Intuitive ---- PLC touch screen display.
Quality ---- automatic edge, not charred, not black, no flash.
Economy ---- low energy consumption, automatic cutting, saving labor, one person can operate more than one machine.

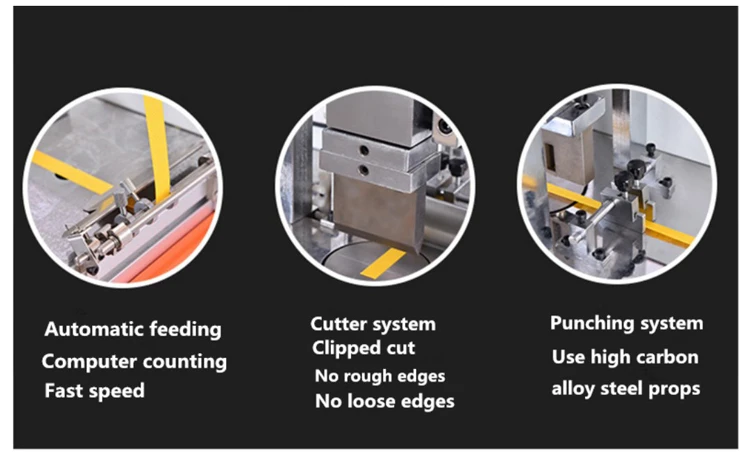

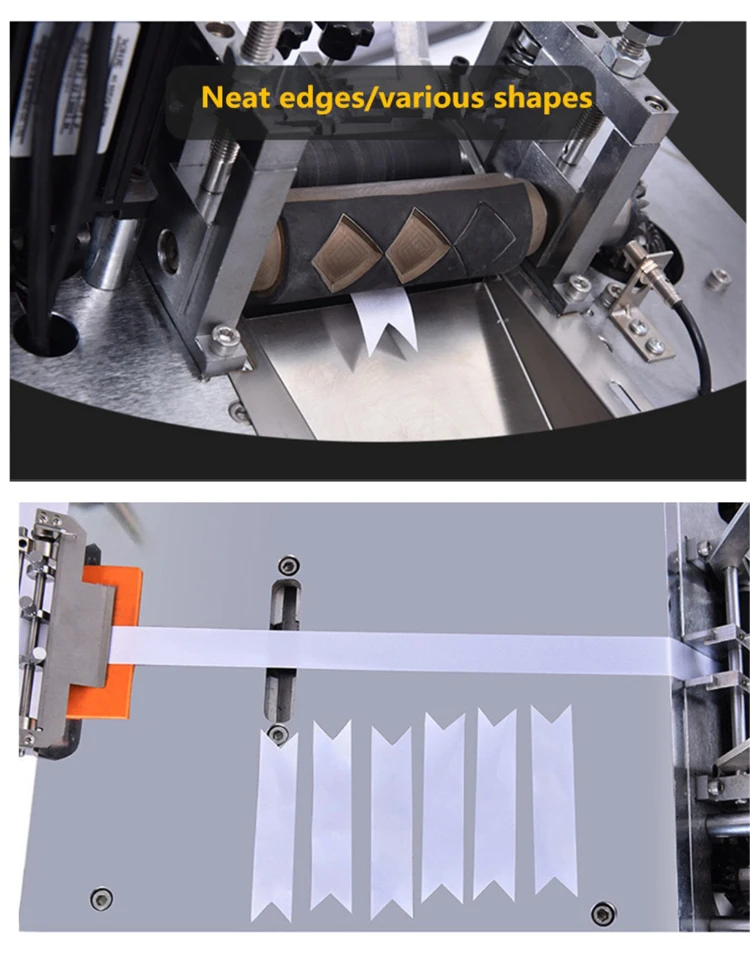

Product details

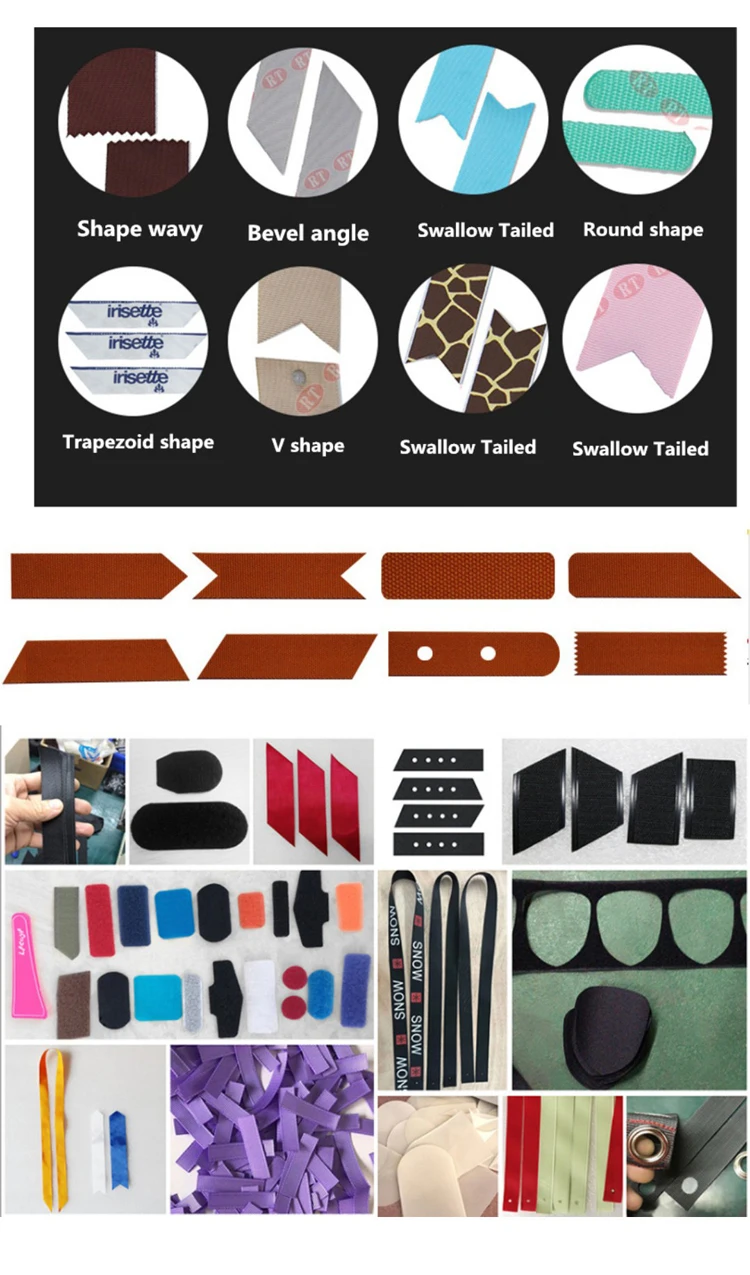

Applicable products
Company Profile
Changzhou Wujin Dongnan Machinery & Electrical Appliance Co.,Ltd. is one of the leading companies in manufacturing ultrasonic machines and hot air welding machines. Founded in 1994, Changzhou Wujin Dongnan Machinery & Electrical Appliance Co.,ltd. has more than two decades of experience in the design, research and manufacturing of ultrasonic machine, hot air seam sealing machine in strict compliance with ISO and CE standards. Our machines include: Ultrasonic Lace Sewing Machine, Ultrasonic Quilting Machine, Ultrasonic Surgical Gown Making Machine, Ultrasonic Spot Welding Machine, Ultrasonic Cutting Machine, Ultrasonic Non Woven Machine, Bouffant Cap Making Machine, Shoe Cover Making Machine, Hot Air Seam Sealing Machine, Hot Air Welding Machine etc. Also, we can design automatic machines with customer’s request.
With the superior technique in the field of machinery and software, our corporation has got a rapid growth in home-textile and apparel industries. And what’s more, our machinery enjoys many ready international markets including Europe, South America, Russia, India, Vietnam, Pakistan and Middle East countries etc. At Present, CR Machinery has gained a big and stable market share in domestic and international markets. The well going sales and after-sales service have been preliminarily set up. CR branded products will be available everywhere through the agents spread in the main countries in the near future.
Our brand CR, means Creative and Reliable. Our products will be your best choice!
Our brand CR, means Creative and Reliable. Our products will be your best choice!
Our Advantages
Exhibition
FAQ
Q:What about the mechanical quality?
A:You may rest assured that all of our machines have passed the inspection before they leave
the factory ,and we provide a one-year warranty.
the factory ,and we provide a one-year warranty.
Q:can the machine be used directly if you get it?
A:Yes,we are all debugged out of the factory,just need to plug in the power.
Q:How about the speed of logistics?
A:Domestic we use the way of logistics,we ship ferries abroad, also can choose to air.
Q:Can the pattern of machine's roller to be customerized?
A:Yes,our engineers only need pictures from you.
