Высокоточный прочный поршень для дозирования простое в эксплуатации длительный срок службы пневматический Малогабаритный двигатель полуавтоматическая машина розлива
- Категории: Pharmaceutical Filling Machine >>>
- Поставщик: Henan,Working,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MODEL | Optimal filling range | Voltage | Filling sped | Remark |
G100 | 5~100ml | 220V | 30 bottles/min Double head: 60 botles/min | |
G300 | 10~300ml | Electric current:1A | ||
G500 | 50~500ml | Power:10W | ||
G1000 | 100~1000ml | Rated air pressure:0.4~0.6MPa | ||
G2500 | 500~2500ml | |||
G5000 | 2000~5000ml |
Packing List | ||||
ITEM | Quantity | Packing quantity | ||
the Hopper | 1 | 1 carton | ||
Main body of filling machine | 1 | 1 carton | ||
Tools | 1 sets | |||
Sealing rings | 1 sets | |||
1.Is there any spare parts/wearing parts with the machine together?
A whole set of tools,and there is no wearing parts of this machine,but we will send a set of seal ring.
2.I want to use this machine to process my products,but I don't know whether it works.
This machine can deal with most kinds of paste,but if there are some Particulates in,please contact me to confirm.

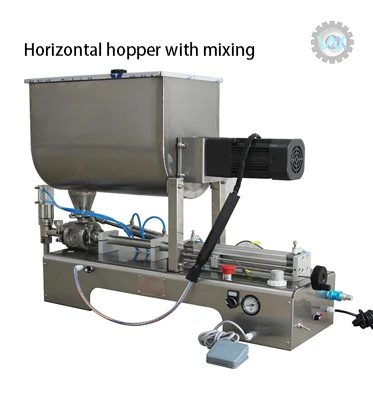

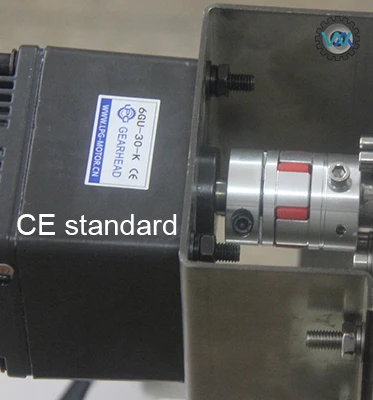

3.I have no idea about the Power of Mixing motor,please.
120w mixing motor can handle most of paste With Precipitation,Suspended matter,like chocolate,nut butter,Fruit juice.But if you have any confuse,please feel free to contact me.
4.Can you replace the material of contact parts?

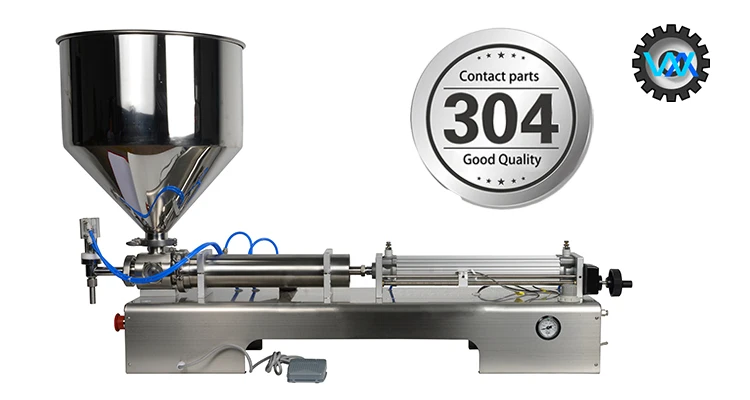

Yes,we can use 316 stainless steel to replace 304.
5.Can I choose the Diameter of Nozzle?
Sure,you can choose 3mm,4mm,6mm,8mm,10mm,12mm,14mm,one of these above.
6.The filling machine needs a Air compressor,can you recommend a type of Air compressor?
Just need a small one,Rated air pressure is 0.4~0.6 MPa.We sell Air compressor too,plaese contact us.

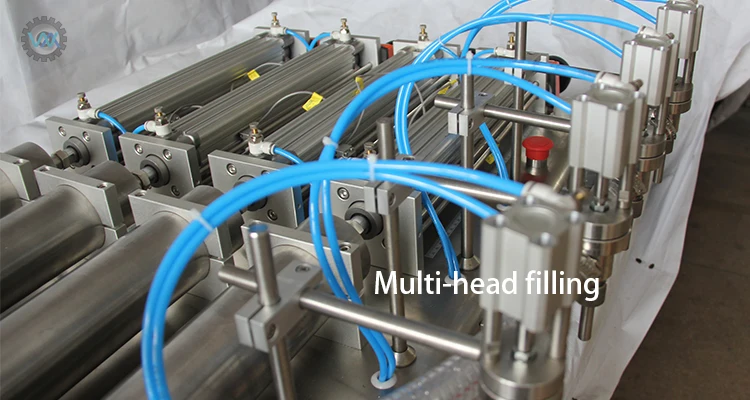

7.What is the difference between Double-head and normal one head filling machine?
The difference is filling speed.Double-head double speed.
8.I want to know the volume of hopper,please advise.
Volume is 30L,we can 40L,50L or other volume you need,please contact us.

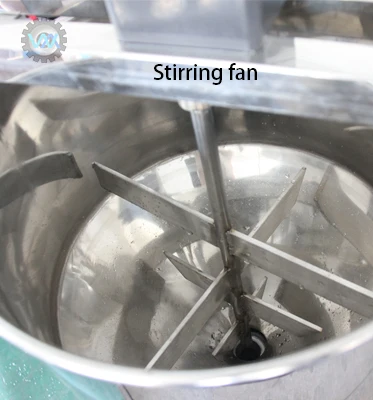

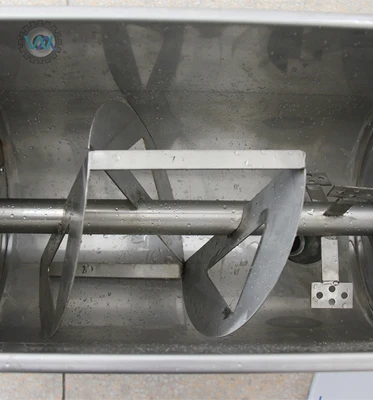

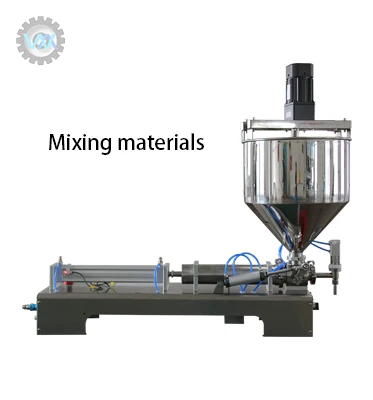

9.Under what conditions that the mixing is necessary?
If your product is Sticky or bad fluidity.
10.What is the difference between PASTE and LIQUID filling machine?
The paste filling machine has a hopper,two packages;
Liquid filling machine has no hopper,one package,but you can add one hopper if you need.
