Products Description

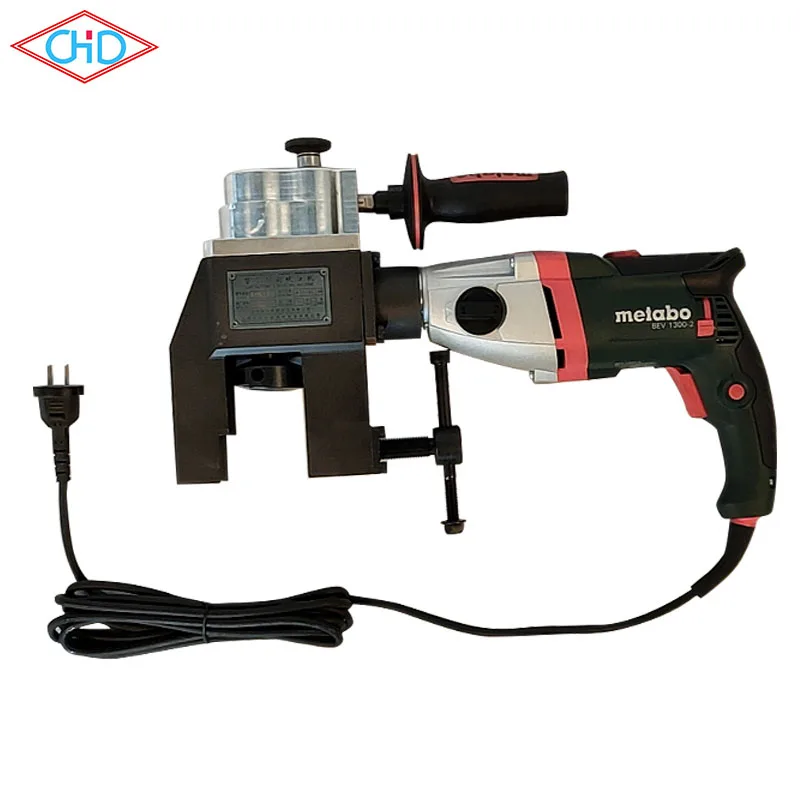

ISC-76 Iron Chain Steel Tube Cutting Beveler Machine for Beveling and Grinding
APPLICATION
Design based on ergonomics, adopt the lastest technology and best material to manufacture.Suitable for pipe beveling before welding materials cover common steel, stainless steel, Nonferrous metal, hard-plastic, etc. Widely used in power plant, shipyard, pertroleum and chemical industry, deal with pipe construction, upkeep and maintenance work. Through constant improvement, the products not only can replace traditional beveling mode by gas cutting and polishing, enhance work efficiency, reduce labor intensity, but also can improve welding quality.
FUNCTION
The installation is simple and convenient, groove assignment is fast. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter. As it adopts mechnical cutting groove method, it can keep the mechinical properties of material quality well. And it also could do flat-end, V, X, U shape beveling to the pipe. Thus, it could meet with all the requirements for butt welding.
FEATURES
1. Portable design
2. Work at any orientation in restricted areas

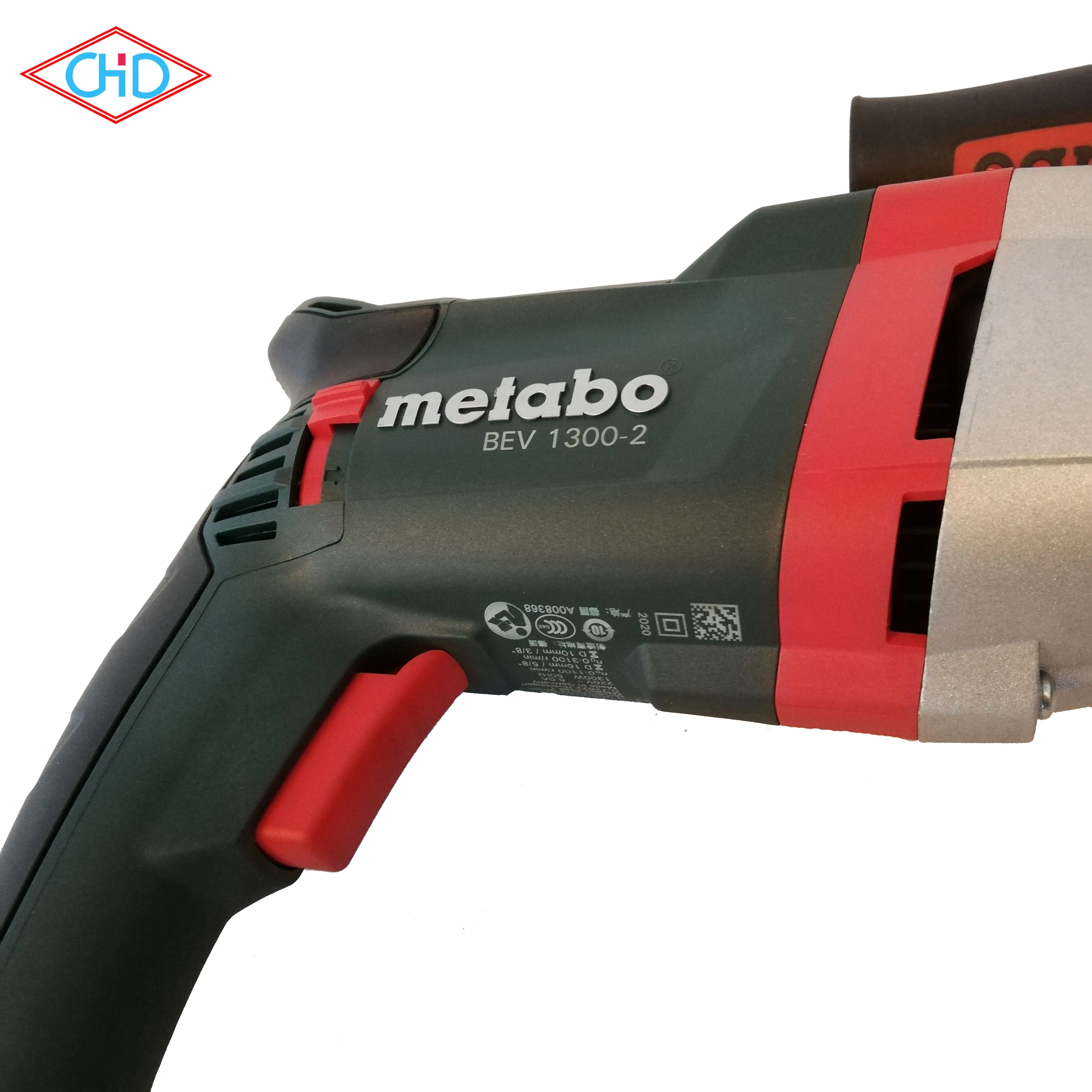

3. German metabo brand motor as the driving force
4. High torque, long life and high efficiency
5. Compact structure, especially suitable for small space and small pipe distance
6. Automatic feeding, rapidly finish feeding and retracting knife operation76. Easy and quick operation, self-fixed at the pipe center
7. High beveling speed and labour saving
ISC-76 Iron Chain Steel Tube Cutting Beveler Machine for Beveling and Grinding | ||||||||
DRIVE TYPE: ELECTRIC | Tight-Clip range(O.D.MM): 45-76 | |||||||
VOLTAGE: AC 220V | WALL THICKNESS(MM): 3-6 | |||||||
RATED FREQUENCY: 50/60HZ | NET WEIGHT(KG):11 | |||||||
REATED POWER: 1.1KW | Dimension(L*W*H/MM): 430*270*70 | |||||||

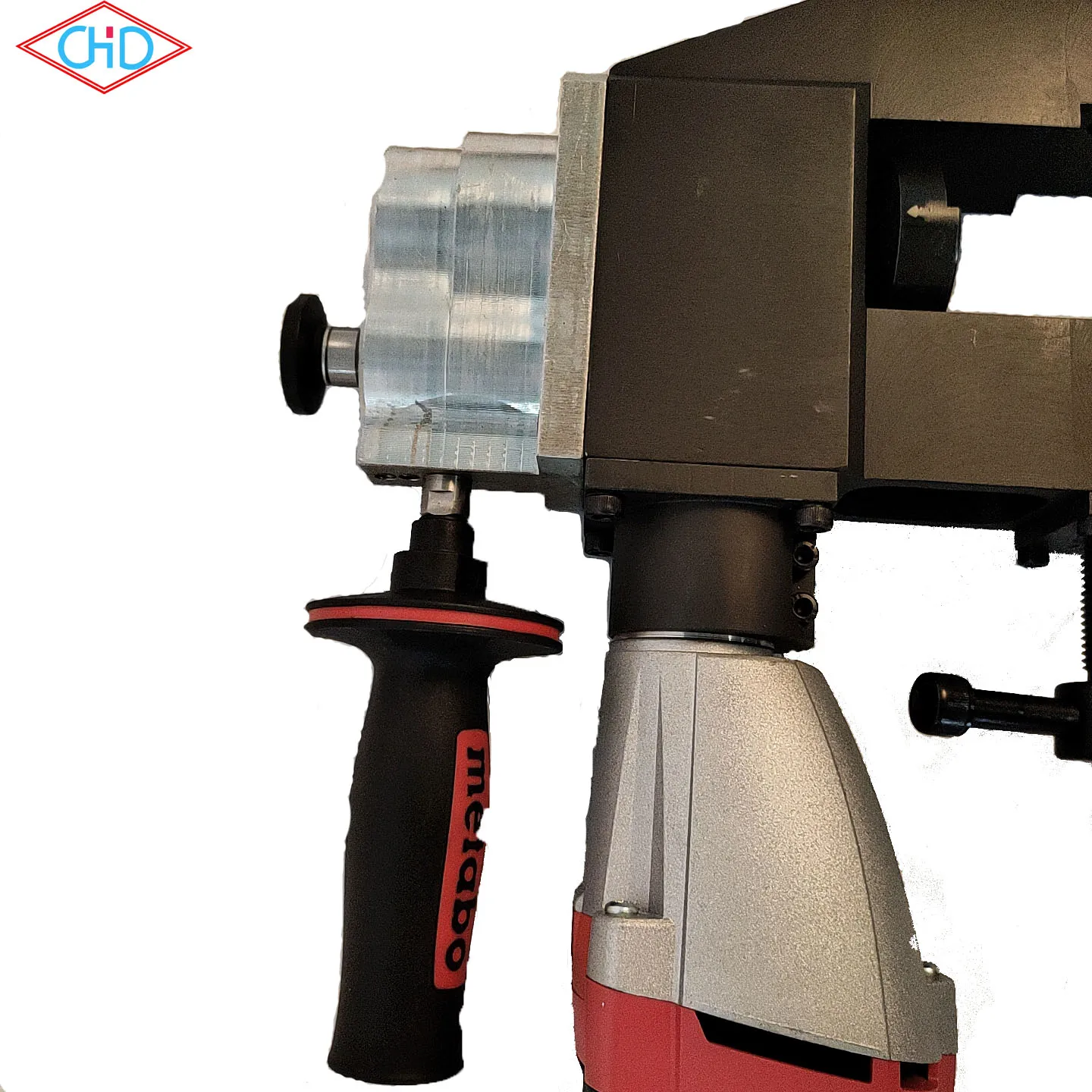

DETAIL IMAGES
Blades
Different blades could meet with all 0°-37° requirements of butt welding

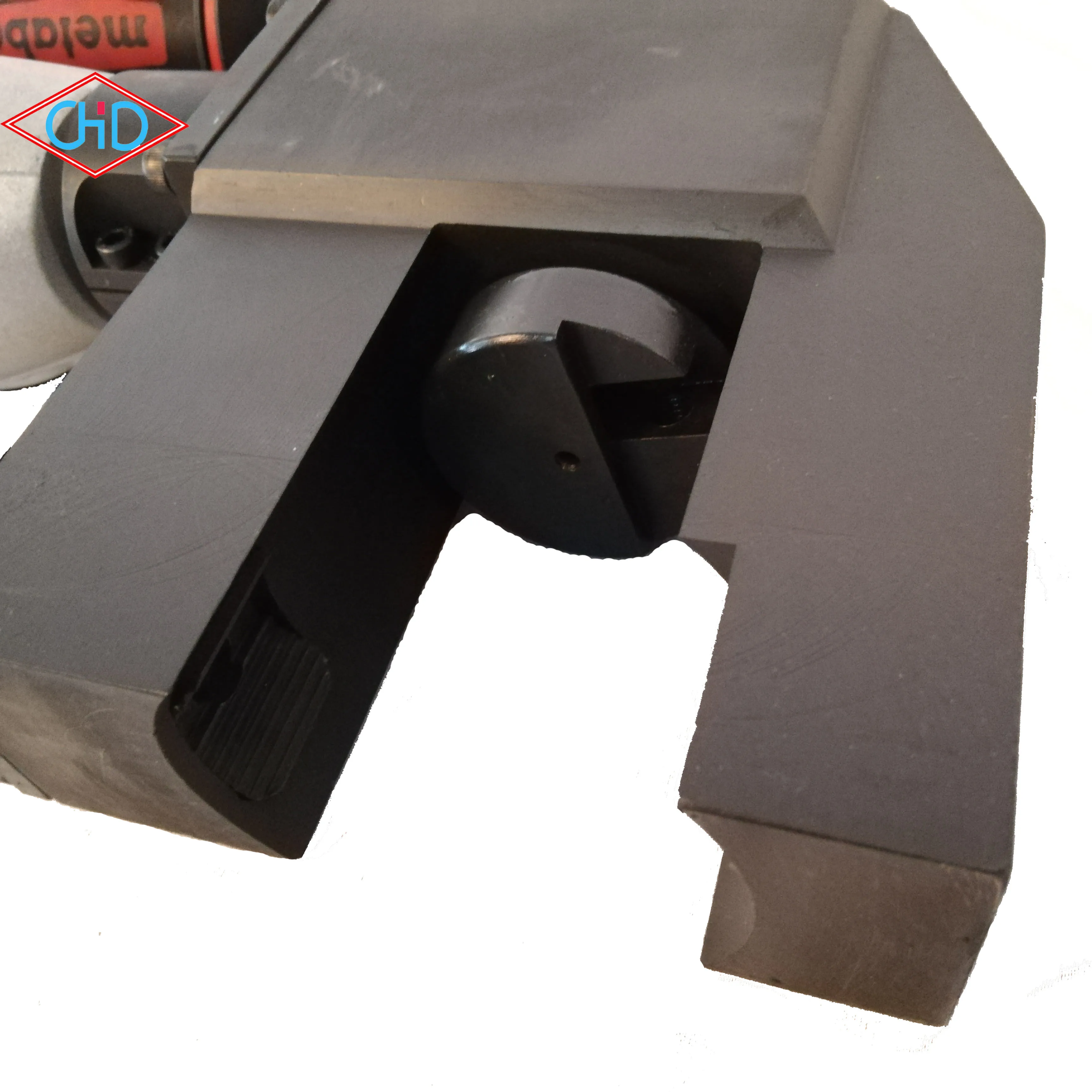

Expansion block
Different expansion blocks could meet with the big range of pipe diameters.

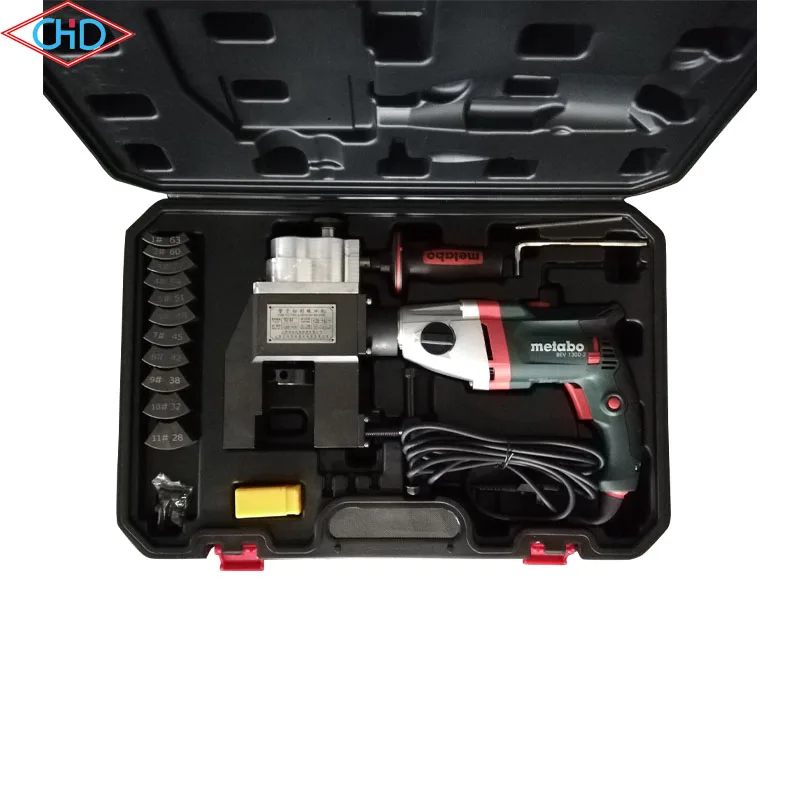

Product Package & Delivery process
Company Profile
WHY CHOOSE US?
Certifications
Exhibition
PRODUCTS ON-SITE
Transportation
FAQ
1) Are you Manuacturer?
RE:Yes.
2) How to choose a right model?
RE: Please let us know more details about the pipe, such as the I.D, O.D, the materials of the pipe, the environment of the site and the requirement of the end face, etc. These will help us to choose the right model for you immediately.
3) Do you have another choice about the driven?
RE: Of course. We have many choice for you to choose, such as electric, pneumatic, hydraulic, NC, etc.
4) Which type of beveling machine do you have?
RE: Internal expansion type, external installed type, plate beveling machine, desktop precision pipe cutting machine.
5) Do you support the special needs?
RE: Yes, we have many engineers. We could design it according to your need.
6) How about the payment term?
RE: 30% advance payment and balance payment before the shipment by T/T.
