Product Description




LUYANG CALCIUM SILICATE BOARD
LY-H calcium silicate insulation board is manufactured form xonotlite and reinforced fiber. It is entirely asbestos-free and non-poisonous to human body. LY-H board is a kind of high efficiency and energy-saving product, with the maximum heat-resistant temperature up to 1000 ℃ . LY-H calcium silicate insulation board has characteristics such as excellent thermal stability, corrosion resistance and convenient construction, can be widely used in industrial furnace insulation.


1.Small board: 595*595mm /600*600mm /603*603mm /595*1195mm /600*1200mm
2. Big board: 1200*2400mm /1220*2440mm /1220*3050mm
3.Thickness: 4.5, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (3.5-30mm)


Specification


Description
LY-H CALCIUM SILICATE INSULATION BOARD
Maximum Use Temperature (℃ )
1000
Chemical Composition (%)
(%)
SiO2
46-48
CaO
39-41
Al2O3
0.39-0.42
MgO
0.5-0.7
Color
White
Density (kg/m³)
230±10%
250±10%
270±10%
Modules of Rupture (MPa)
≥0.45
≥0.50
≥0.55
Compressive Strength (MPa)
≥0.75
≥0.85
≥0.95
Permanent Linear Shrinkage (%)
1000℃ x16h≤2.0
Thermal Conductivity (W/m·K)
100℃
≤0.065
≤0.067
≤0.072
200℃
≤0.075
≤0.077
≤0.082
400℃
≤0.091
≤0.096
≤0.103
600℃
≤0.132
≤0.136
≤0.138




Characteristics:
1.Good durability, can bear high temperature within the limit of continuous heat load.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.

Application:
It is widely used in power plants, petrochemical plants, pipeline systems equipment, as well as heating pipe network system and non-corrosive to stainless steel.

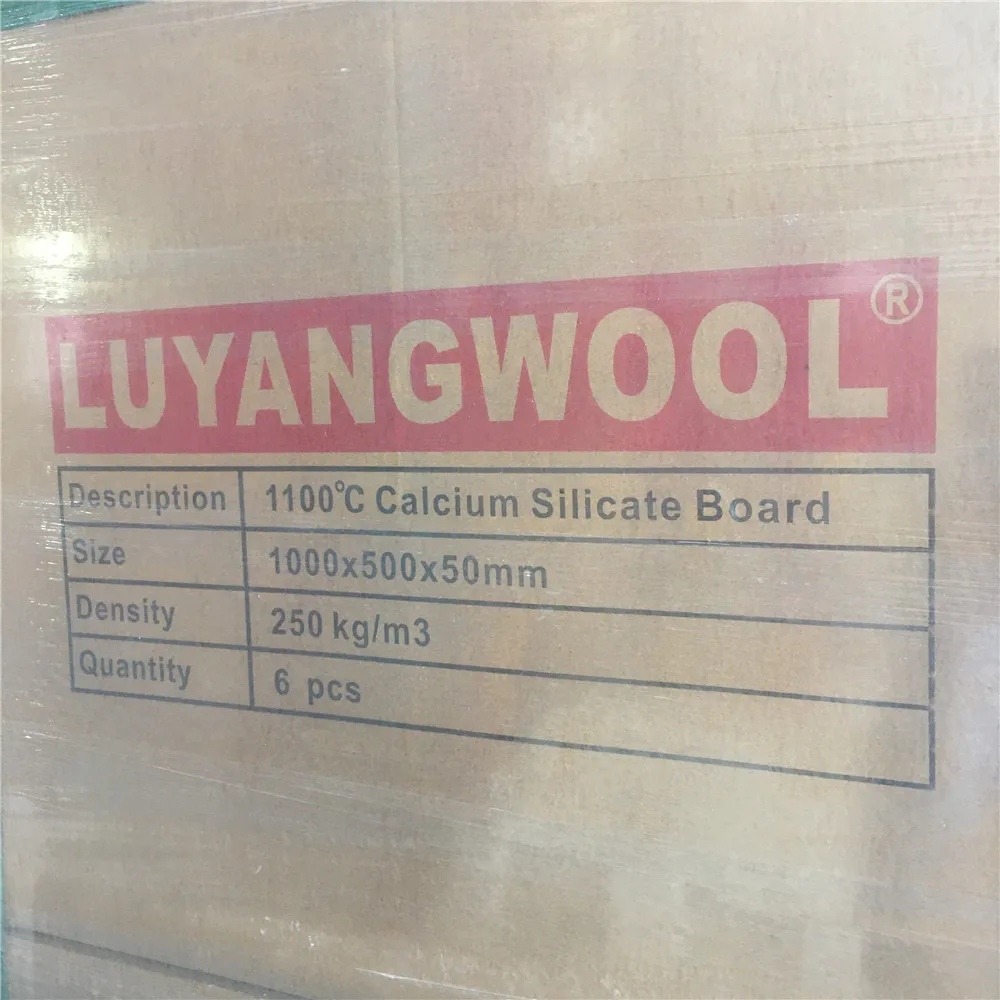

Packing & Delivery




Package: inner plastic bags,outer cartons and pallet with heat shrinkable film.
We also supply OEM service, the package can be designed according to your requirements.
Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.




Company Profile




Luyang Energy-saving Materials Co., Ltd. was established in 1984. Going through more than 35 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers, soluble fibers, alumina fibers, rock wool fibers and insulating firebricks.
Luyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou.




Exhibition






We participate in more than 20 exhibitions at home and abroad every year. Through the exhibitions, we introduce our company's culture, our products and services we can provide, such as technical support, on-site construction support, etc.






Luyang technology center has more than 60 professional researchers, identified as provincial technology center in 2007 and became national-recognized enterprise technology center in 2012. Luyang has 126 patents and 54 scientific and technological achievements.


Certifications






LUYANG has Official certifications including ISO, SGS, AEO, REACH, CE ASTM, ect,.


Our service








FAQ


1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
