CR-C common rail injector tester for all common rail injector and Piezo injector testing.
CR-C high-pressure common rail injector controller function is to mimic the engine ECU (Engine Control Unit), while providing, Denso, Delphi and other common-rail system control signal to drive the high-pressure common rail fuel injection pumps and high-pressure common rail device to work, drive signal parameters users can set their own situation, and saved in groups, to facilitate the maintenance staff working on high-pressure common rail system and maintenance of the state to judge.
Kindly Note: CR-C common rail injector tester is only for electromagnetic injector, it's not with piezo function .
Product Description
Common rail injector tester
CR-C

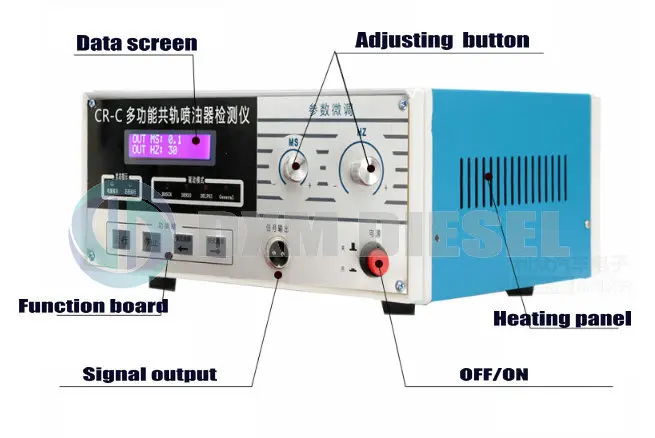

CR-C Common rail injector tester is a easy operated tool , could do the test with the injector hand pumps. It's small size and light weight, could meet the requires from repairman on the simple device of testing .
Good cooling system
Back of the CR-C tester
Specification
Items | CR-C |
function | Test atomization effect, pilot injection, discharge point and full load point. |
Type of the motivation | BOCH,DENSO,DELPHI, modes made in China and general |
Max. pulse width | 10MS |
Max. frequency | 30HZ |
power | AC110~240V 50Hz |
Operating temperature | -30——70C° |
Packing size | 110*250*190mm |
weight | 5kg |

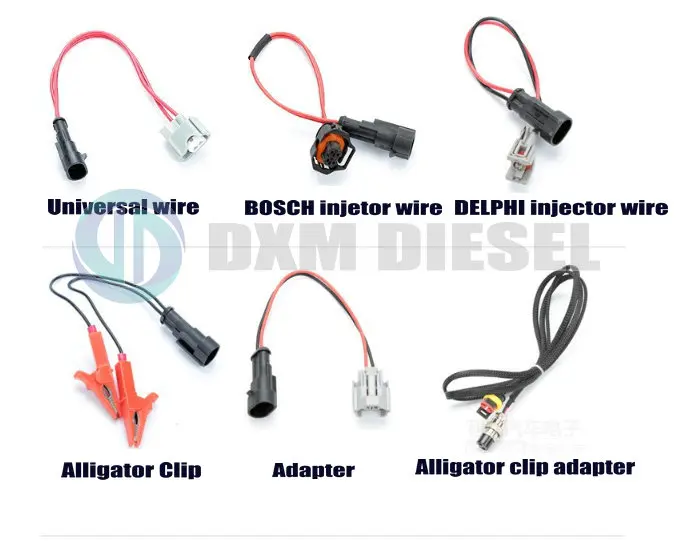

Packing List | ||
CR-C Main Unit Machine | 1pcs | |
For bosch connector | 1pcs | |
For delphi connector | 1pcs | |
For denso connector | 1pcs | |
Cable Clip connector | 1pcs | |
Fuse | 3pcs | |
Manual | 1pcs | |
