Concrete Pumping Machine, Portable Concrete Pump, Small Concrete Pump :



Product Description

1 Features :

1.1 This machine adopts mature hydraulic propulsion technology, pump truck principle and revolutionarily uses inclined lifting layout template components,completely solves the shortcomings of the previous secondary structured column pump, such as bulky volume, fast worn, easy pipe plugged and difficult maintenance,it also has powerful effect and excellent performance, it has won the favor of customers after launched to market,.


1.2 The machine has small size (1700x650x110mm) and light weight (360kg), it is not only flexible and convenient to move, but also has no dead pumping.





1.3 Full hose conveying, flow rate is up to 7M3/hour,the machine has a back suction function,when moving the pipe,the material can be sucked back and the empty pipe can be moved more easily,no debris flowing out during the working process





1.4 This machine is safe and convenient to operate, all switch buttons use 24V safety voltage, double control type (remote control and manual).





1.5 Lifting hopper, when moving, the hopper rises. When working, the hopper is placed on the ground so that the materials truck can directly pour the material into the hopper, which saves the labor of feeding.





1.6 Imported motor oil pump control system, anti-phase missing, anti-inversion, anti-leakage, eliminate motor burning.








2 Technical Specifications :



















































HT-CP7 Electric Concrete Pump



Pumping Capacity



7 M3/Hour



Electricity (Voltage/Hz)



Customized



Power



3.75 Kw



Radiator



Air Cooling



Plastering Distance



Vertical: 15 m



Horizontal: 25 m



Max Aggregate Diameter



25 mm



Conveyer Pipe Diameter



75 mm



Weight



360



Dimension



1700x650x1100mm

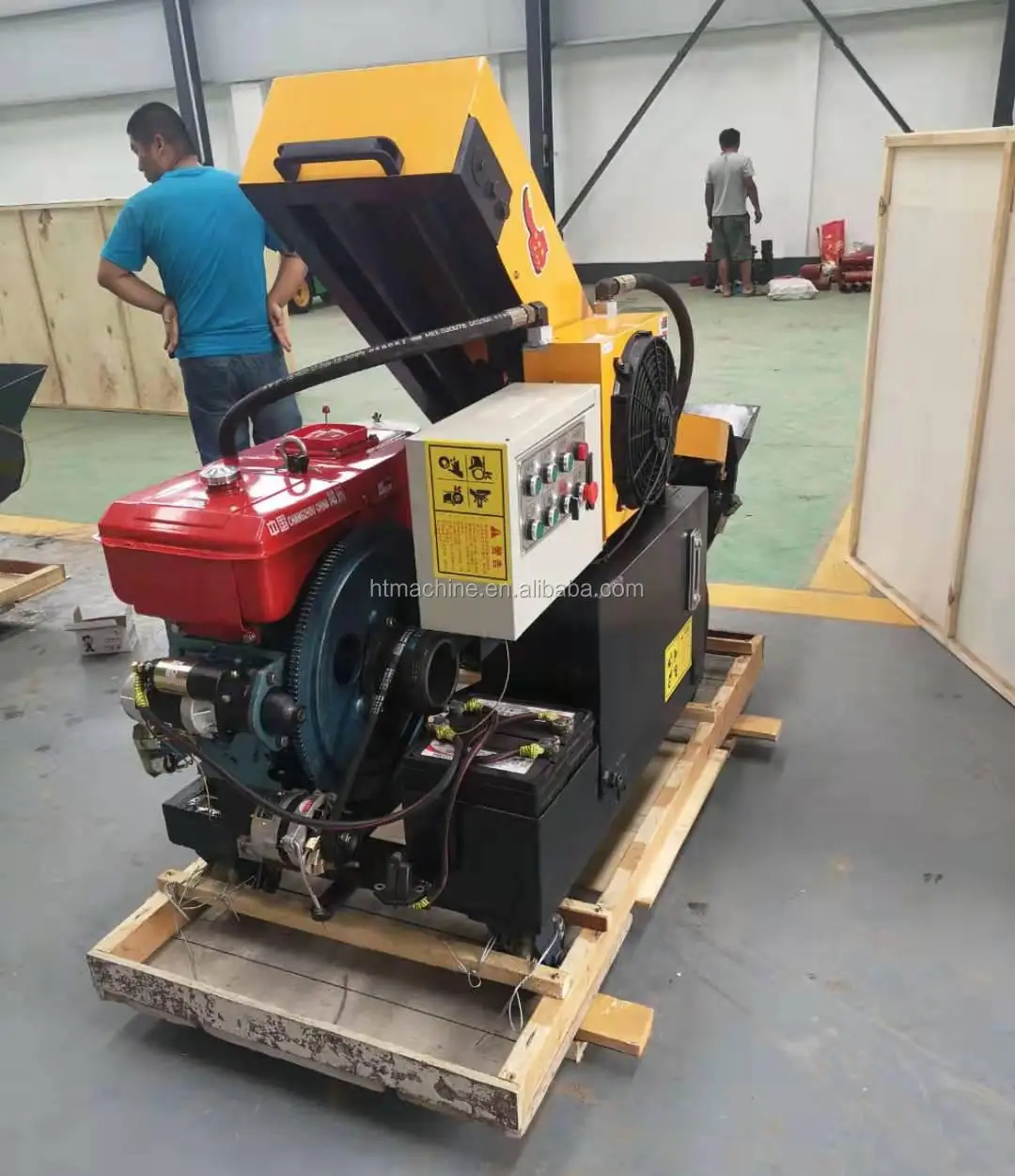

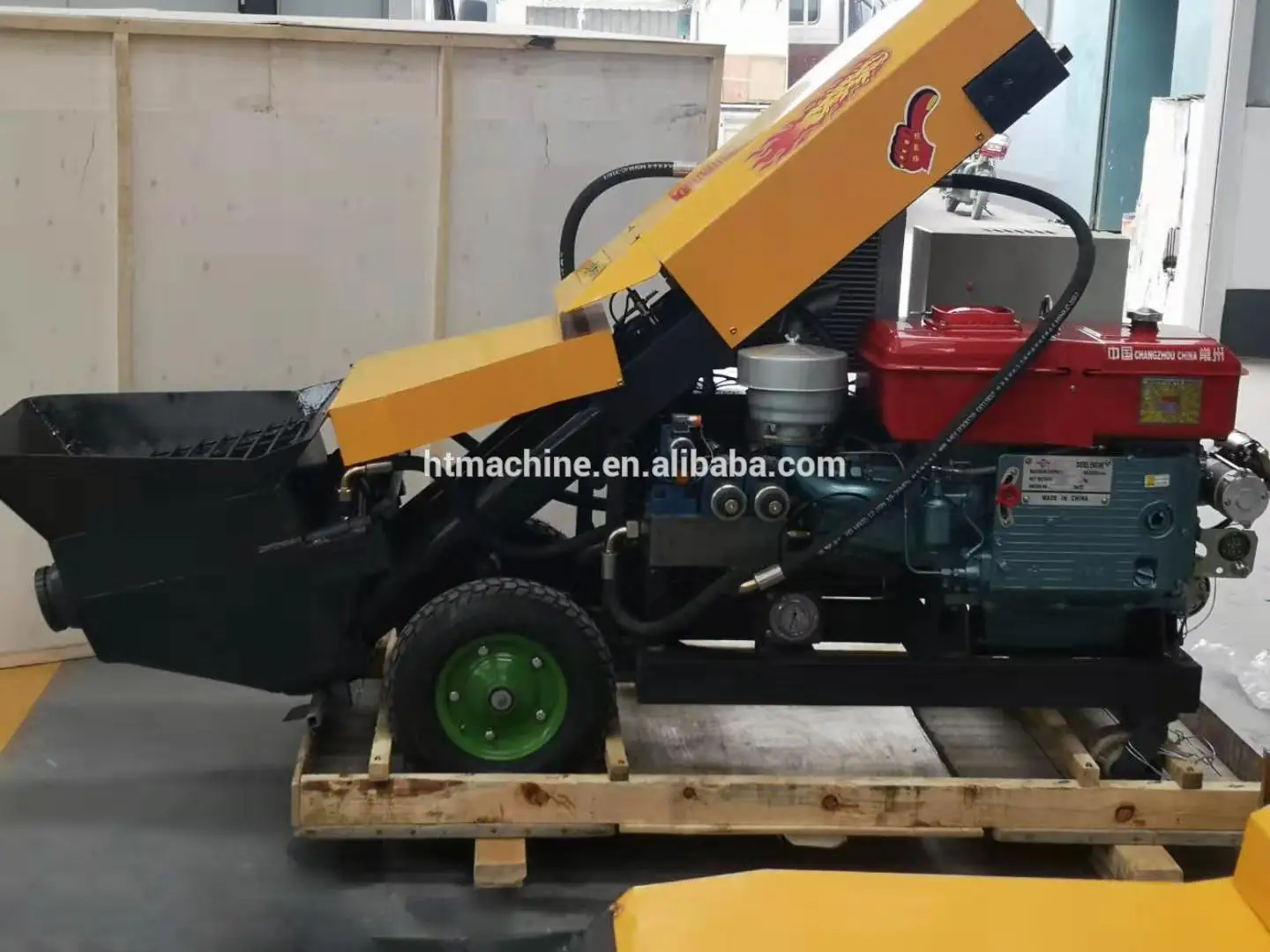

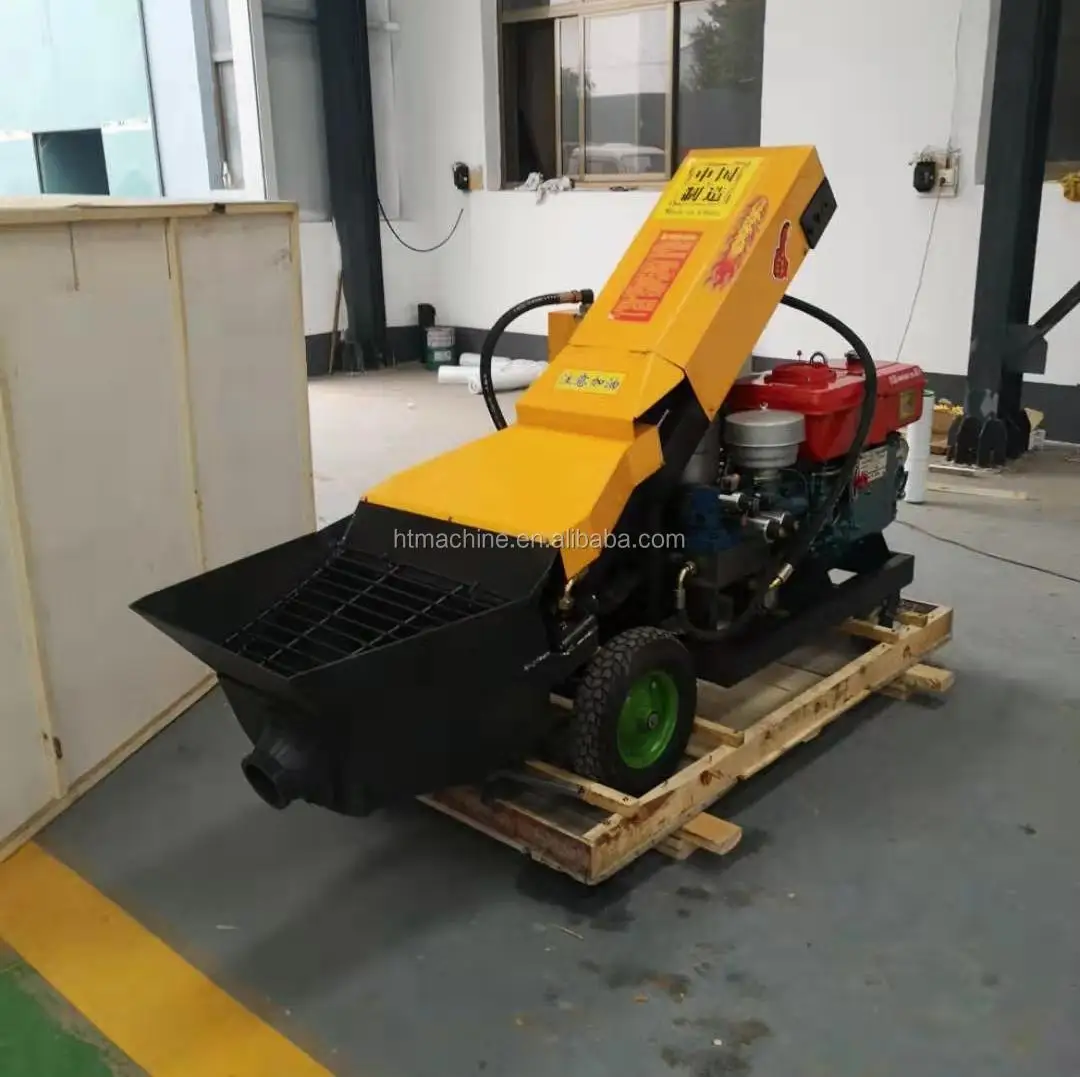

HT-CP7 Diesel Concrete Pump



Output



7 M3/Hour



Theoretically Pumping Distance



horizontal



60 M



Vertical



20 M



Material Feed Height



0.7 M



Diesel Engine Power



25 Hp



Max Aggregate Diameter



30 Mm



Conveying Pipe Diameter



80 Mm



Work Pressure



10 Mpa



Max Work Pressure



18 Mpa



Weight



700 Kg



Dimension



1750 x 750 x 1000 mm























FAQ






































1 How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.
2 About the delivery time.
Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order.
3 About warranty.
We provide 12 months for warranty.
4 Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.
5 How about the service?
Provide overseas installation, debugging and training the relating work .
